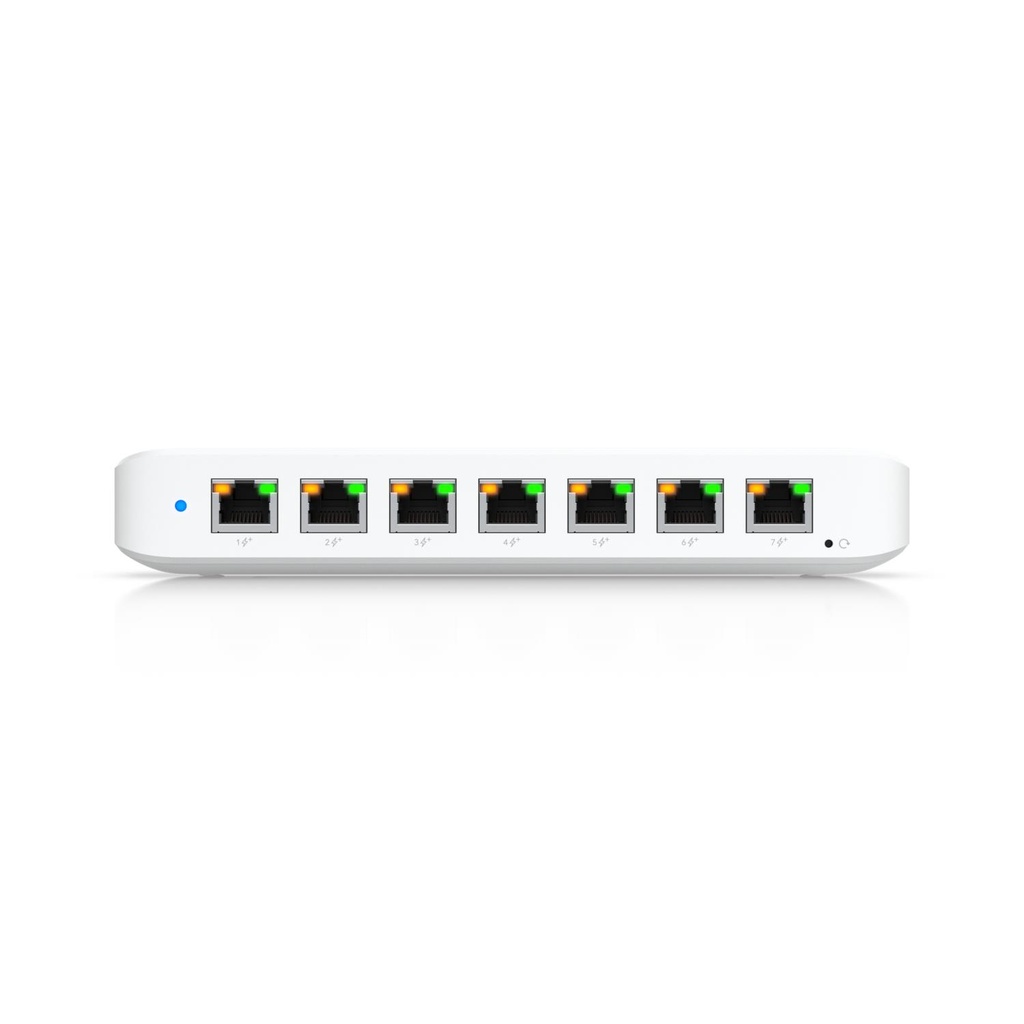

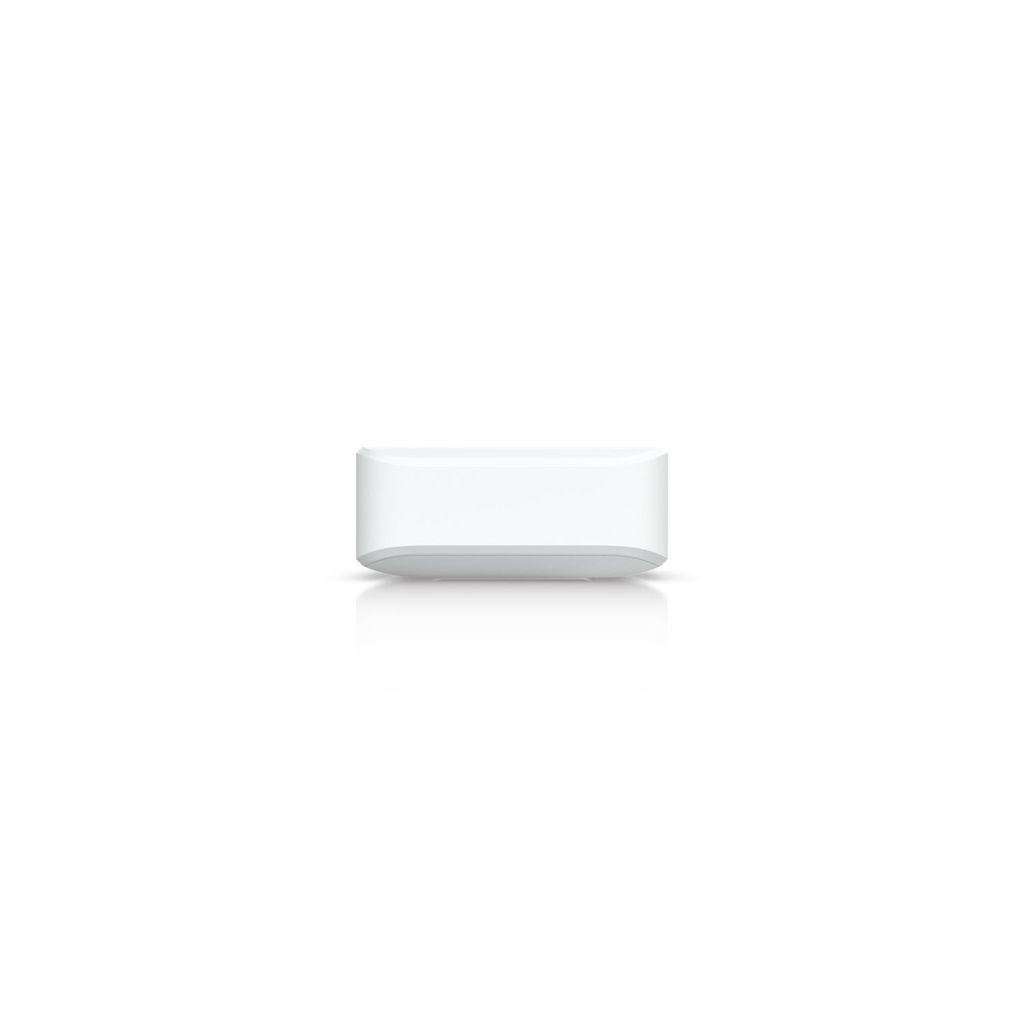

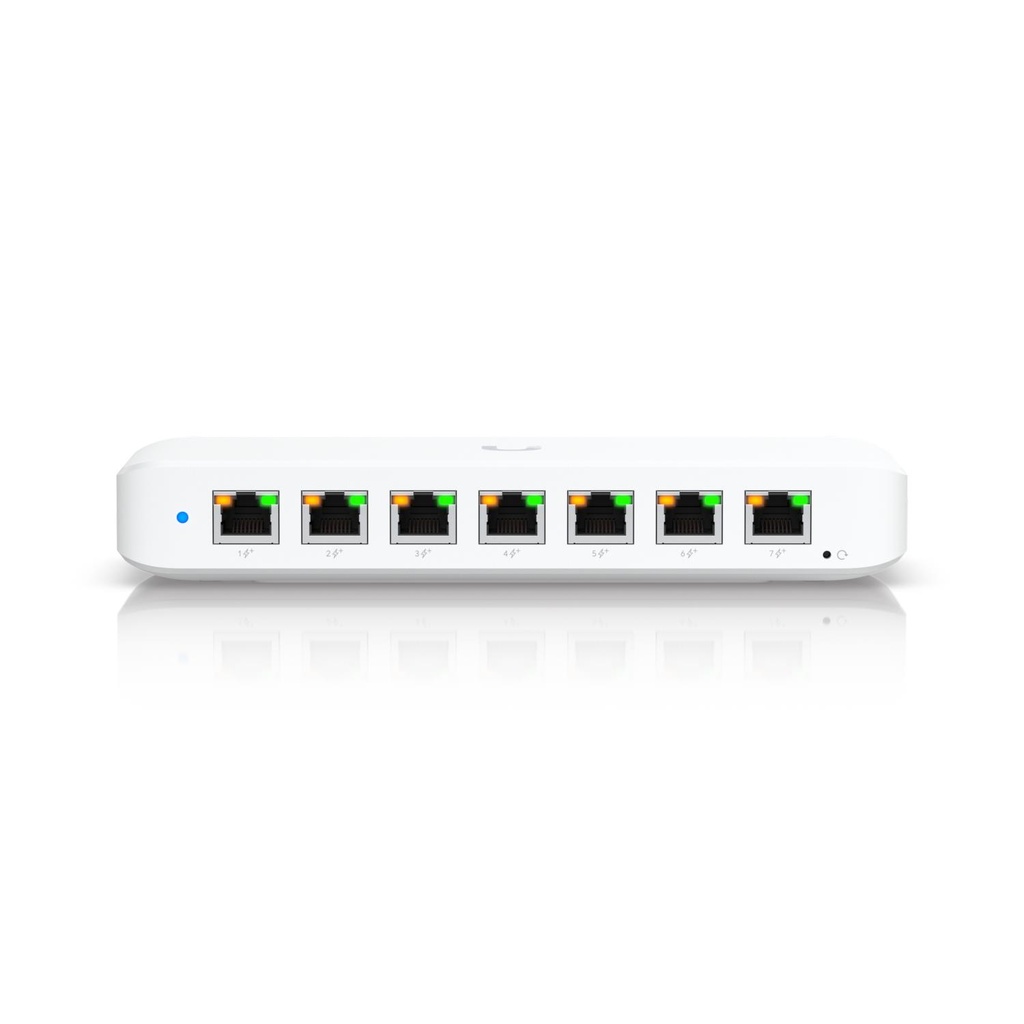

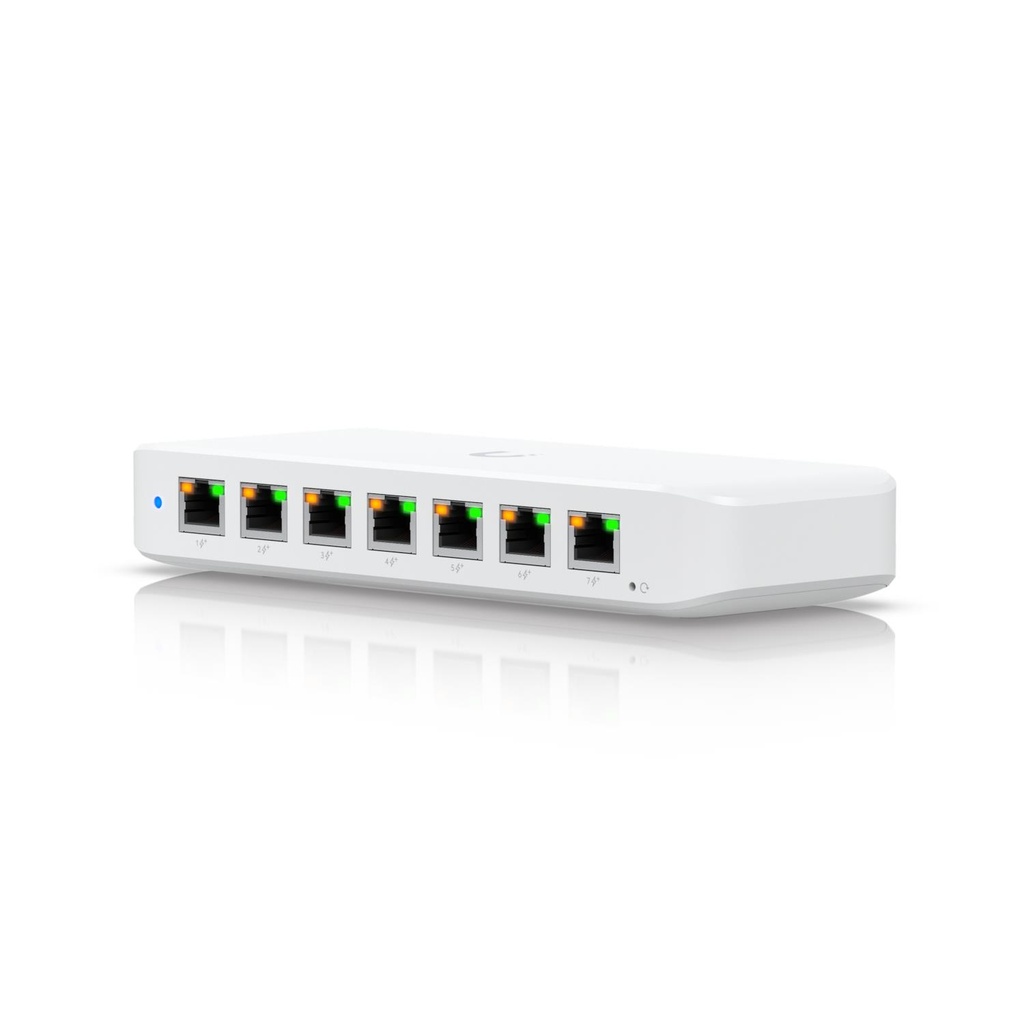

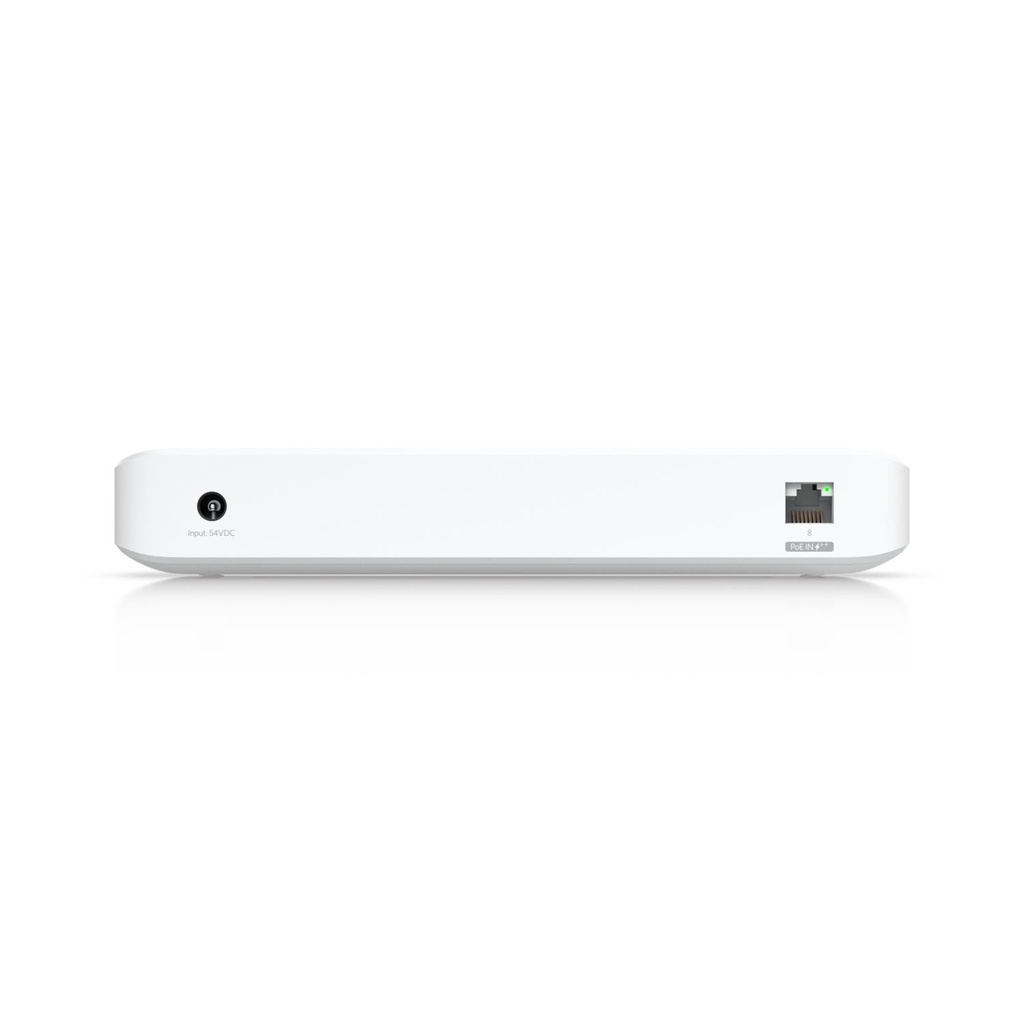

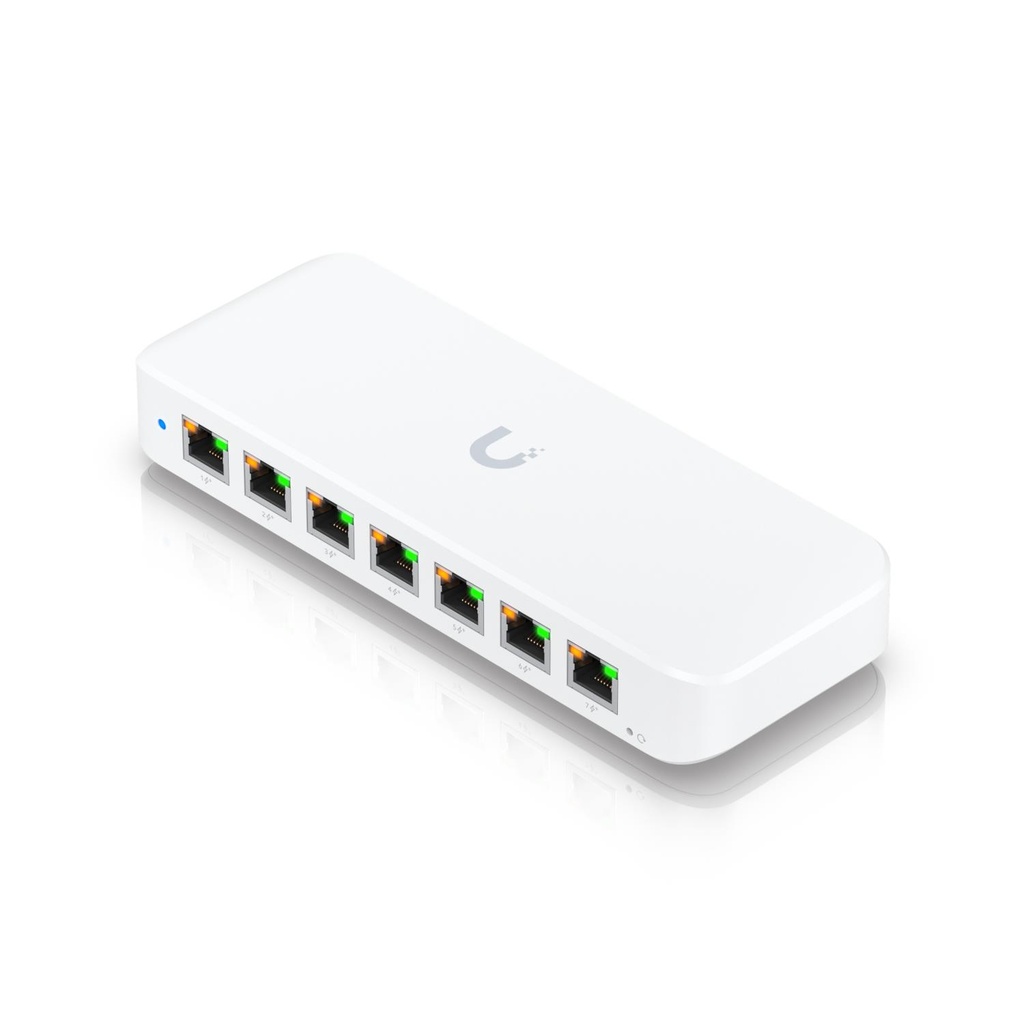

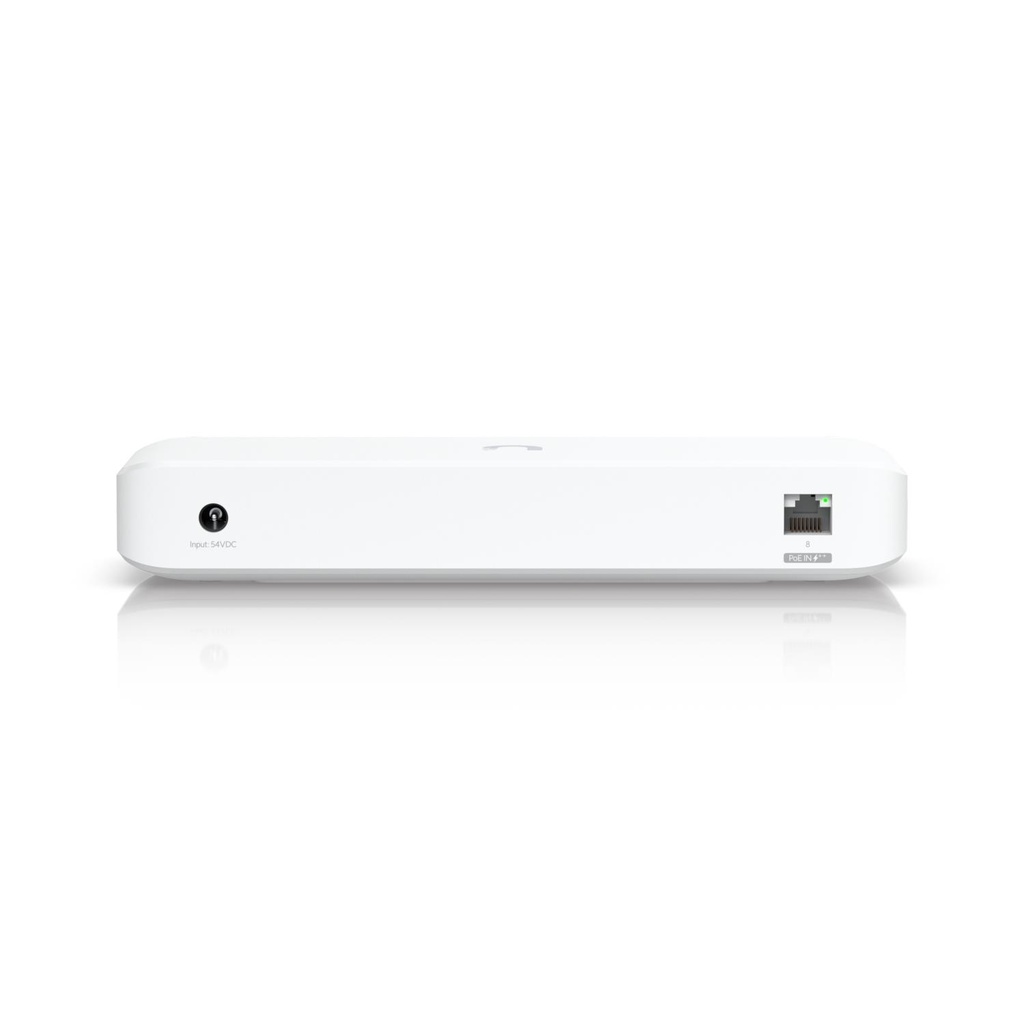

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
- (7) GbE PoE+ output ports
- (1) GbE PoE++ input port
General
| Unit Calculated Weight | 0.515 kg |
| Unit Calculated Volume | 0.001568 cubm |
| Units per Shipping Box | 20 |
| Summary | Ubiquiti Ultra. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 16 Gbit/s. DC input voltage: 44 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.095 |
| Model name | USW-Ultra |
| Series | Ultra |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
Network
| 10G support | No |
Data transmission
| Switching capacity | 16 Gbit/s |
| Throughput | 8 Gbit/s |
Design
| Housing material | Polycarbonate (PC) |
| LED indicators | Activity/Link/PoE/Status |
| Product colour | White |
| Rack mounting | No |
| Reset button | Yes |
| Wall mountable | Yes |
Power
| DC input voltage | 44 - 57 V |
| Input current | 1.1 A |
| Power consumption (max) | 9 W |
| Power source | DC/PoE |
| Power supply included | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 7 |
| Total Power over Ethernet (PoE) budget | 42 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Depth | 76 mm |
| Height | 33 mm |
| Weight | 320 g |
| Width | 203 mm |
Packaging content
| Manual | Yes |
Certificates
| Certification | CE, FCC, IC |
