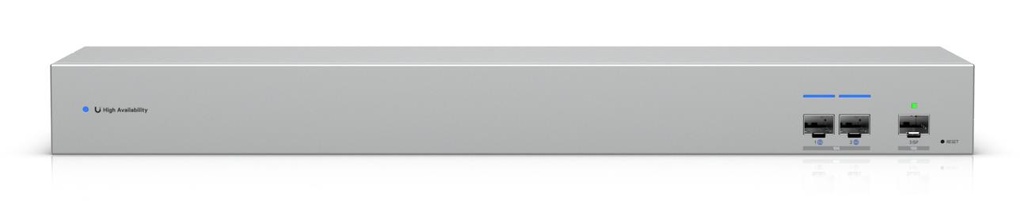

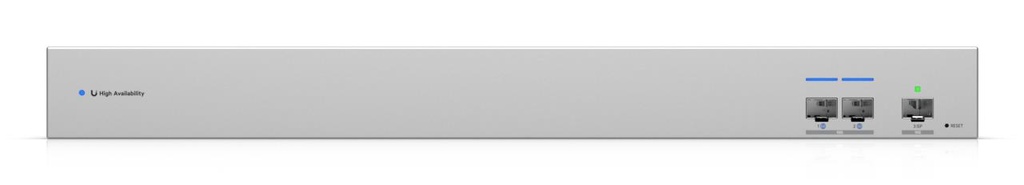

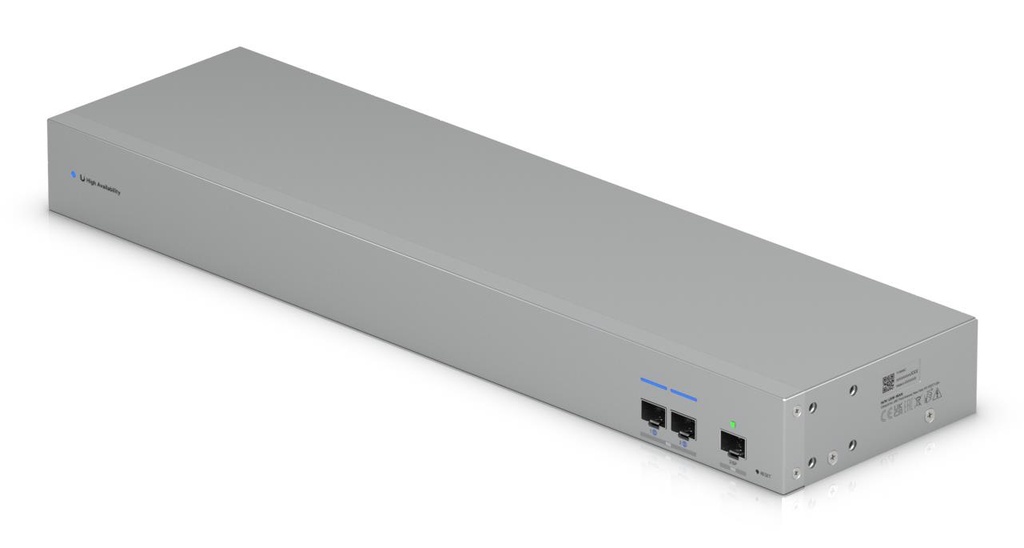

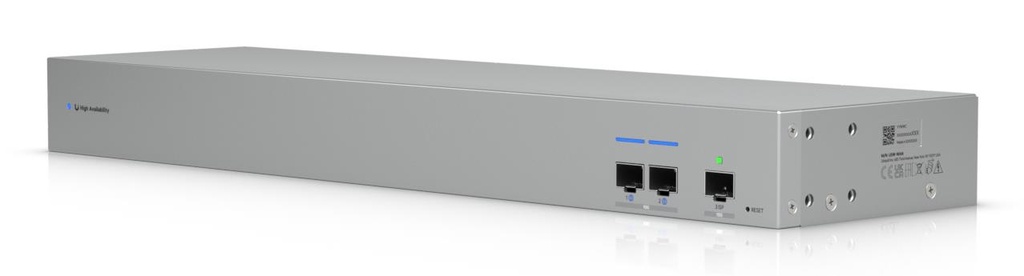

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
General
| Unit Calculated Weight | 3.63 kg |
| Unit Calculated Volume | 0.01704 cubm |
| Units per Shipping Box | 4 |
| Summary | Ubiquiti UniFi WAN Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1. Switching capacity: 20 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.535 |
| Unit Box Width | 0.107 |
| Model name | WAN Switch |
| Model | USW-WAN |
Ports & interfaces

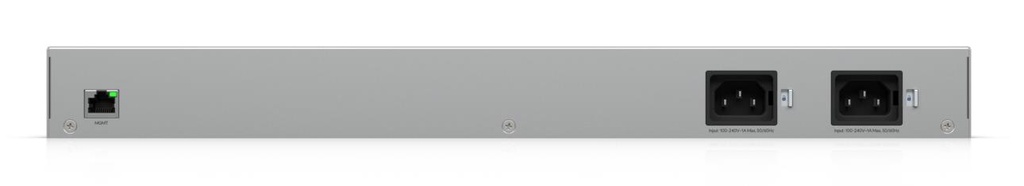

| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power cables quantity | 2 |
| Power connector | AC/DC |
| SFP+ module slots quantity | 3 |
Network
| 10G support | No |
Data transmission
| Forwarding rate | 15 Mpps |
| Switching capacity | 20 Gbit/s |
| Throughput | 10 Gbit/s |
Design
| Form factor | 1U |
| Housing material | SGCC |
| LED indicators | Network/System |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 13 W |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 120 mm |
| Height | 43.7 mm |
| Weight | 2200 g |
| Width | 442.4 mm |

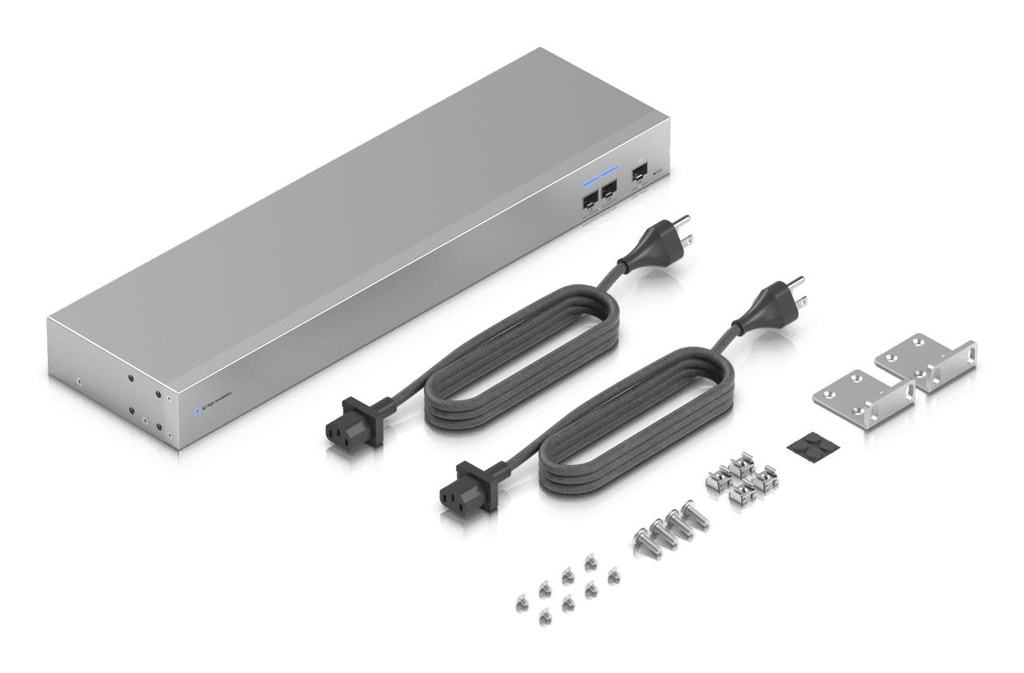

Packaging content
| Cables included | Power |
| Rack mount kit | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
