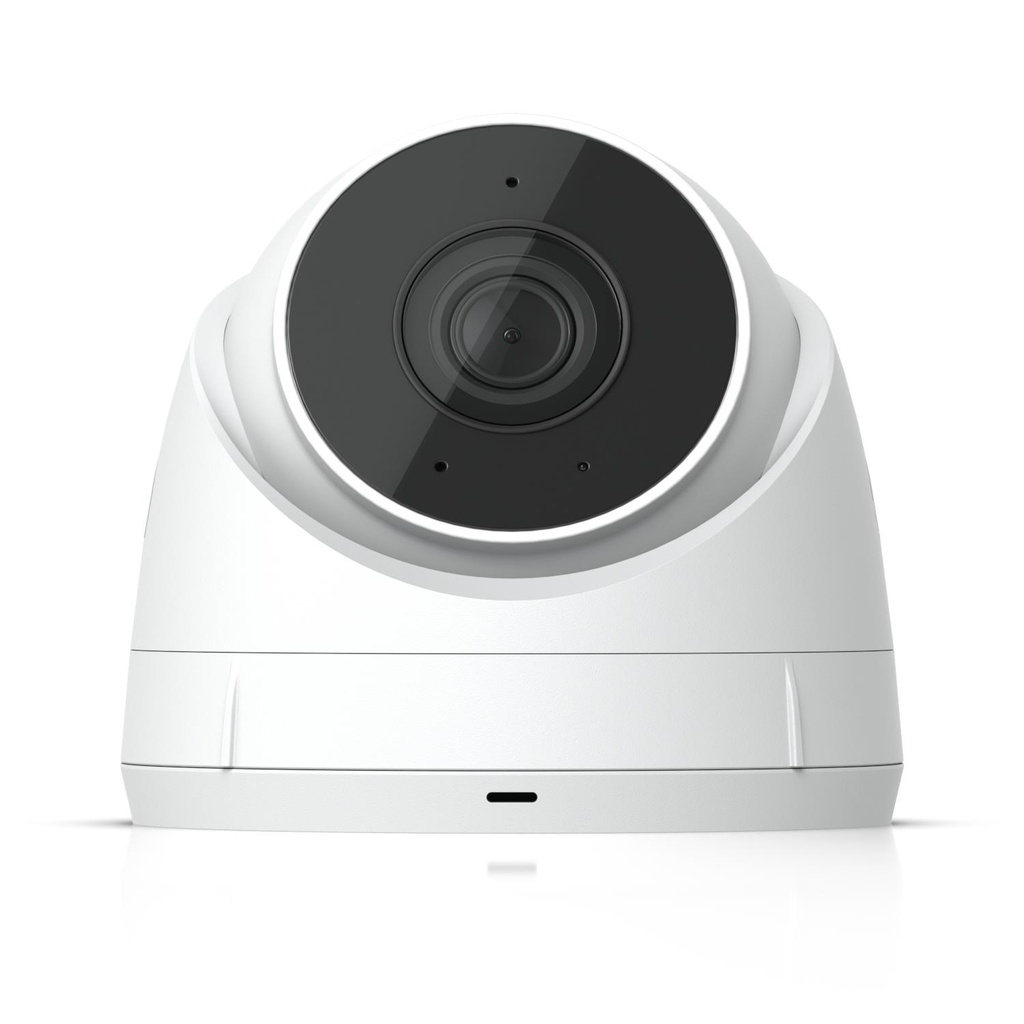

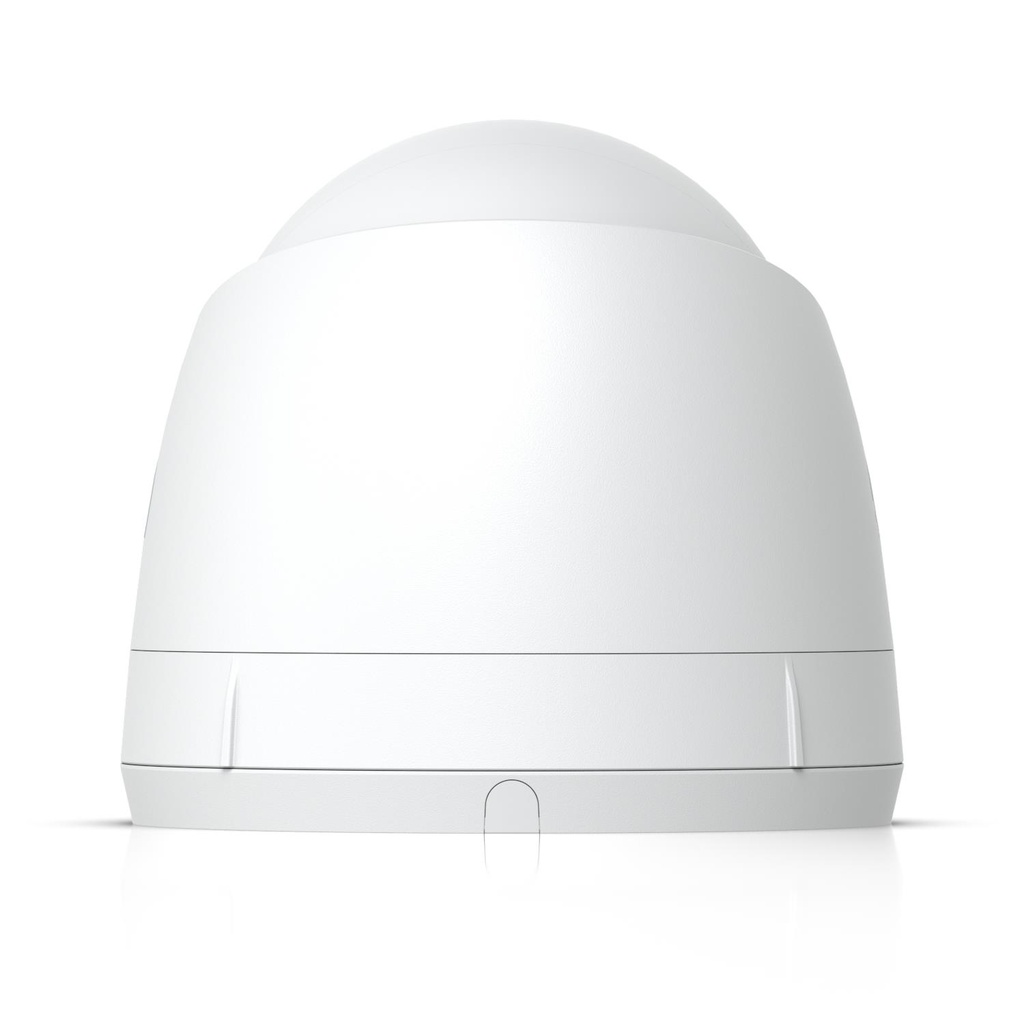

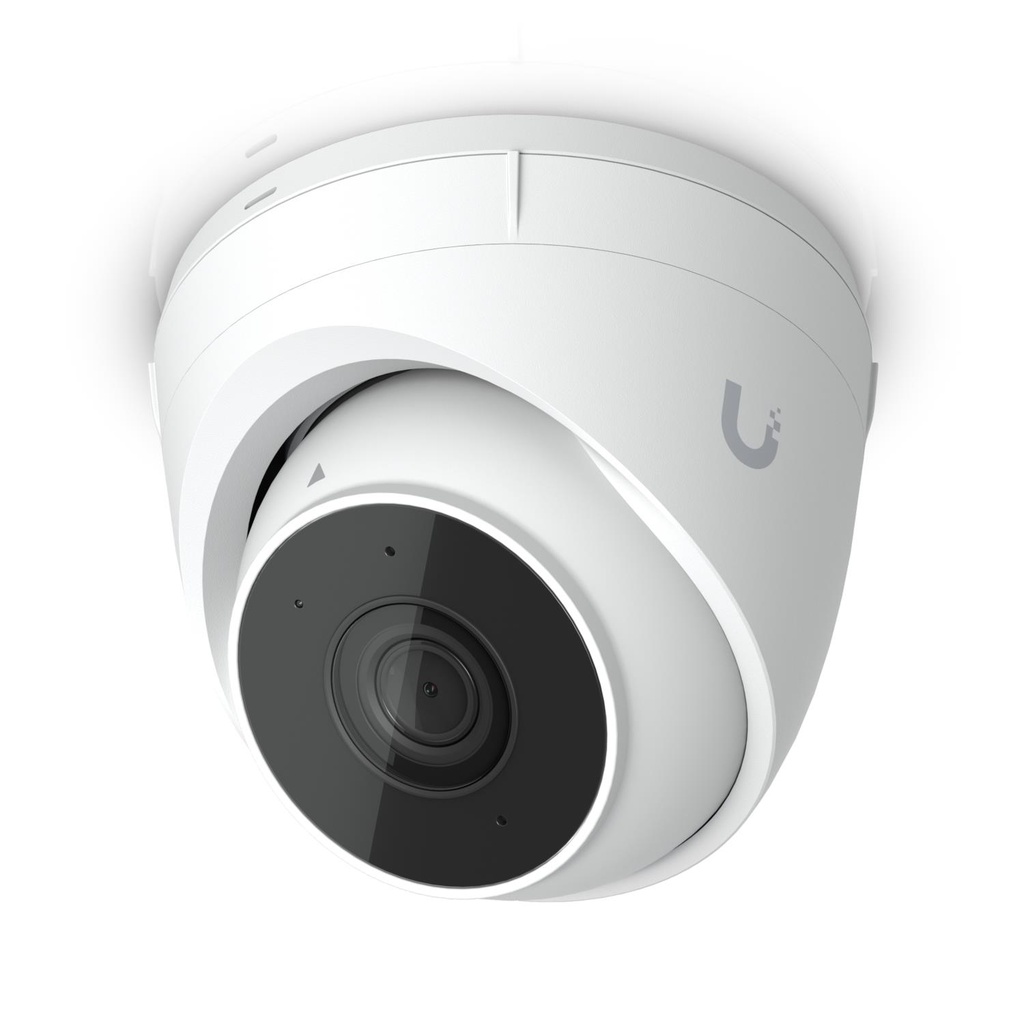

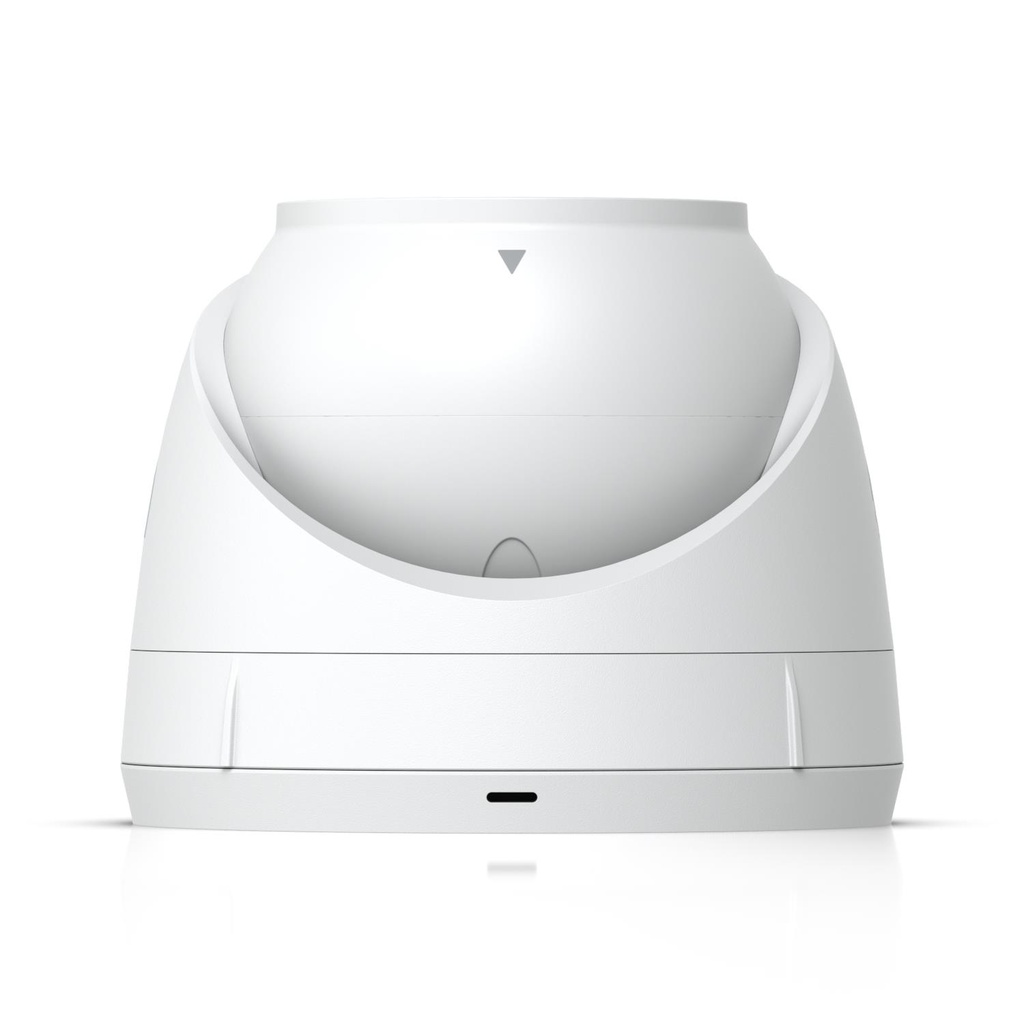

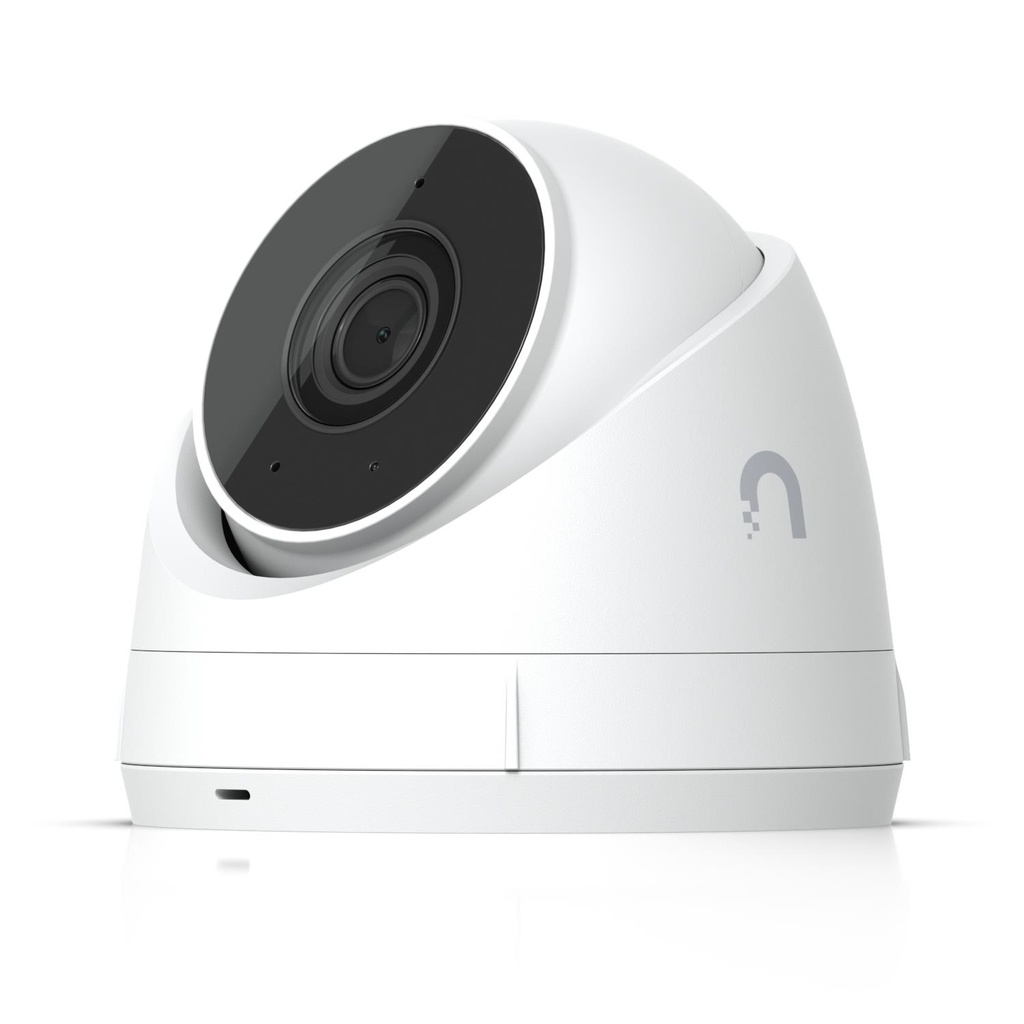

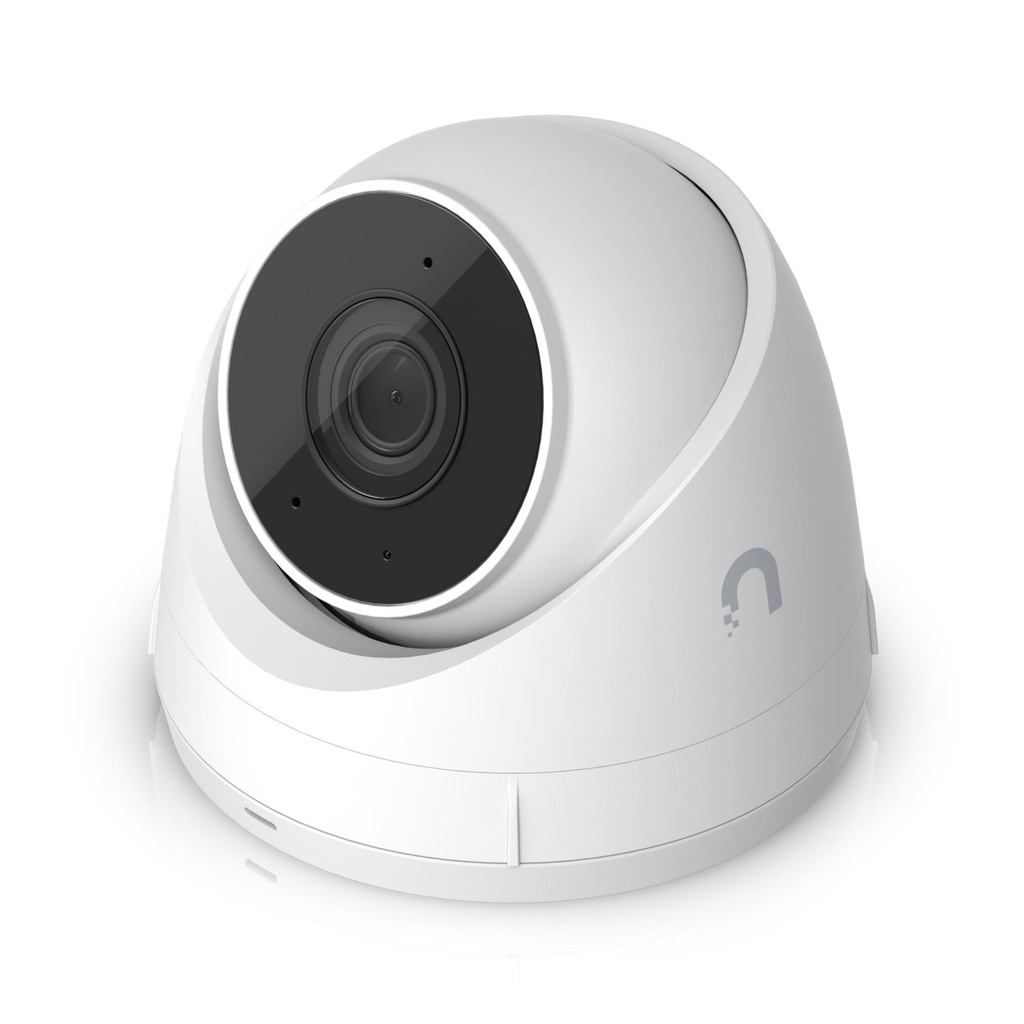

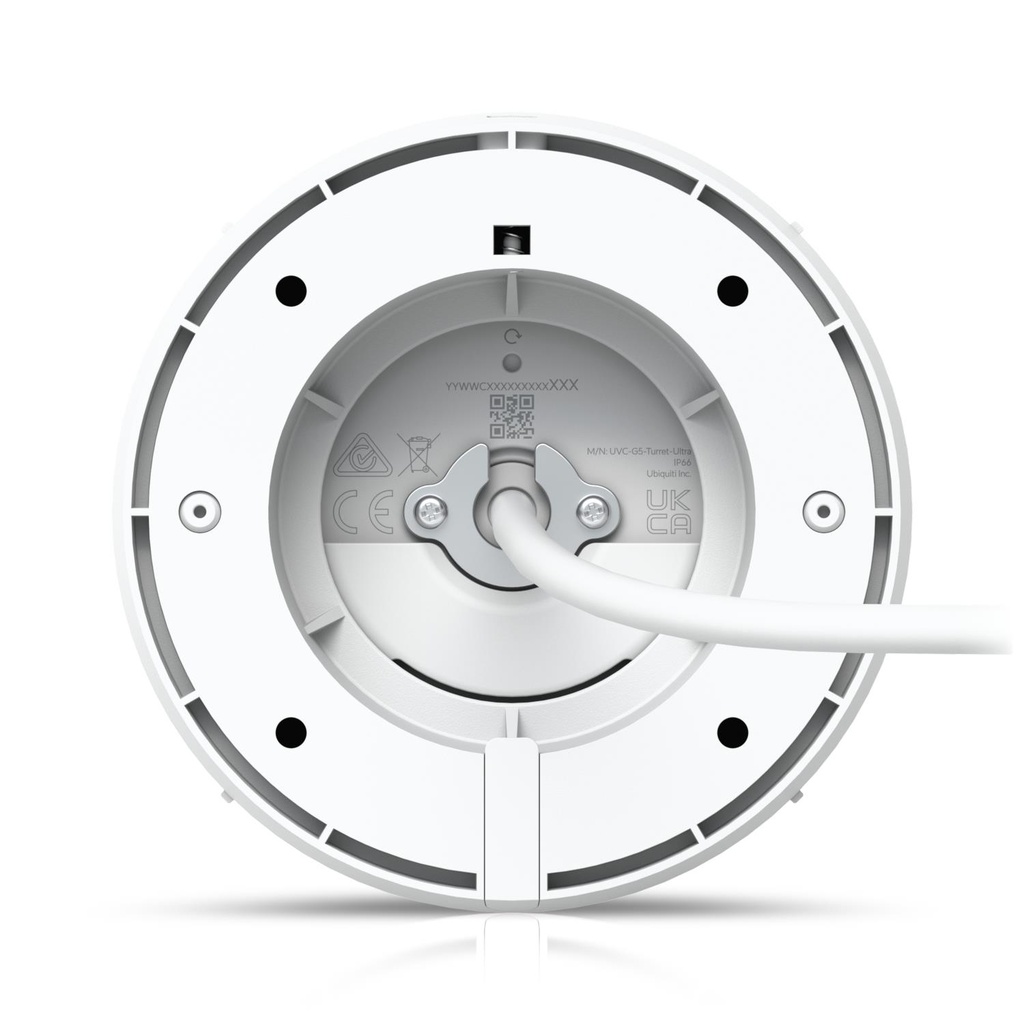

Ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision.
- 2K (4MP) video resolution
- Ultra-wide viewing angle (102.4°)
- 30 m (98 ft) IR night vision
- AI event detections
- Record audio with an integrated microphone
- Connect and power using PoE
- Weatherproof (outdoor exposed)
General
| Unit Calculated Weight | 0.688 kg |
| Unit Calculated Volume | 0.004286 cubm |
| Units per Shipping Box | 16 |
| Units per Pallet | 0 |
| Summary | Ubiquiti G5 Turret Ultra. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 102.4°, Lens viewing angle, vertical: 54.9°, Lens viewing angle, diagonal: 120.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.4 mm (1 / 2.4"). Night vision distance: 30 m, LED type: IR |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.15 |
| Model | UVC-G5-TURRET-ULTRA |
Design
| Form factor | Turret |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK04 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Tamper resistant/UV resistant |
| Weatherproof | Yes |
Performance
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| Processor model | ARM Cortex-A7 |
| Type | IP security camera |
Camera
| Lens viewing angle, diagonal | 120.6 ° |
| Lens viewing angle, horizontal | 102.4 ° |
| Lens viewing angle, vertical | 54.9 ° |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.4 " |
| Sensor type | CMOS |
Lens system
| Number of lenses | 1 |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Colour depth/Contrast/DNR/Sharpness |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Video formats supported | H.264 |
Audio
| Built-in microphone | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Management features
| Reset button | Yes |
Power
| AC input voltage | 37 - 57 V |
| Power consumption (typical) | 4 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | -30 - 50 °C |
Weight & dimensions
| Cable length | 0.3 m |
| Diameter | 90 mm |
| Height | 71.2 mm |
| Weight | 330 g |
Sustainability
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |

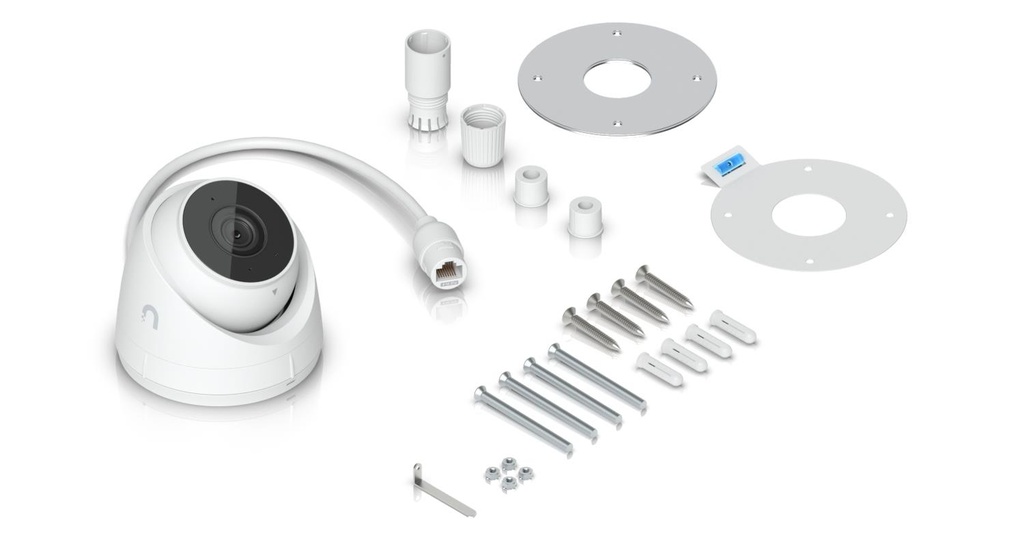

Packaging content
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
