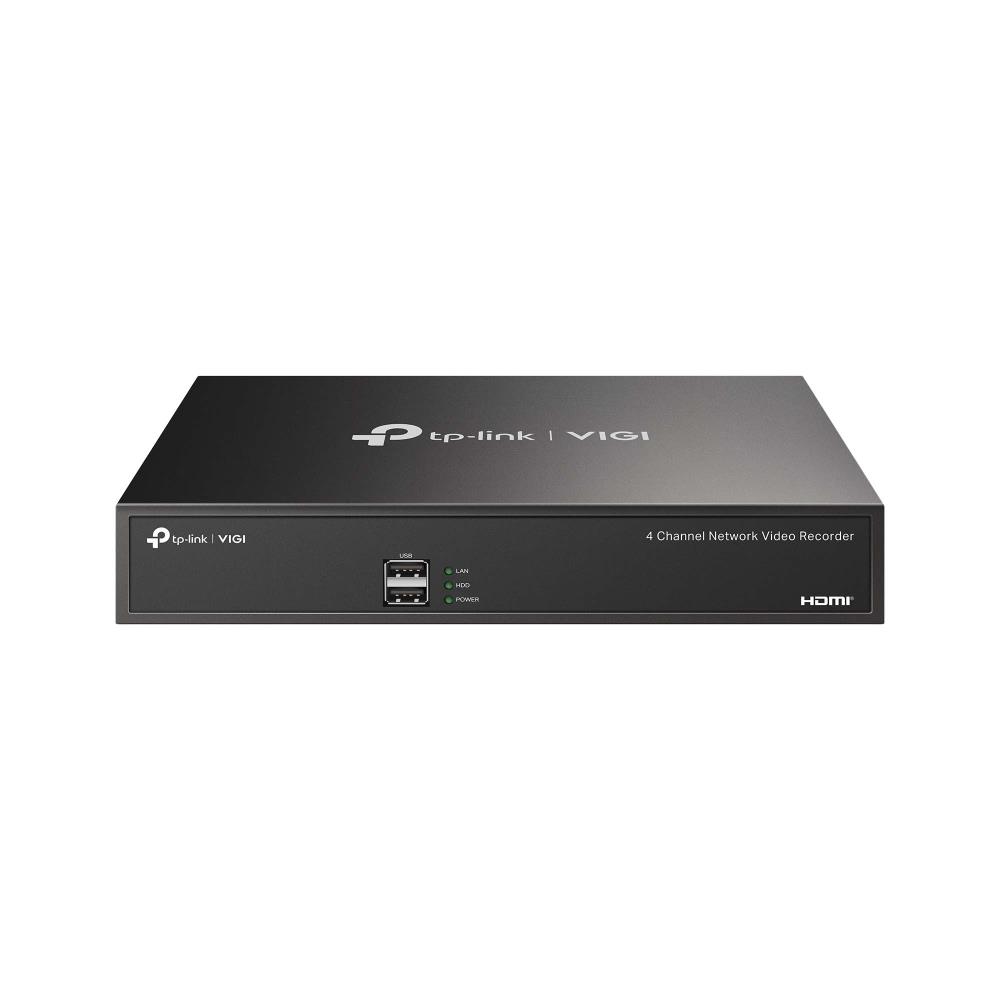

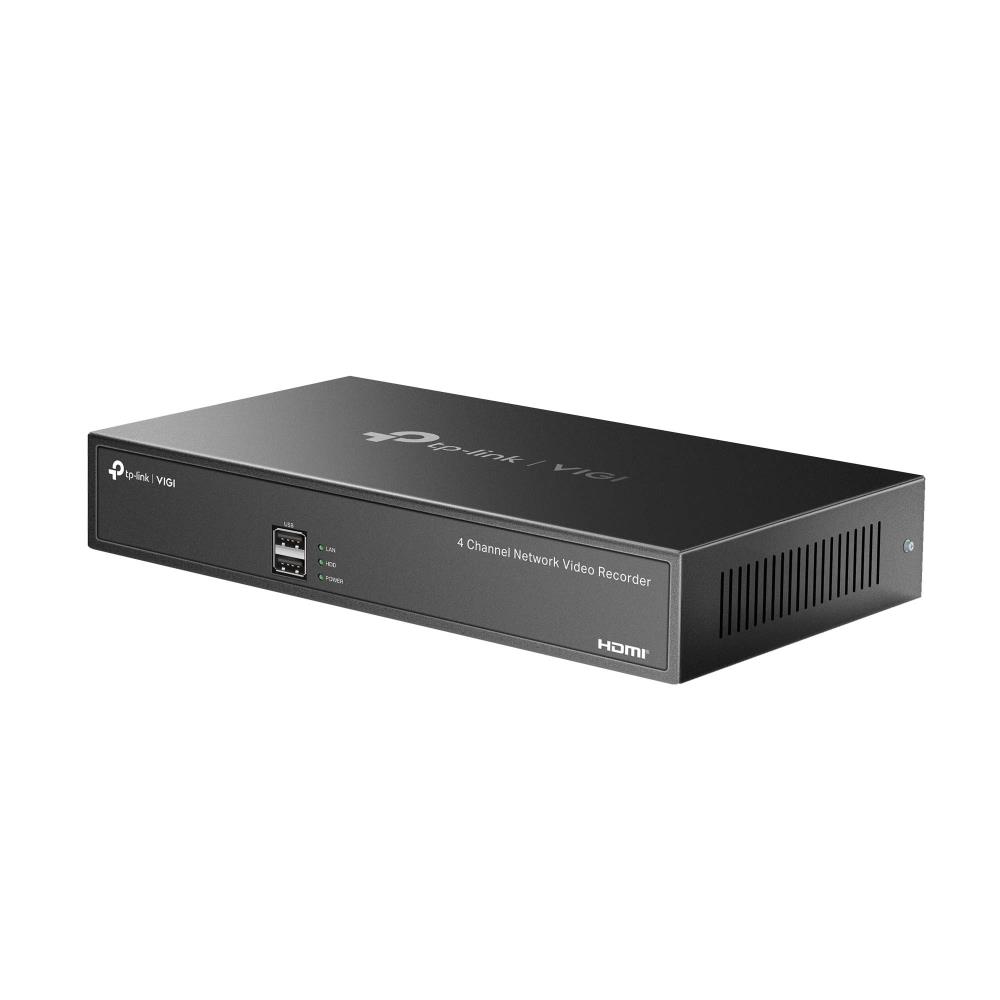

VIGI 4 Channel Network Video Recorder
4-Channel Live View and 4K HDMI Video Output
2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
4-Channel Synchronous Playback†
80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
1 SATA Interface (up to 10 TB) *
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring
General
| Model | VIGI NVR1004H |
| Number of Channels | 4 |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.06 |
| Included Accessories | Power Adapter, HDD Screws, Mouse, Rubber Feet, Quick Installation Guide |
| Power supply requirements | DC 12V/1.5A |
| Power consumption | 4.25 Watts |
| Dimensions | 246.2 × 148.2 × 45 mm |
| Operating temperature range | -10–55 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00486 cubm |
| Product Net Weight | 0.59 kg |
| Unit Calculated Weight | 1.109 kg |
Mounting Type
| Desktop/pedestal | Yes |
Interface
| SATA | Yes |

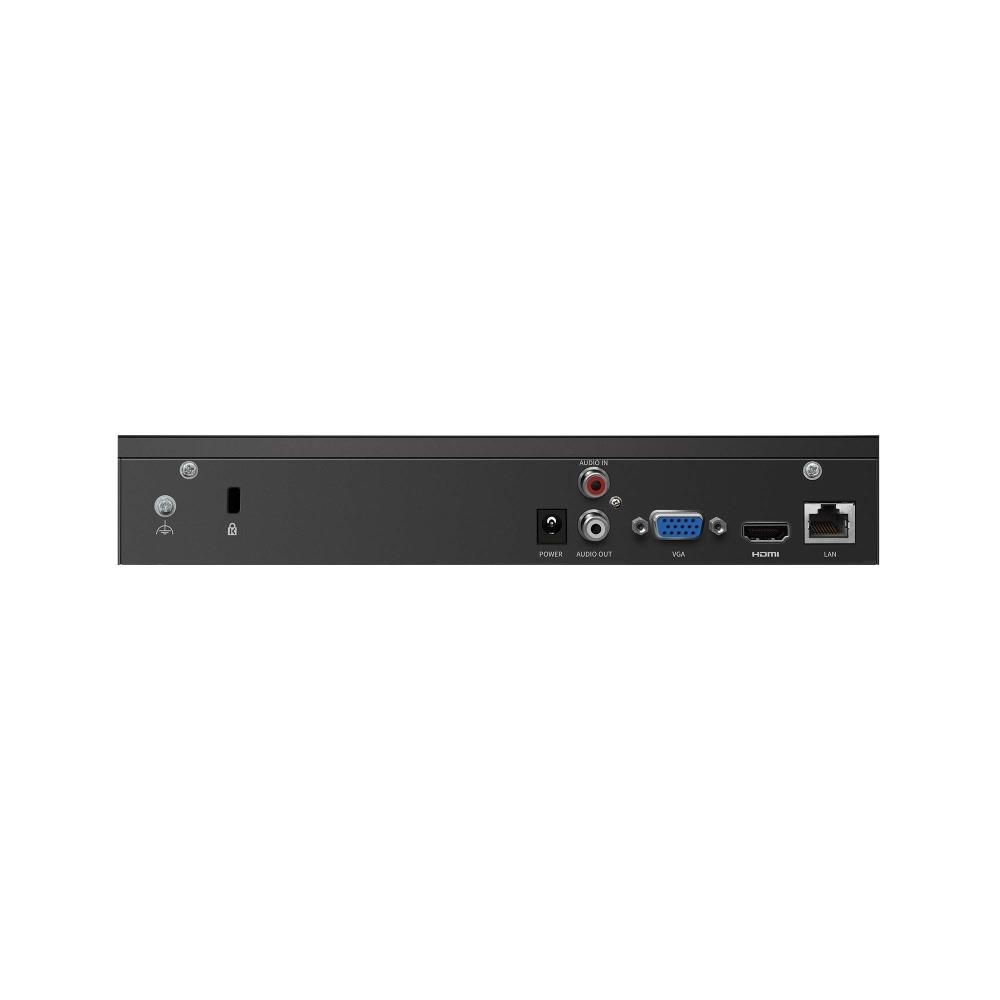

Input/Output connectors
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
