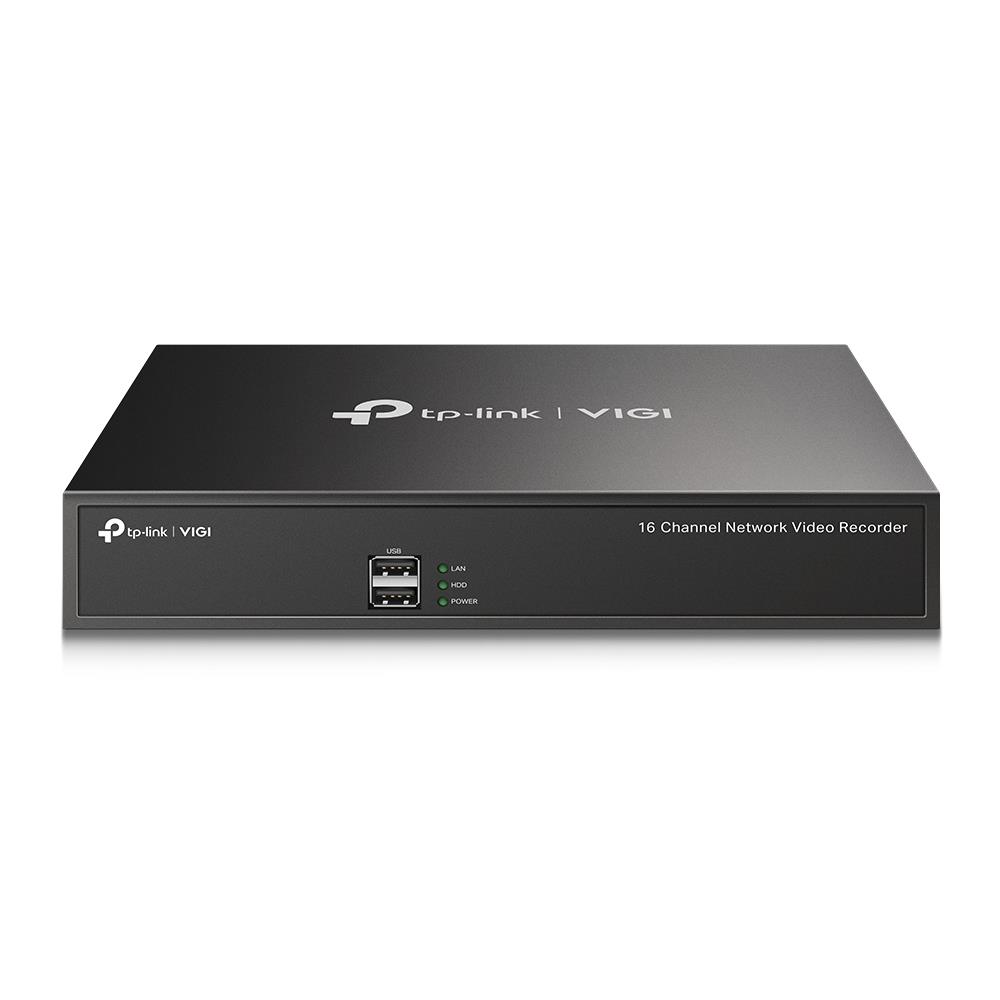

TP-LINK VIGI NVR1016H
VIGI 16 Channel Network Video Recorder
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
- Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
- Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
General
| Model | NVR1016H |
| Number of Channels | 16 |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.295 |
| Unit Box Width | 0.275 |
| Included Accessories | Power Adapter; HDD Screws; Mouse; Quick Installation Guide |
| Power supply requirements | DC 12V/1.5A |
| Power consumption | 4.25 Watts |
| Dimensions | 246.2 × 148.2 × 45 mm |
| Operating temperature range | -10–55 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005273 cubm |
| Product Net Weight | 0.61 kg |
| Unit Calculated Weight | 1.12 kg |
Interface
| SATA | Yes |

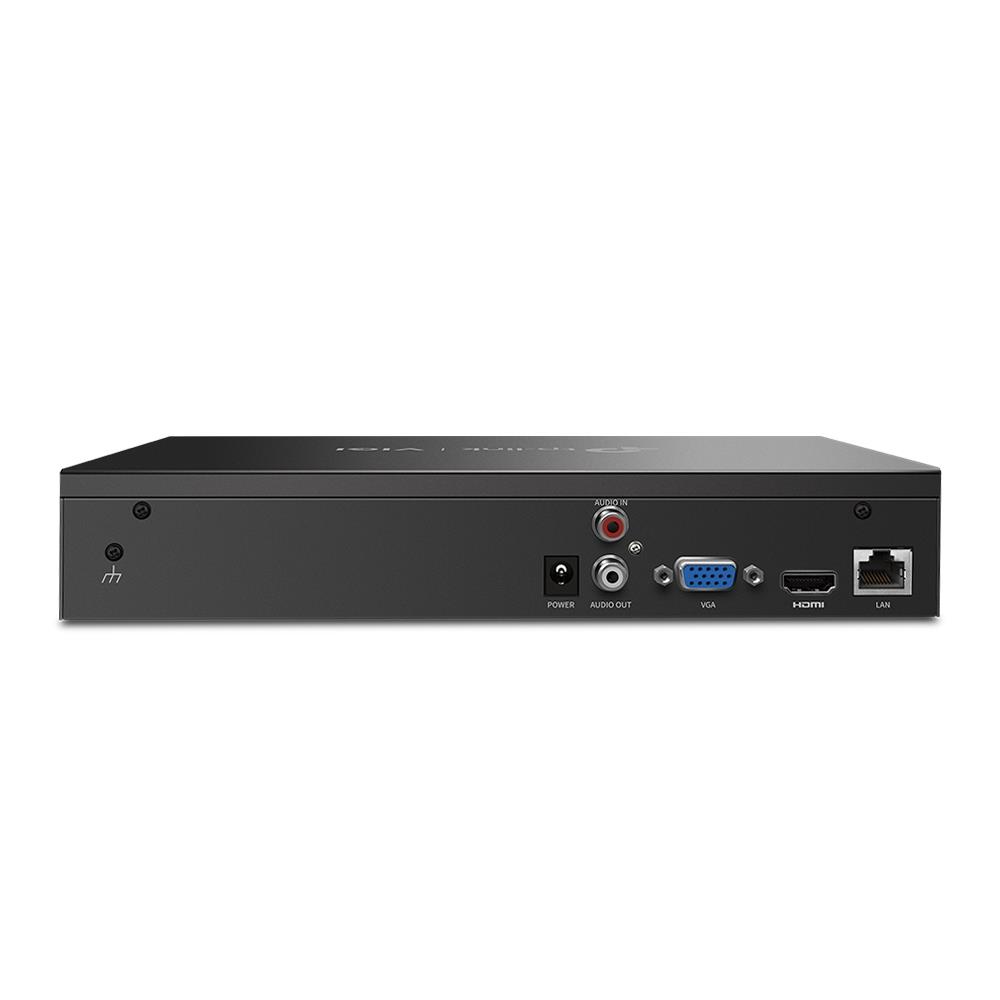

Input/Output connectors
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
