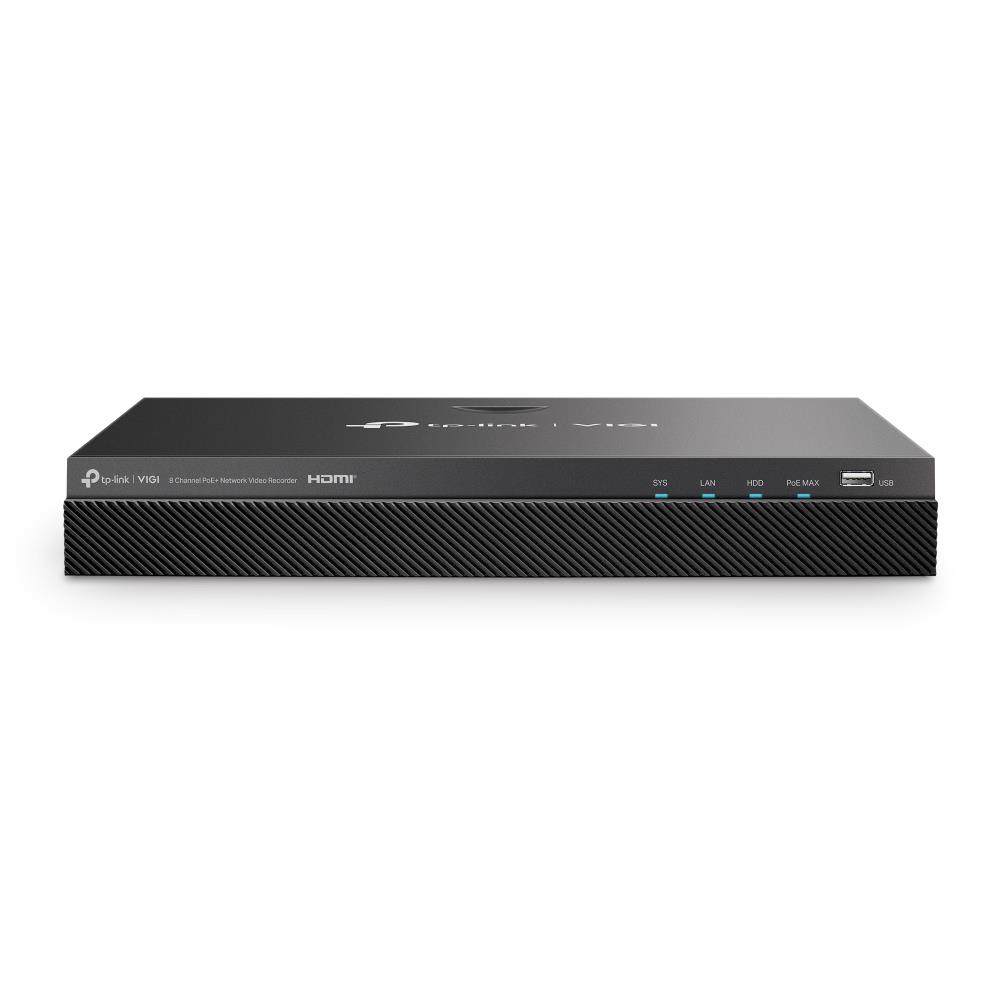

VIGI 8 Channel PoE+ Network Video Recorder
8-Channel Live View and 4K HDMI Video Output
8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget
4-ch @ 4MP/ 8-ch @ 2MP Decoding Capability
8-Channel Synchronous Playback†
80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
2× SATA Interfaces and 1 Up to 10 TB (1× 2TB HDD Preinstalled)
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring
General
| Model | VIGI NVR2008H-8MP |
| Number of Channels | 8 |
| Number of drives/bays | 2 |
| Unit Box Height | 0.35 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.14 |
| Integrated LAN | 10/100 |
| PoE+ ports | 8 |
| Power supply requirements | 53.5V DC/2.43A |
| Power consumption | 35 Watts |
| Dimensions | 330 × 285 × 45 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0196 cubm |
| Product Net Weight | 2.1 kg |
| Unit Calculated Weight | 3.68 kg |
Mounting Type
| Desktop/pedestal | Yes |

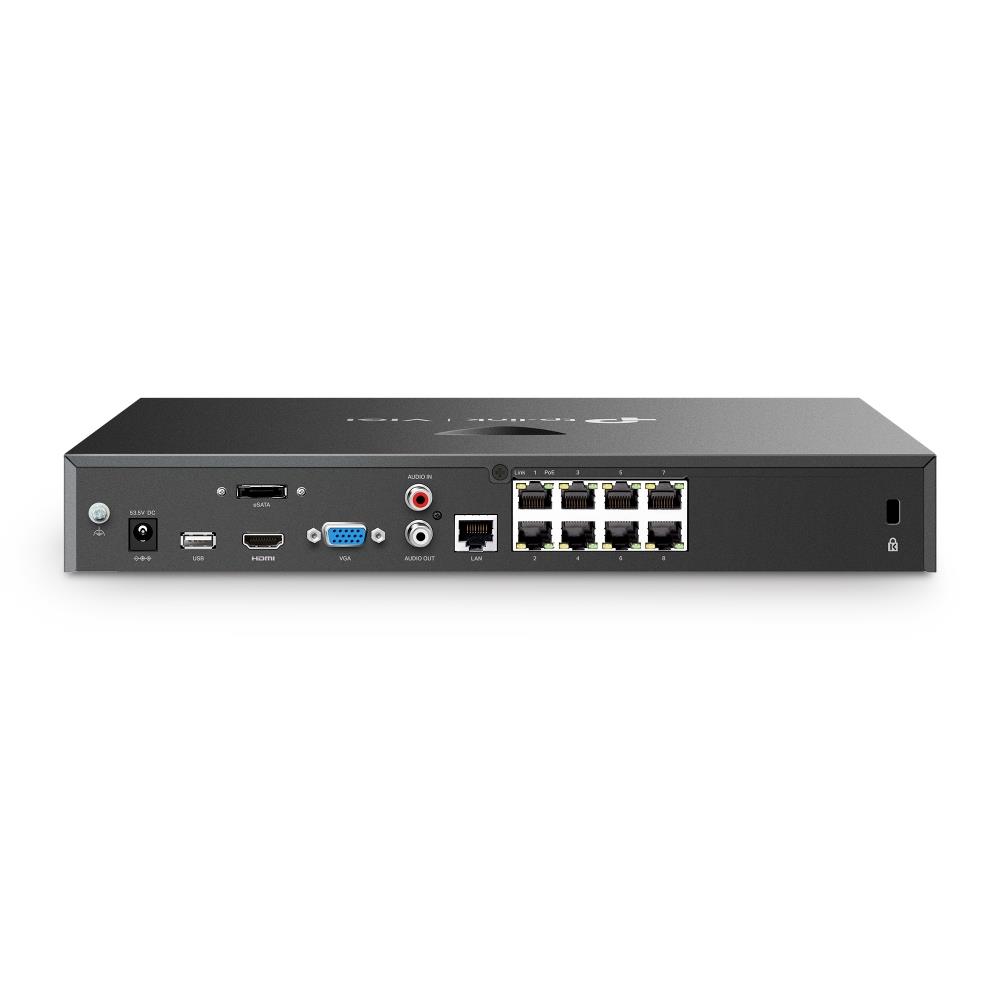

Input/Output connectors
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| eSATA | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
