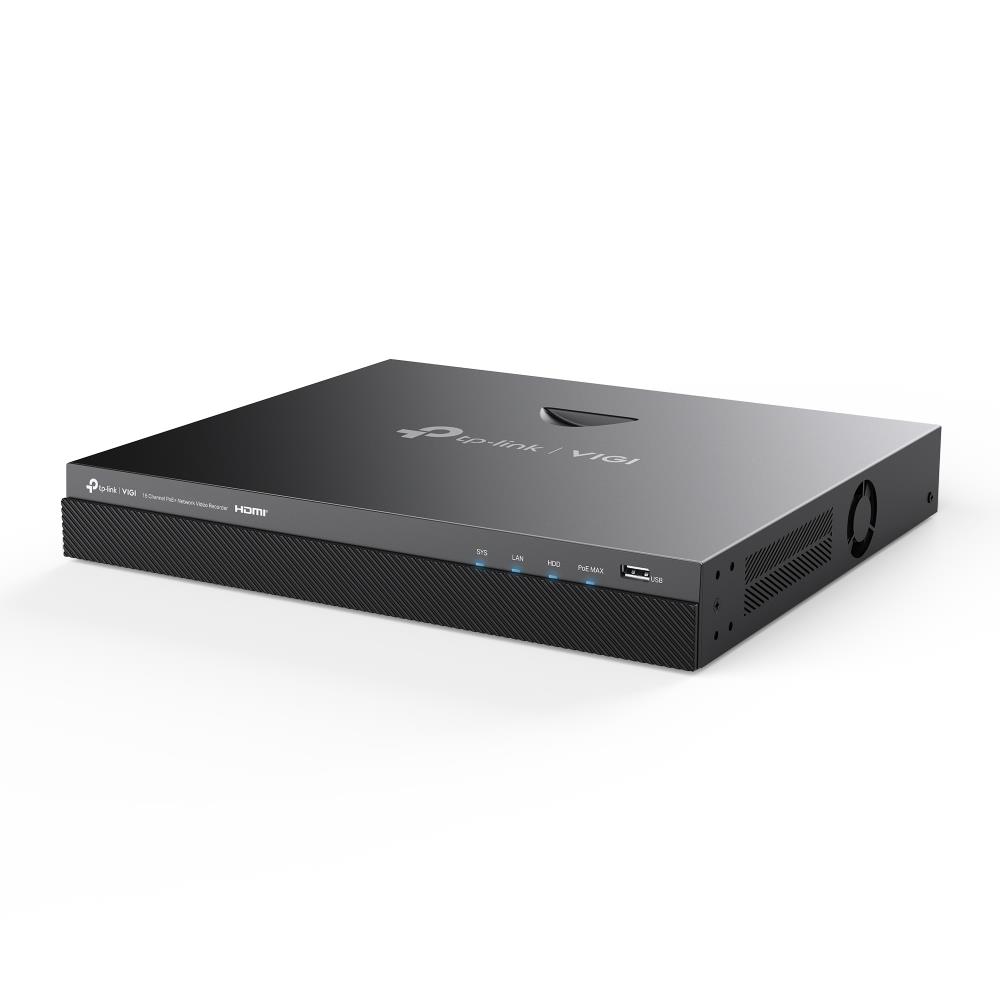

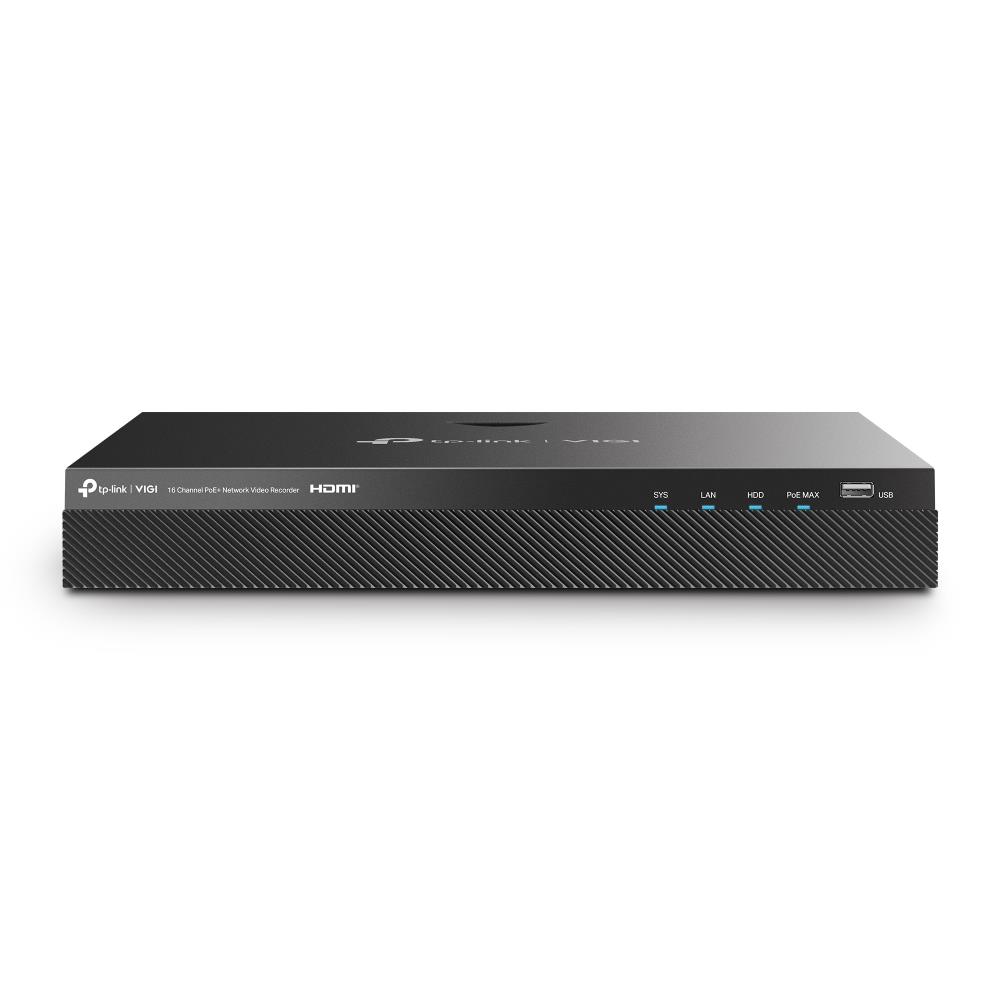

VIGI NVR2016H-16MP
VIGI 16 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
General
| Model | VIGI NVR2016H-16MP |
| Number of Channels | 16 |
| Unit Box Height | 0.345 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.14 |
| Integrated LAN | Gigabit |
| PoE+ ports | 16 |
| Power consumption | 6.2 Watts |
| Dimensions | 330 × 285 × 45 mm |
| Operating temperature range | -10–55 °C |
| Colour | Black |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01932 cubm |
| Product Net Weight | 2.1 kg |
| Unit Calculated Weight | 4.06 kg |
Interface
| SATA | Yes |
Input/Output connectors
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| eSATA | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
