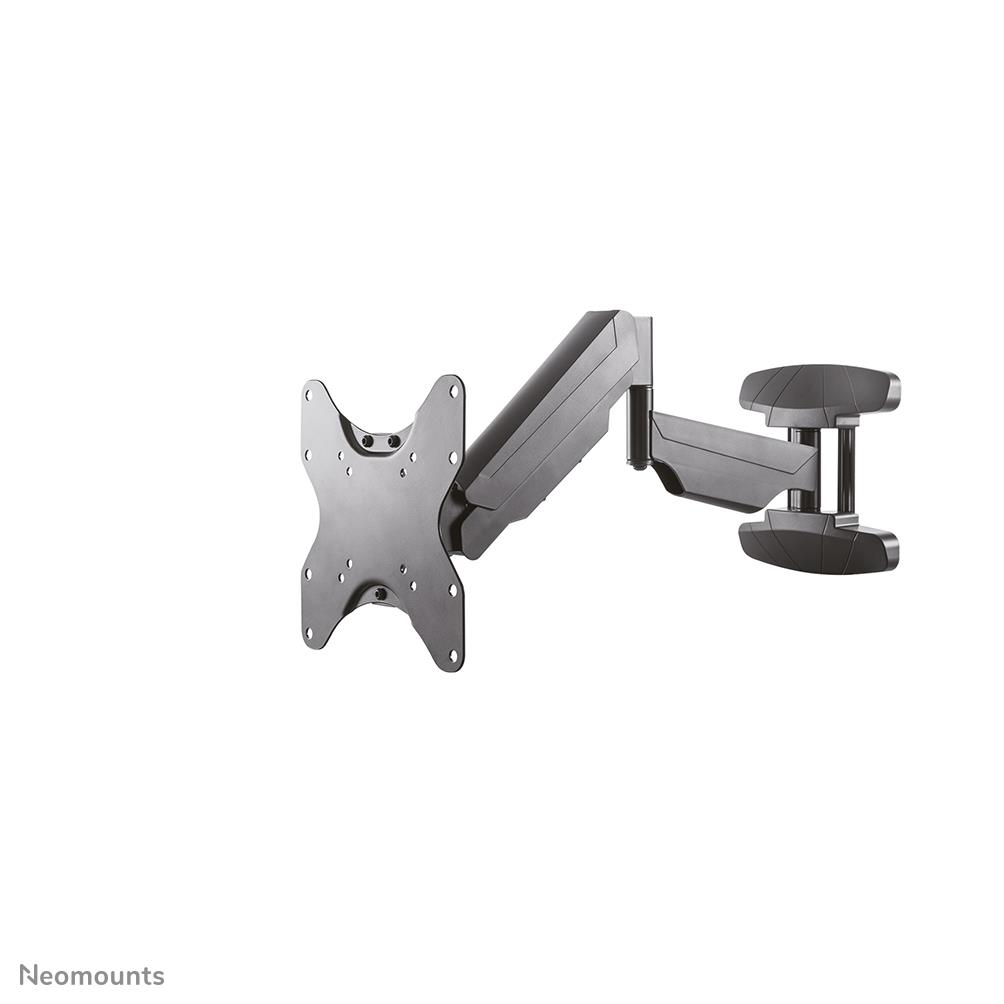

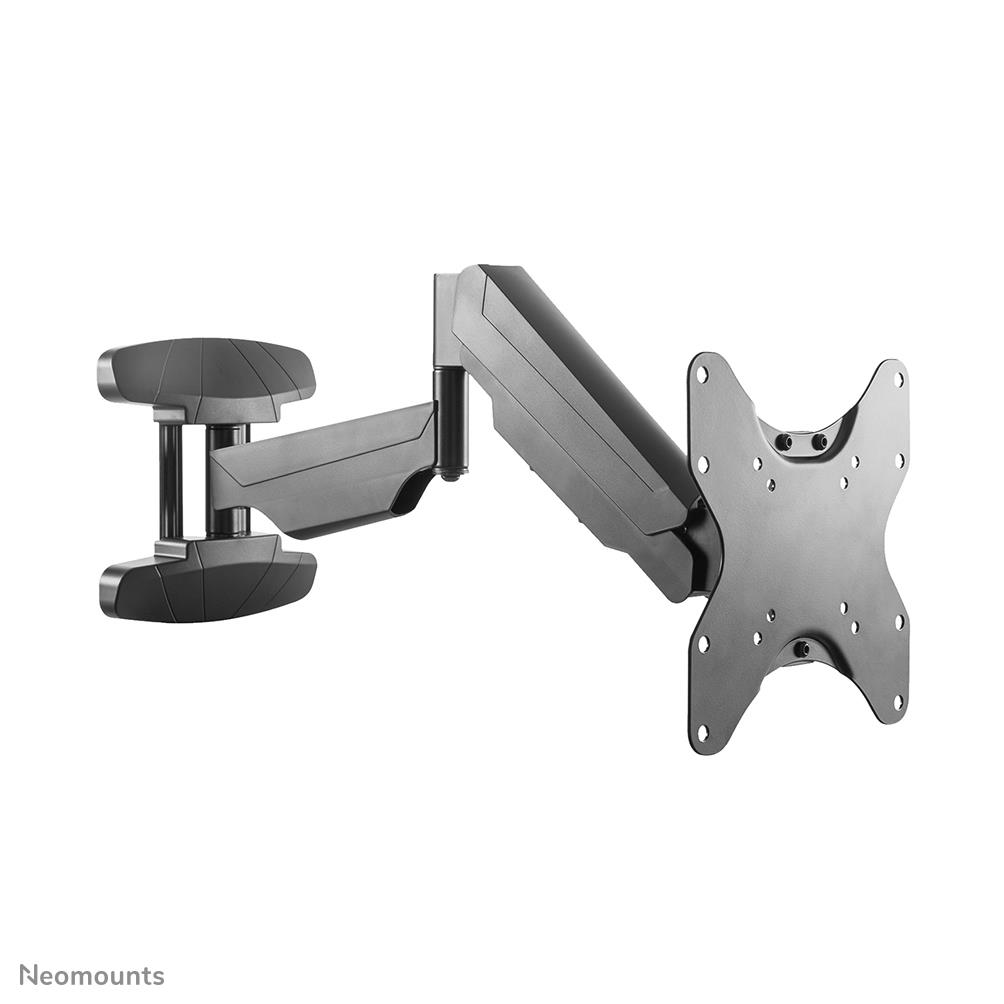

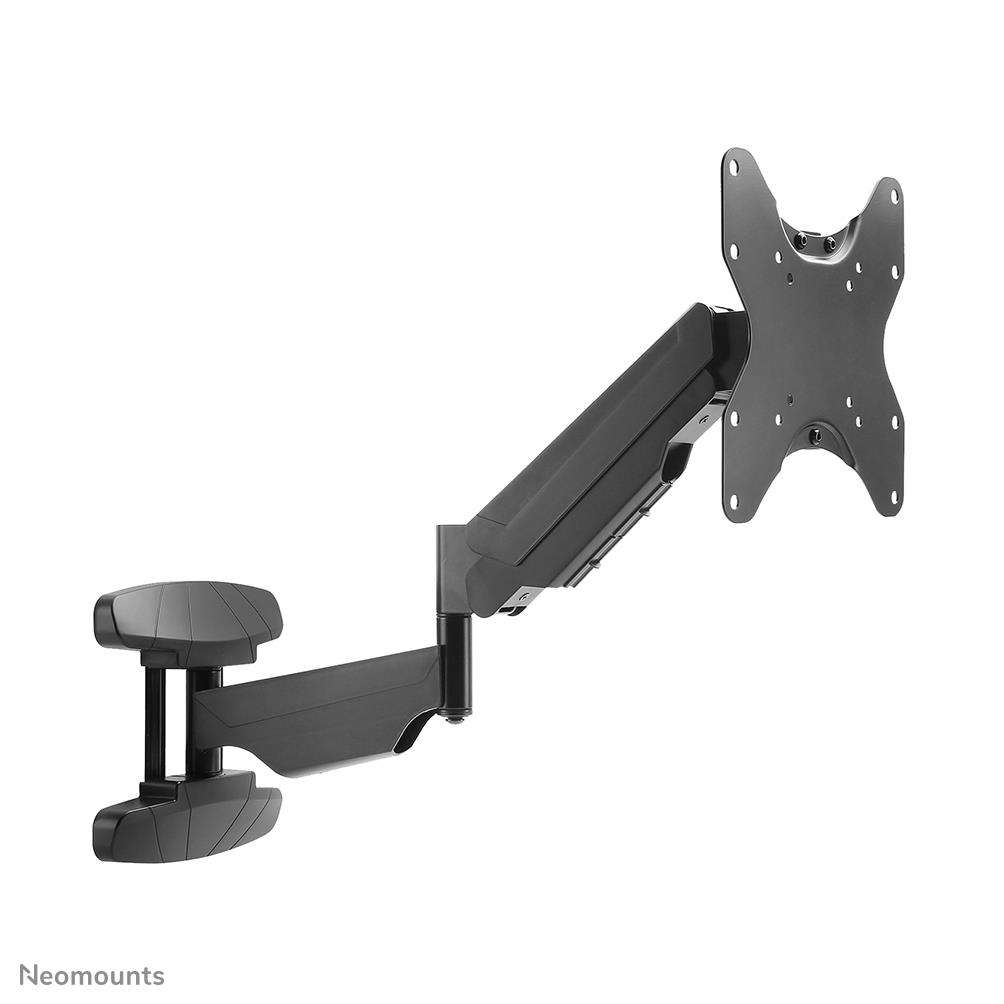

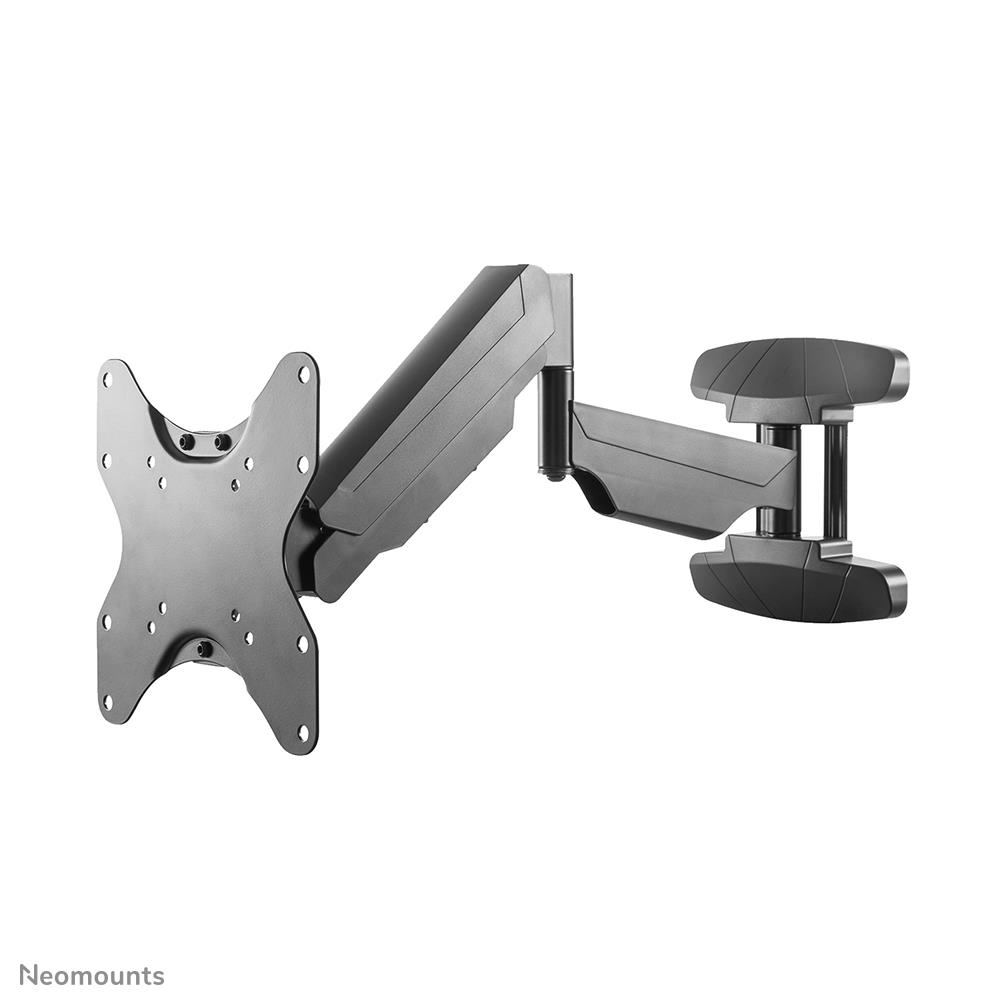

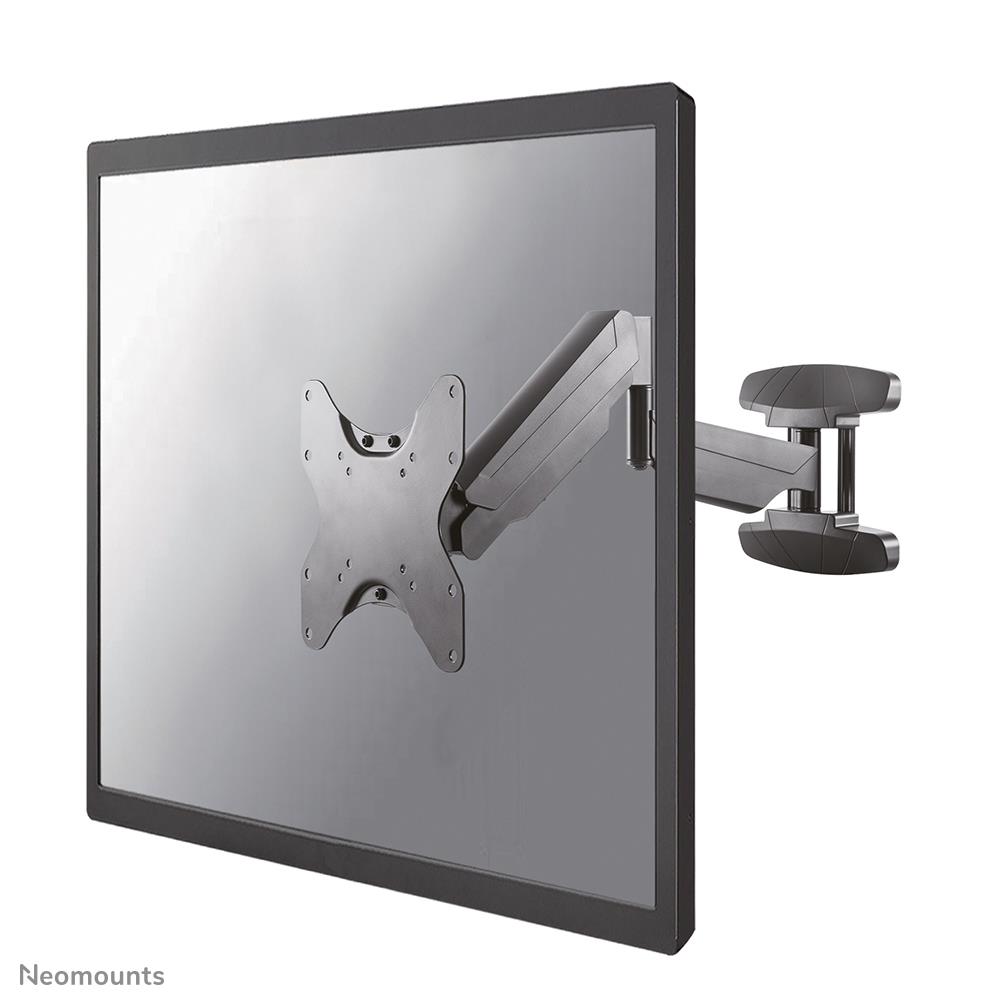

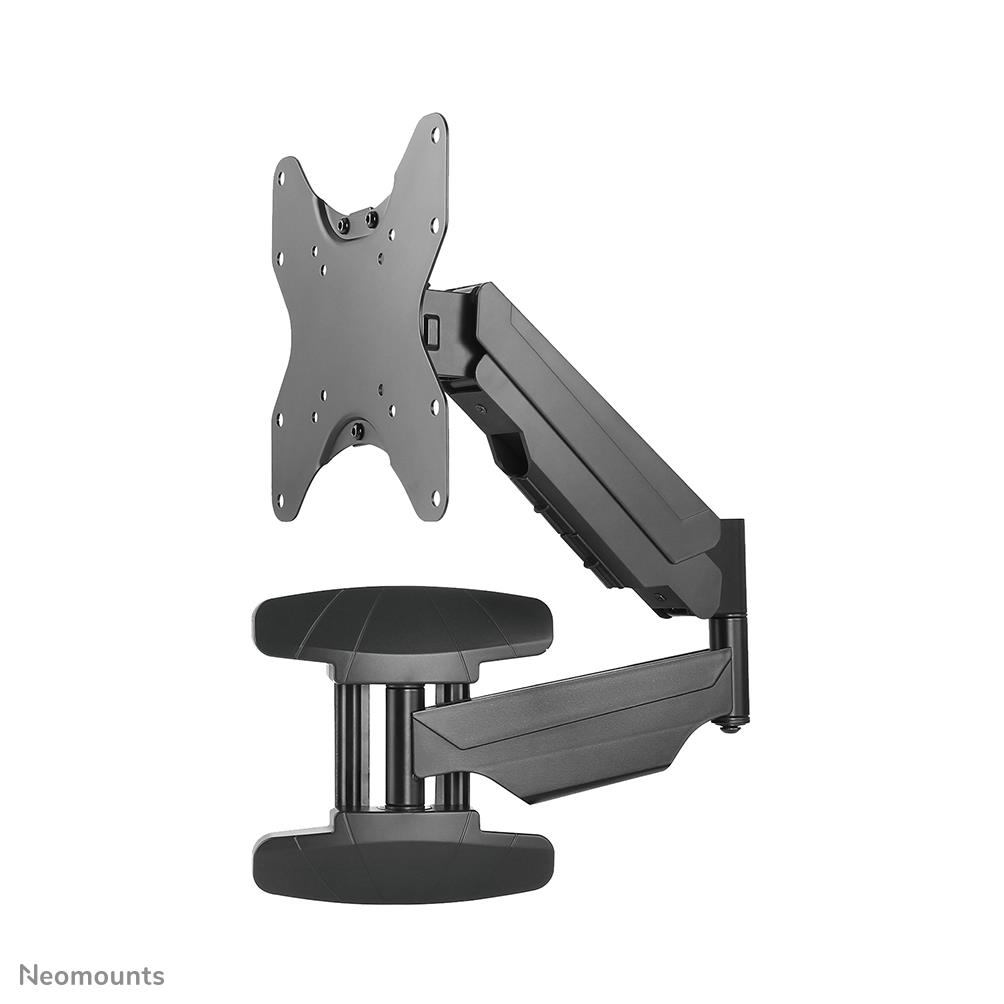

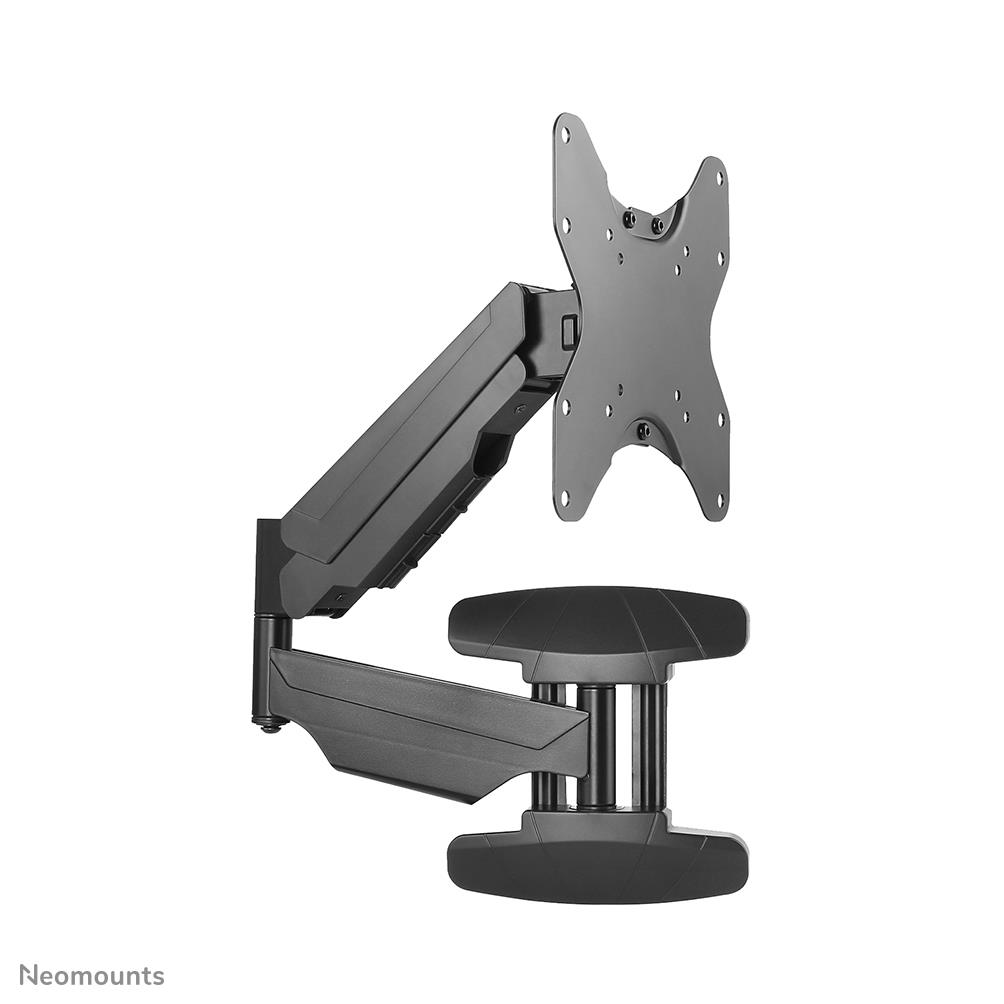

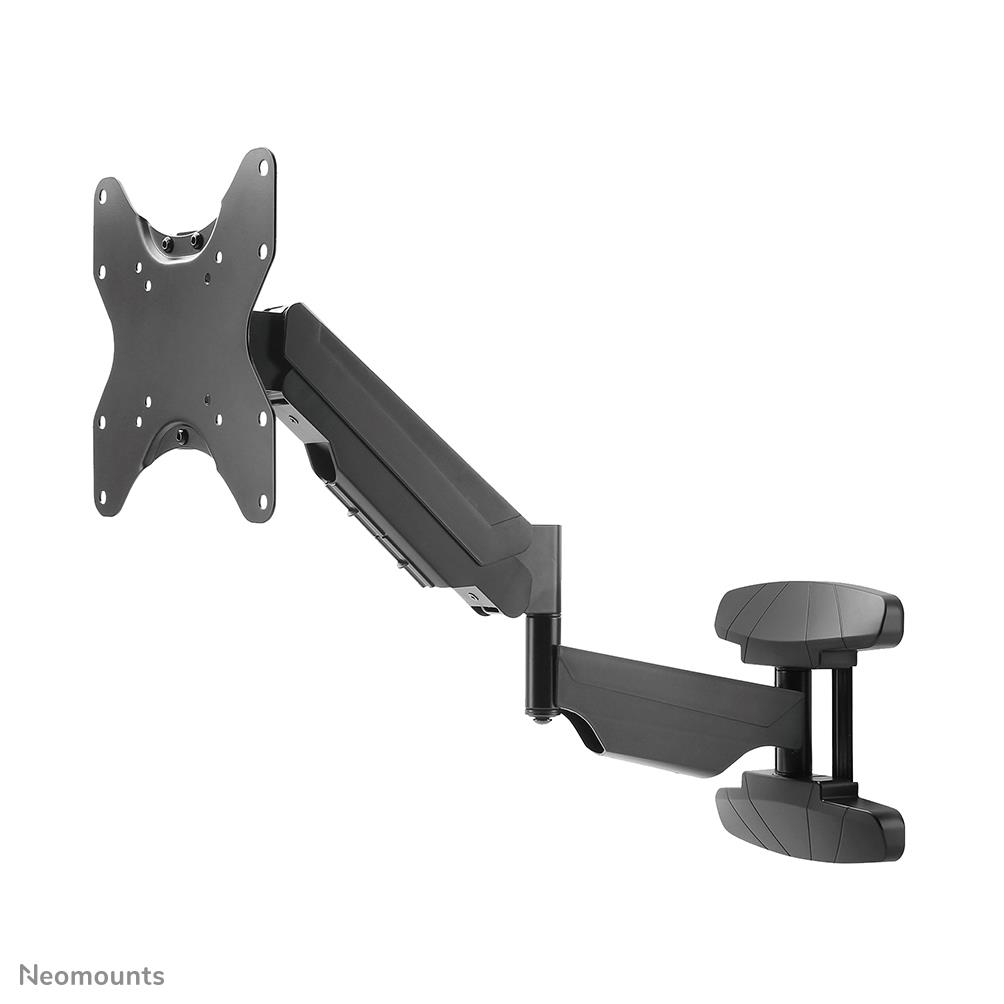

The Neomounts WL70-550BL12 is a full motion wall mount for flat screens up to 42" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The WL70-550BL12 has a depth of 5,9-56,3 cm and is suitable for screens that meet VESA hole pattern 75x75 to 200x200 mm.
The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
General
| Unit Calculated Weight | 4.65 kg |
| Unit Calculated Volume | 0.0148 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts WL70-550BL12 Monitor/TV mount wall 23-42" - gas spring - full motion. Maximum weight capacity: 30 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Height adjustment range: 0 - 282 mm, Tilt angle range: -15 - 5°, Swivel angle range: 0 - 180°, Angle of rotation: 6°, Distance to the wall (min): 5.9 cm, Distance to the wall (max): 56.3 cm. Product colour: Black |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.5 |
| Unit Box Width | 0.37 |
Mounting
| Maximum screen size | 42 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 30 kg |
| Maximum weight capacity (per display) | 30 kg |
| Minimum screen size | 23 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 100/200 x 200/75 x 75 mm |
Ergonomics
| Angle of rotation | 6 ° |
| Cable management | Yes |
| Distance to the wall (max) | 563 mm |
| Distance to the wall (min) | 59 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 282 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -3 - 3 ° |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 5 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 4800 g |
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Depth | 563 mm |
| Depth (max) | 563 mm |
| Height | 327 mm |
| Weight | 3900 g |
| Width | 226 mm |
Packaging data
| Package depth | 505 mm |
| Package height | 75 mm |
| Package weight | 4800 g |
| Package width | 365 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 15500 g |
| Master (outer) case height | 245 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case net weight | 11700 g |
| Master (outer) case width | 380 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 72 pc(s) |
Other features
| Minimum weight | 5 kg |
| Mounting | Screws |
