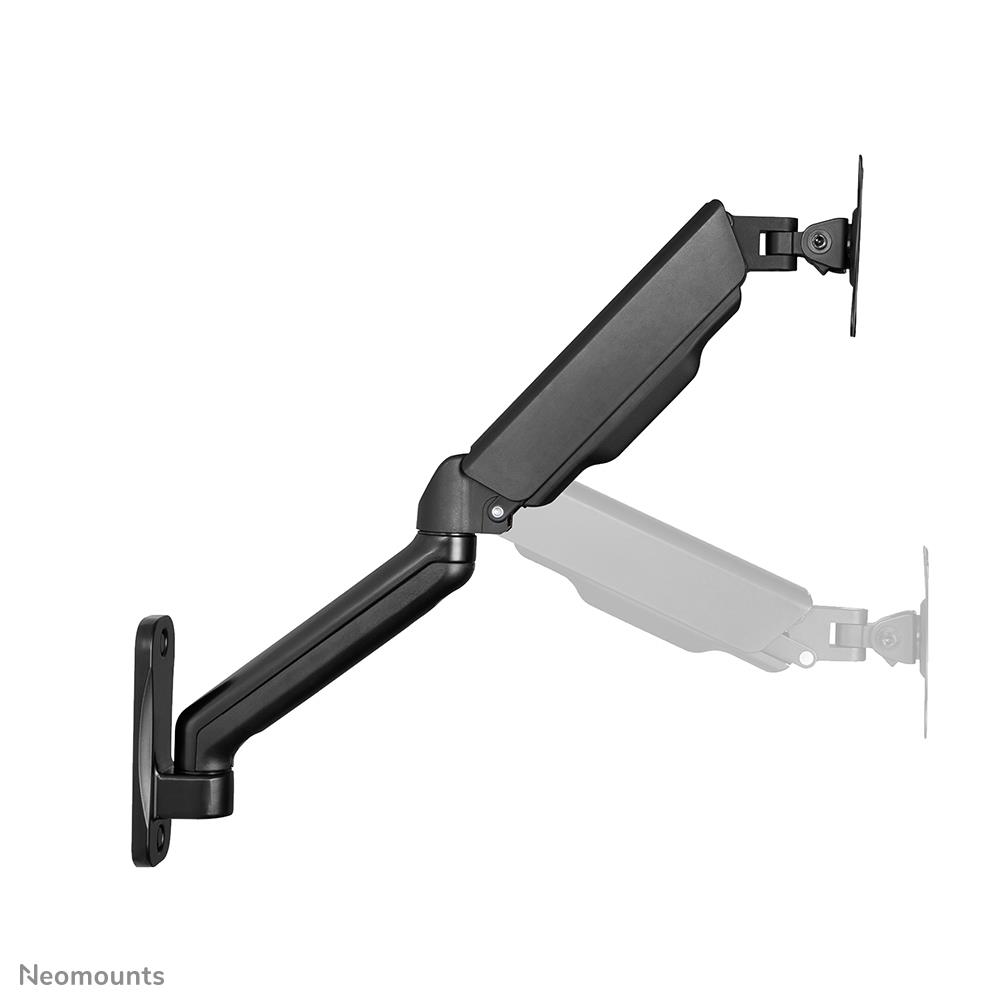

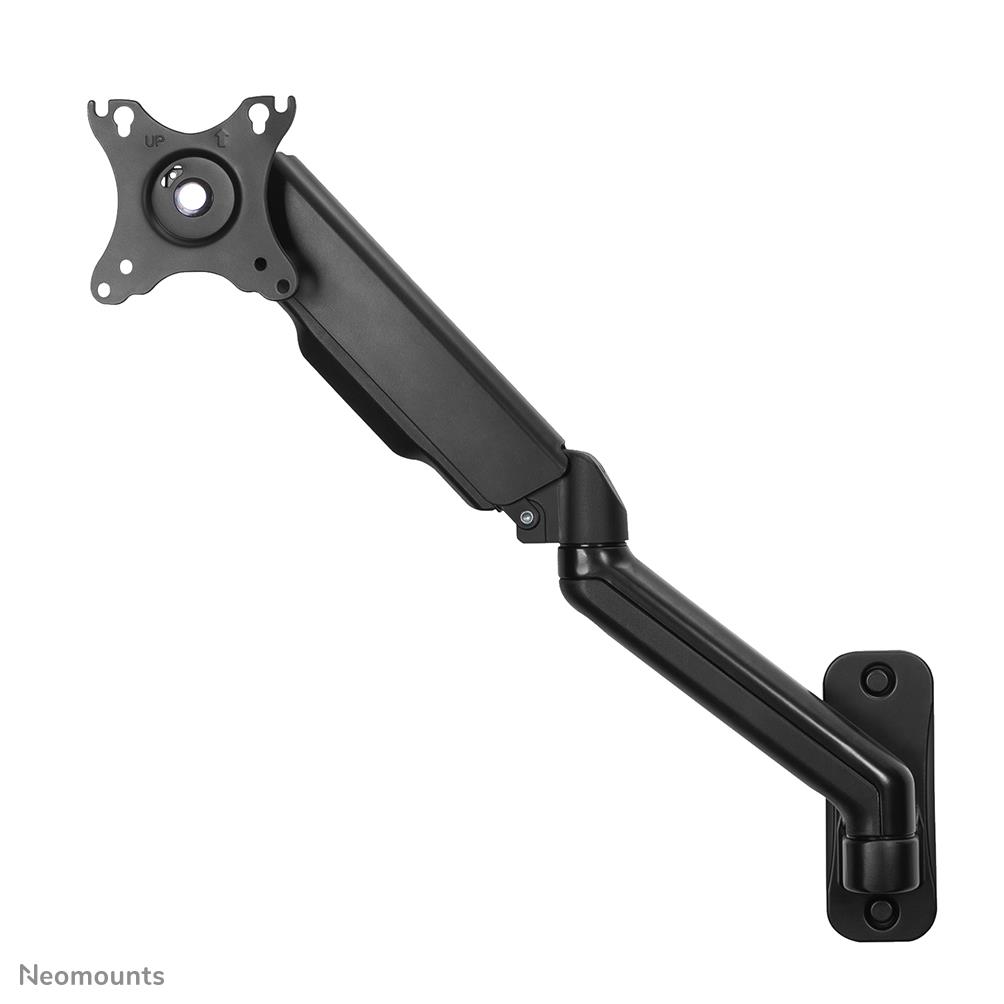

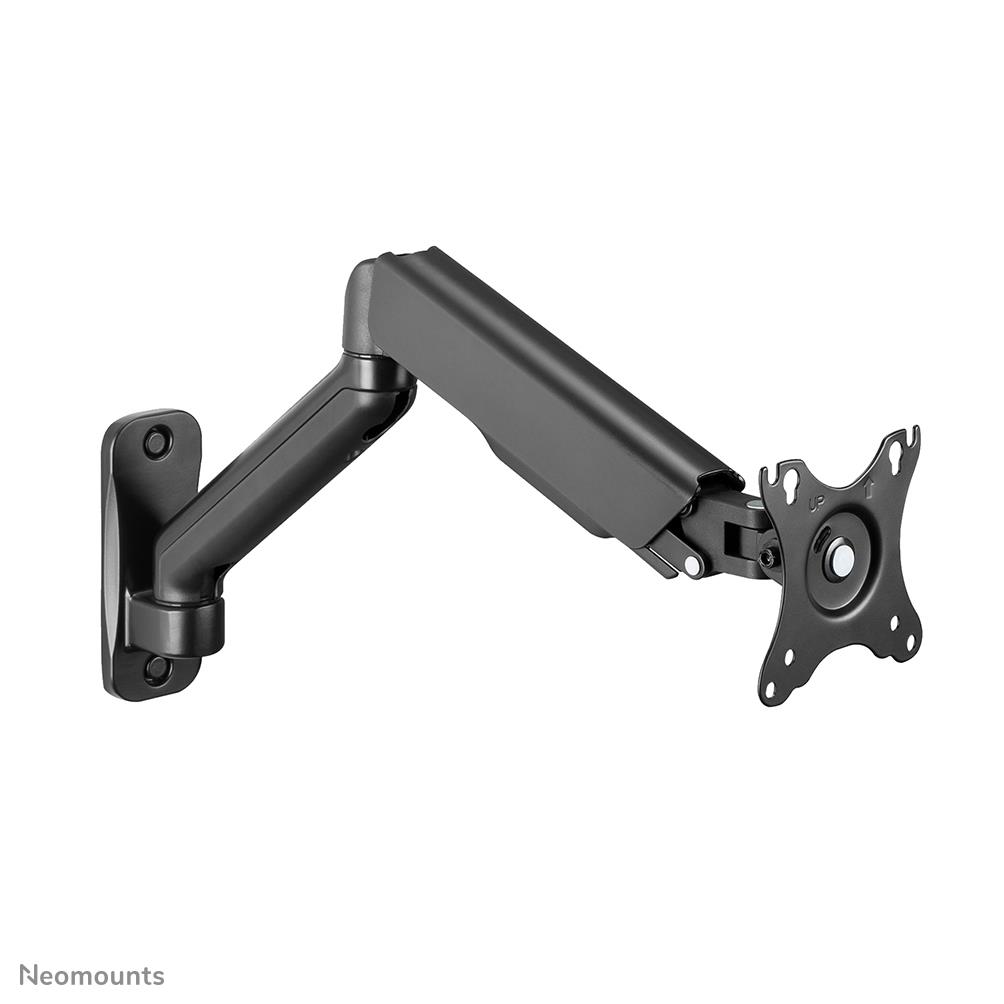

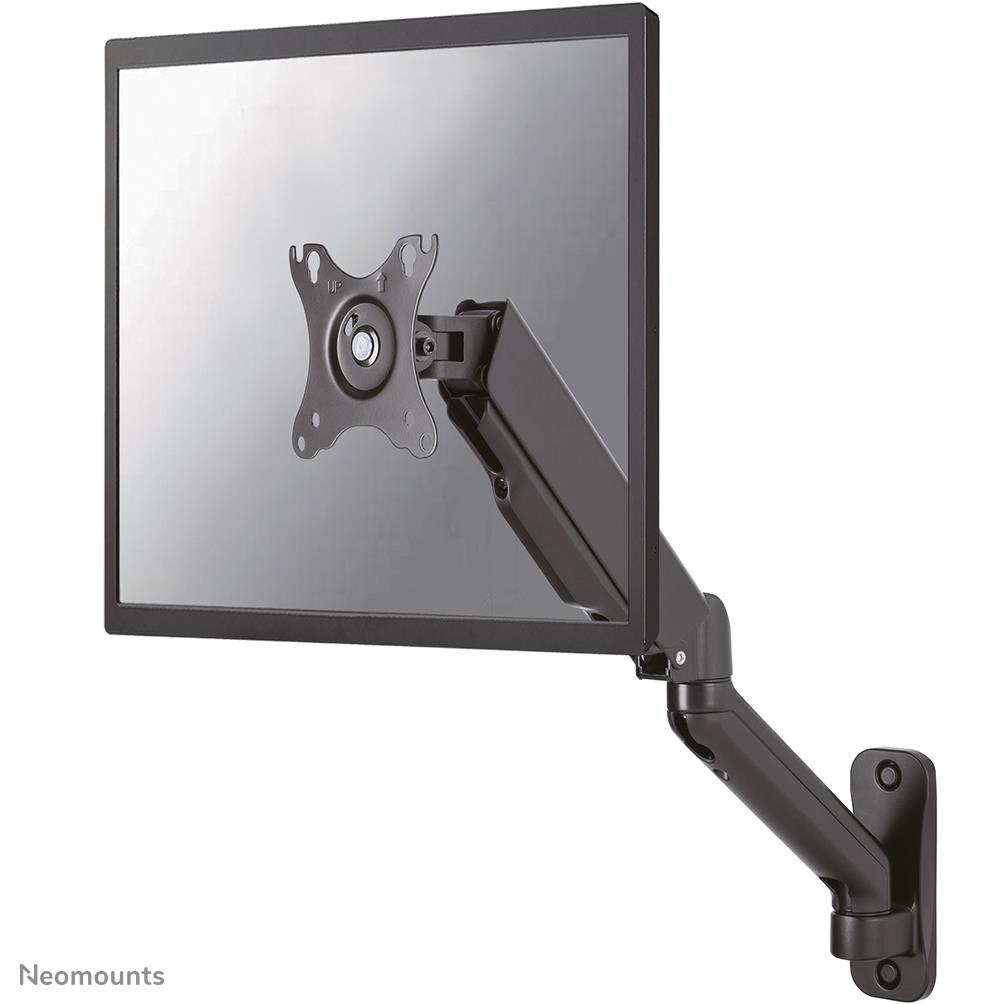

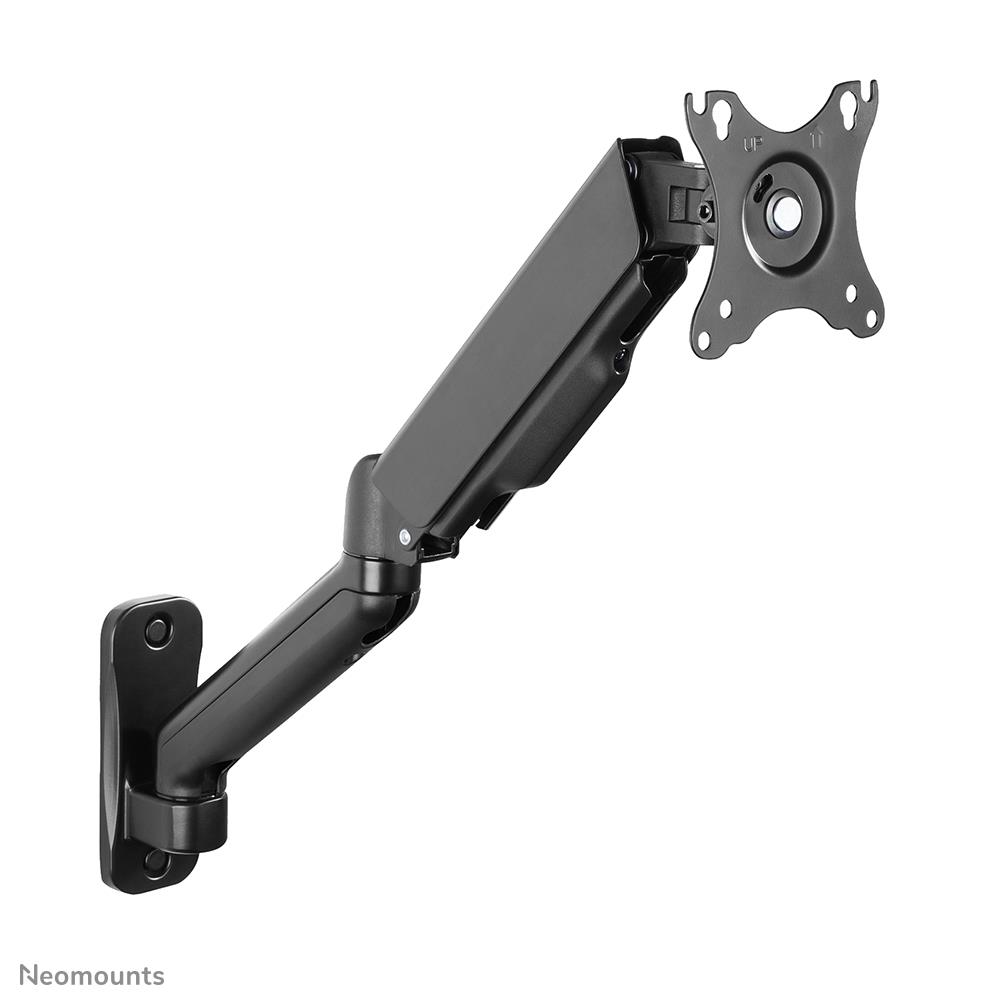

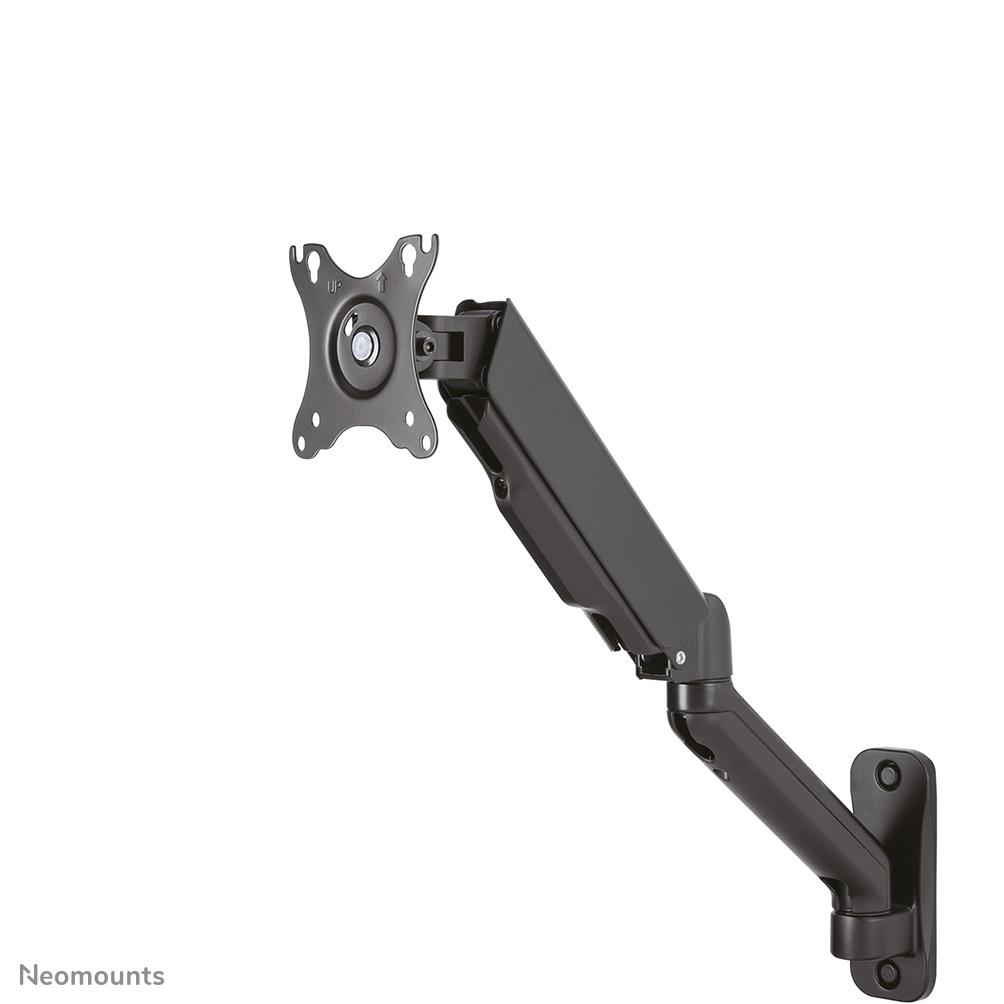

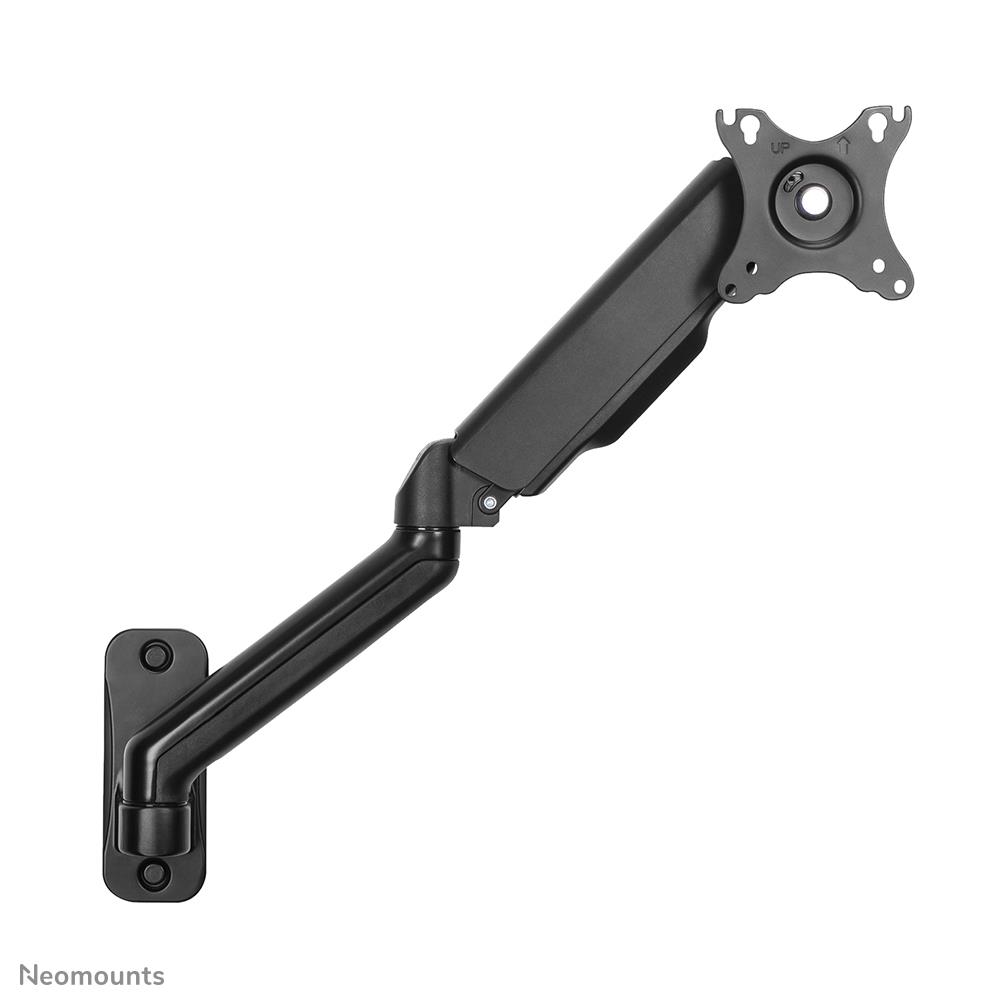

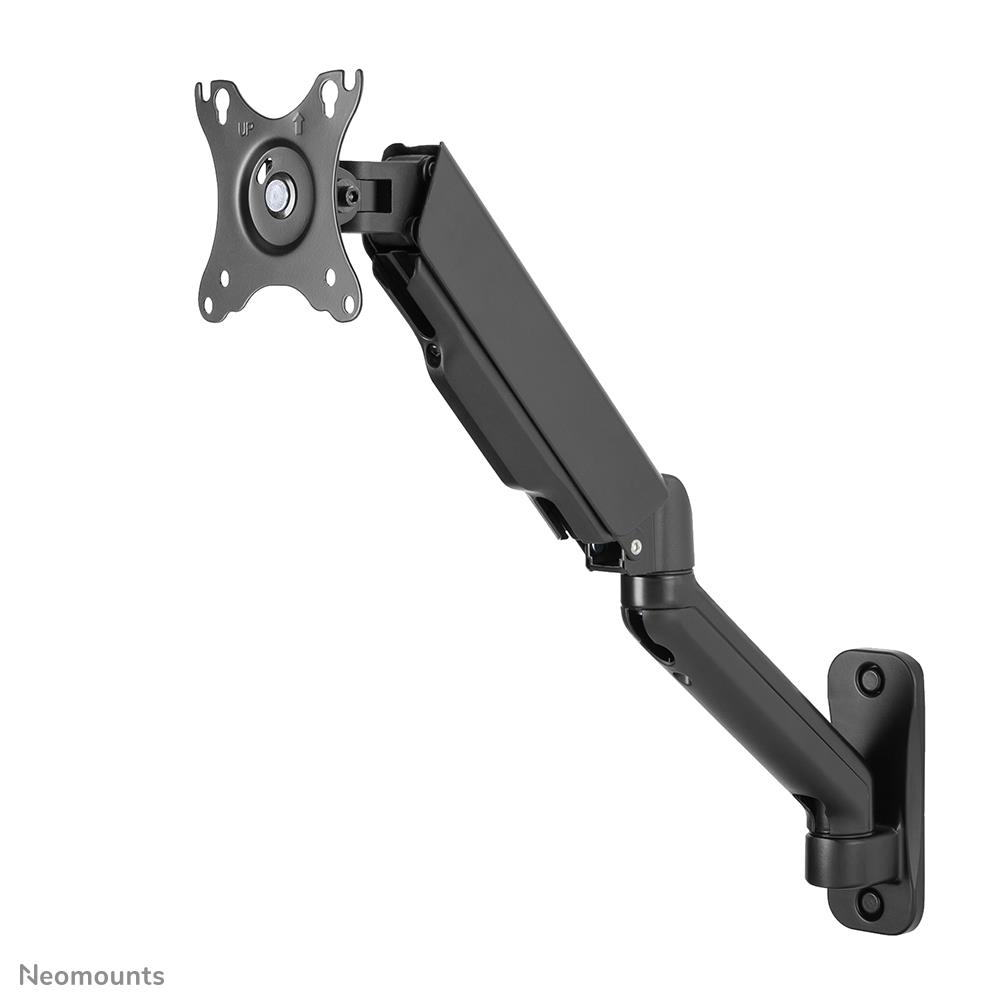

The Neomounts WL70-450BL11 is a full motion wall mount for flat screens up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows you to create the optimum viewing angle.
The WL70-450BL11 has a depth of 9-54 cm and is suitable for screens that meet VESA hole pattern 75x75 to 100x100 mm.
The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
General
| Unit Calculated Weight | 2.33 kg |
| Unit Calculated Volume | 0.01271 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts WL70-450BL11 Monitor/TV mount wall 17-32" - gas spring - full motion. Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment range: 0 - 250 mm, Tilt angle range: -45 - 90°, Swivel angle range: 0 - 180°, Angle of rotation: 360°, Distance to the wall (min): 9 cm, Distance to the wall (max): 54 cm. Product colour: Black |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.41 |
| Unit Box Width | 0.31 |
Mounting
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Distance to the wall (max) | 540 mm |
| Distance to the wall (min) | 90 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 250 mm |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 90 ° |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 2300 g |
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Depth | 475 mm |
| Depth (max) | 475 mm |
| Height | 491 mm |
| Weight | 1640 g |
| Width | 117 mm |
Packaging data
| Package depth | 405 mm |
| Package height | 90 mm |
| Package weight | 2300 g |
| Package width | 305 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 2300 g |
| Master (outer) case height | 90 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case net weight | 1600 g |
| Master (outer) case width | 305 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 90 pc(s) |
Other features
| Minimum weight | 2 kg |
| Mounting | Screws |
