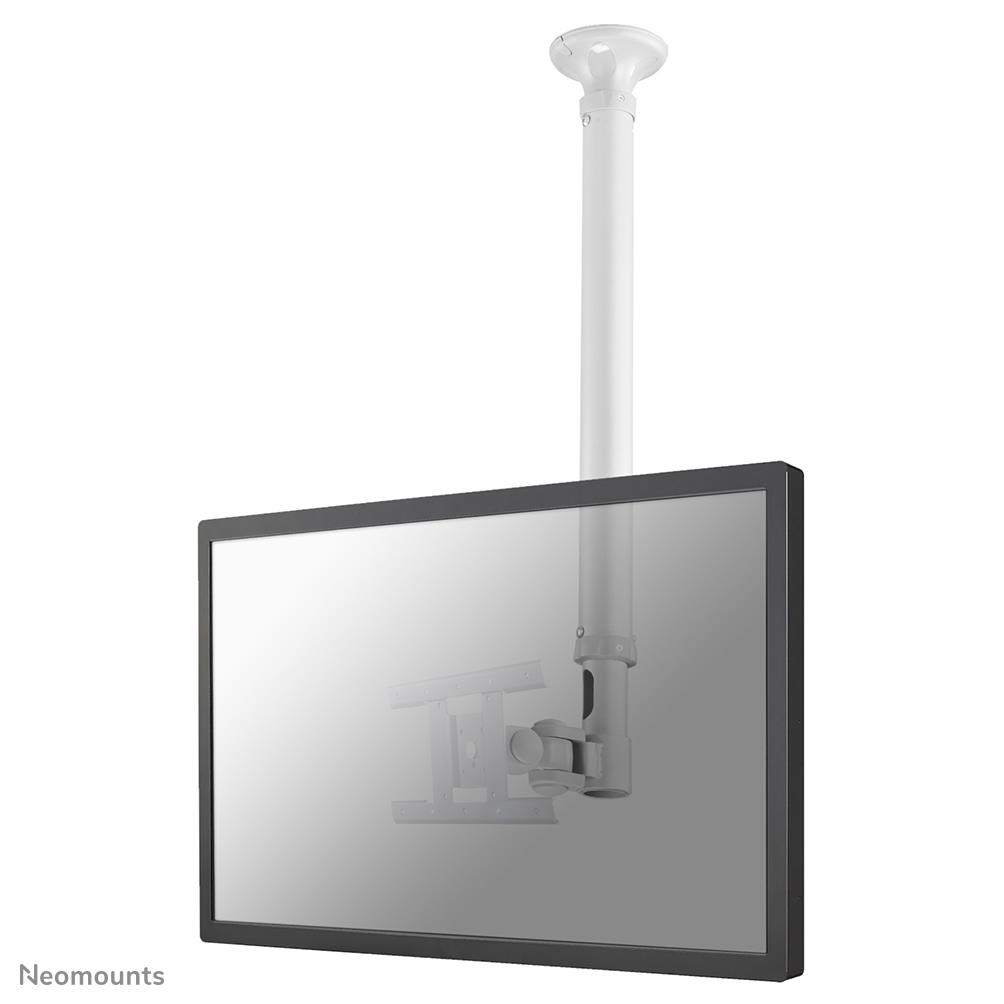

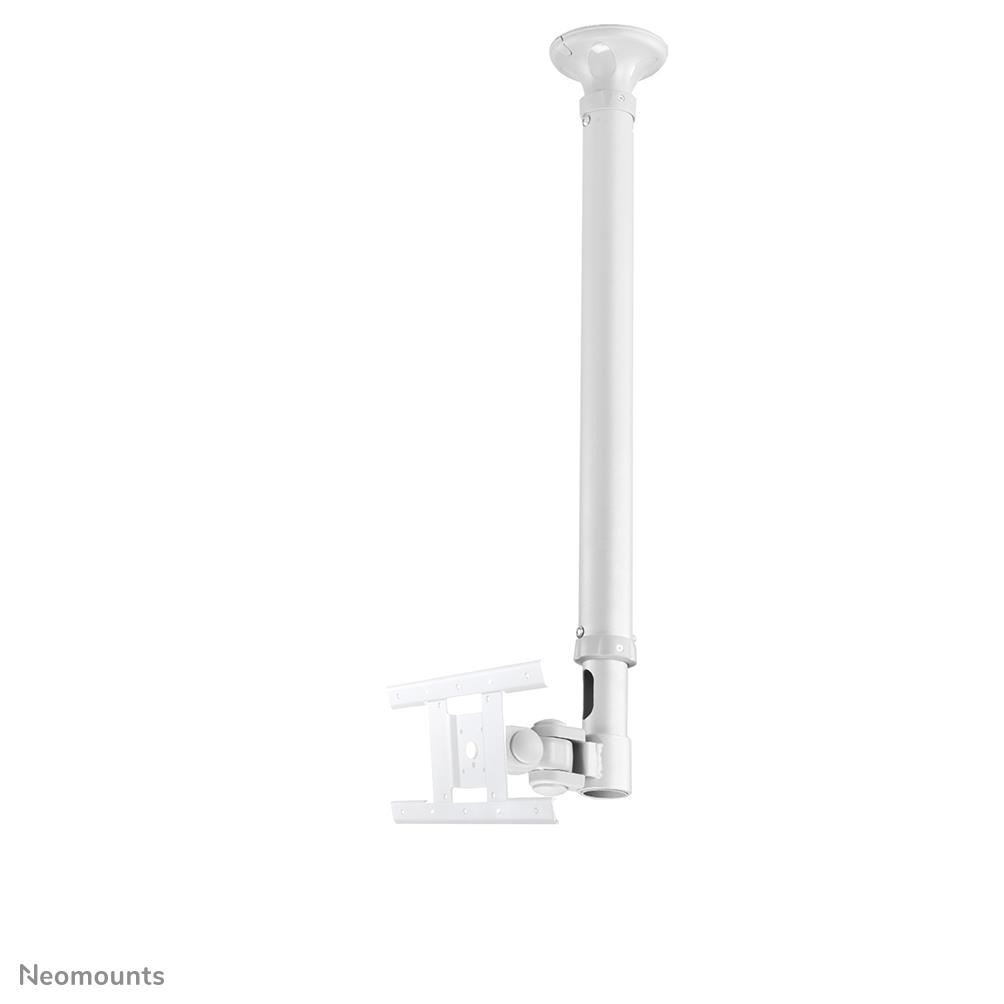

The Neomounts ceiling mount, model FPMA-C100WHITE is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C100WHITE has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
General
| Unit Calculated Weight | 5.04 kg |
| Unit Calculated Volume | 0.01789 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm. Maximum weight capacity: 12 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 100 mm. Height adjustment range: 790 - 1290 mm, Tilt angle range: 0 - 180°, Swivel angle range: 0 - 180°, Angle of rotation: 360°. Product colour: White |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.855 |
| Unit Box Width | 0.155 |
Mounting
| Maximum screen size | 30 " |
| Maximum VESA mount | 200 x 100 mm |
| Maximum weight capacity | 12 kg |
| Maximum weight capacity (per display) | 12 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Ceiling |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 200/75 x 75 mm |
Ergonomics
| Angle of rotation | 360 ° |
| Height adjustment | Yes |
| Height adjustment range | 790 - 1290 mm |
| Height adjustment type | Manual |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle | 180 ° |
| Tilt angle range | 0 - 180 ° |
Design
| Housing material | Steel |
| Product colour | White |
Technical details
| Country of origin | Taiwan |
Weight & dimensions
| Depth | 90 mm |
| Height | 1290 mm |
| Weight | 4320 g |
Packaging data
| Package depth | 152 mm |
| Package height | 188 mm |
| Package weight | 4500 g |
| Package width | 858 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 16200 g |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case net weight | 14600 g |
| Master (outer) case width | 880 mm |
| Products per master (outer) case | 3 pc(s) |
| Products per pallet (EU) | 39 pc(s) |
Other features
| Depth adjustment range | 0 - 90 mm |
