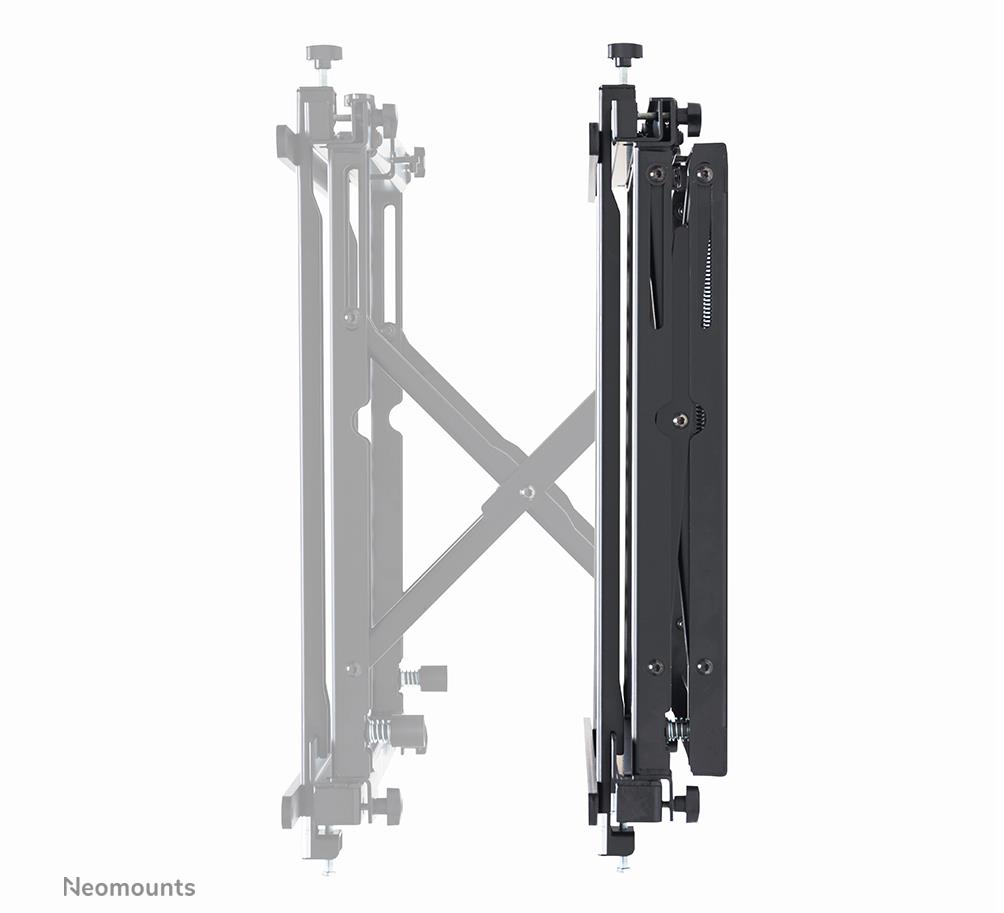

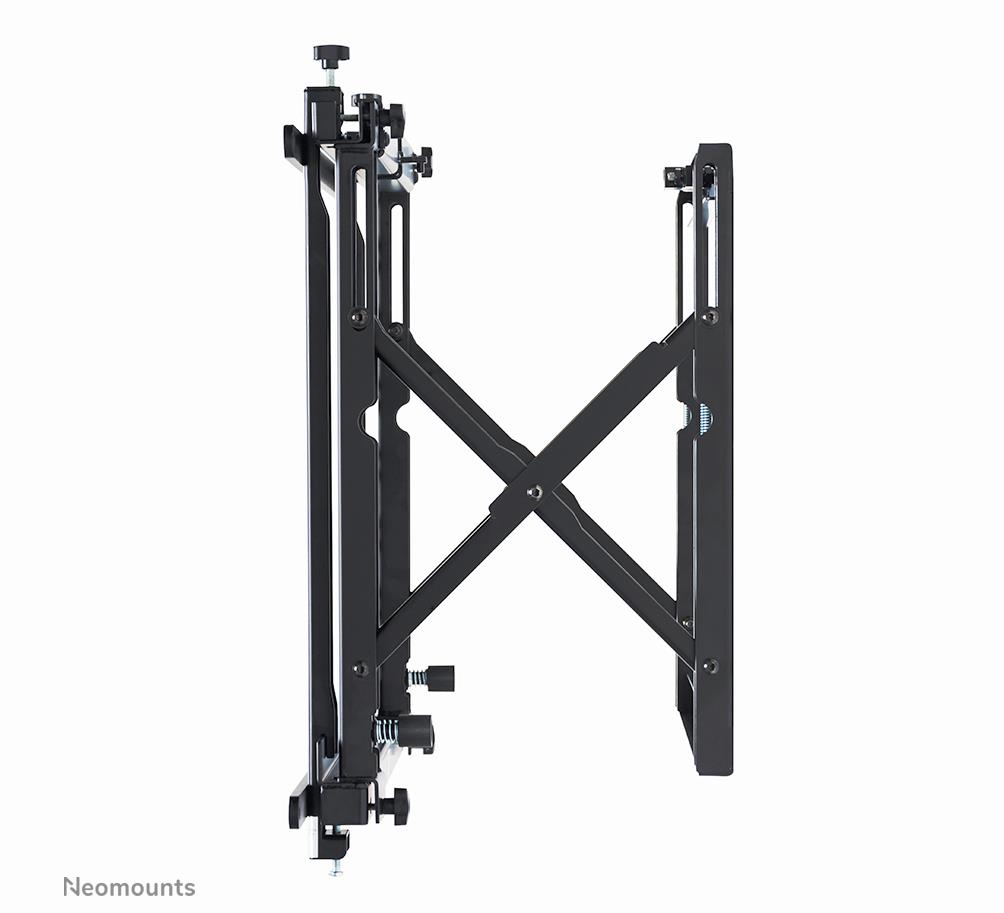

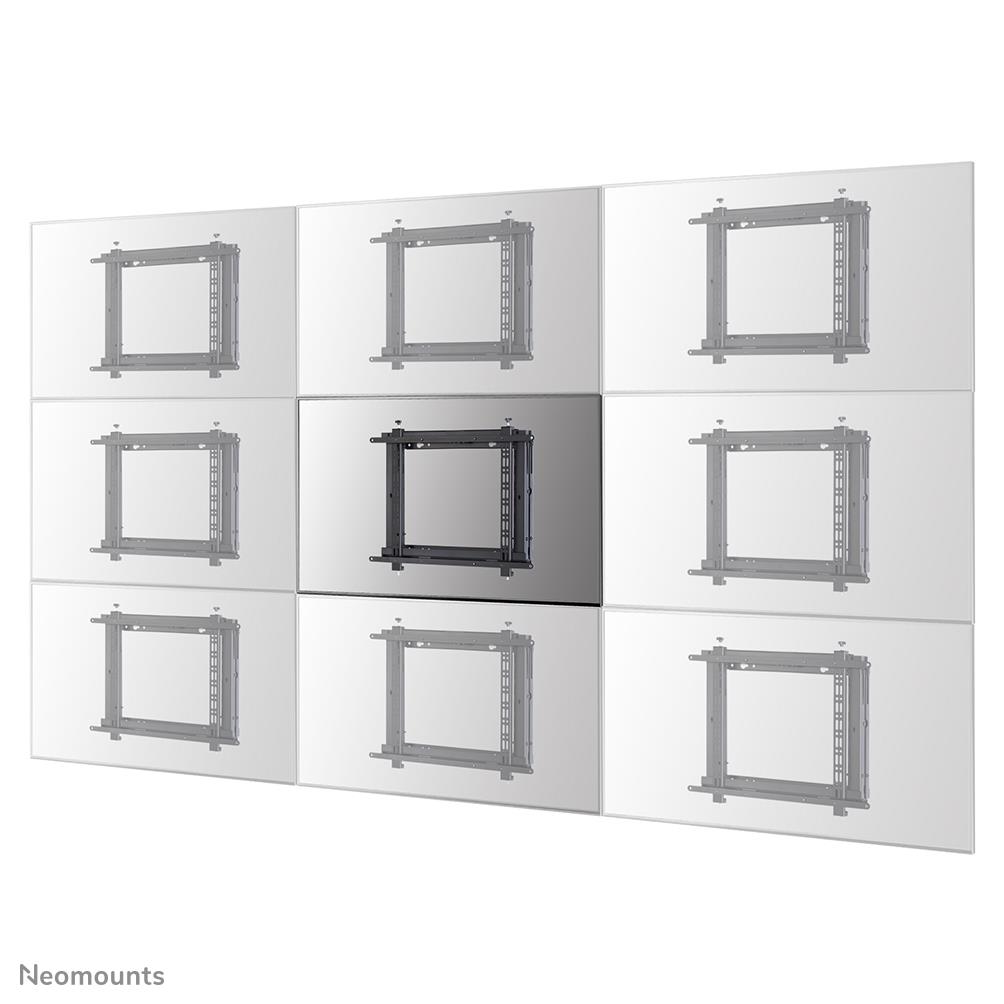

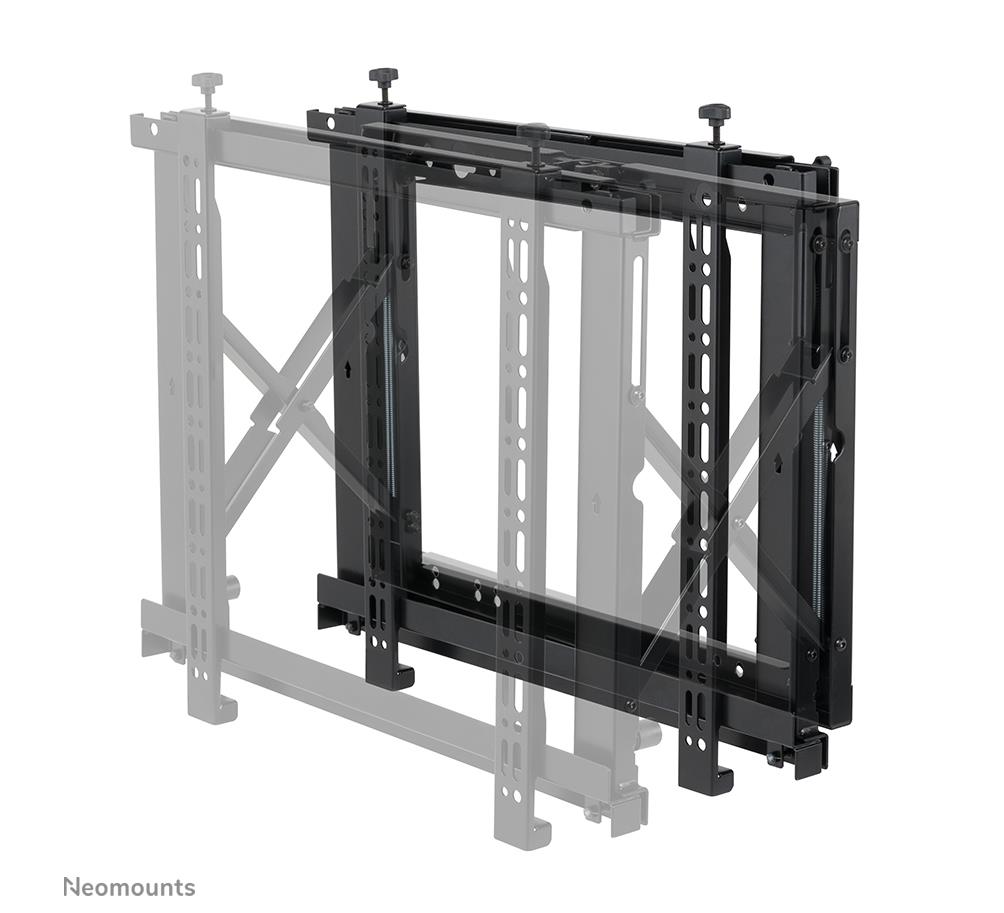

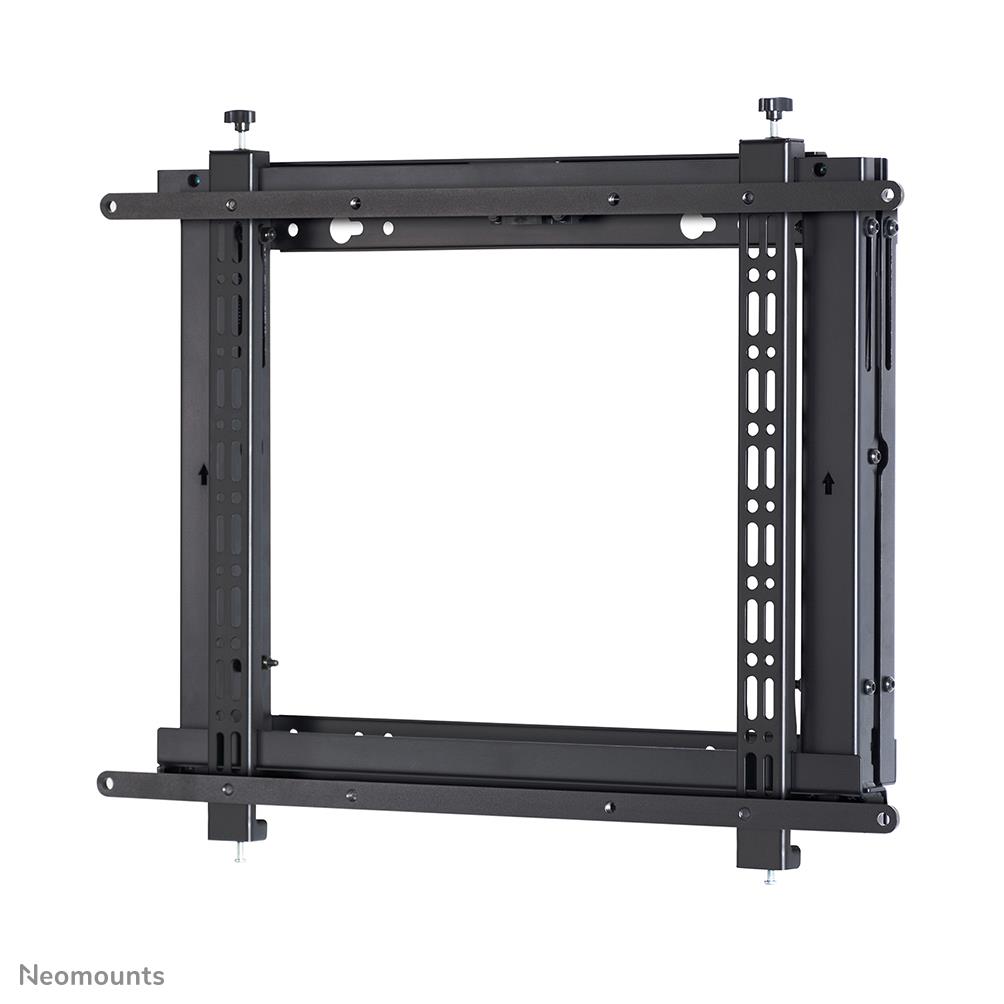

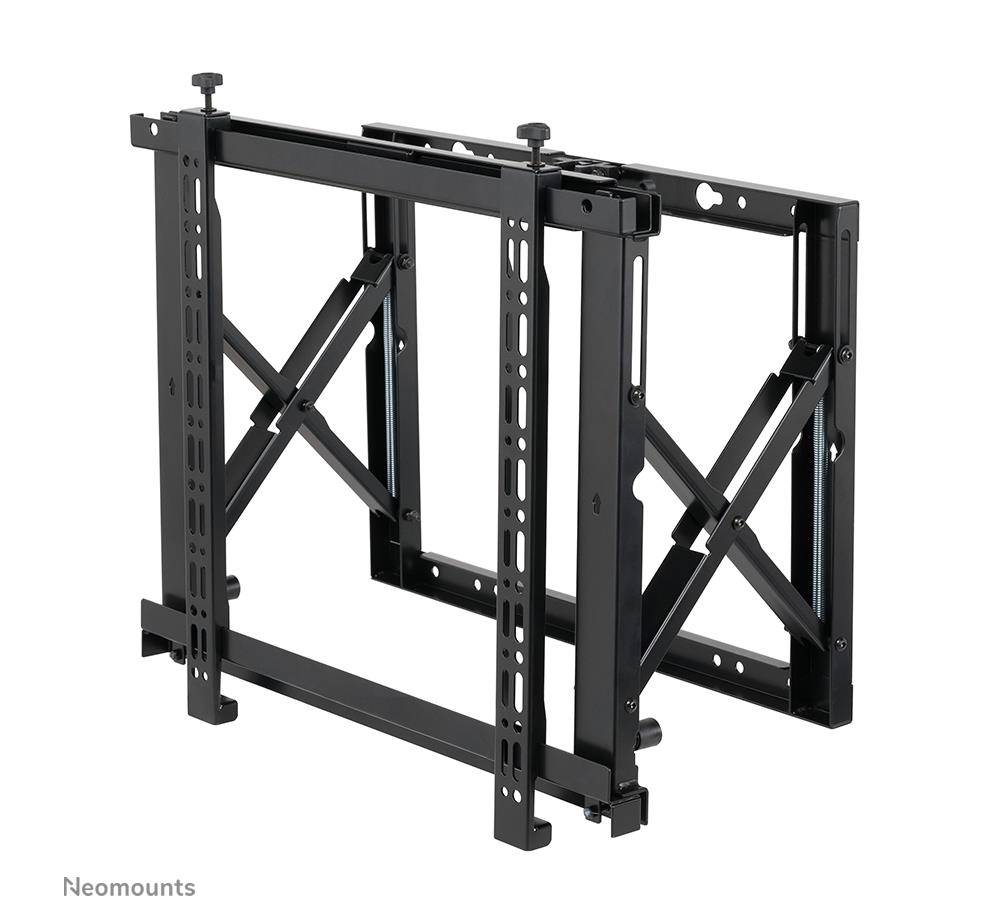

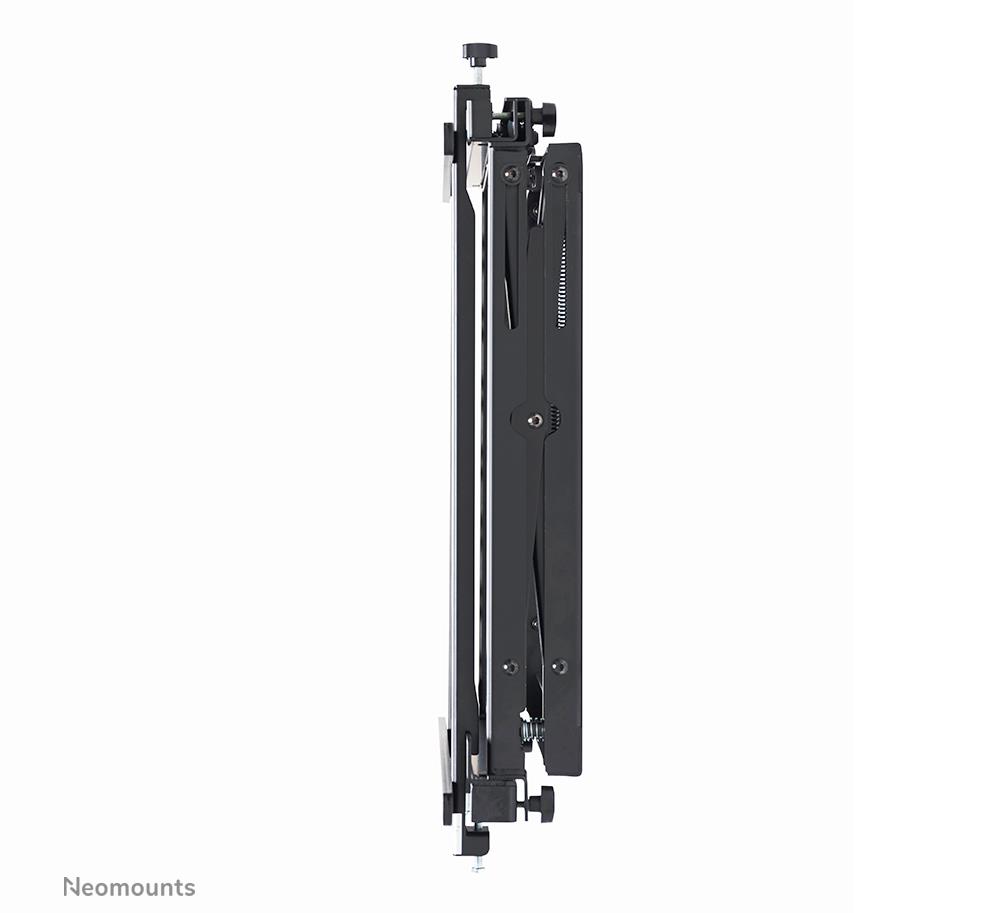

The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.
The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
General
| Unit Calculated Weight | 9.8 kg |
| Unit Calculated Volume | 0.03822 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts WL95-800BL1 Videowall wall mount 42-70" - pop-out - max 35 kg. Maximum weight capacity: 35 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 13 mm. Product colour: Black |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.615 |
| Unit Box Width | 0.565 |
| Model | WL95-800BL1 |
Mounting
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum weight capacity (per display) | 35 kg |
| Minimum screen size | 42 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/400 x 600/600 x 200/600 x 300/600 x 400 mm |
Ergonomics
| Cable management | No |
| Depth adjustment | 4 mm |
| Distance to the wall (max) | 266 mm |
| Distance to the wall (min) | 78 mm |
| Height adjustment | Yes |
| Height adjustment | 13 mm |
| Height adjustment range | 0 - 13 mm |
| Height adjustment type | Manual |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Width adjustment | 40 mm |
Design
| Accepts padlock | No |
| Housing material | Steel |
| Product colour | Black |
Weight & dimensions
| Depth | 84 mm |
| Height | 510 mm |
| Weight | 7720 g |
| Width | 620 mm |
| Width adjustment range | 0 - 40 mm |
Packaging data
| Package depth | 110 mm |
| Package height | 620 mm |
| Package type | Box |
| Package weight | 9800 g |
| Package width | 570 mm |
Technical details
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Package net weight | 9800 g |
| Warranty period | 5 year(s) |
Other features
| Country of origin | China |
| Depth adjustment range | 0 - 4 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 9800 g |
| Master (outer) case height | 620 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case net weight | 8500 g |
| Master (outer) case width | 570 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 24 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
