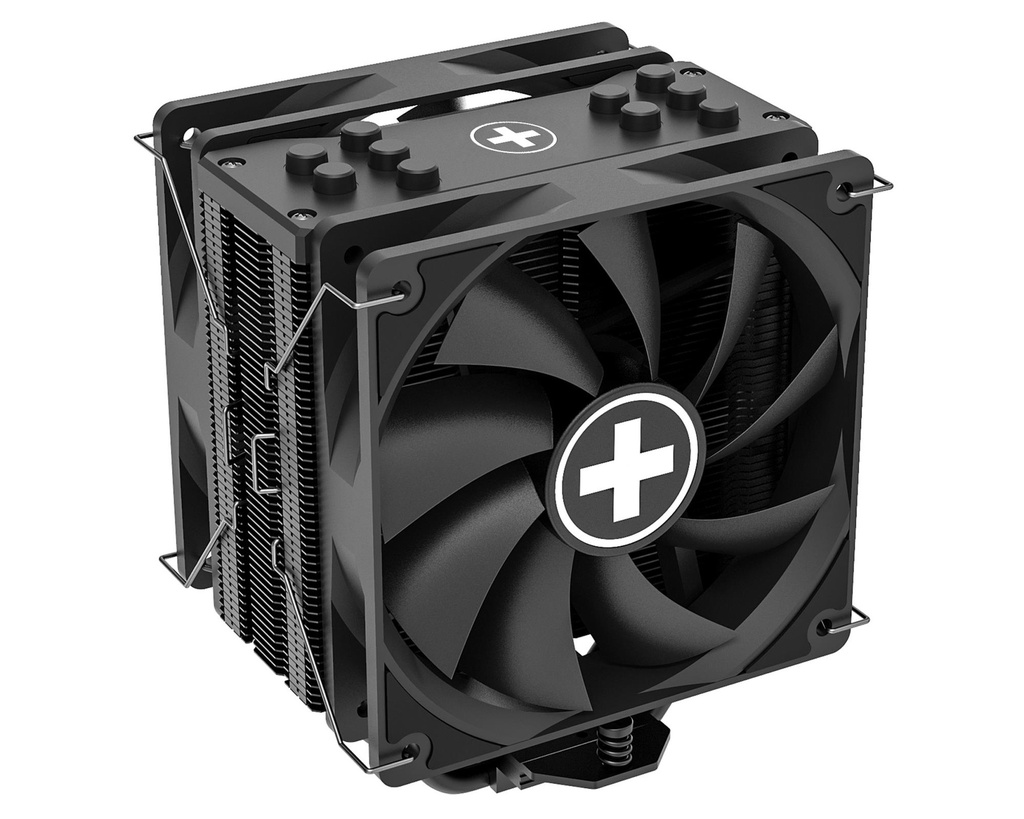

The compact M705D is a tower cooler with double fan from the A+ series. It has five extremely powerful black heat pipes, which dissipate 220W of waste heat to the countless cooling fins and thus predestine it for potent multi-core processors.
Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. Suitable for cooling processors with very high levels of waste heat.
The multi-socket means that the cooler can be used on all current Intel and AMD sockets.
In addition to the double heat sink and the two PWM-controlled 120mm fans, the scope of delivery includes a holding module for the LGA socket LGA1700/1954/2066/2011/1151/1150/1155/1851/1156/1200 and AMD AM4 / AM5 illustrated assembly instructions and a tube of thermal paste.
- Elegant black design with top cover
- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- Two black 120mm PWM fans, liquid-stored
- Five 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- The fans can be mounted on both sides of the heat sinks
- Suitable for all common AMD & INTEL sockets
General
| Unit Calculated Weight | 1.24 kg |
| Unit Calculated Volume | 0.005496 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Xilence Performance A+ XC061. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (min): 700 RPM, Rotational speed (max): 1600 RPM, Bearing type: Fluid Dynamic Bearing (FDB). Width: 108 mm, Depth: 128 mm, Height: 150 mm. Product colour: Black |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.12 |
| Model name | XC061 |
Performance
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Noise level (high speed) | 32.5 dB |
| Noise level (low speed) | 18 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 1600 RPM |
| Rotational speed (min) | 700 RPM |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/LGA 1954/LGA 2011 (Socket R)/LGA 2066/Socket AM4/Socket AM5 |
| Type | Air cooler |
Design
| Base plate material | Copper |
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Number of fans | 2 fan(s) |
| Number of heat pipes | 5 |
| Product colour | Black |
Power
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 220 W |
Weight & dimensions
| Depth | 128 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Height | 150 mm |
| Package weight | 900 g |
| Weight | 685 g |
| Width | 108 mm |
