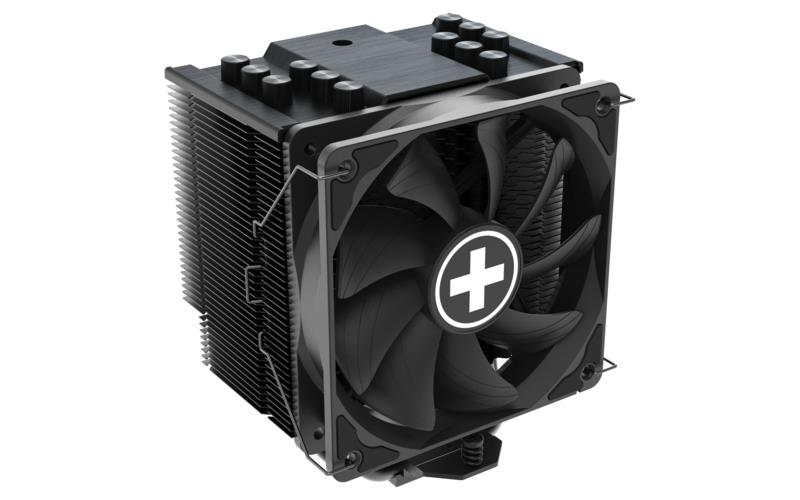

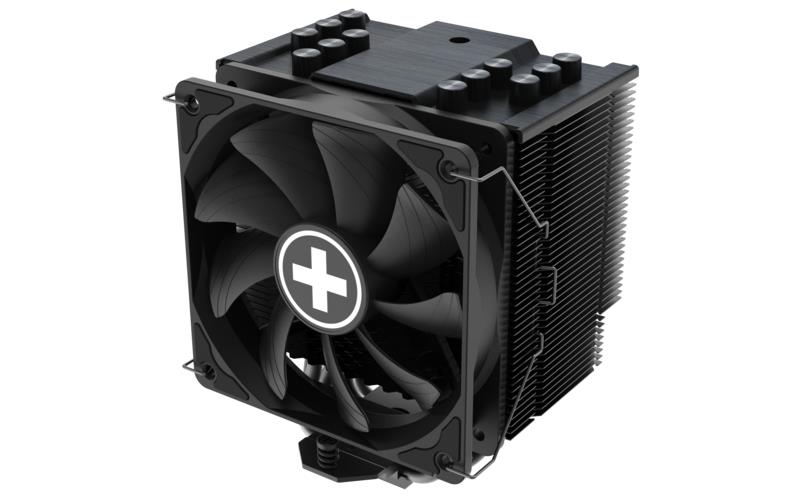

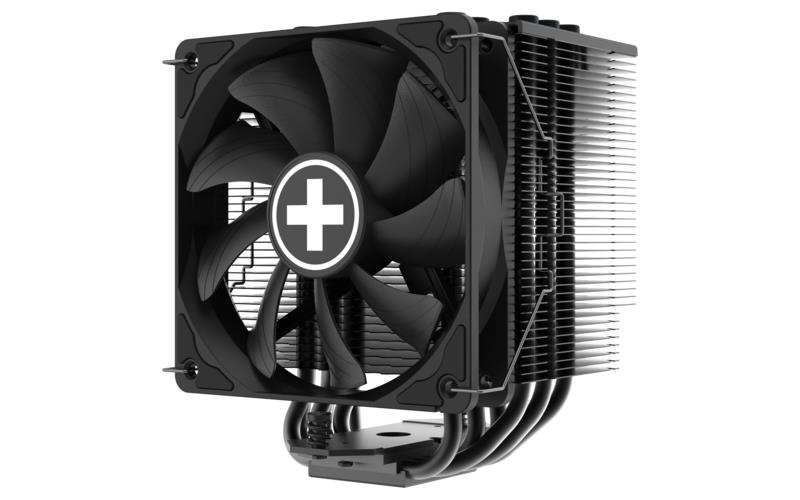

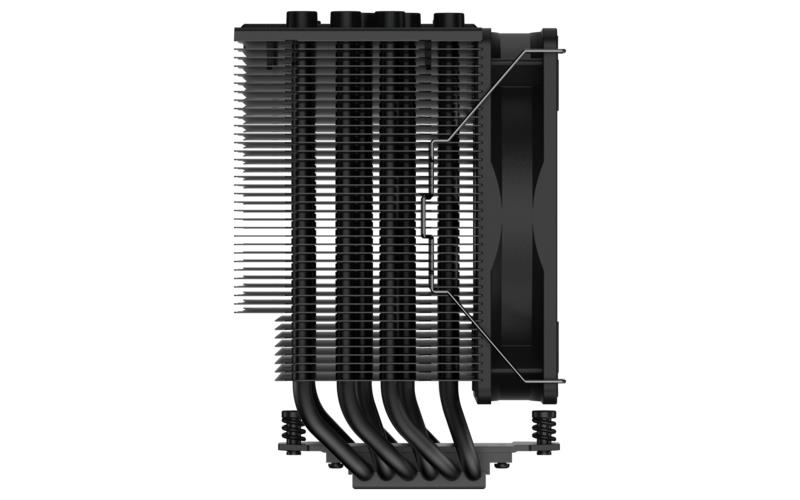

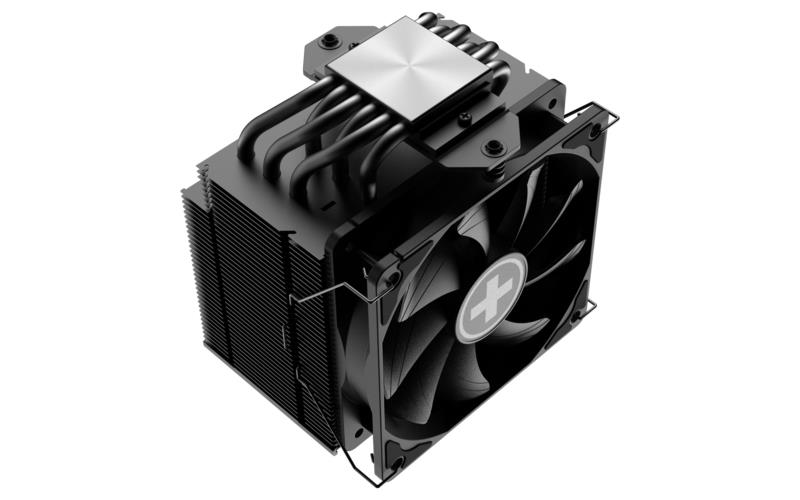

Our new flag ship in the field of air cooling from the performance X series - the M906
It has six extremely powerful black heat pipes, which dissipate 250W of waste heat to the countless cooling fins and thus predestine it for potent multi-core processors.
Due to the direct contact of the heat pipes, the heat transfer between CPU and cooler is extremely efficient and very even. The multi-socket means that the cooler can be used on all current Intel and AMD sockets.
In addition to the double heat sink and the PWM-controlled 120mm FDB Xilent fan, the scope of delivery includes a holding module for the LGA1700/1954/2066/2011/1151/1150/1155/1851/1156/1200 and AMD AM4/AM5, illustrated assembly instructions and a tube of thermal paste.
- Elegant black design with top cover
- One heat sink with lamellar design ensure efficient cooling of the CPU and all surrounding components
- One black 120mm FDB/PWM Xilent fan, liquid-stored
- six 6mm copper heat pipes for maximum heat dissipation
- Hotspots are avoided by slightly protruding the fans on the top and bottom
- Suitable for all common AMD & INTEL sockets
General
| Unit Calculated Weight | 1.39 kg |
| Unit Calculated Volume | 0.005704 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Summary | Xilence Performance A+ XC081. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 1500 RPM, Bearing type: Fluid Dynamic Bearing (FDB). Width: 106 mm, Depth: 129 mm, Height: 154 mm. Product colour: Black |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.61 |
| Unit Box Width | 0.0425 |
| Model name | M906 |
| Model | XC081 |
Performance
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Noise level (high speed) | 30.8 dB |
| Noise level (low speed) | 18 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 1500 RPM |
| Rotational speed (min) | 500 RPM |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/LGA 1954/LGA 2011 (Socket R)/LGA 2066/Socket AM4/Socket AM5 |
| Type | Air cooler |
Design
| Base plate material | Copper |
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Material | Aluminium |
| Number of fans | 1 fan(s) |
| Number of fins | 45 |
| Number of heat pipes | 6 |
| Product colour | Black |
Power
| Rated voltage | 12 V |
| Thermal Design Power (TDP) | 250 W |
Weight & dimensions
| Cable length | 0.44 m |
| Depth | 129 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Height | 154 mm |
| Package weight | 900 g |
| Weight | 905 g |
| Width | 106 mm |
