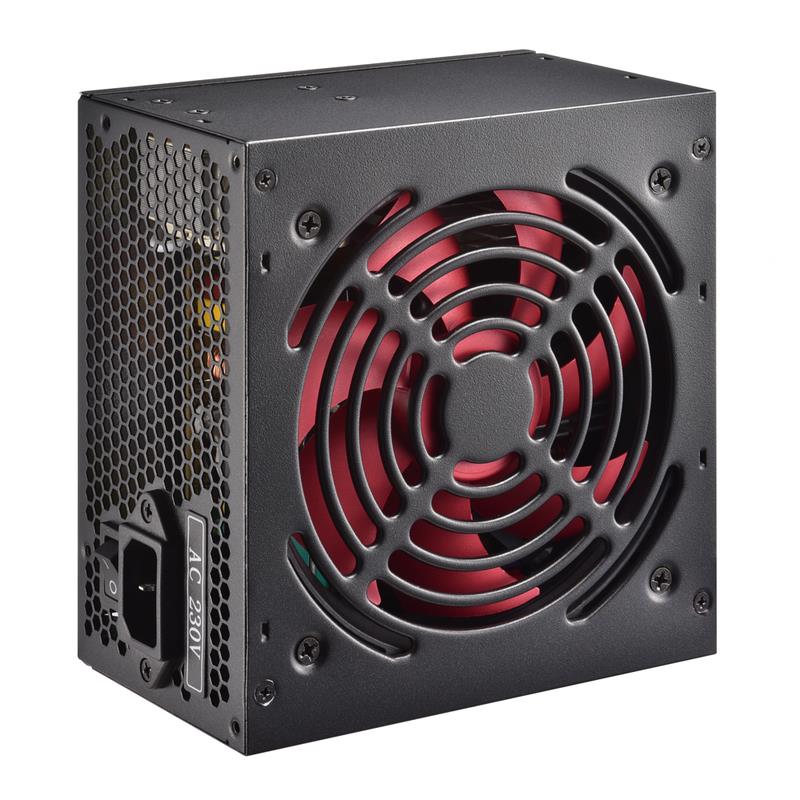

The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.
General
| Unit Calculated Weight | 1.6 kg |
| Unit Calculated Volume | 0.004627 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Xilence Performance A+ XN054. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Bearing technology: FDB. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.165 |
Power
| AC input frequency | 50 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Input current | 8 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 24 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| Power Factor Correction (PFC) type | Passive |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 700 W |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 550 mm |
| Motherboard power cable length | 450 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power connectors (6-pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| ATX version | 2.31 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Certificates
| Compliance certificates | RoHS/WEEE |
Packaging data
| Package depth | 165 mm |
| Package height | 100 mm |

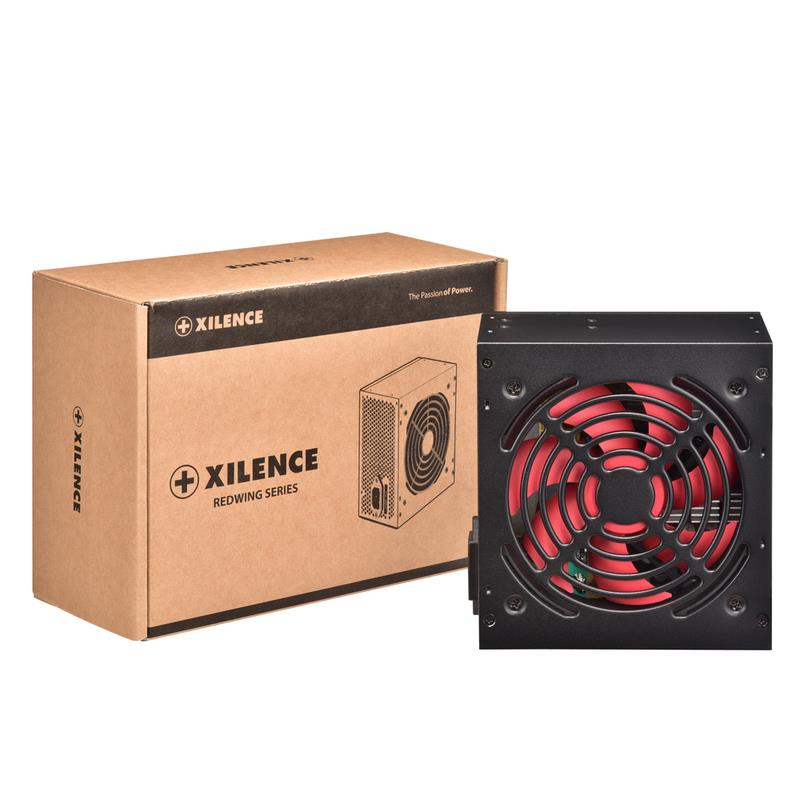

| Package type | Box |
| Package weight | 1840 g |
| Package width | 225 mm |
