The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
General
| Unit Calculated Weight | 2.87 kg |
| Unit Calculated Volume | 0.00795 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Model name | XN173 | XP750MR9.2 |
| Summary | Xilence Performance X Series XP750MR9.2. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE |
| CnCode | 85044095 |
| Unit Box Height | 0.195 |
| Unit Box Length | 0.29 |
| Unit Box Width | 0.095 |
Power

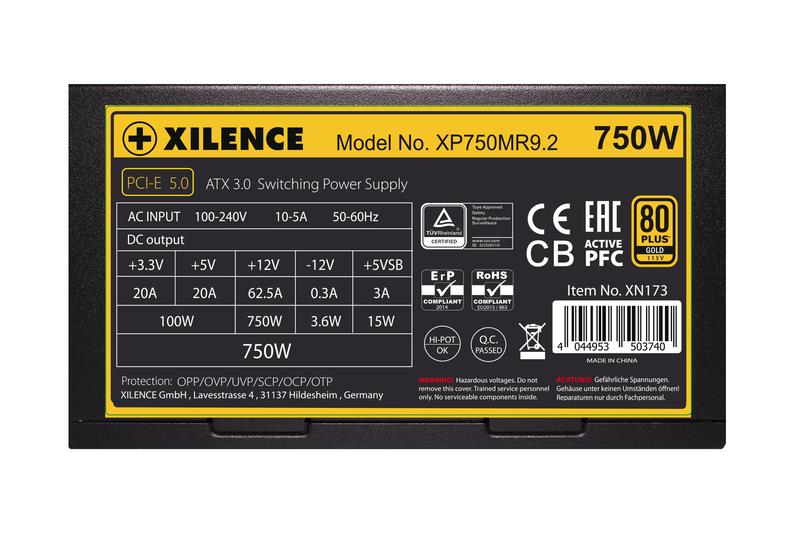

| AC input voltage | 100 - 240 V |
| Efficiency | 92 % |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Total power | 750 W |
Ports & interfaces

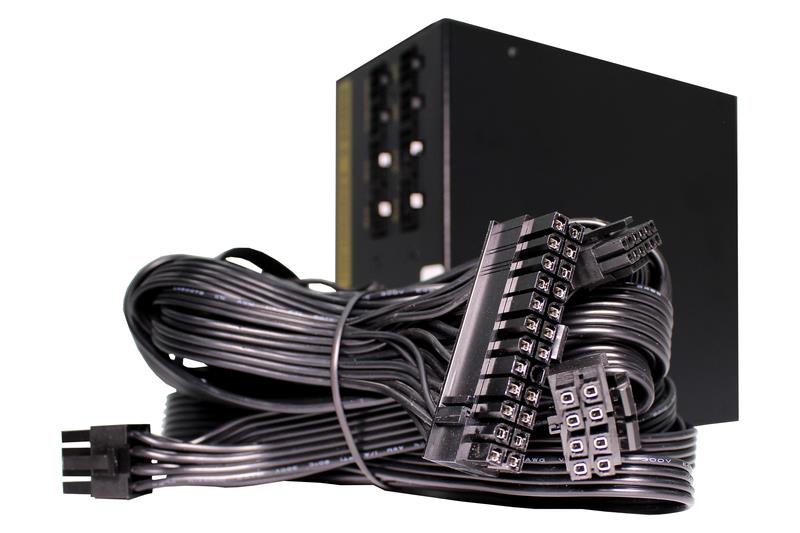

| Cabling type | Semi-Modular |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |

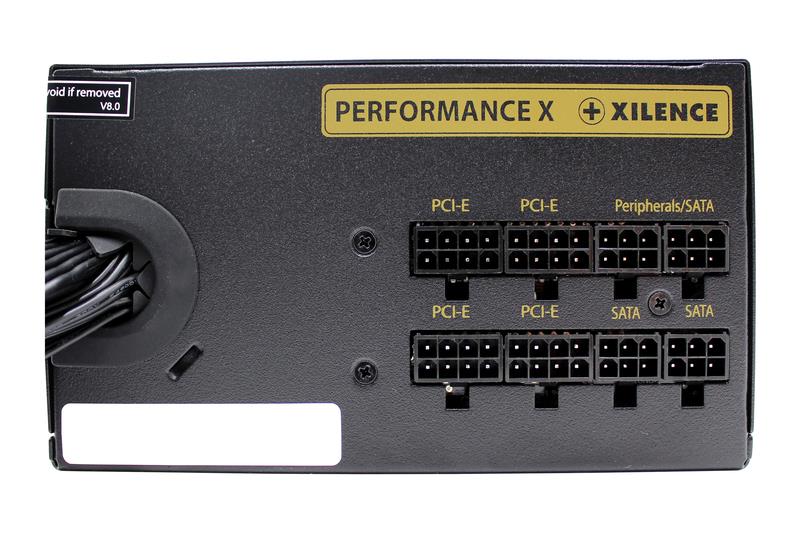

| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (8-pin) | 1 |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 140 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black/Red |
Certificates
| Compliance certificates | RoHS/WEEE |
Weight & dimensions
| Depth | 160 mm |
| Height | 86 mm |
| Width | 150 mm |
Packaging data
| Package type | Box |
Technical details
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
