The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

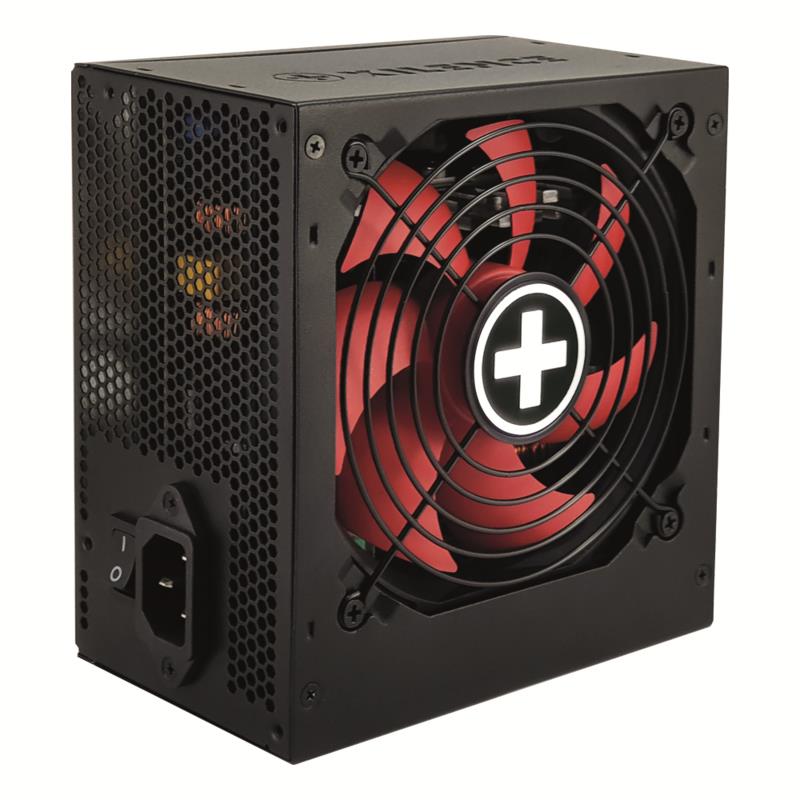

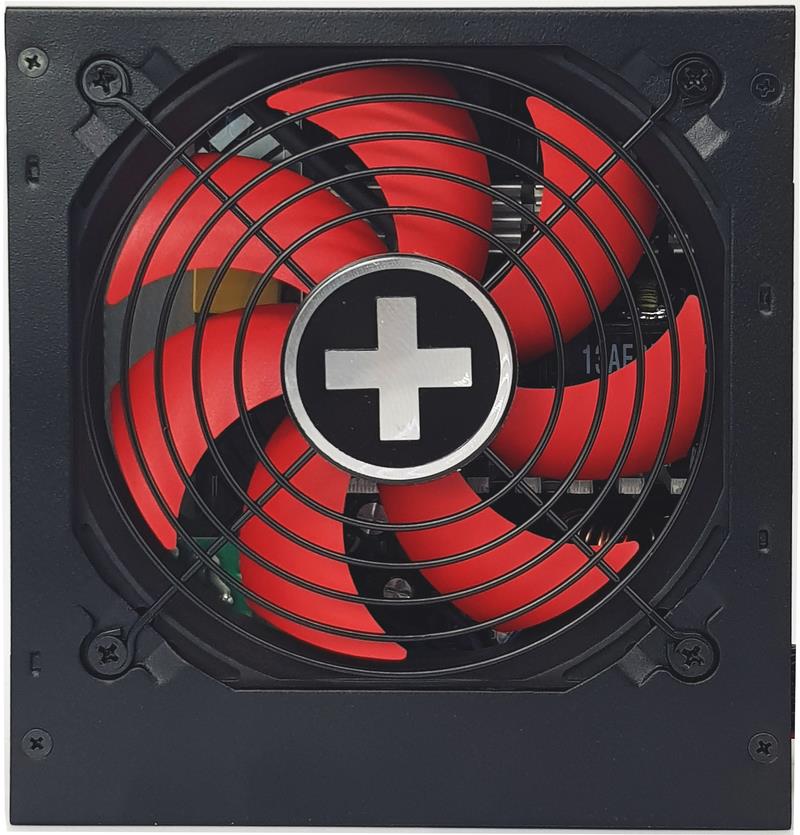

- Extremely silent cooling: large 120mm fan
- semi-modular cable management
- Excellent air flow design for a better heat dissipation
- Low stand-by consumption
- High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)
- Active-PFC
General
| Unit Calculated Weight | 1.92 kg |
| Unit Calculated Volume | 0.006132 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Model name | XN213 | XP450R10 |
| Summary | Xilence Performance A+ XN213. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.1 |
Power
| AC input frequency | 50 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+12V) | 396 W |
| Combined power (+3.3V) | 100 W |
| Input current | 10 A |
| Max output current (+12V) | 33 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 14 A |
| Max output current (+5Vsb) | 2 A |
| Max output current (-12V) | 0.5 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Short circuit/Under voltage |
| Total power | 450 W |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Certificates
| Compliance certificates | RoHS/WEEE |
Packaging data
| Package type | Box |
Technical details
| Sustainability certificates | ErP |
