The new successful Gaming series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.
General
| Unit Calculated Weight | 1.98 kg |
| Unit Calculated Volume | 0.00648 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Model name | XN220 | XP650R10 |
| Summary | Xilence XN225. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: CB, CE, REACH, RoHS, cTUVus, WEEE, Certification: ErP2014 |
| CnCode | 85044095 |
| Unit Box Height | 0.185 |
| Unit Box Length | 0.26 |
| Unit Box Width | 0.1 |

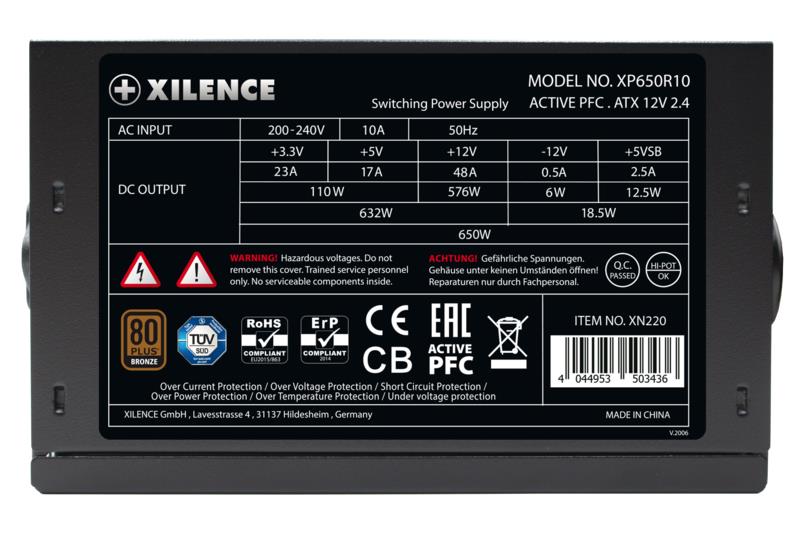

Power
| AC input frequency | 50 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+12V) | 576 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 6 W |
| Efficiency | 85 % |
| Input current | 10 A |
| Max output current (+12V1) | 48 A |
| Max output current (+3.3V) | 23 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over voltage/Overheating/Overload/Under voltage |
| Total power | 650 W |
Ports & interfaces
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| Noise level | 29 dB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 140 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black/Red |
Certificates
| Certification | ErP2014 |
| Compliance certificates | CB/CE/cTUVus/REACH/RoHS/WEEE |
Packaging data
| Package depth | 440 mm |
| Package height | 265 mm |
| Package weight | 1980 g |
| Package width | 580 mm |
Technical details
| Sustainability certificates | ErP |
| Sustainability compliance | Yes |
