XN330 | XP750R12

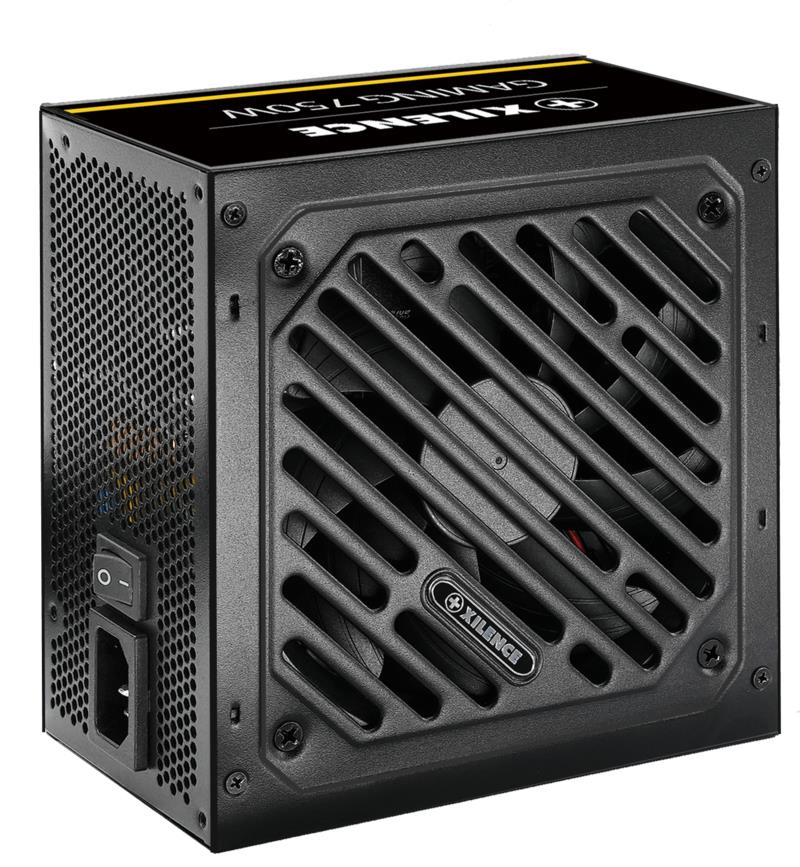

The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.
- Whisper-Quiet Cooling: Large 120mm fan*
- Excellent Airflow Design for Improved Heat Dissipation
- With the Following Safety Equipment:
- OVP (Overvoltage Protection)
- UVP (Undervoltage Protection)
- SCP (Short Circuit Protection)
- OLP (Overload Protection)
- OTP (Over Temperature Protection)
- OCP (Overcurrent Protection)
- Low Standby Power Consumption
General
| Unit Calculated Weight | 2.21 kg |
| Unit Calculated Volume | 0.006569 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Model name | XN330 | XP750R12 |
| Summary | Xilence Performance A+ XN330 | XP750R12. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 5.5 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: 80PLUS certification |
| Unit Box Height | 0.2 |
| Unit Box Length | 0.26 |
| Unit Box Width | 0.1 |
Power
| AC input frequency | 50 Hz |
| AC input voltage | 200 - 240 V |
| Combined power (+3.3V) | 66 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| Input current | 6.3 A |
| Max output current (+12V) | 62.5 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Short circuit/Under voltage |
| Total power | 750 W |
Ports & interfaces
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | No |
| Motherboard power cable length | 55 mm |
| Motherboard power connector | 20-pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
Performance
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.52 |
| Bearing technology | HDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Silent mode | Yes |
| Supported motherboard form factors | ATX |
Design
| Cooling type | Active |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
Certificates
| Certification | 80PLUS certification |
Weight & dimensions
| Depth | 247 mm |
| Height | 98 mm |
| Weight | 2300 g |
| Width | 198 mm |
