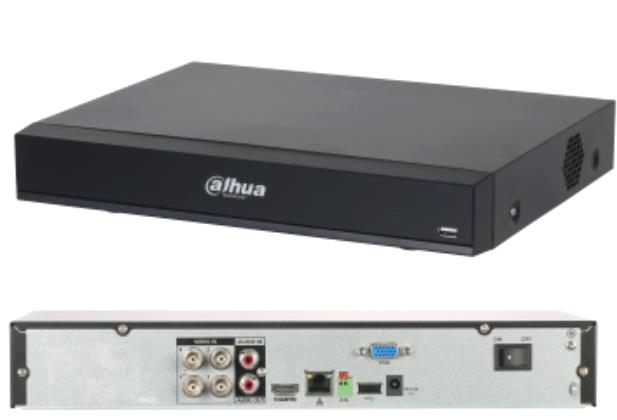

XVR7104H-4K-I34CH
Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
> 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
> 1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
> 4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
> 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
> 2-channel face recognition for analog channels which supports face comparison.
> 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.
> 1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
> 4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
> 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
> 2-channel face recognition for analog channels which supports face comparison.
> 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
> Supports HDCVI, AHD, TVI, CVBS and IP video input.
> Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps.
> Smart H.265+ and H.265 dual-stream video compression.
General
| Unit Calculated Weight | 1.86 kg |
| Unit Calculated Volume | 0.01337 cubm |
| Units per Shipping Box | 1 |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.375 |
| Unit Box Width | 0.31 |
| Model | XVR7104H-4K-I3 |
Ports & interfaces
| Audio output | 1 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
Network
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Audio formats supported | G.711 A-law/G.711u/PCM |
| Backup function | Yes |
| Channels quantity | 4 channels |
| Dual stream support | Yes |
| Multi-display supported | Yes |
| Playback modes | Event/General/Instant/Smart/Tag |
| Product colour | Black |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
Power
| DC current (max) | 2 A |
| DC voltage | 12 V |
| Power supply type | DC |
Weight & dimensions
| Dimensions (WxDxH) | 325.0 mm × 254.3 mm × 55.0 mm mm |
| Weight | 1000 g |
Operational conditions
| Operating temperature (T-T) | –10 °C to +55 °C °C |
| Storage temperature (T-T) | –20 °C to +60 °C °C |
