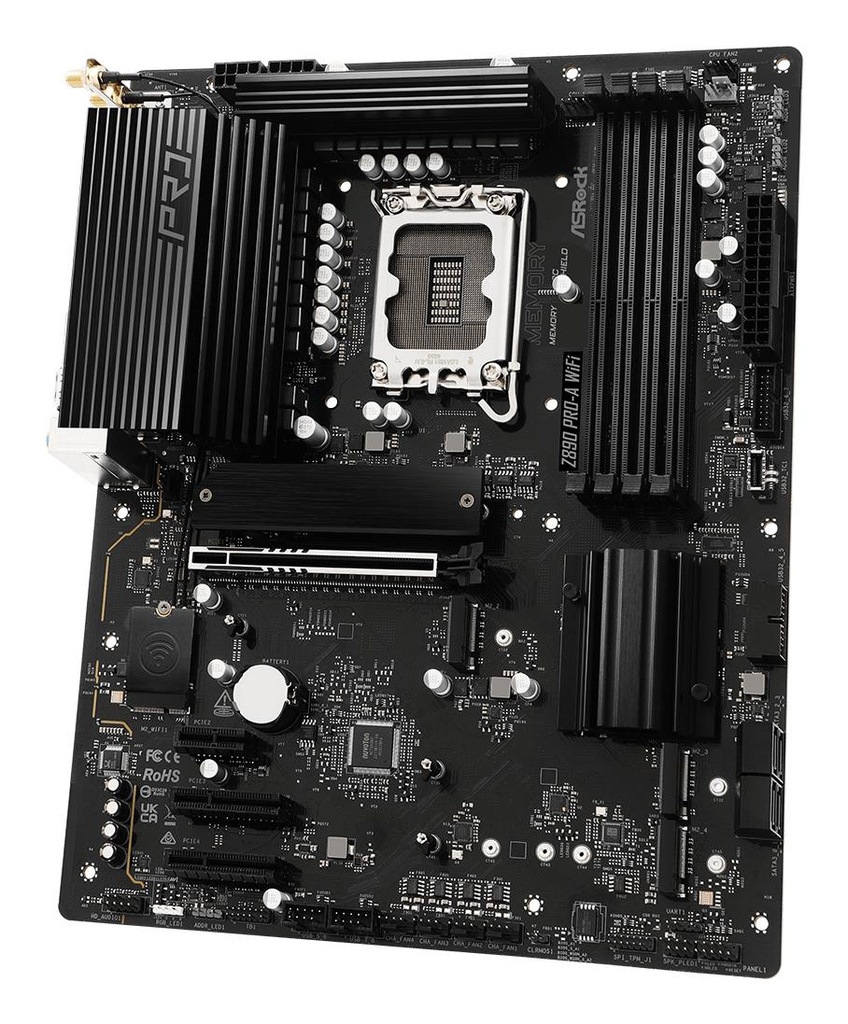

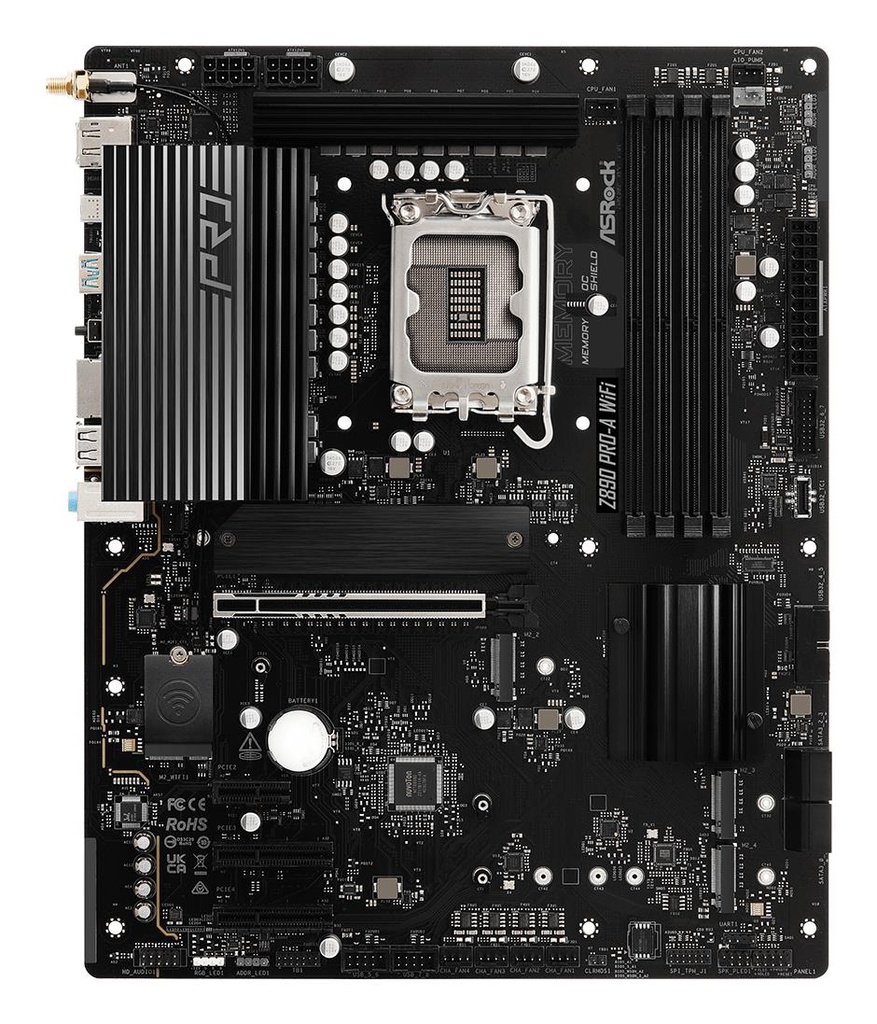

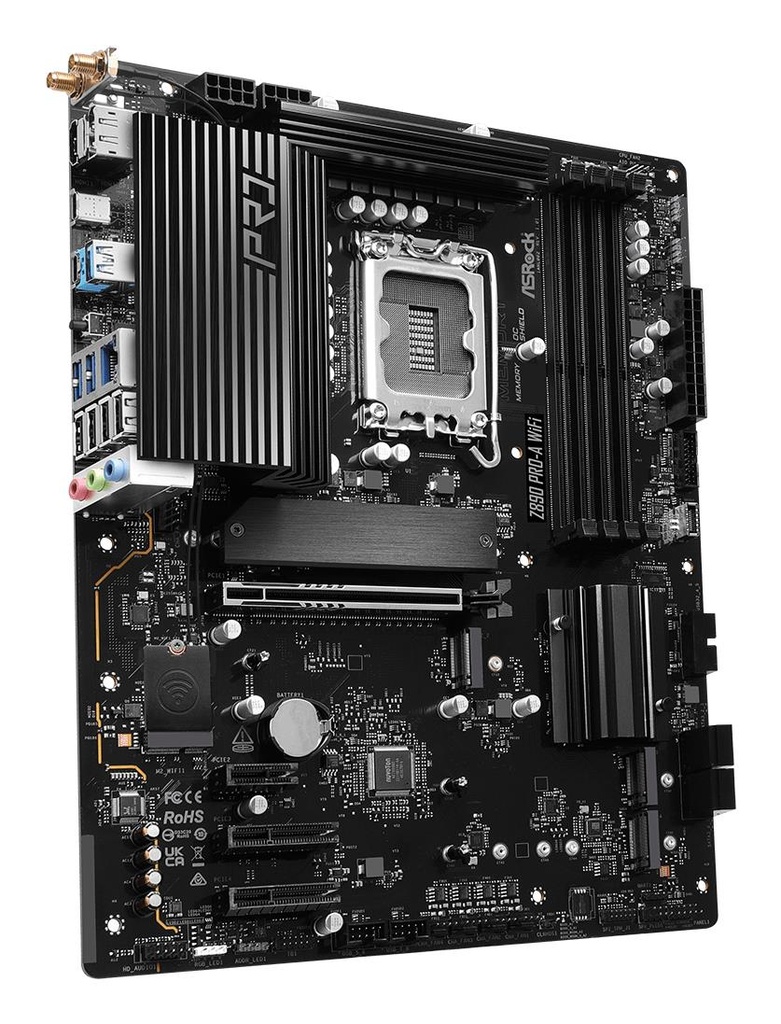

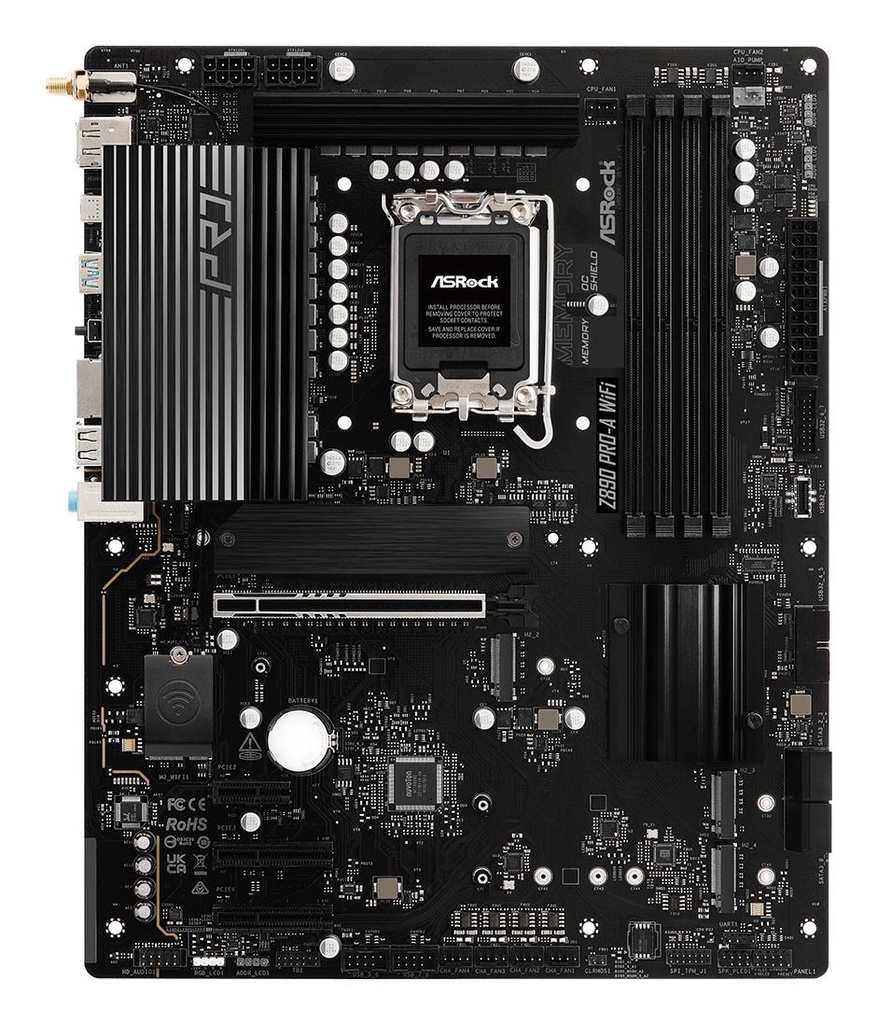

Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 9066+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5 x4)
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 1 Thunderbolt™ 4 Type-C (Rear)
- 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
General
| Summary | Asrock Z890 Pro-A WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.28 |
| Model | Z890 Pro-A WiFi |
Features
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 11 x64 |
Processor
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
Memory
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9066 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Internal I/O
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 5 |
| Number of CPU fan connectors | 2 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |

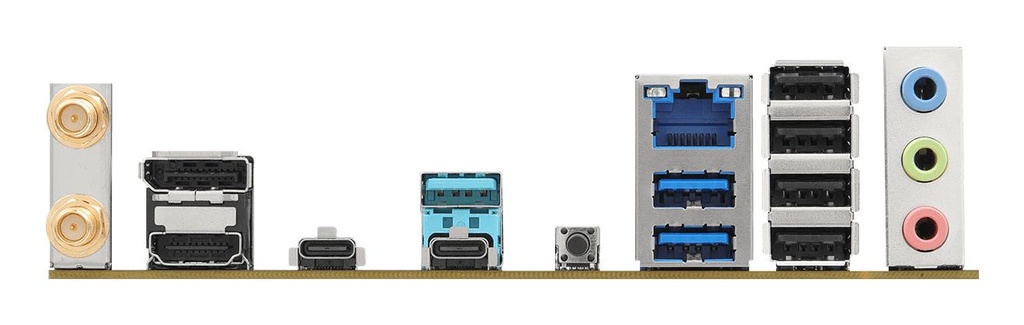

Rear panel I/O ports
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Thunderbolt ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Network
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
Expansion slots
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 2 |
BIOS
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
Weight & dimensions
| Depth | 244 mm |
| Width | 305 mm |
Packaging content
| Cables included | SATA |
| Screws included | Yes |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC) |
