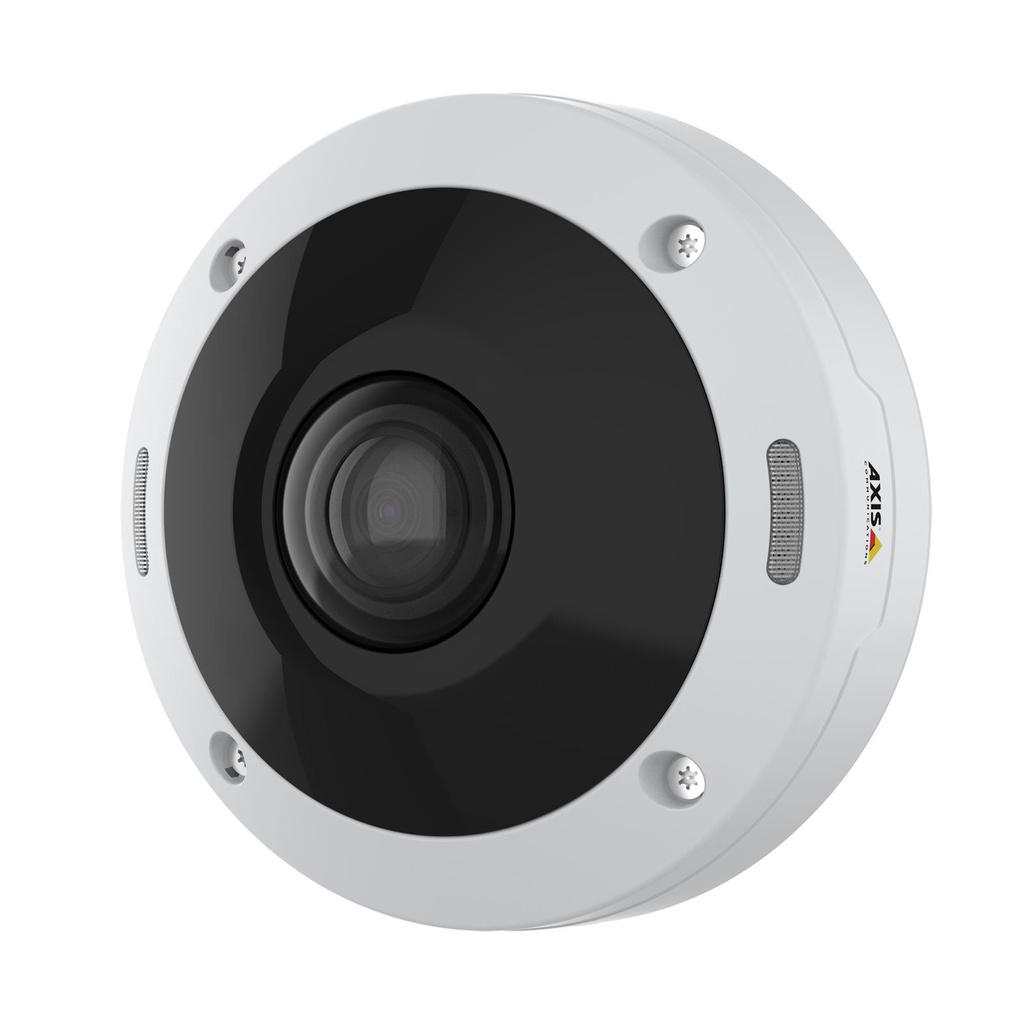

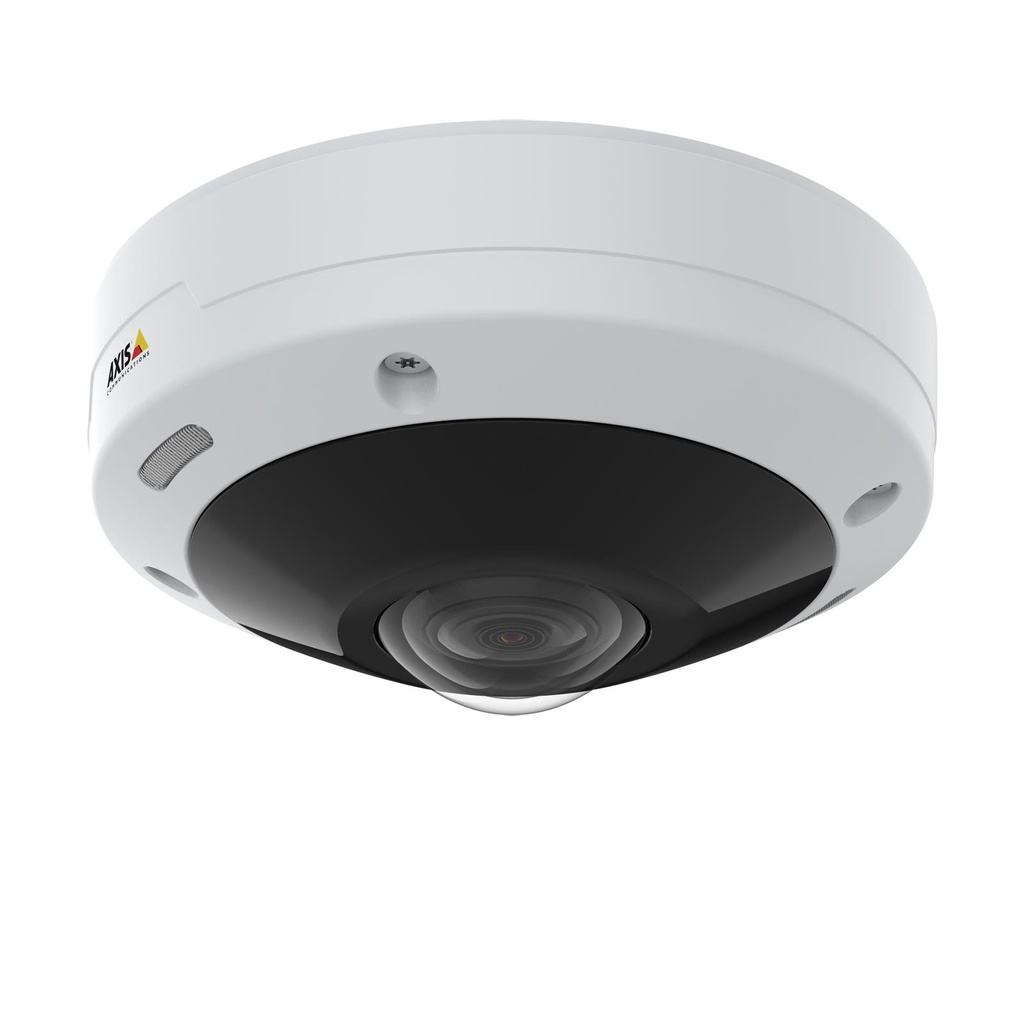

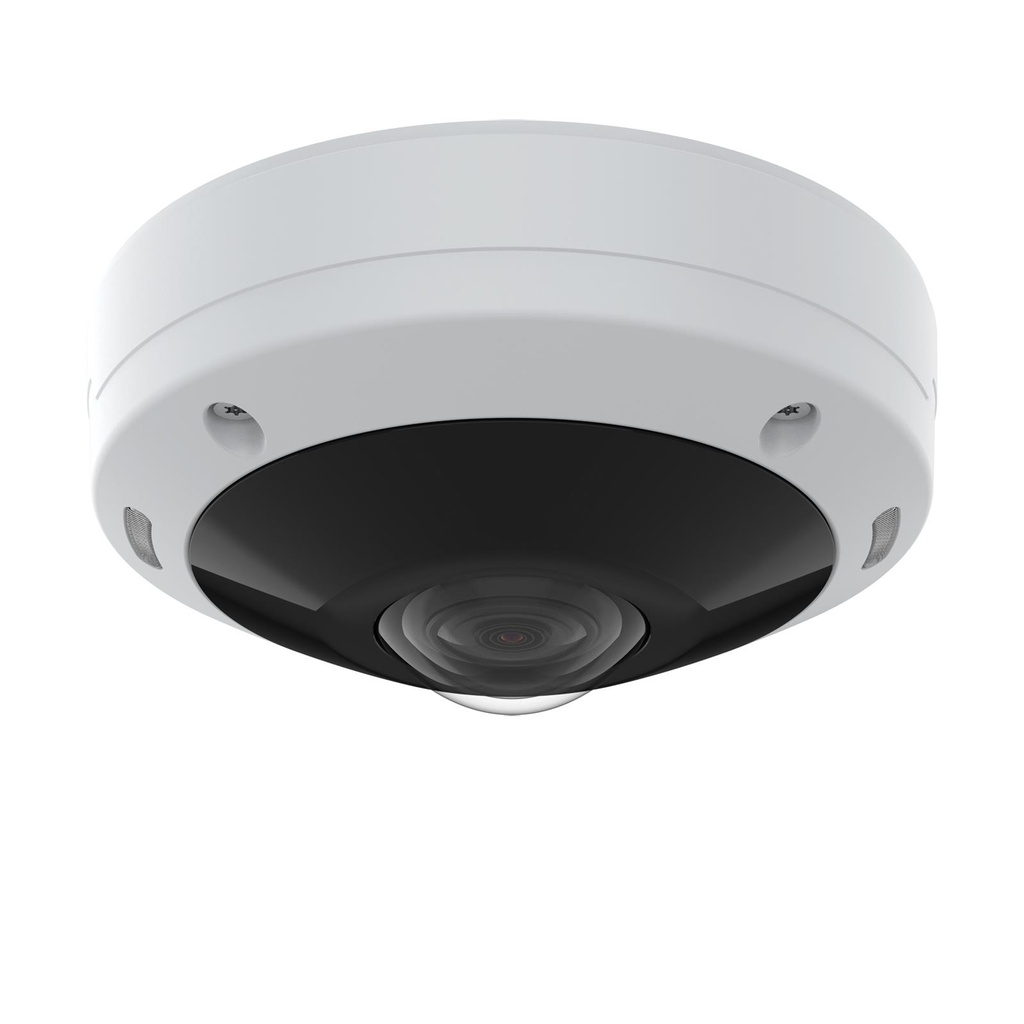

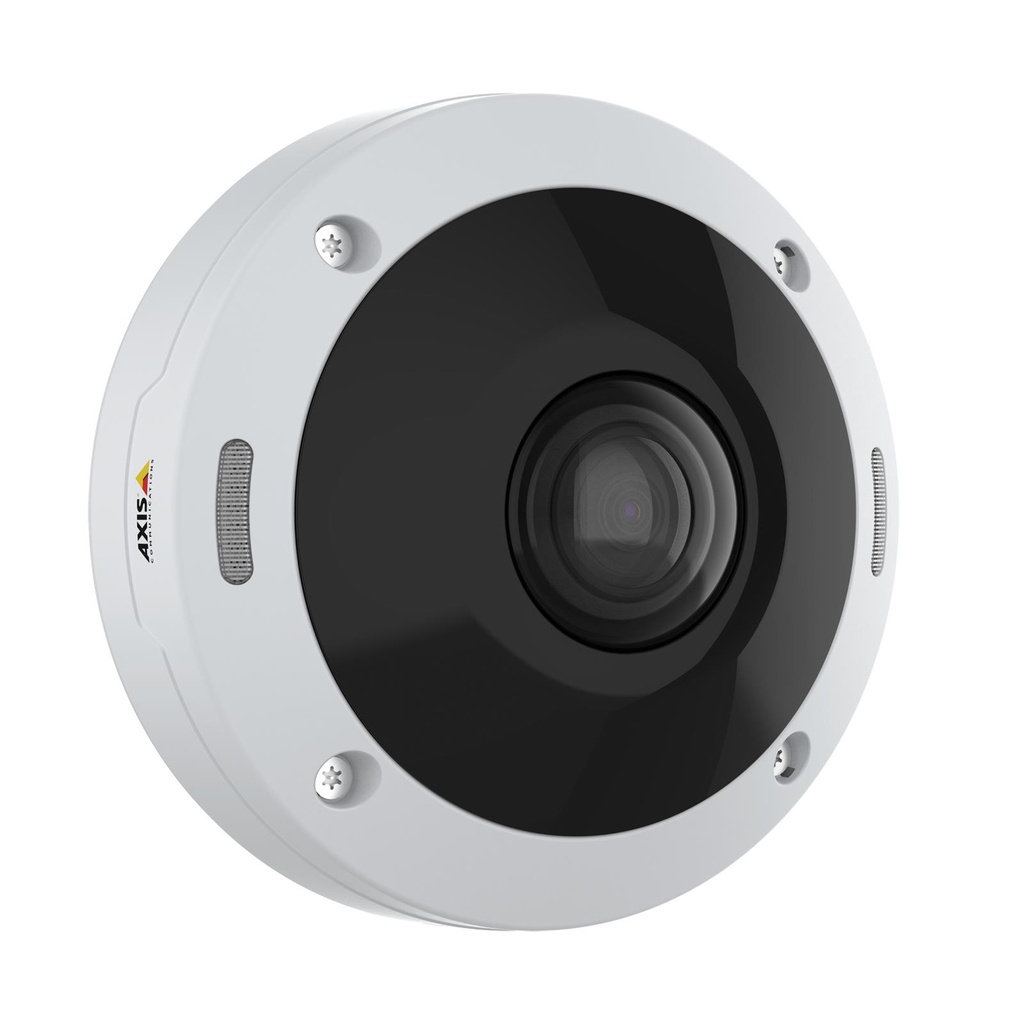

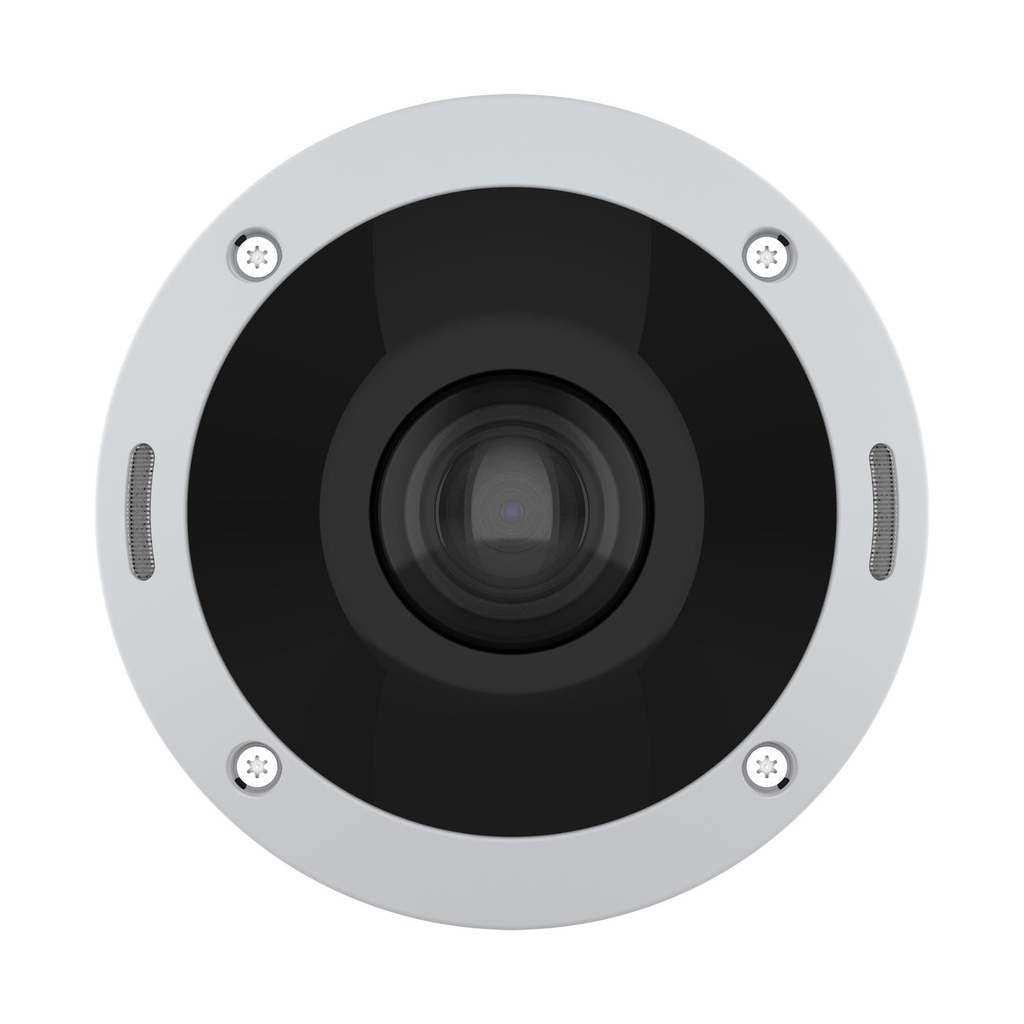

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.
- 12 MP sensor with 360° overview; 4 microphones with voice enhancer; Lightfinder, Forensic WDR, OptimizedIR; Stereographic lens and Sharpdome 360; Support for analytics with deep learning
General
| Unit Calculated Weight | 1.06 kg |
| Unit Calculated Volume | 0.002599 cubm |
| Units per Shipping Box | 1 |
| Summary | Axis 02100-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Field of view (FOV) angle: 183°, Lens viewing angle, horizontal: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.7 mm (1 / 1.7"). Focal length range: 1.3 mm |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.165 |
Design
| Form factor | Dome |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| LED indicators | Yes |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Water resistant |
Performance
| Alarm input/output | Yes |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Indoor & outdoor |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera pan control | Yes |
| Camera shutter speed | 1/22000 - 1 s |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 183 ° |
| Lens viewing angle, horizontal | 183 ° |
| Minimum illumination | 0.04 lx |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/1.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Auto focus | No |
| Fixed focus | Yes |
| Focal length range | 1.3 mm |
| Number of lenses | 1 |
| Zoom capability | Yes |
Night vision
| LED type | IR |
| Night vision | Yes |
Video
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast |
| Maximum resolution | 2880 x 2880 pixels |
| Privacy masking | Yes |
| Total megapixels | 12 MP |
| Video recording | Yes |
| Video streaming | Yes |
Audio
| Audio detection | Yes |
| Audio formats supported | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS |
| Built-in microphone | Yes |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 1000 MB |
| Internal memory | 2000 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Active tampering alarm | Yes |
| Alert notification type | E-mail,Text alert message |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Pixel counter | Yes |
| Security algorithms | 802.1x RADIUS/HTTPS |
Power
| Power consumption (max) | 15.5 W |
| Power consumption (typical) | 7.9 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Diameter | 149 mm |
| Height | 69 mm |
| Weight | 850 g |
Packaging content
| Drilling template included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
Logistics data
| Harmonized System (HS) code | 85258900 |
