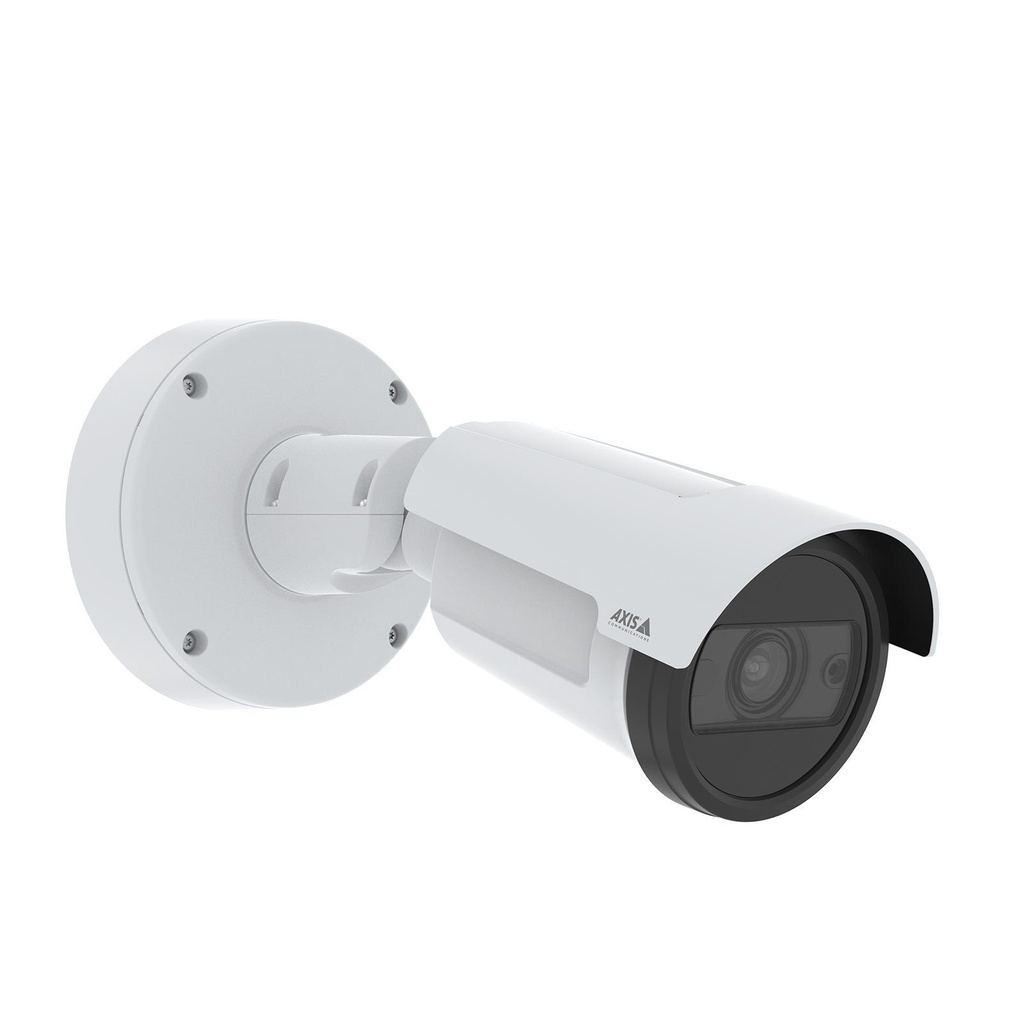

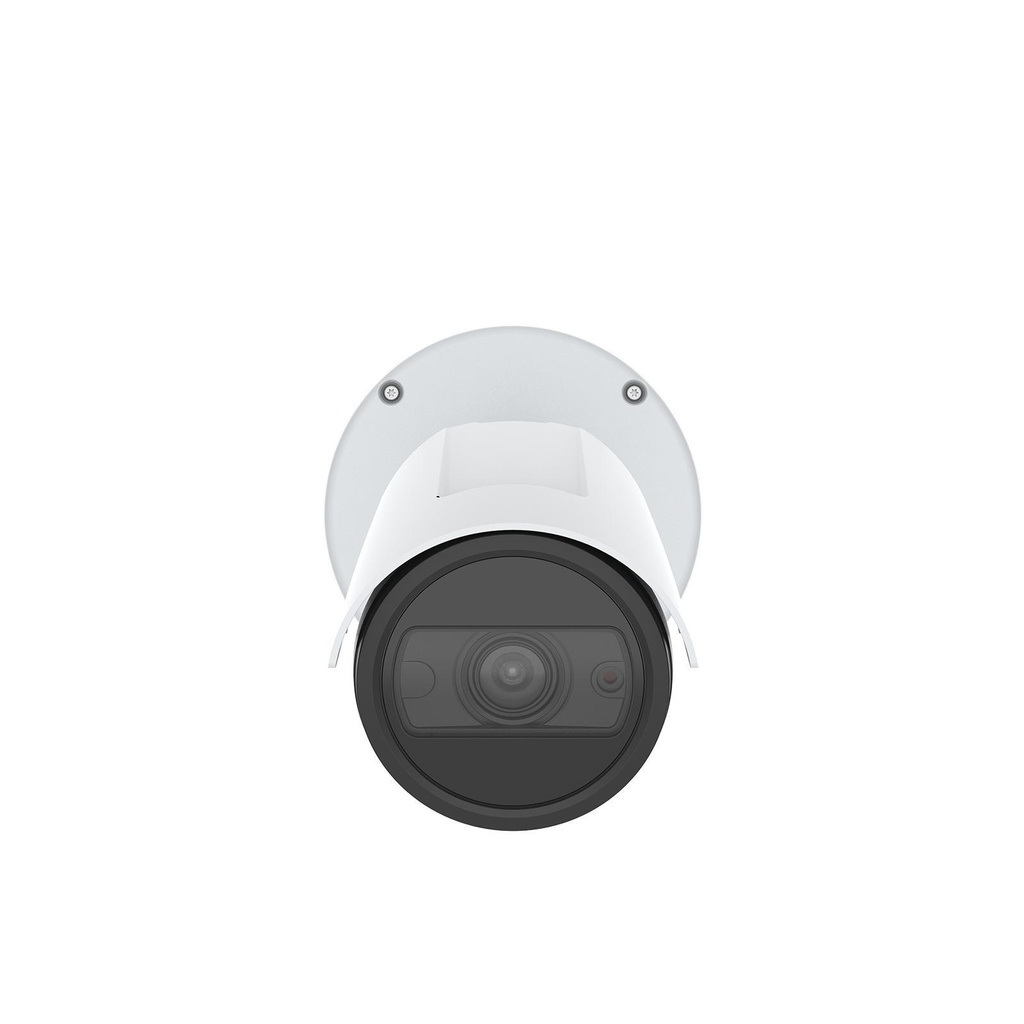

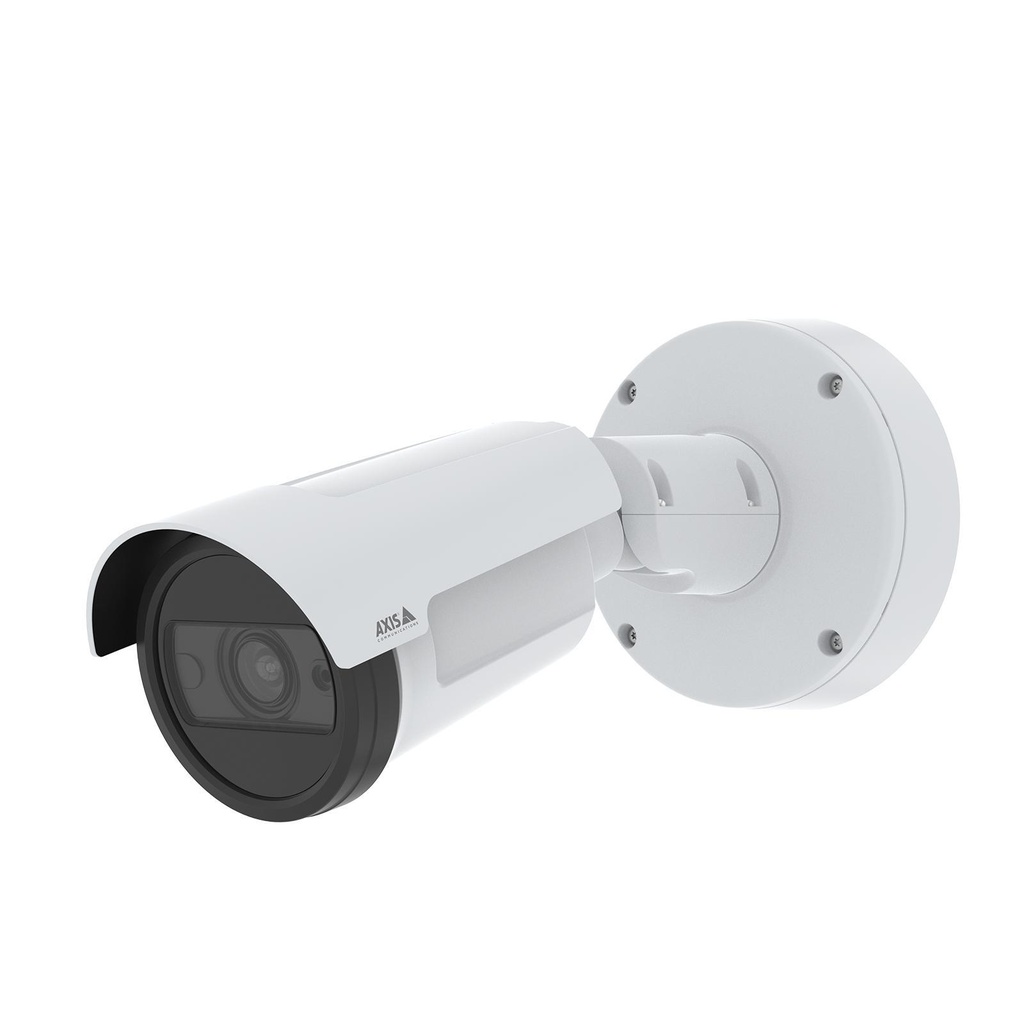

Based on ARTPEC-8, AXIS P1465-LE delivers excellent image quality in 2 MP. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles. Available with a wide or tele lens, this IP66/IP67, NEMA 4X, and IK10-rated camera can withstand winds up to 50 m/s. Lightfinder 2.0, Forensic WDR, and OptimizedIR ensure sharp, detailed images under any light conditions. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network.
- Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Lightfinder 2.0, Forensic WDR, OptimizedIR; Two lens alternatives
General
| Unit Calculated Weight | 1.54 kg |
| Unit Calculated Volume | 0.00634 cubm |
| Units per Shipping Box | 1 |
| Summary | Axis 02339-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 117°, Lens viewing angle, vertical: 59°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB |
| Unit Box Height | 0.165 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.145 |
| Model | P1465-LE 9 mm |
Design
| Fog proof | Yes |
| Form factor | Bullet |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Wall/Pole |
| Product colour | White |
| Protection features | Vandal proof |
Performance
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/71500 - 2 s |
| Lens viewing angle, horizontal | 117 ° |
| Lens viewing angle, vertical | 59 ° |
| Minimum illumination | 0.01 lx |
Image sensor
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Panoramic camera
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
Lens system
| Auto focus | Yes |
| Closest focusing distance | 0.5 m |
| Zoom capability | Yes |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Frame rate | 60 fps |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Video compression formats | AVC/H.264/H.265/HEVC/MPEG4 |
| Video streaming | Yes |
Network
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 1024 MB |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
Security
| HTTPS encryption | Yes |
| Security algorithms | EAP-TLS/HTTPS/TLS |
Power
| DC output voltage | 10,28 |
| Power consumption (max) | 12.95 W |
| Power consumption (Power over Ethernet (PoE)) | 7.9 W |
| Power consumption (typical) | 7.2 W |
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Diameter | 132 mm |
| Length | 280 mm |
| Weight | 1200 g |
Packaging content
| Number of cameras | 1 |
