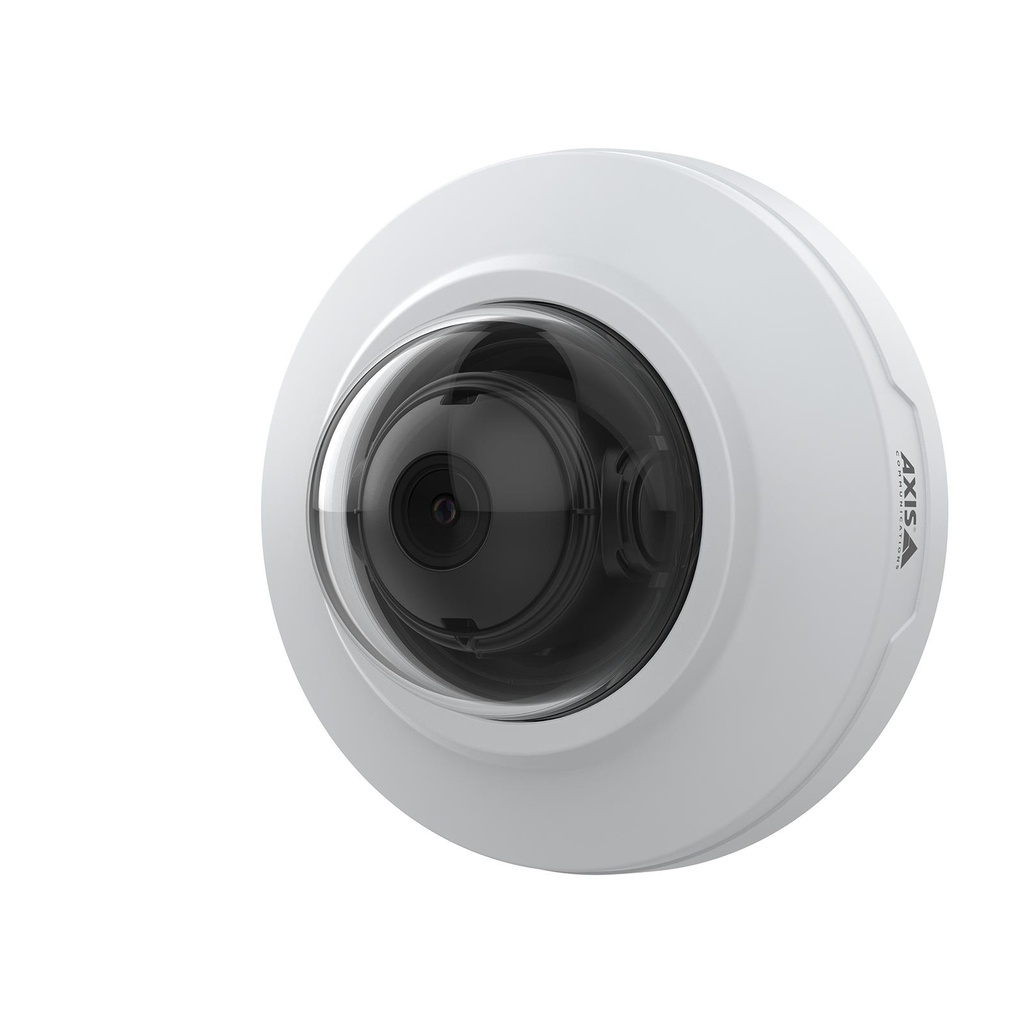

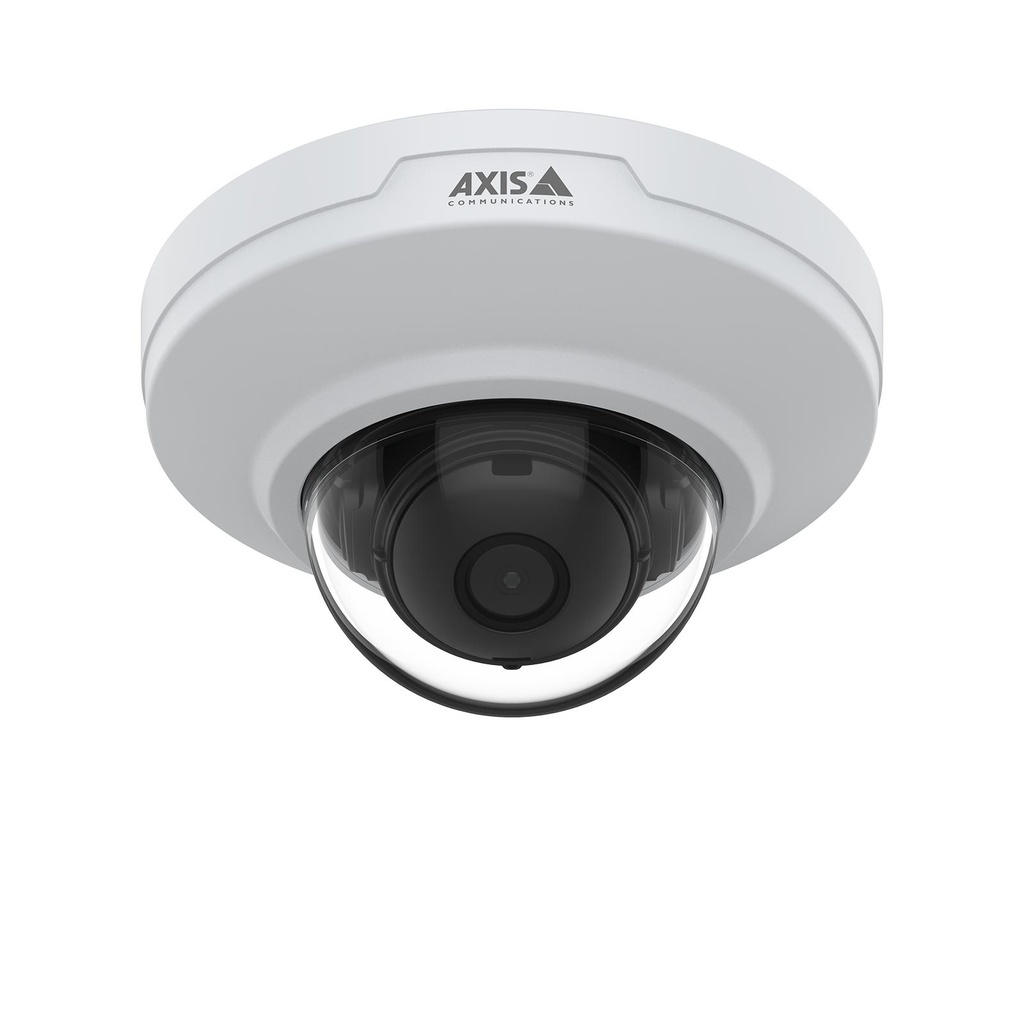

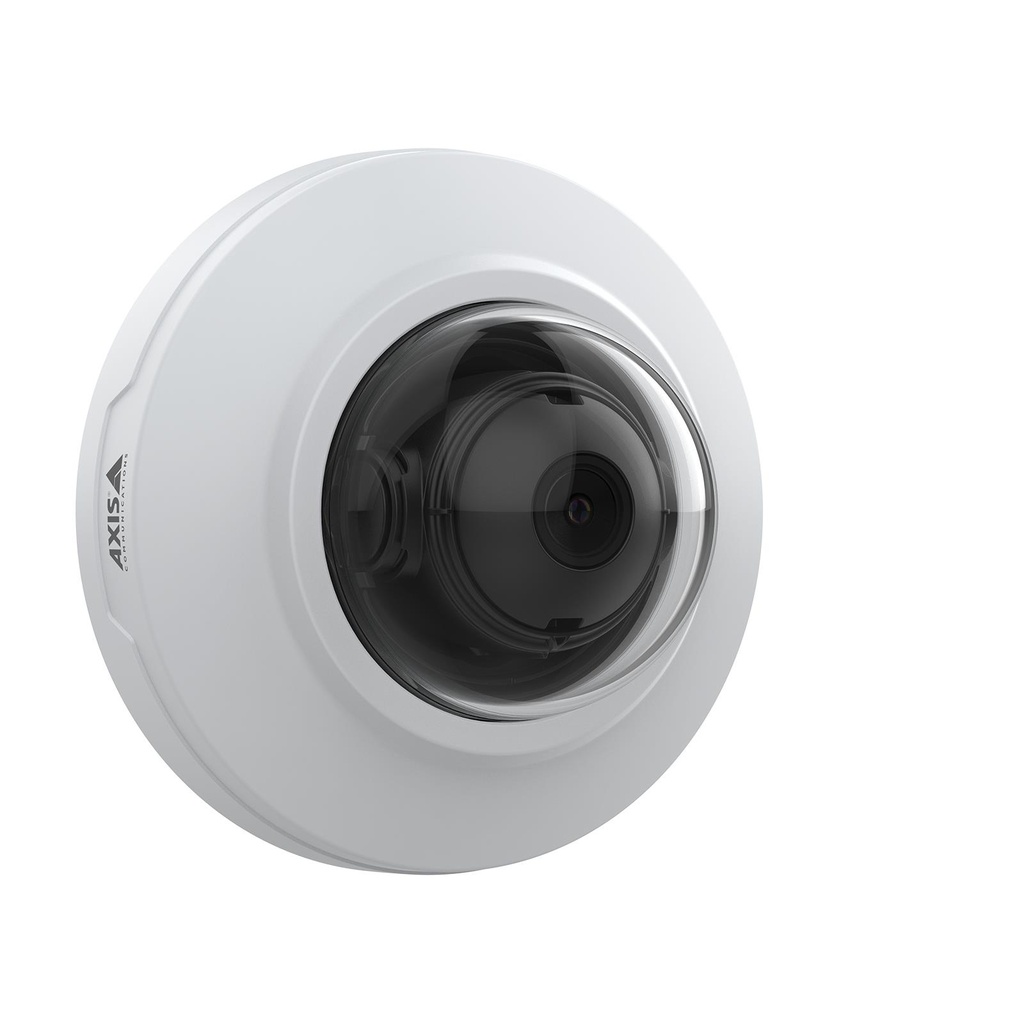

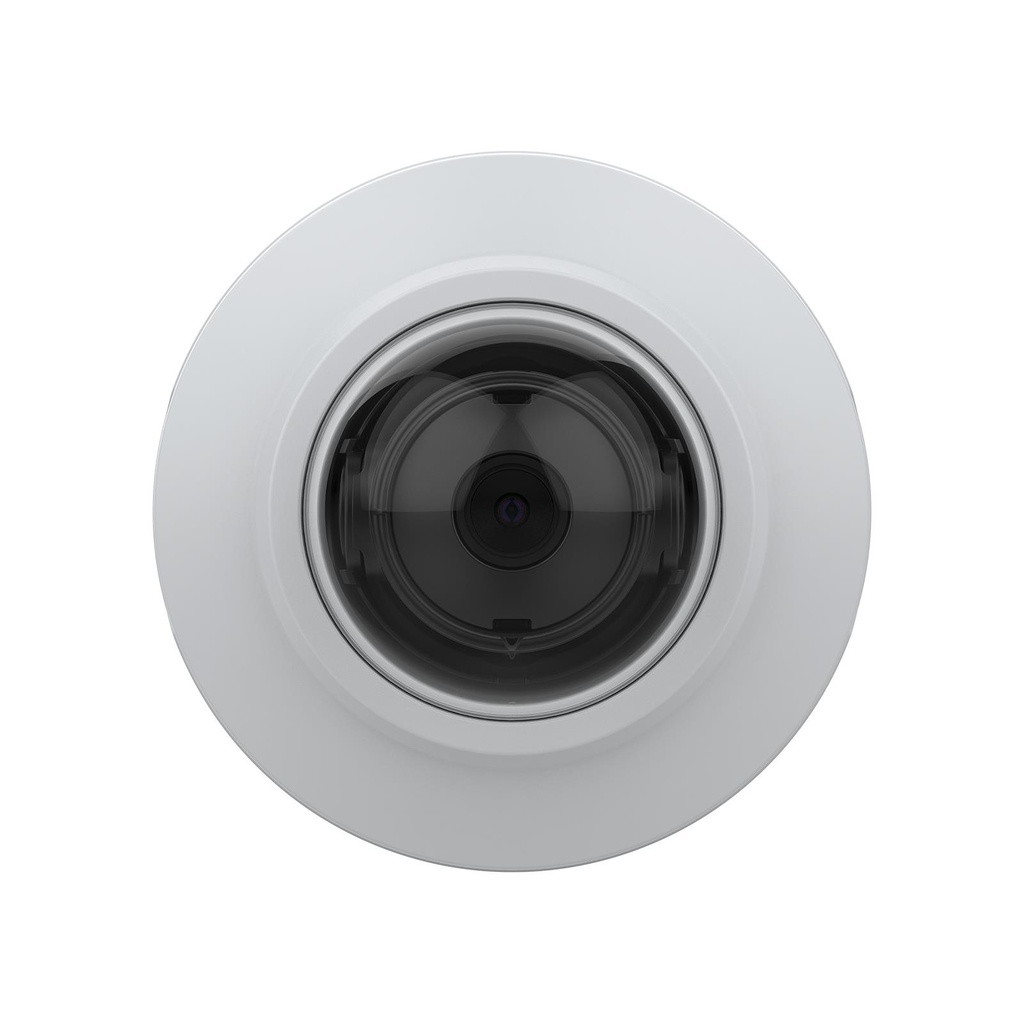

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and classification of different types of objects – all tailored to your specific needs. Furthermore, this compact, easy-to-install, vandal-resistant camera comes factory focused so there’s no manual focusing required.
- Built-in cybersecurity features; Compact, discreet design; Great image quality in 2 MP; Support for analytics with deep learning; WDR and Lightfinder
General
| Unit Calculated Weight | 0.28 kg |
| Unit Calculated Volume | 0.001188 cubm |
| Units per Shipping Box | 1 |
| Summary | Axis 02373-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.1 mm |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.11 |
Design
| Form factor | Dome |
| IK code | IK08 |
| International Protection (IP) code | IP42 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Performance
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Lens viewing angle, horizontal | 102 ° |
| Lens viewing angle, vertical | 55 ° |
Image sensor
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 3.1 mm |
Night vision
| Night vision | Yes |
Video
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264H/H.264M/H.265 |
| Video streaming | Yes |
Audio
| Audio system full duplex | Yes |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Storage
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Motion sensor | Yes |
Power
| Power consumption (max) | 4.2 W |
| Power consumption (typical) | 3.6 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Diameter | 101 mm |
| Height | 56 mm |
| Weight | 150 g |
Packaging content
| Number of cameras | 1 |
Other features
| Doesn't contain | BFR/PVC |
