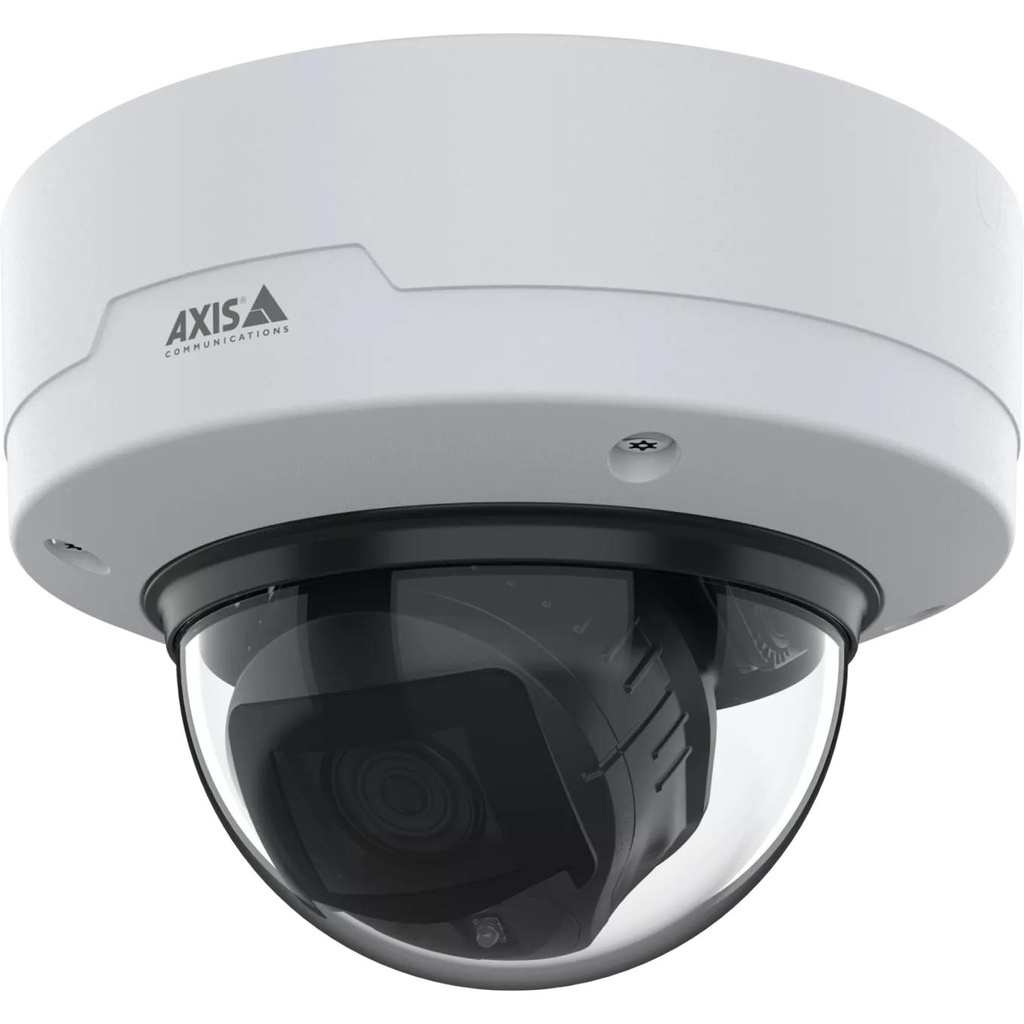

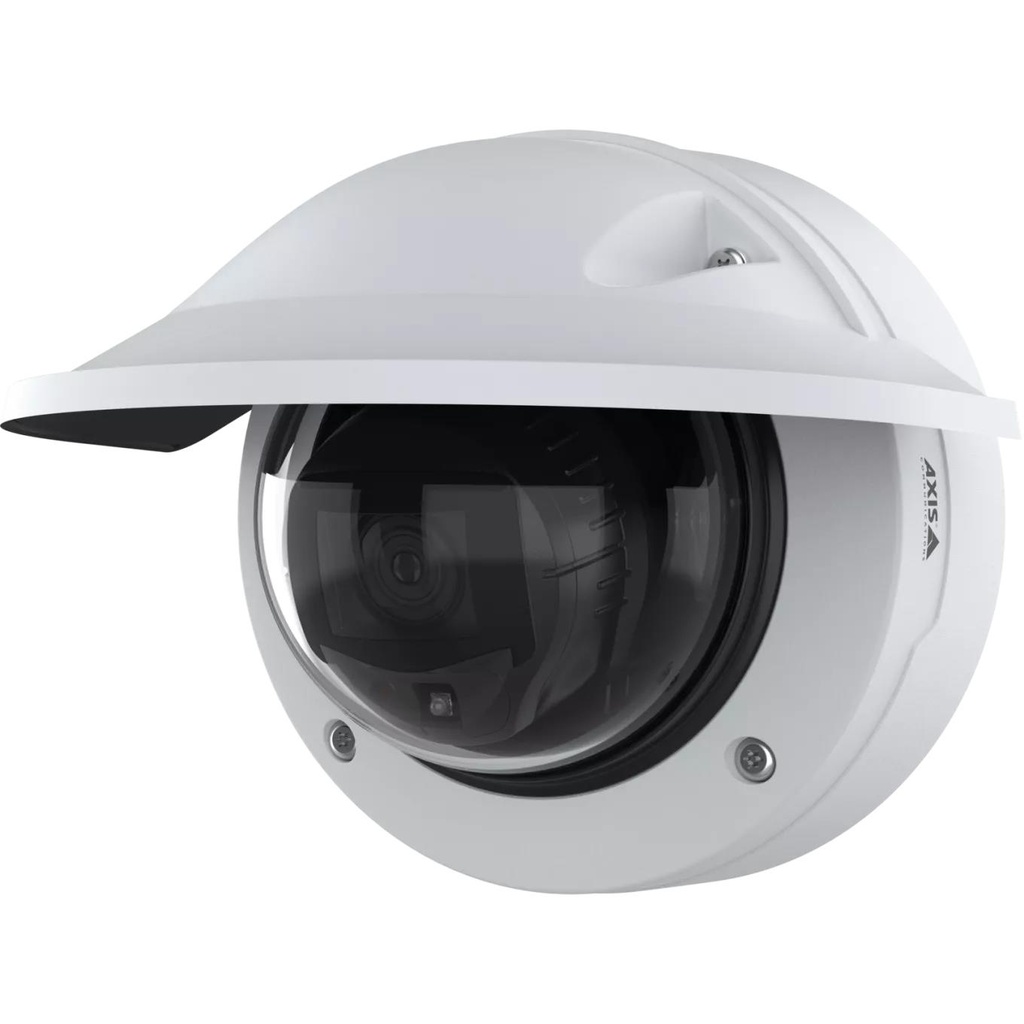

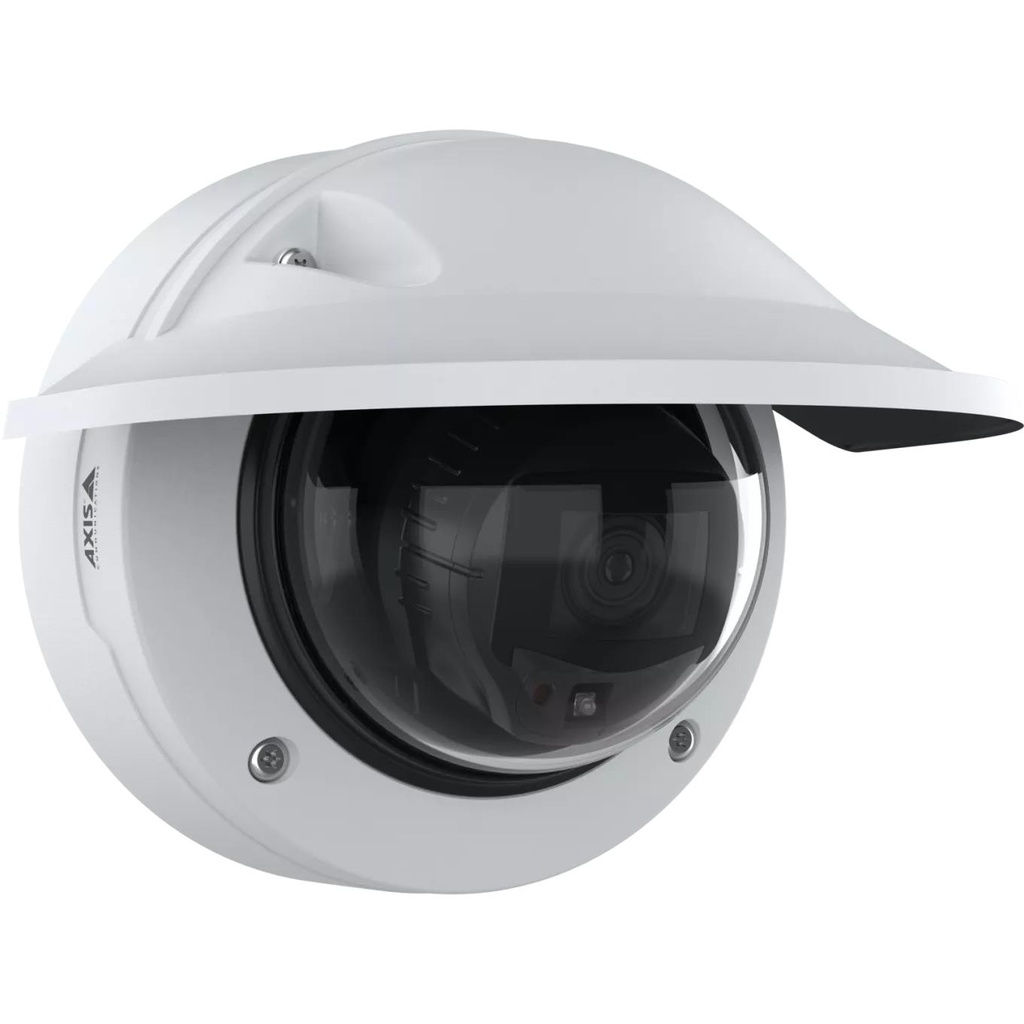

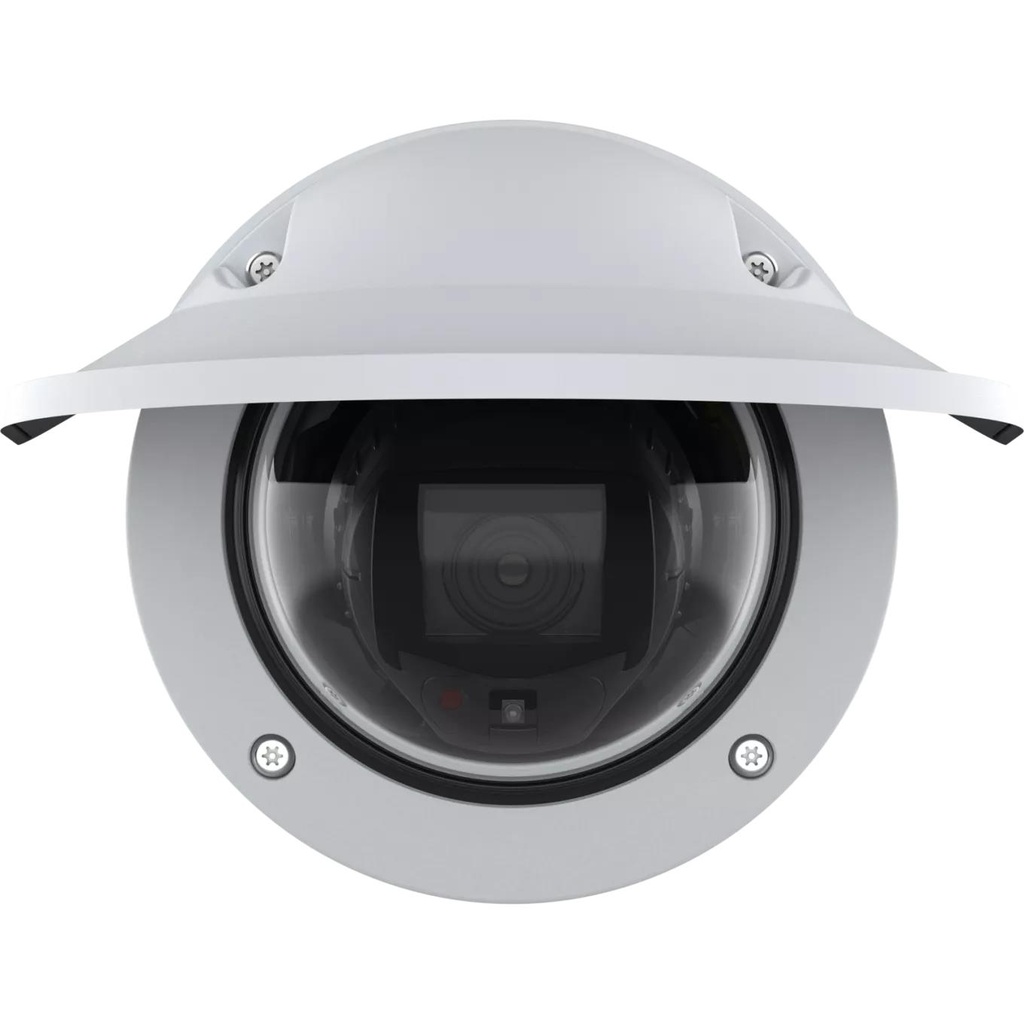

AXIS P3277-LVE Dome Camera
Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
- Excellent image quality in 5 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- Audio and I/O connectivity
- Built-in cybersecurity with Axis Edge Vault
General
| Unit Calculated Weight | 1.29 kg |
| Unit Calculated Volume | 0.007603 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | Axis P3277-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 104°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB |
| Unit Box Height | 0.215 |
| Unit Box Length | 0.41 |
| Unit Box Width | 0.0862 |
| Model | P3277-LVE |
Design
| Fog proof | Yes |
| Form factor | Dome |
| Housing material | Plastic/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| LED indicators | Yes |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| Protection features | Impact resistant/Vandal proof |
| Weatherproof | Yes |
Performance
| Auto-tracking | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| People counting function | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 190 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/30500 - 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 104 ° |
| Lens viewing angle, vertical | 76 ° |
| Minimum illumination | 0.03 lx |
| Pan range | -190 - 190 ° |
| Tilt angle range | -50 - 80 ° |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Panoramic camera
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
Lens system
| Auto focus | Yes |
| Closest focusing distance | 1 m |
| Detect distance (tele) | 170 m |
| Detect distance (wide) | 60 m |
| Focal length range | 3 - 8.5 mm |
| Identify distance (tele) | 17 m |
| Identify distance (wide) | 6 m |
| Lens diameter | 10 mm |
| Maximum aperture number | 2.58 |
| Minimum aperture number | 1.38 |
| Number of lenses | 1 |
| Observe distance (tele) | 67 m |
| Observe distance (wide) | 24 m |
| Recognize distance (tele) | 34 m |
| Recognize distance (wide) | 12 m |
Night vision
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
Video
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 2592 x 1944 pixels |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Supported graphics resolutions | 1920 x 1200 (WUXGA)/2560 x 1440/2592 x 1944 |
| Text caption overlay | Yes |
| Total megapixels | 5 MP |
| Video formats supported | AV1/AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
Audio
| Audio detection | Yes |
| Audio formats supported | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Audio system | 2-way |
| Audio system full duplex | Yes |
Network
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, |
Storage
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8 MB |
| Internal memory | 2000 MB |
Ports & interfaces
| Microphone in | Yes |
| Terminal block port | Yes |
Security
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection/Moving object |
| Privacy protection | Yes |
| Security algorithms | 256-bit AES-XTS/EAP-TLS/MSCHAPv2/PEAP |
Power
| Power consumption (max) | 12.6 W |
| Power consumption (typical) | 4.7 W |
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Depth | 149 mm |
| Height | 107 mm |
| Weight | 850 g |
| Width | 149 mm |
Sustainability
| Compliance certificates | CE/cUL/EAC/Electromagnetic Compatibility (EMC)/Federal Communications Commission (FCC)/ICES/KC/RCM/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/UL/VCCI |
Packaging content
| Manual | Yes |
| Number of cameras | 1 |
Other features
| Doesn't contain | BFR/PVC |
