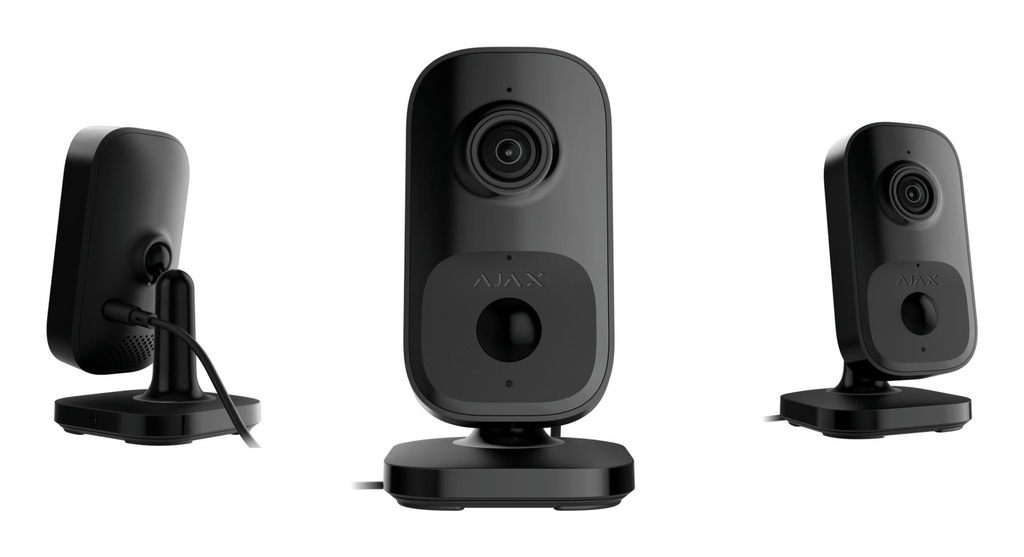

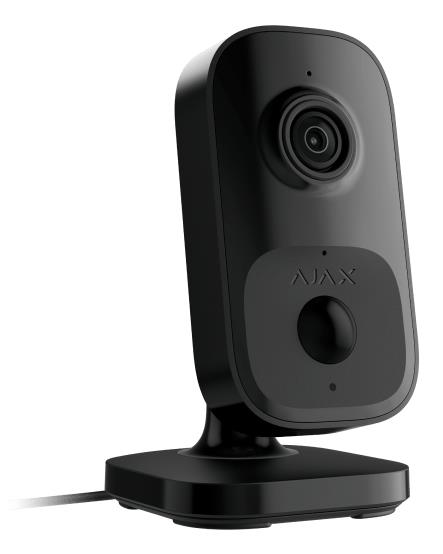

Indoor Wi-Fi security camera with PIR motion detector and built-in AI
IndoorCam is a Wi-Fi security camera with built-in AI, PIR sensor, and control via Ajax apps. It features smart infrared (IR) backlight, movement detection, and object recognition. The camera allows users to view archived videos and watch live streams. It is designed for indoor use only.
IndoorCam is connected to the system via Wi-Fi and can be paired with a hub as a backup communication channel. The recorded videos can be stored on an Ajax NVR added to the same network or on the Ajax Cloud Storage archive according to subscription.
- Watch the video in real time with the ability to zoom in for a closer look
- Access archived videos, navigating through them based on recording chronology and the calendar (this feature is available if the device is connected to an Ajax NVR or the cloud archive is activated)
- Configure movement detection zones and adjust the sensitivity level
- View the Video wall, which combines images from all connected cameras
- Quickly access automation devices control from the cameras’ video player menu
- Create video scenarios that send a short video from the selected camera to an Ajax app when the security detector is triggered
- Download the required segments of video recordings from the archive to smartphones or PCs (this feature is available if the device is connected to an Ajax NVR or the cloud archive is activated)
General
| Unit Calculated Weight | 0.466 kg |
| Unit Calculated Volume | 0.003305 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Ajax IndoorCam. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Ceiling/Wall/Desk, Product colour: Black, Form factor: Box. Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS. Night vision distance: 8 m, LED type: IR |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.08 |
| Model | 111566 |
Design
| Form factor | Box |
| International Protection (IP) code | IP20 |
| LED indicators | Status |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | Black |
Performance
| Connectivity technology | Wireless |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor |
| Remote viewing | Yes |
| Type | IP security camera |
Camera
| Lens viewing angle, horizontal | 110 ° |
| Lens viewing angle, vertical | 60 ° |
Image sensor
| Sensor type | CMOS |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 8 m |
Video
| Maximum resolution | 2688 x 1520 pixels |
| Smart IR | Yes |
| Supported graphics resolutions | 2688 x 1520 |
| Total megapixels | 4 MP |
| Video compression formats | H.264 |
Audio
| Audio system | 2-way |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Voice codecs | G.722 |
Network
| Networking standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n) |
Security
| Alert notification type | Push notification |
| Motion sensor | Yes |
| Motion sensor technology | Passive infrared (PIR) sensor |
| Video motion detection | Yes |
Power
| DC output current | 1 A |
| DC output voltage | 12 |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |

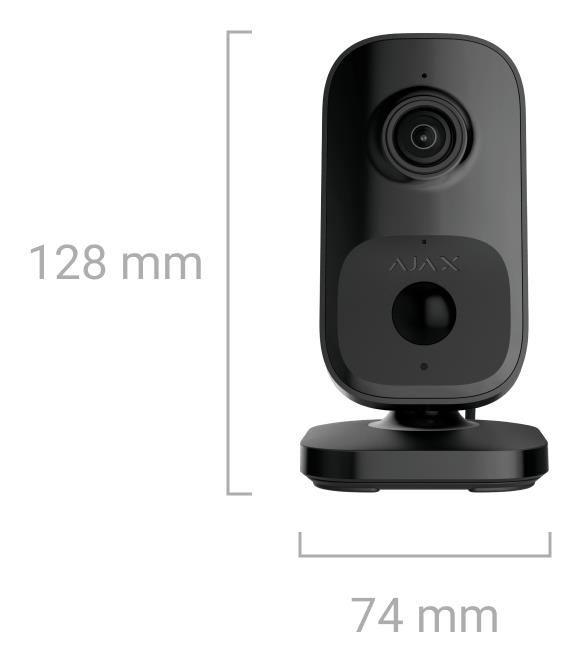

Weight & dimensions
| Depth | 76 mm |
| Height | 128 mm |
| Weight | 235 g |
| Width | 74 mm |
Packaging content
| Number of cameras | 1 |
Other features
| Warranty period | 2 year(s) |
