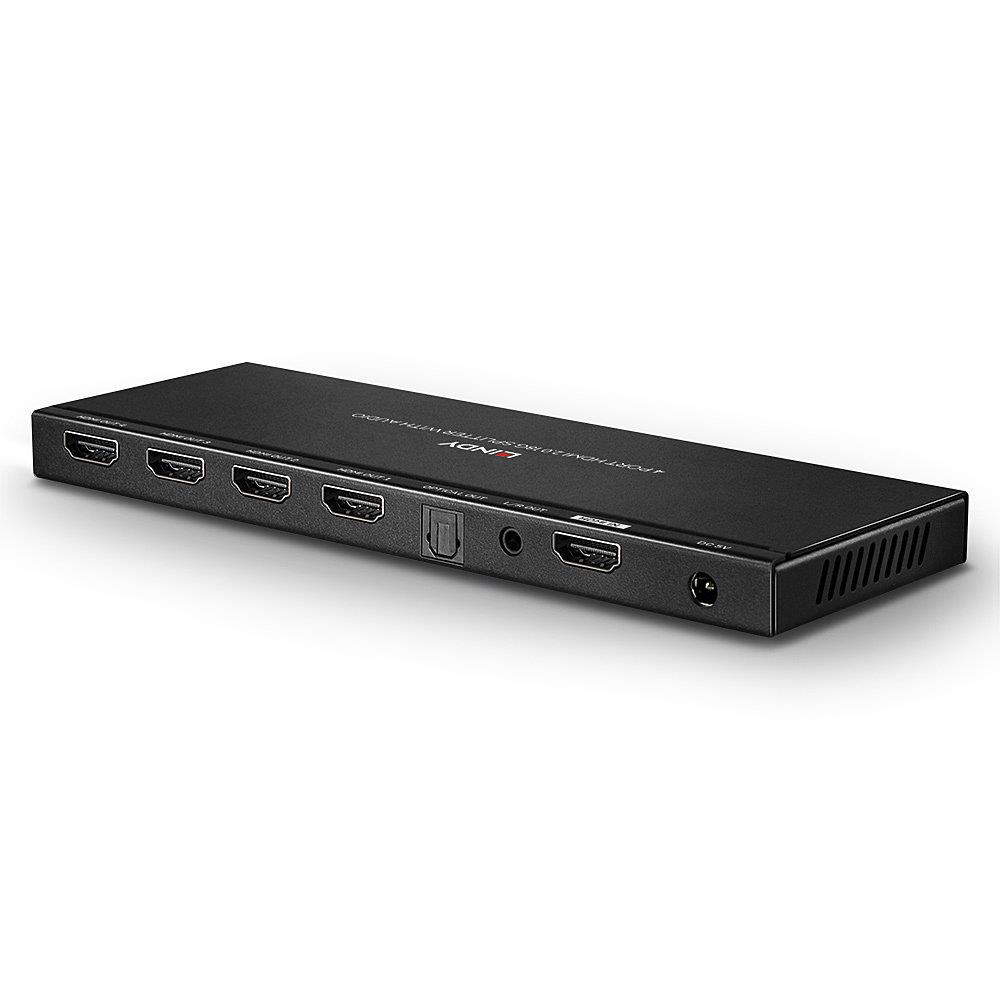

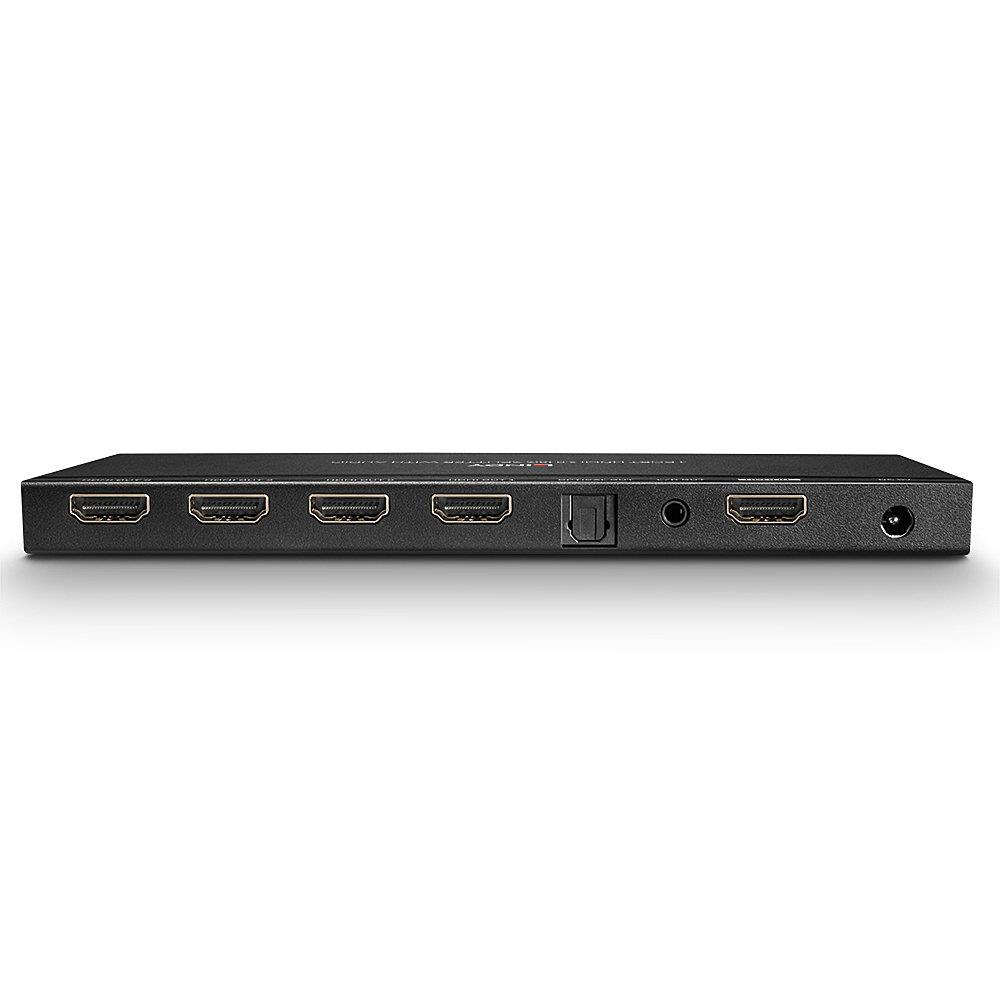

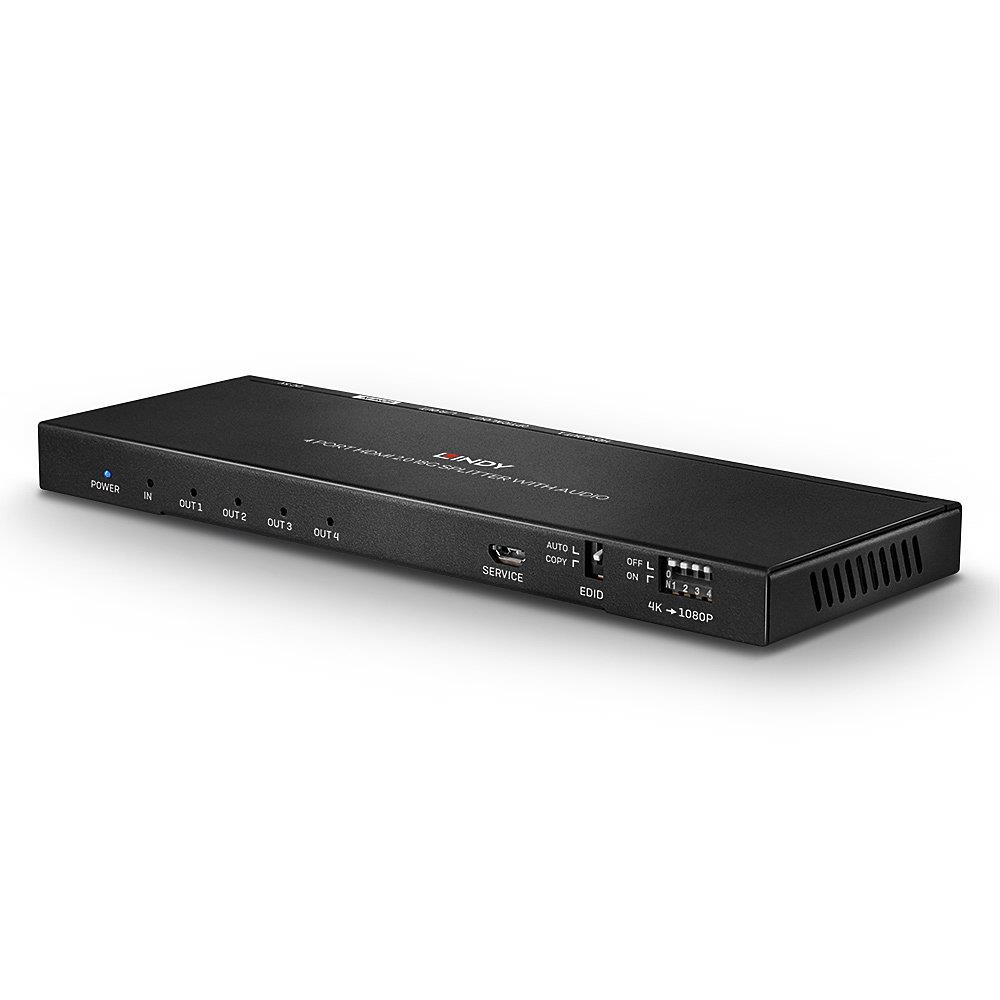

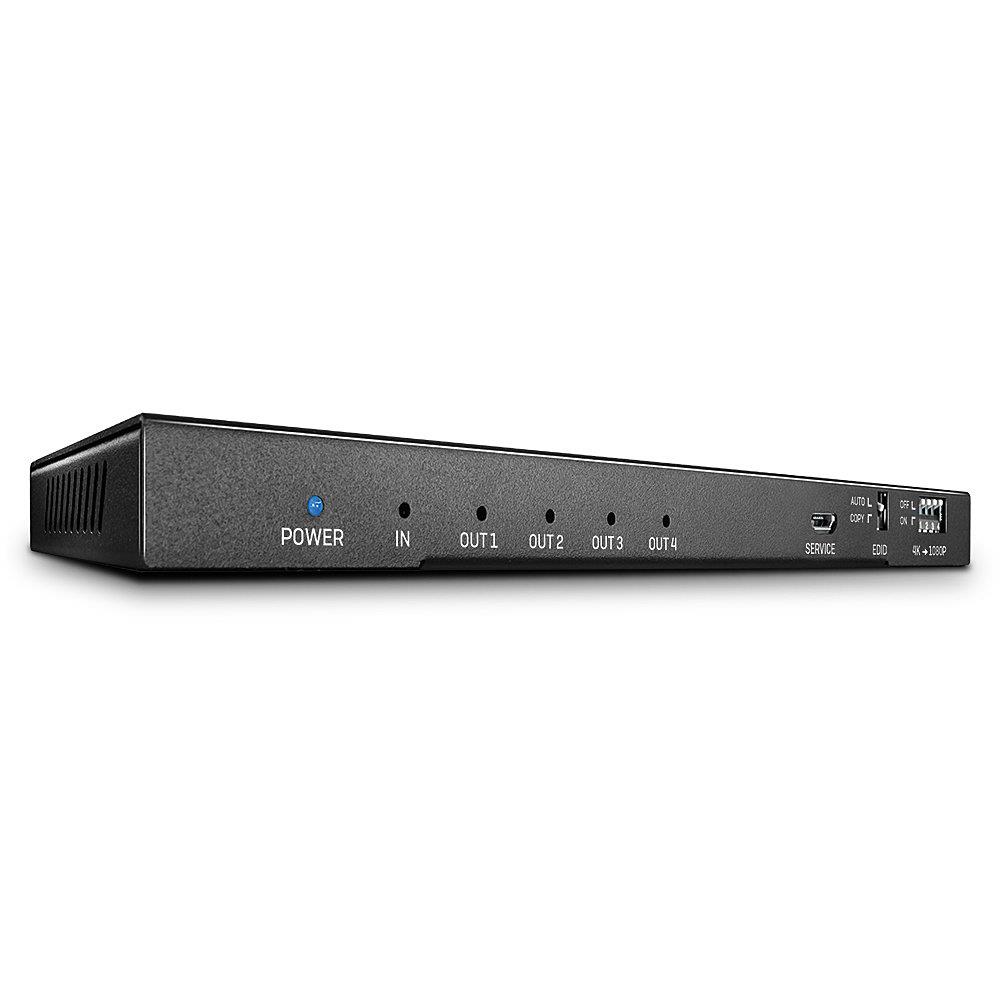

The Lindy 4 Port HDMI 2.0 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
- Displays HDMI signals across 4 displays simultaneously from one source device
- Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR
- Extract digital and analogue audio from HDMI for non-HDMI amplifiers
- Features a neat switch for downscaling from 4K to 1080p
- 2 year warranty
General
| Unit Calculated Weight | 0.48 kg |
| Unit Calculated Volume | 0.001774 cubm |
| Units per Shipping Box | 1 |
| Summary | Lindy 4 Port HDMI 18G Splitter with Audio and Downscaling. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. Output voltage: 5 V, Output current: 1 A. Width: 180 mm, Depth: 14.4 mm, Height: 63 mm. Package width: 212 mm, Package depth: 55 mm, Package height: 148 mm |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.215 |
| Unit Box Width | 0.15 |
| Model name | 4 Port HDMI 18G Splitter with Audio and Downscaling |
Ports & interfaces
| Audio ports quantity | 2 |
| DC-in jack | Yes |
| HDMI version | 2.0 |
| Video out | 4x HDMI |
| Video port type | HDMI |
| Video ports quantity | 5 |
Features
| HD type | 4K Ultra HD |
| HDCP | Yes |
| Housing material | Metal |
| LED indicators | Power |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
Power
| Output current | 1 A |
| Output voltage | 5 V |
Weight & dimensions
| Depth | 14.4 mm |
| Height | 63 mm |
| Width | 180 mm |
Packaging data
| Package depth | 55 mm |
| Package height | 148 mm |
| Package type | Box |
| Package weight | 228 g |
| Package width | 212 mm |
Packaging content
| AC adapter included | Yes |
| Manual | Yes |
Operational conditions
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
