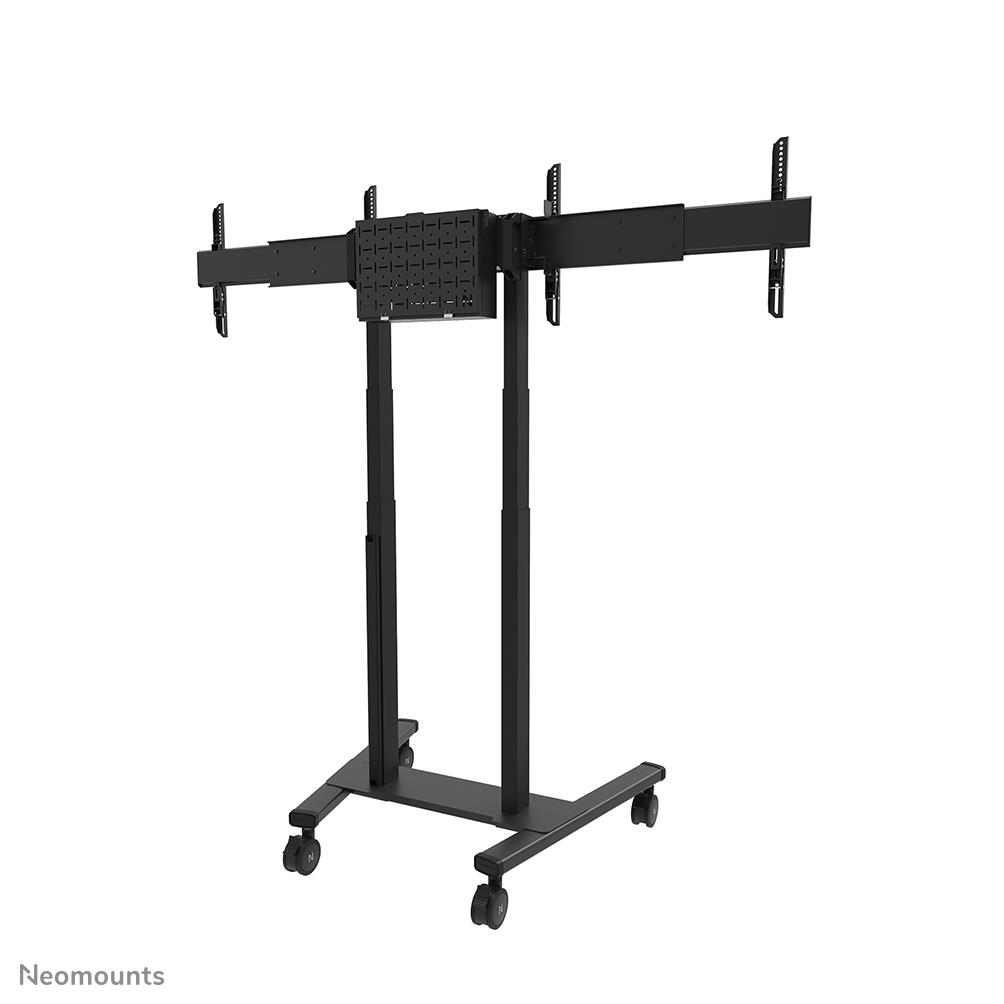

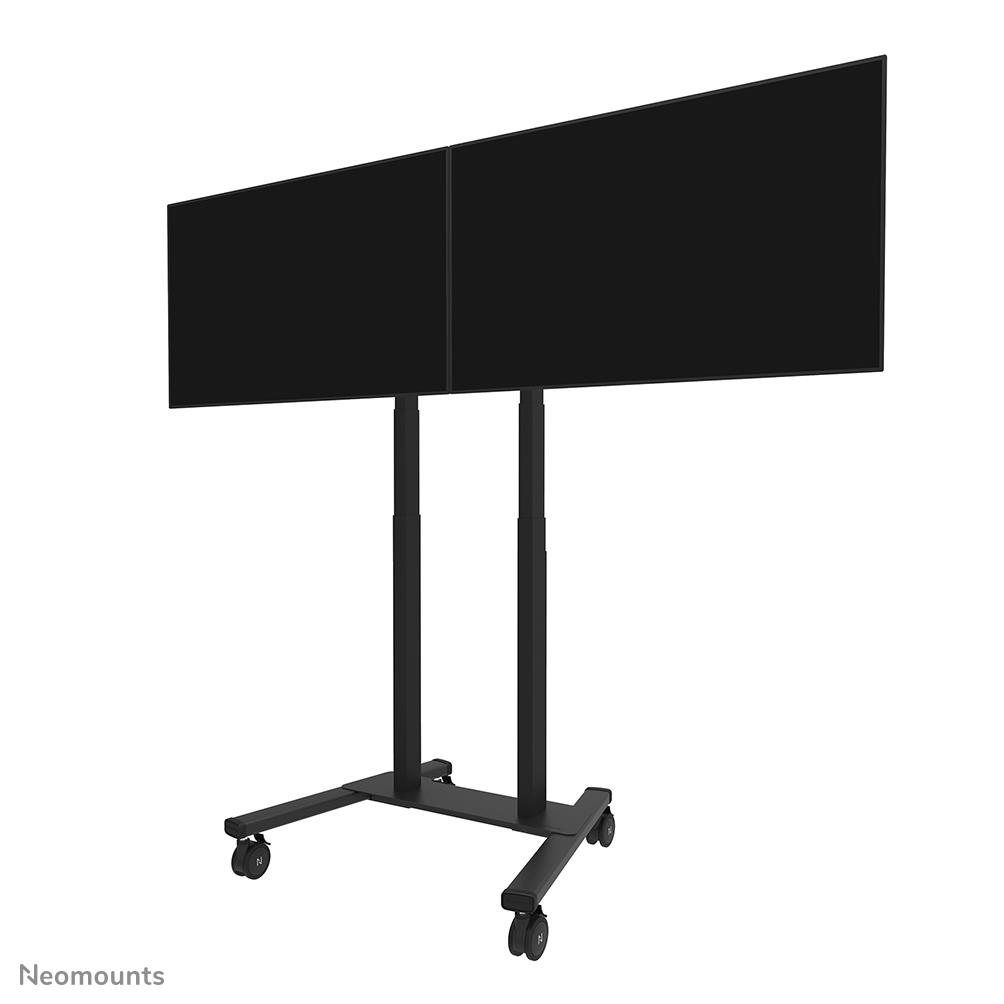

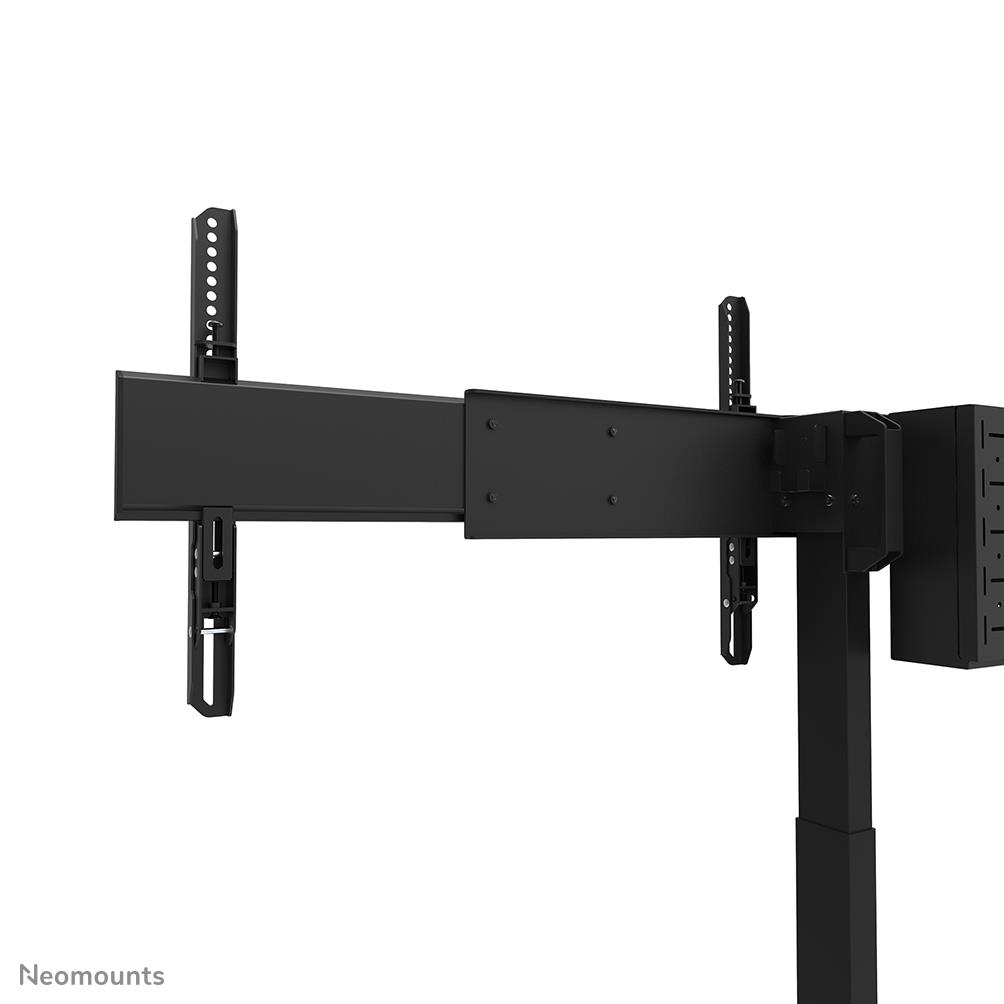

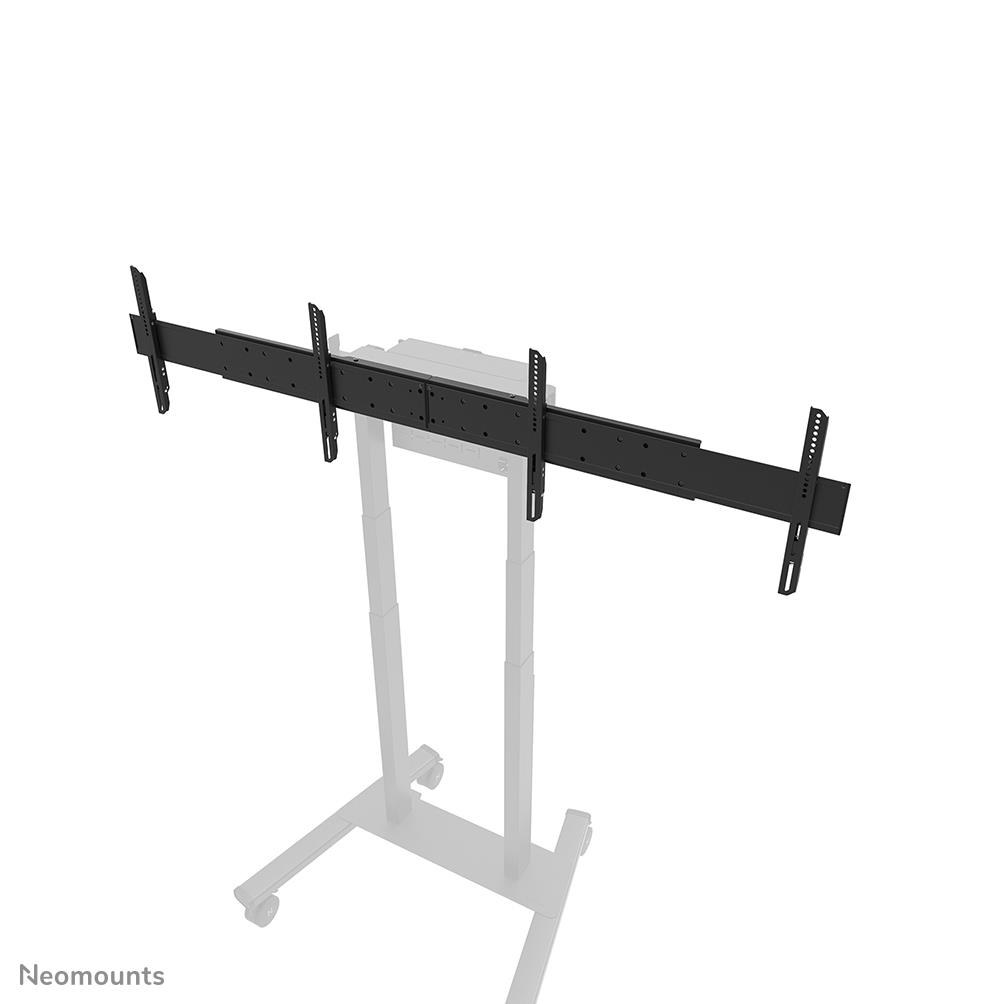

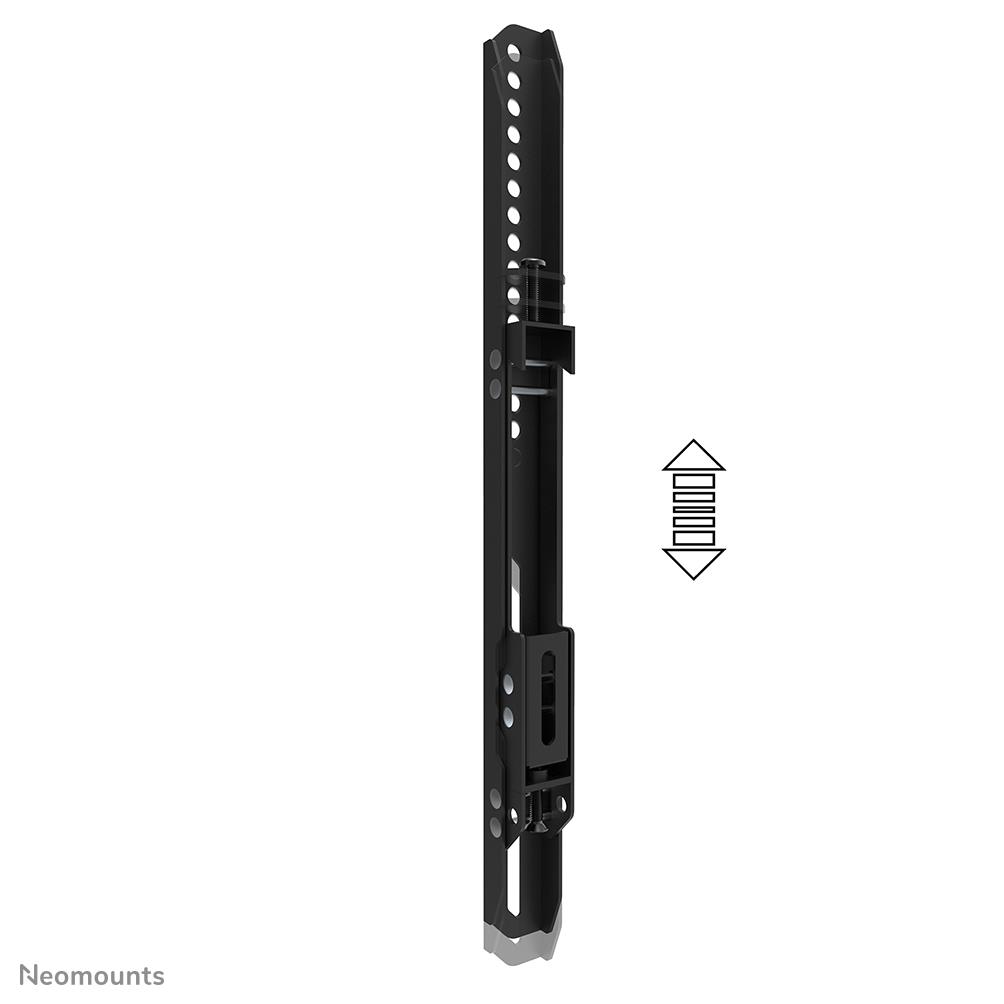

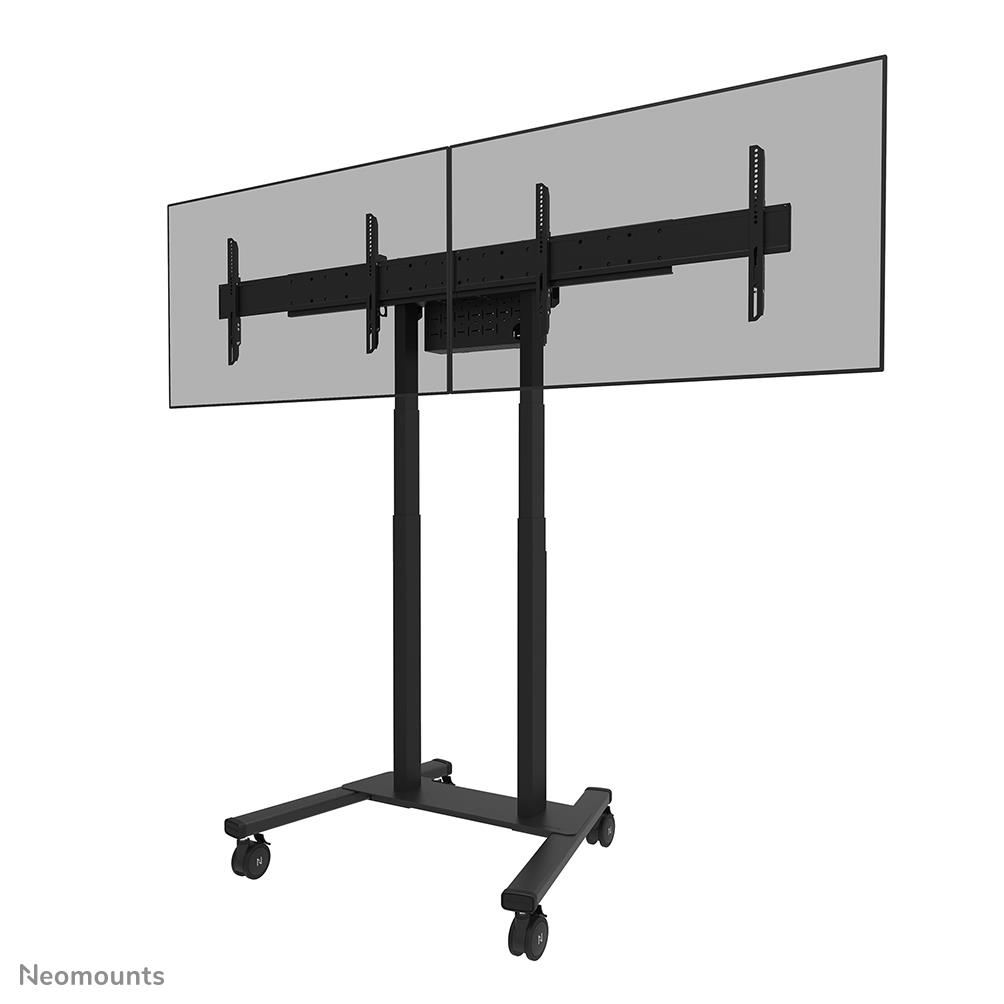

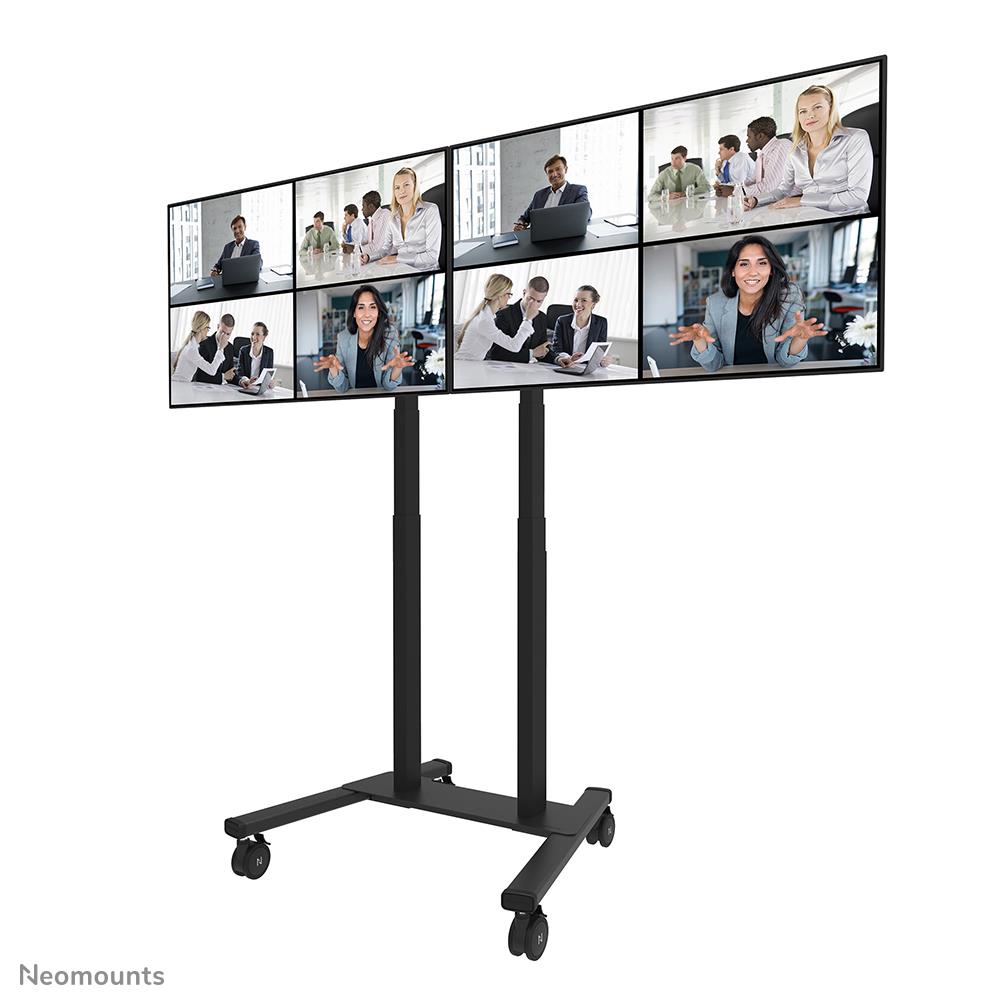

The Neomounts ADM-875BL2 is a dual screen adapter optional for the FL55-875BL1 mobile floor stand and WL55-875BL1 wall stand. The adapter allows the installation of 2 screens from 42" up to 65" with a maximum weight of 40 kg per screen. The height adjustable brackets ensure perfect alignments of the screens. It is possible to lock these brackets, using a padlock (not included). It is also possible to install a XXL display up to VESA 2000x600 mm and max 80 kg.

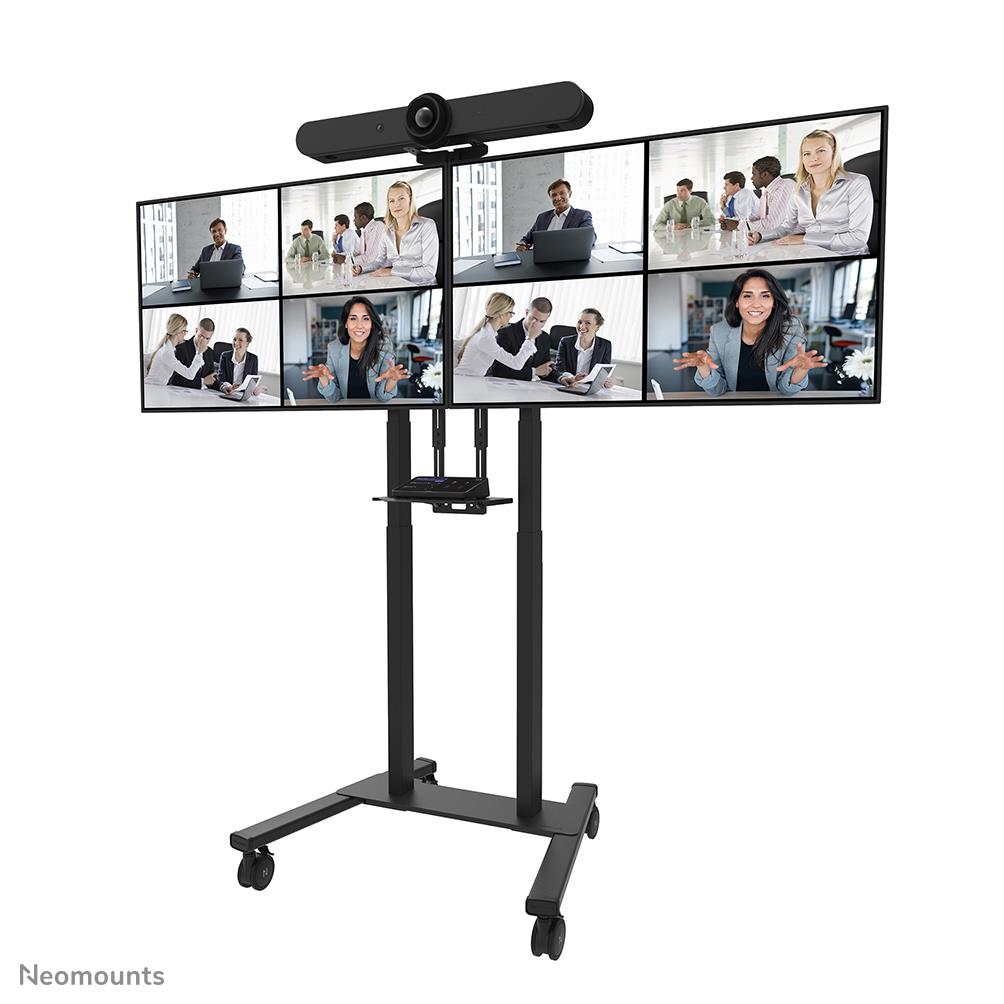

The optional AFL-875BL1 or AV1-875BL videobar & multimedia kit can be used in combination with the dual screen adapter without any problem.
General
| Unit Calculated Weight | 11.9 kg |
| Unit Calculated Volume | 0.0152 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts ADM-875BL2 Dual screen adapter 42-65". Panel mounting interface: 100 x 200,100 x 100,100 x 150,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x..., Minimum screen size: 106.7 cm (42"), Maximum screen size: 165.1 cm (65"). Width: 2130 mm, Depth: 59 mm, Height: 650 mm. Package width: 213 mm, Package depth: 72 mm, Package height: 1010 mm. Master (outer) case net weight: 12.2 kg, Products per pallet (EU): 50 pc(s), Master (outer) case gross weight: 12.2 kg |
| CnCode | 83021000 |
| Unit Box Height | 0.07 |
| Unit Box Length | 1.01 |
| Unit Box Width | 0.215 |
| Model | ADM-875BL2 |
Features
| Cable management | No |
| Height adjustment | Yes |
| Height adjustment range | 0 - 10 mm |
| Housing material | Steel |
| Maximum screen size | 65 " |
| Maximum VESA mount | 800 x 400 mm |
| Maximum weight capacity | 40 kg |
| Minimum screen size | 42 " |
| Minimum VESA mount | 100 x 100 mm |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/200 x 100/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400/680 x 300/800 x 200/800 x 400 mm |
| Product colour | Black |
Technical details
| Country of origin | China |
| Warranty period | 5 year(s) |
Weight & dimensions
| Depth | 59 mm |
| Height | 650 mm |
| Weight | 10400 g |
| Width | 2130 mm |
Packaging data
| Package depth | 72 mm |
| Package height | 1010 mm |
| Package weight | 12200 g |
| Package width | 213 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 12200 g |
| Master (outer) case net weight | 12200 g |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 50 pc(s) |
