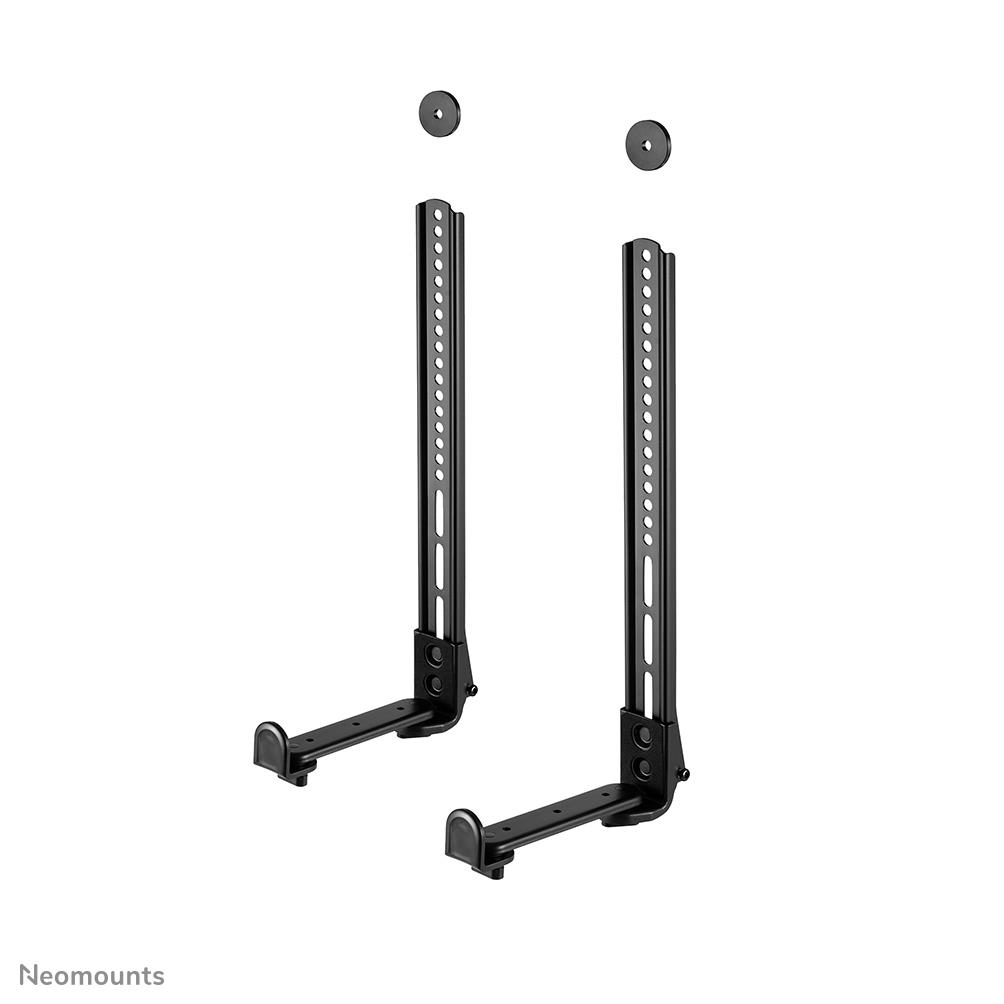

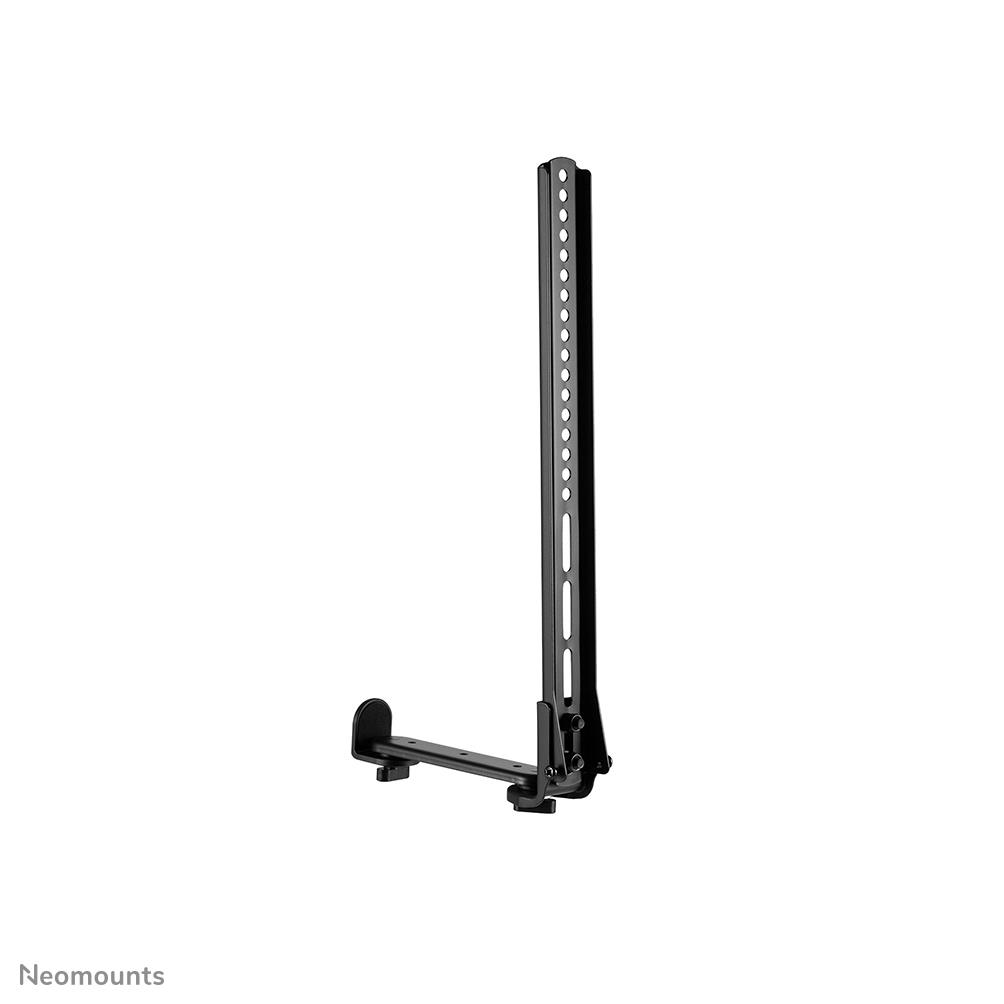

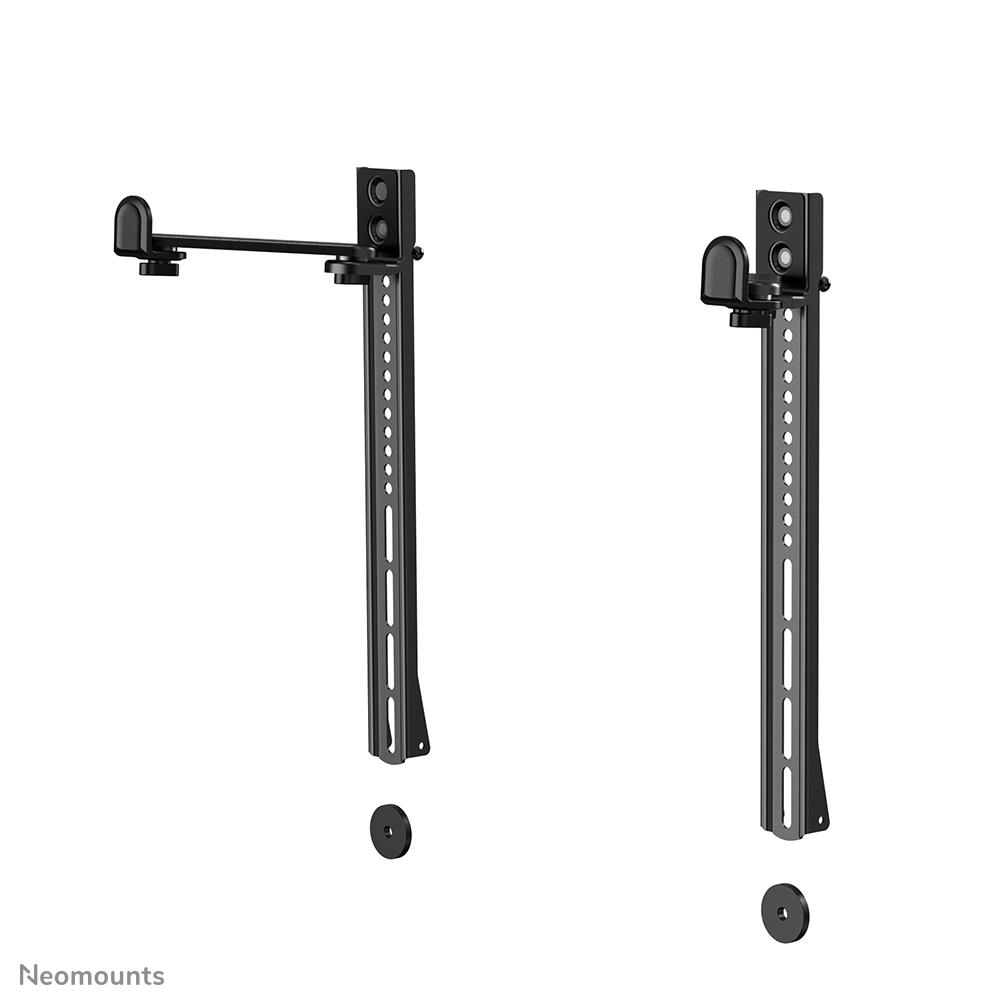

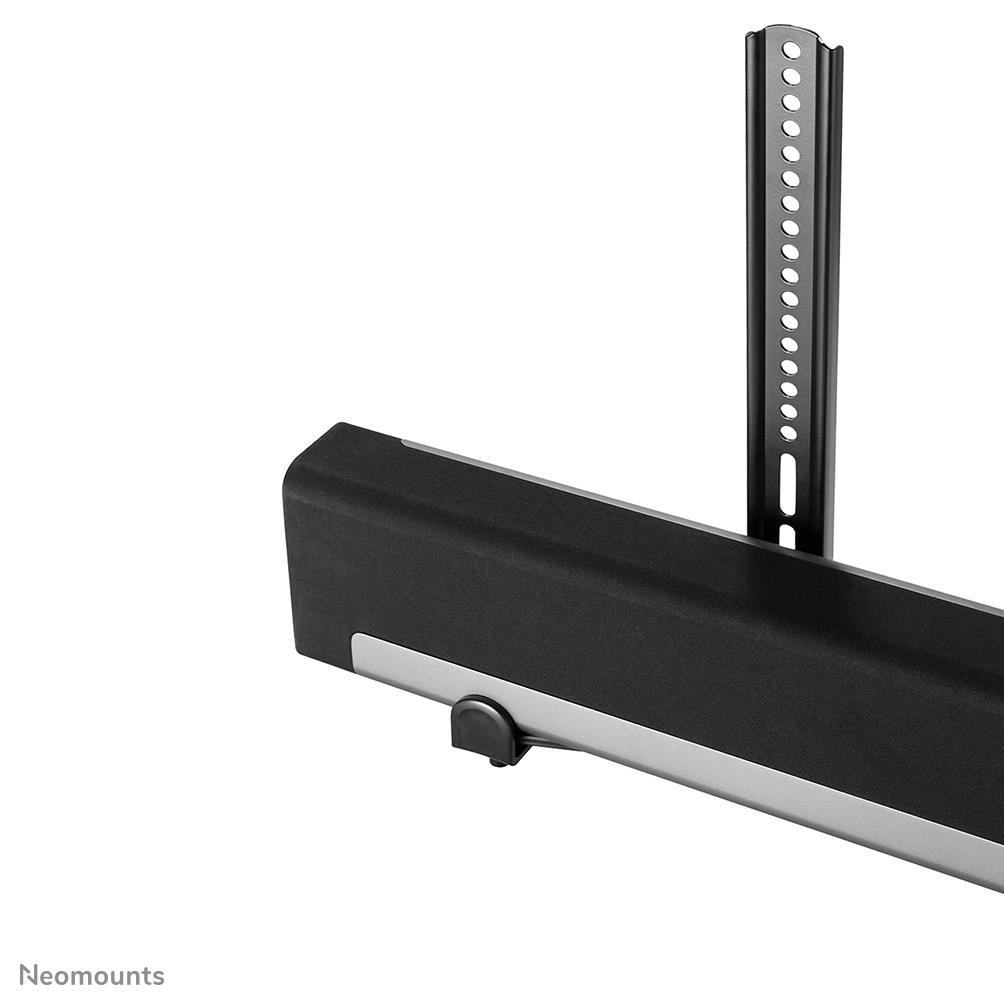

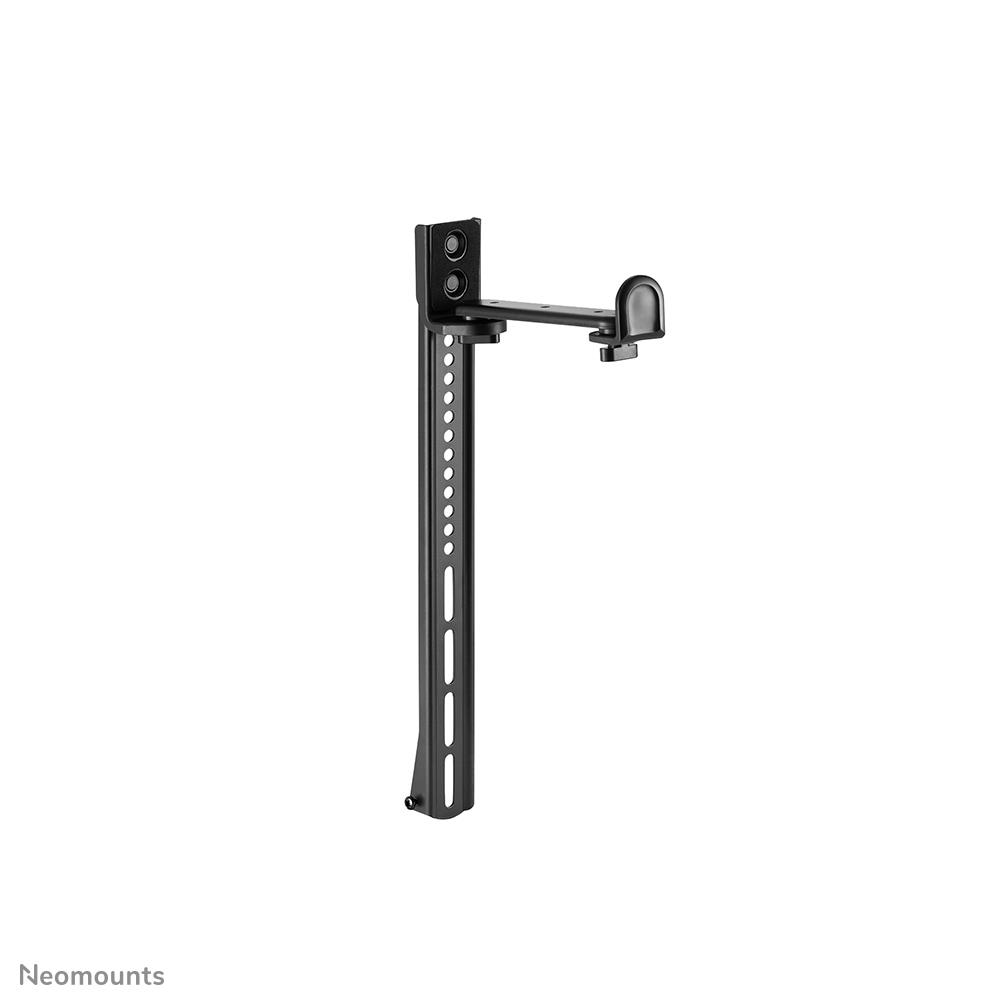

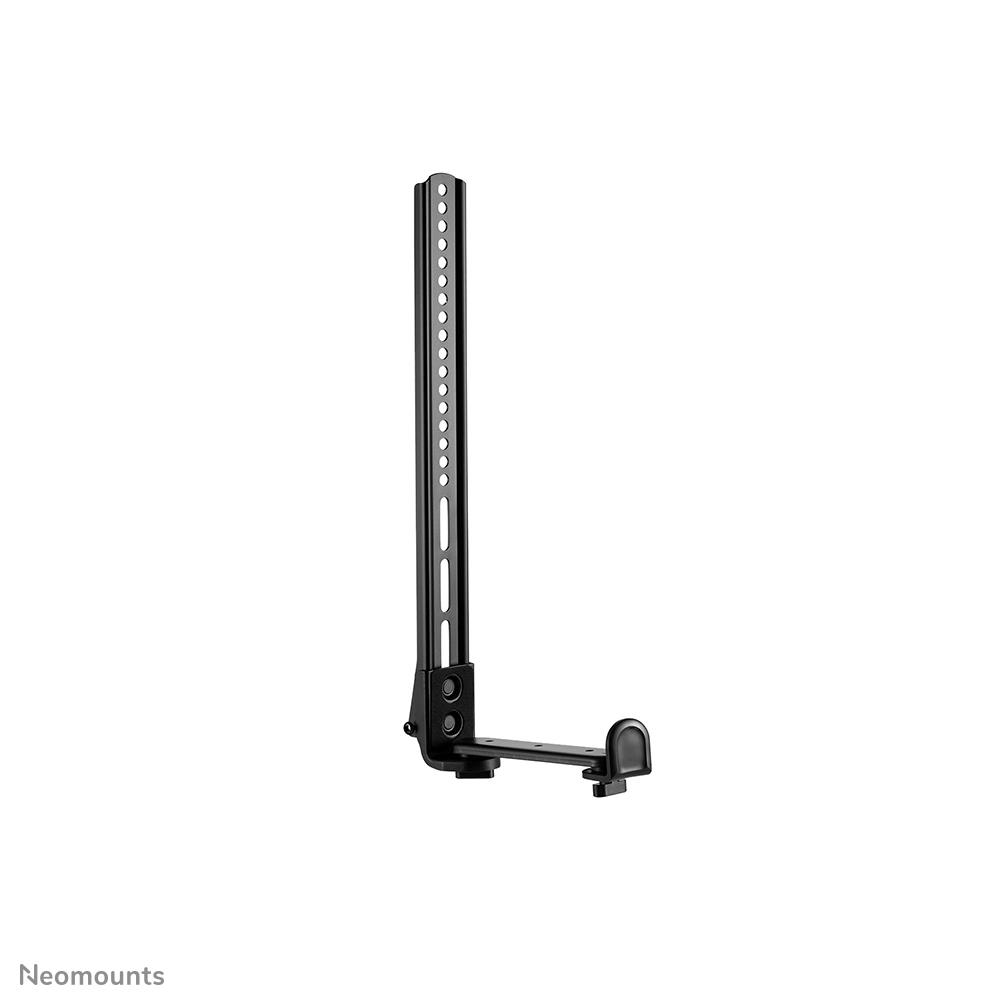

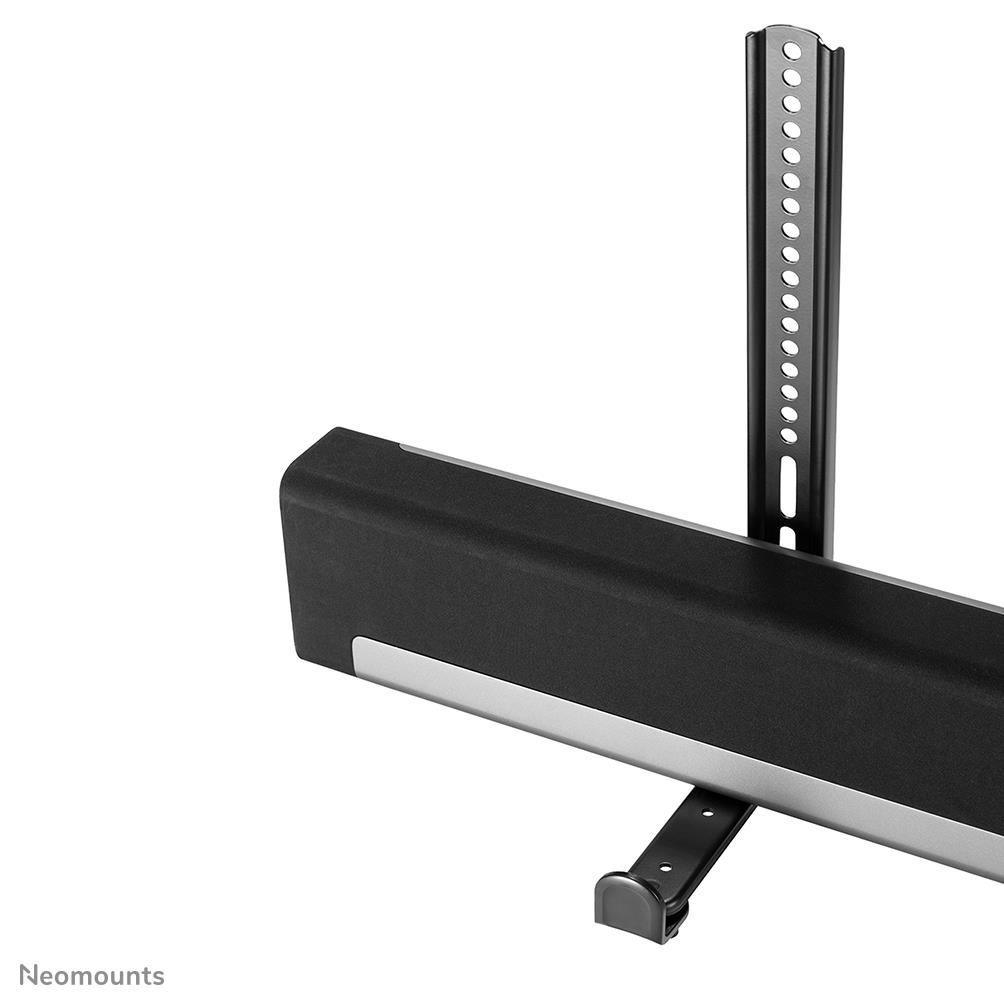

The Neomounts AWL29-650BL1 is a universal videobar/soundbar/speaker mount with a maximum weight capacity of 15 kg. The mount can be adjusted in depth from 7,7 to 21,5 cm and is also height adjustable. With the mount, a videobar/speaker can be installed either above or below a screen, creating a clean and modern looking installment of your audio hardware.
Because installation of the AWL29-650BL1 is to the screen, it simply moves with the screen while adjusting it in height, depth or into any other viewing position. The mount is adjustable in width covering the VESA holes of your bracket. For this reason, the mount also guarantees quick installation.
The AWL29-650BL1 is, among others, compatible with the Logitech Rally Bar and Rally Bar Mini.
General
| Unit Calculated Weight | 1.93 kg |
| Unit Calculated Volume | 0.004185 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts AWL29-650BL1 Videobar/soundbar holder VESA - max 15 kg - universal. Mounting type: Wall, Maximum weight capacity: 15 kg, Depth adjustment range: 77 - 215 mm. Width: 50 mm, Depth: 215 mm, Height: 437 mm. Quantity per pack: 2 pc(s), Package width: 447 mm, Package depth: 148 mm. Master (outer) case net weight: 16.5 kg, Products per pallet (EU): 250 pc(s), Master (outer) case width: 460 mm |
| Unit Box Height | 0.155 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.06 |
Features
| Depth adjustment range | 77 - 215 mm |
| Housing material | Steel |
| Maximum weight capacity | 15 kg |
| Mounting type | Wall |
| Product colour | Black |
Technical details
| Country of origin | China |
Weight & dimensions
| Depth | 215 mm |
| Height | 437 mm |
| Weight | 1650 g |
| Width | 50 mm |
Packaging data
| Package depth | 148 mm |
| Package height | 58 mm |
| Package weight | 2000 g |
| Package width | 447 mm |
| Quantity per pack | 2 pc(s) |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 20000 g |
| Master (outer) case height | 310 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case net weight | 16500 g |
| Master (outer) case width | 460 mm |
| Products per master (outer) case | 10 pc(s) |
| Products per pallet (EU) | 250 pc(s) |
