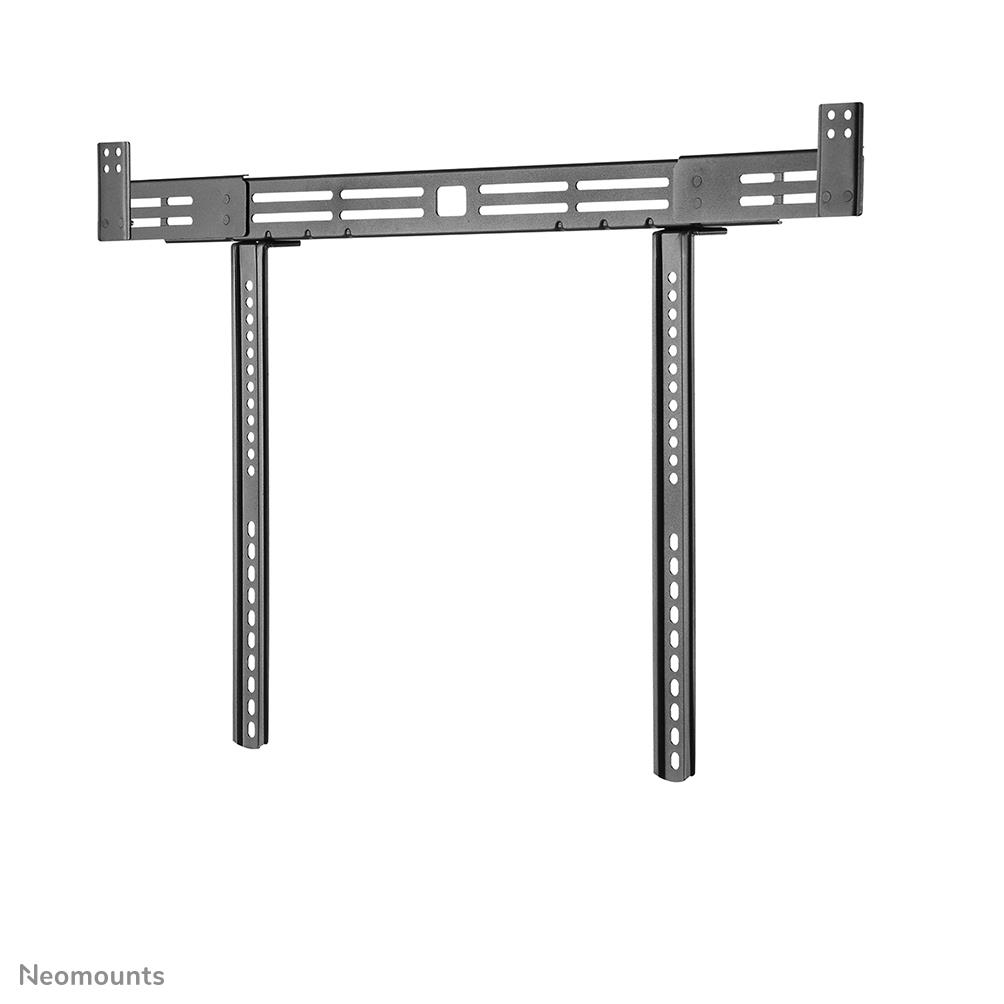

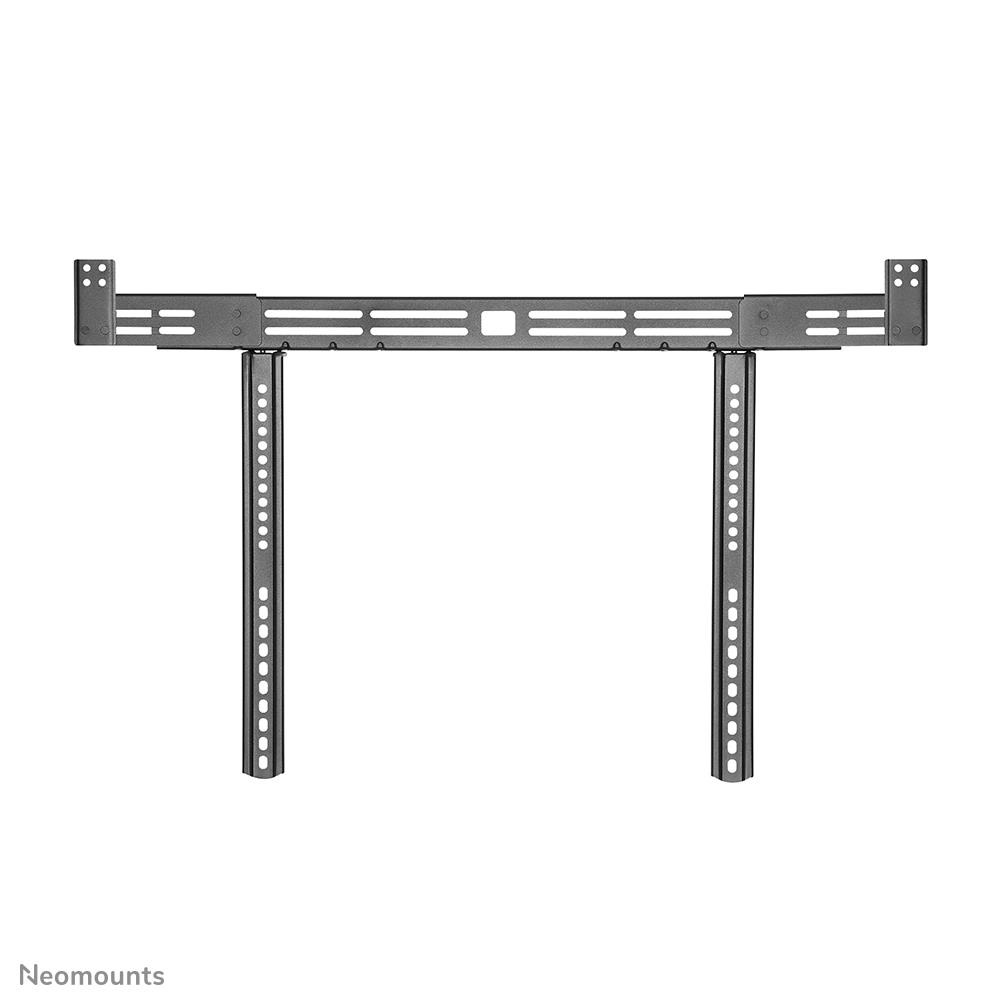

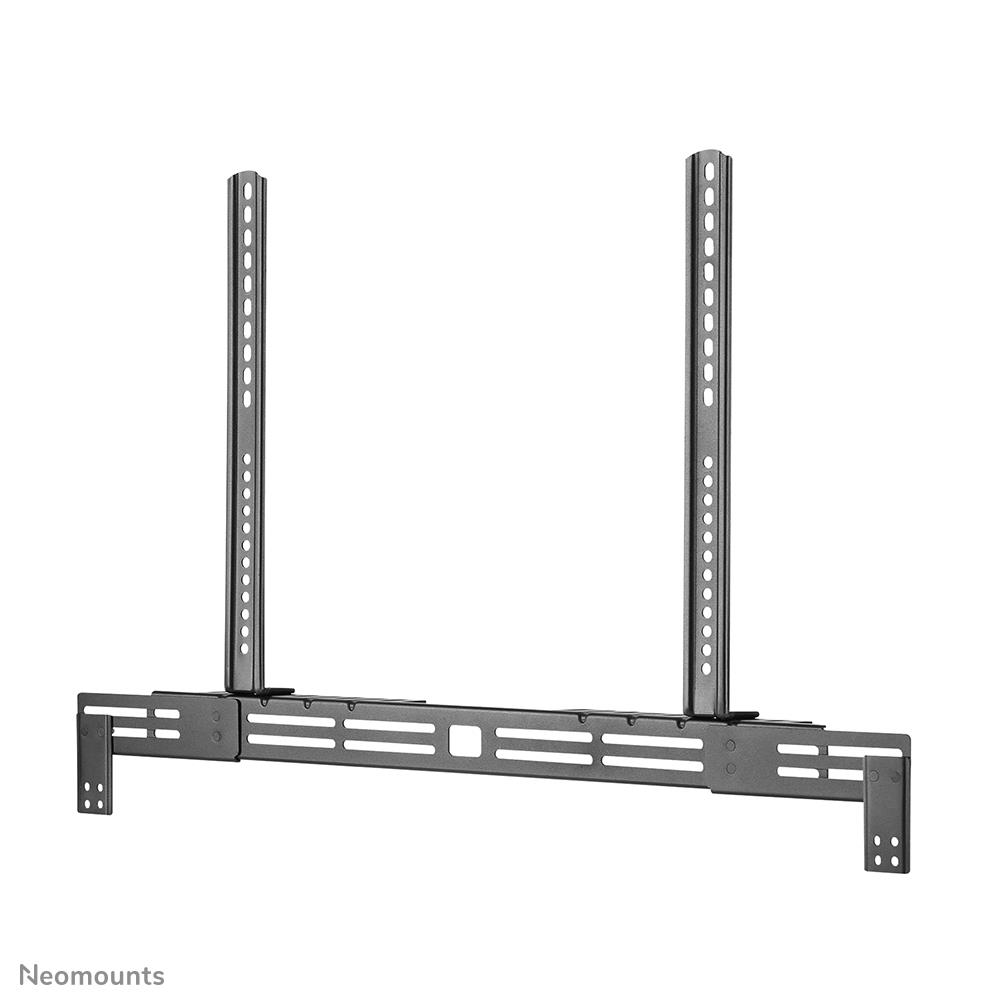

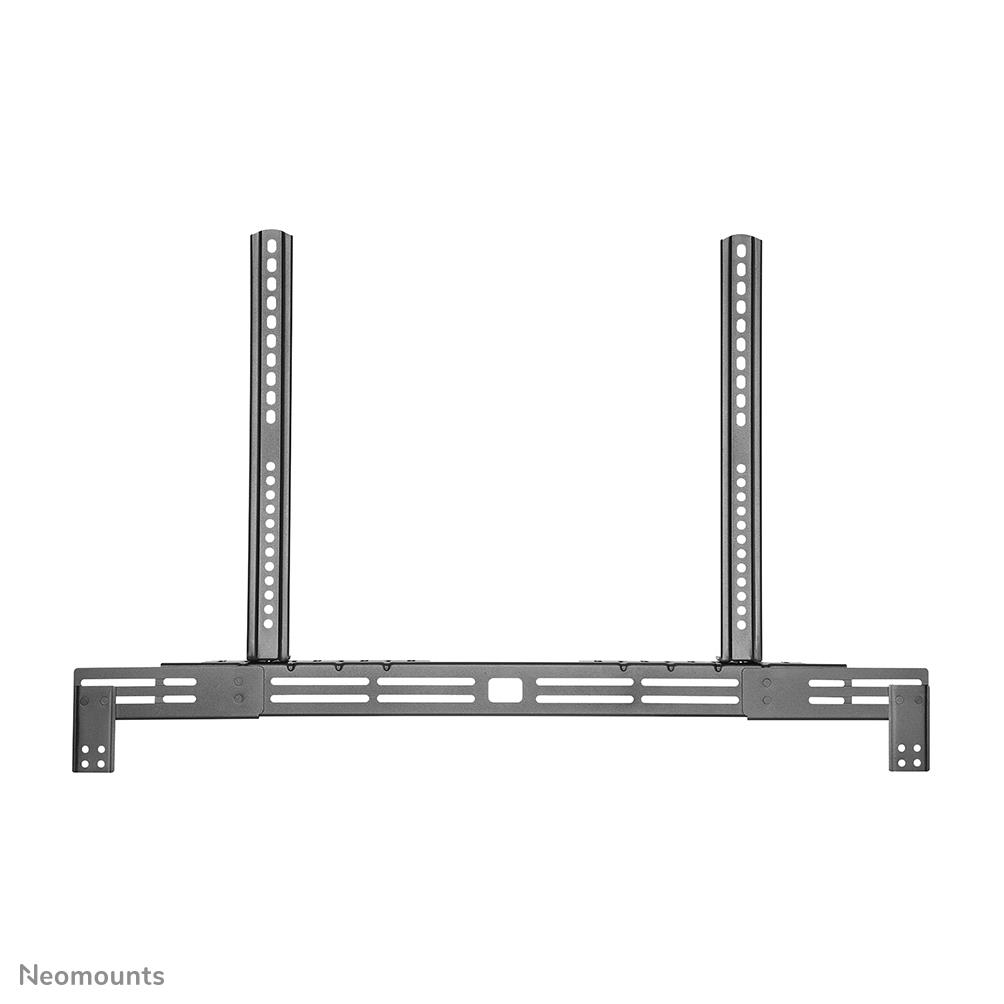

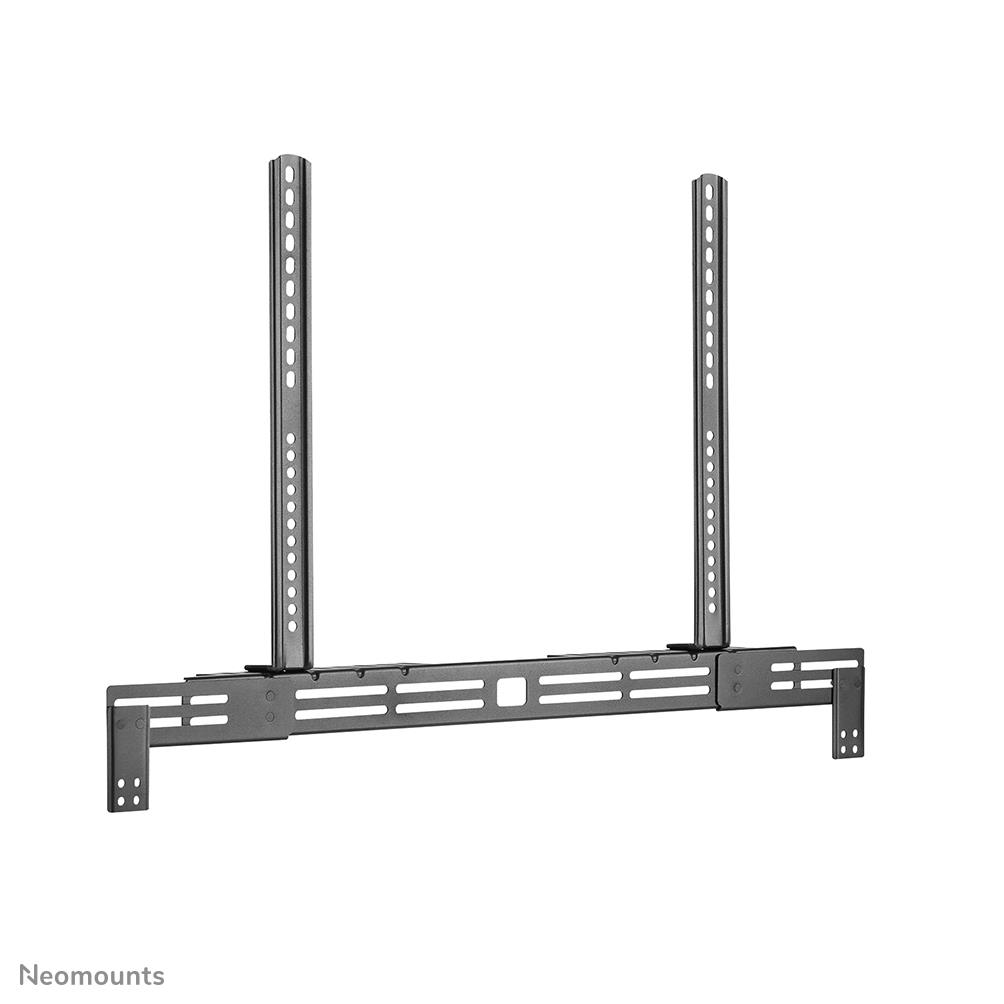

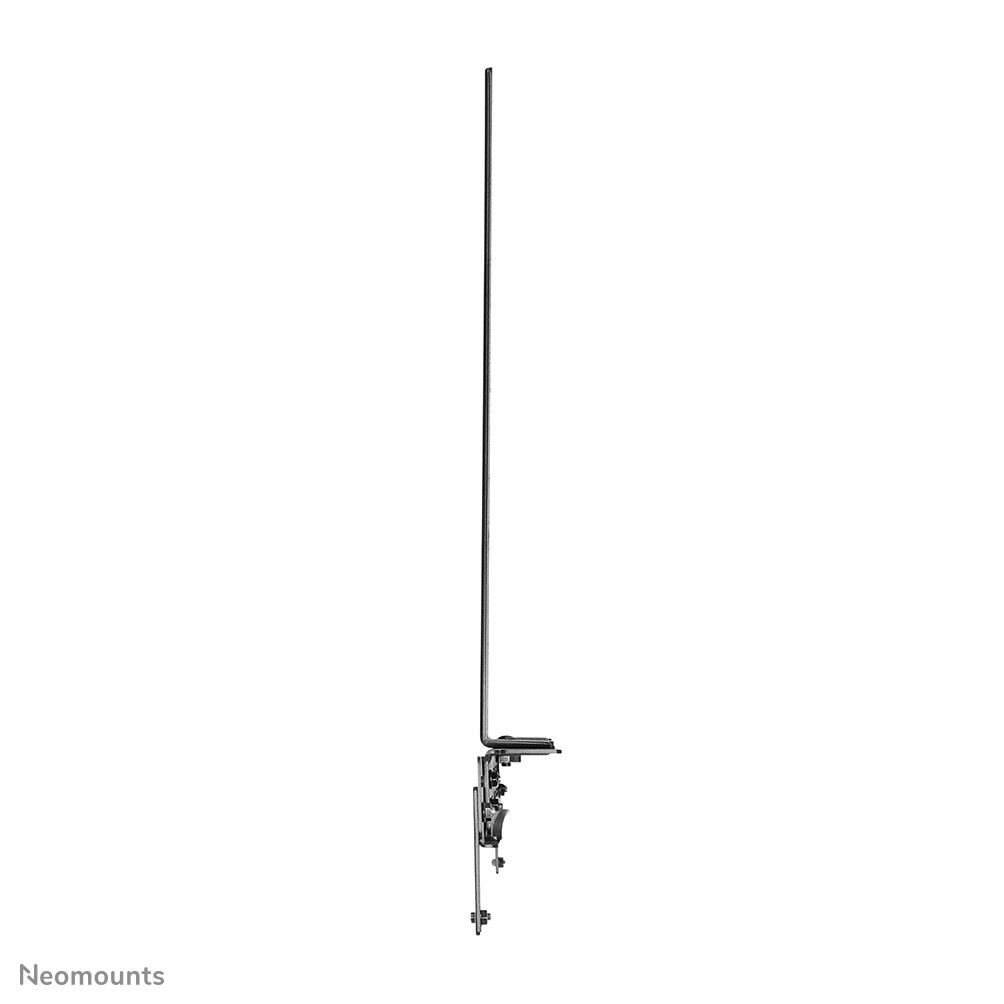

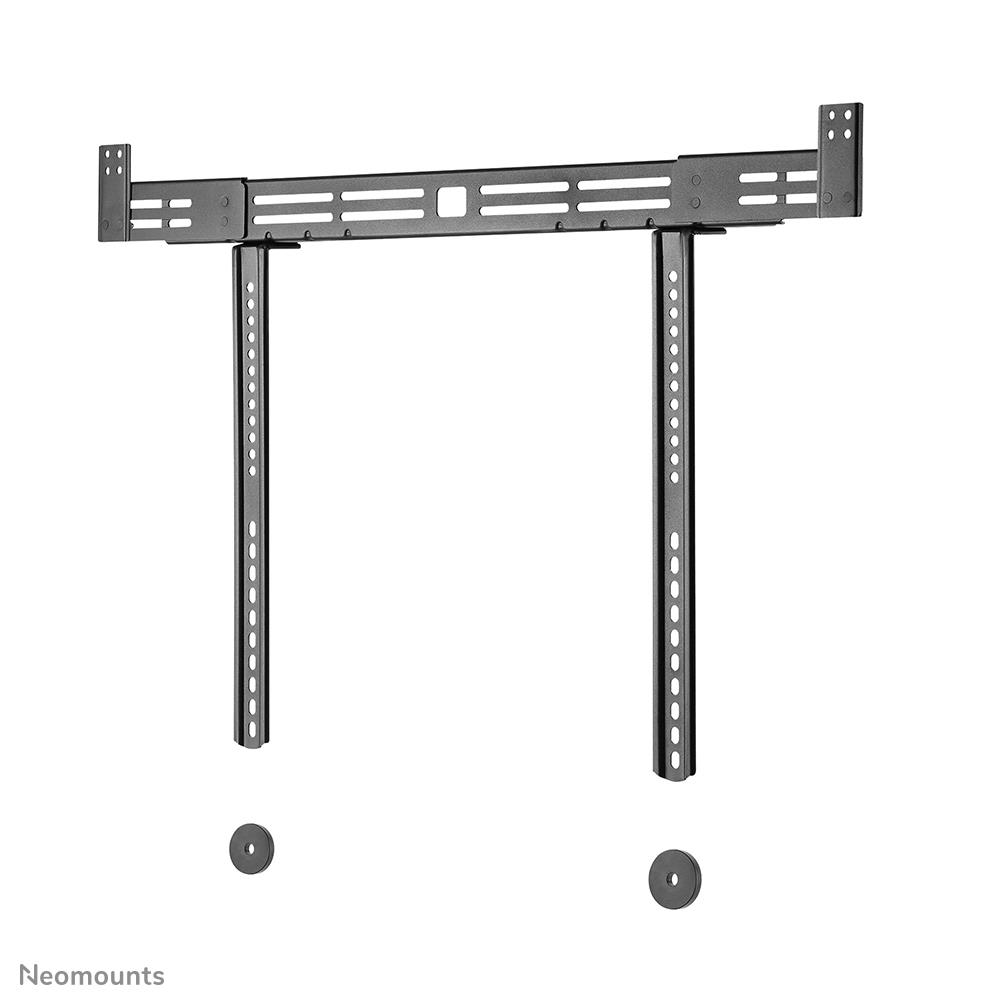

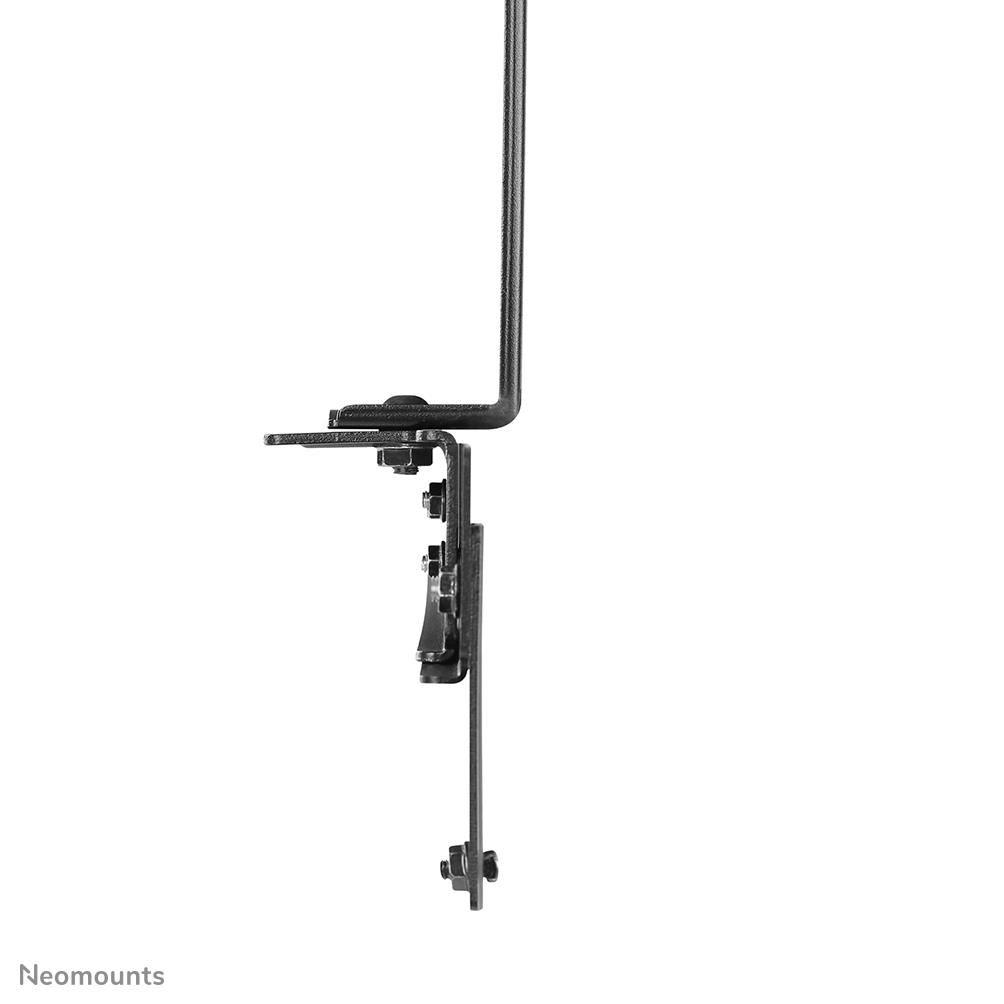

The Neomounts AWL29-750BL1 is a universal videobar/soundbar/speaker mount with a maximum weight capacity of 10 kg. The mount can be adjusted in depth from 0 to 4,2 cm and is also height adjustable. With the mount, a videobar/speaker can be installed either above or below a screen, creating a clean and modern looking installment of your audio hardware.
Because installation of the AWL29-750BL1 is to the screen, it simply moves with the screen while adjusting it in height, depth or into any other viewing position. The mount is adjustable in width covering the VESA holes of your bracket. For this reason, the mount also guarantees quick installation.
General
| Unit Calculated Weight | 2.52 kg |
| Unit Calculated Volume | 0.004368 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts AWL29-750BL1 Videobar/soundbar holder VESA - max 10 kg - universal. Mounting type: Wall, Maximum weight capacity: 10 kg, Depth adjustment range: 0 - 42 mm. Width: 1044 mm, Depth: 81 mm, Height: 550 mm. Quantity per pack: 1 pc(s), Package width: 780 mm, Package depth: 66 mm. Master (outer) case net weight: 14.9 kg, Products per pallet (EU): 216 pc(s), Master (outer) case width: 795 mm |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.78 |
| Unit Box Width | 0.07 |
Features
| Depth adjustment range | 0 - 42 mm |
| Housing material | Steel |
| Maximum weight capacity | 10 kg |
| Mounting type | Wall |
| Product colour | Black |
Technical details
| Country of origin | China |
Weight & dimensions
| Depth | 81 mm |
| Height | 550 mm |
| Weight | 2320 g |
| Width | 1044 mm |
Packaging data
| Package depth | 66 mm |
| Package height | 75 mm |
| Package weight | 2700 g |
| Package width | 780 mm |
| Quantity per pack | 1 pc(s) |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 17000 g |
| Master (outer) case height | 245 mm |
| Master (outer) case length | 145 mm |
| Master (outer) case net weight | 14900 g |
| Master (outer) case width | 795 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 216 pc(s) |
