Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI
General

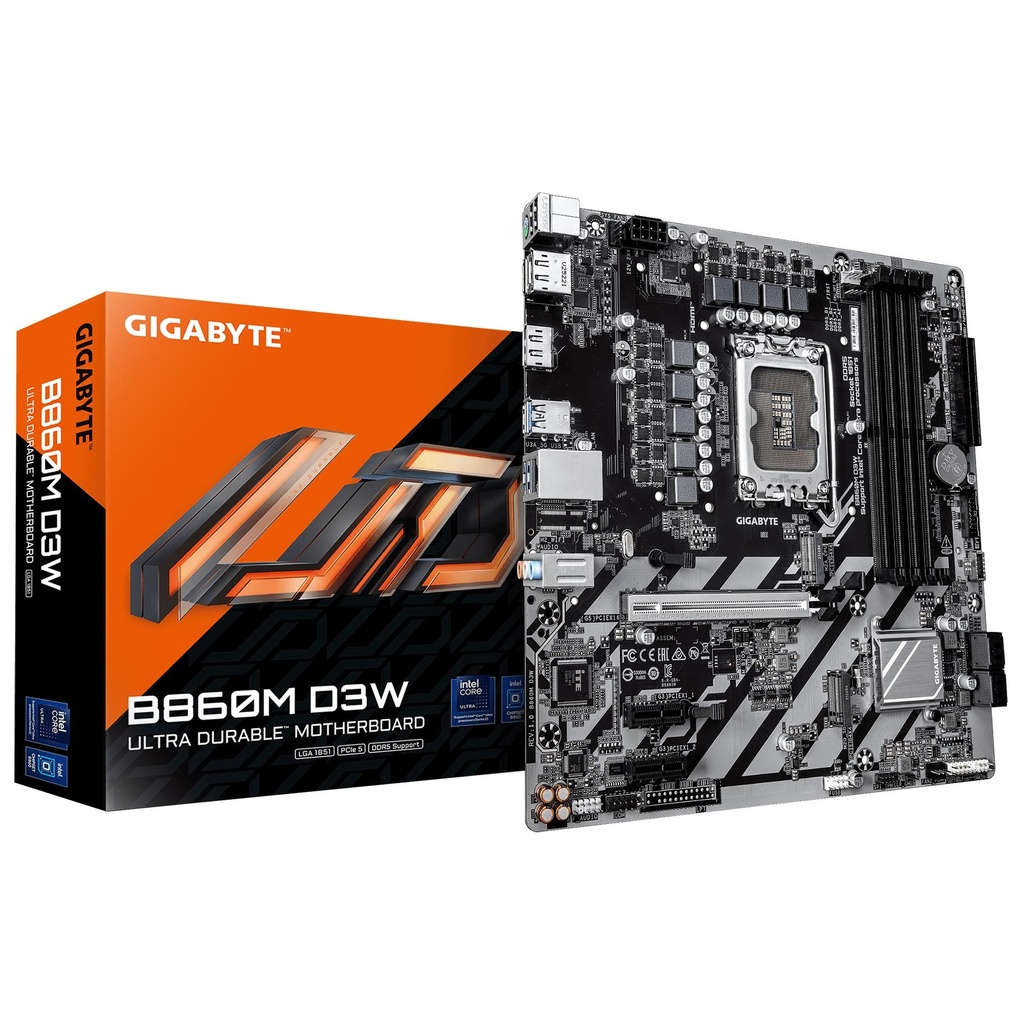

| Summary | GIGABYTE B860M D3W Motherboard - Intel Core Ultra Series CPUs, 4+1+2 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H |
| CnCode | 84733020 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.265 |
Features
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | Intel B860 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | Dark brown |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
Processor
| Compatible processor series | Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
Memory
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9066 MHz |
| Supported memory clock speeds | 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
Storage controllers
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
Graphics
| DirectX version | 12.0 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
Internal I/O
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 2 |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Rear panel I/O ports
| DisplayPort version | 2.1 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Network
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Expansion slots
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
Logistics data
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Packaging data
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1600 g |
| Package width | 265 mm |
Weight & dimensions
| Depth | 244 mm |
| Height | 35 mm |
| Width | 244 mm |
Packaging content
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Screws included | Yes |
Technical details
| Warranty period | 3 year(s) |
Other features
| Weight | 1350 g |
