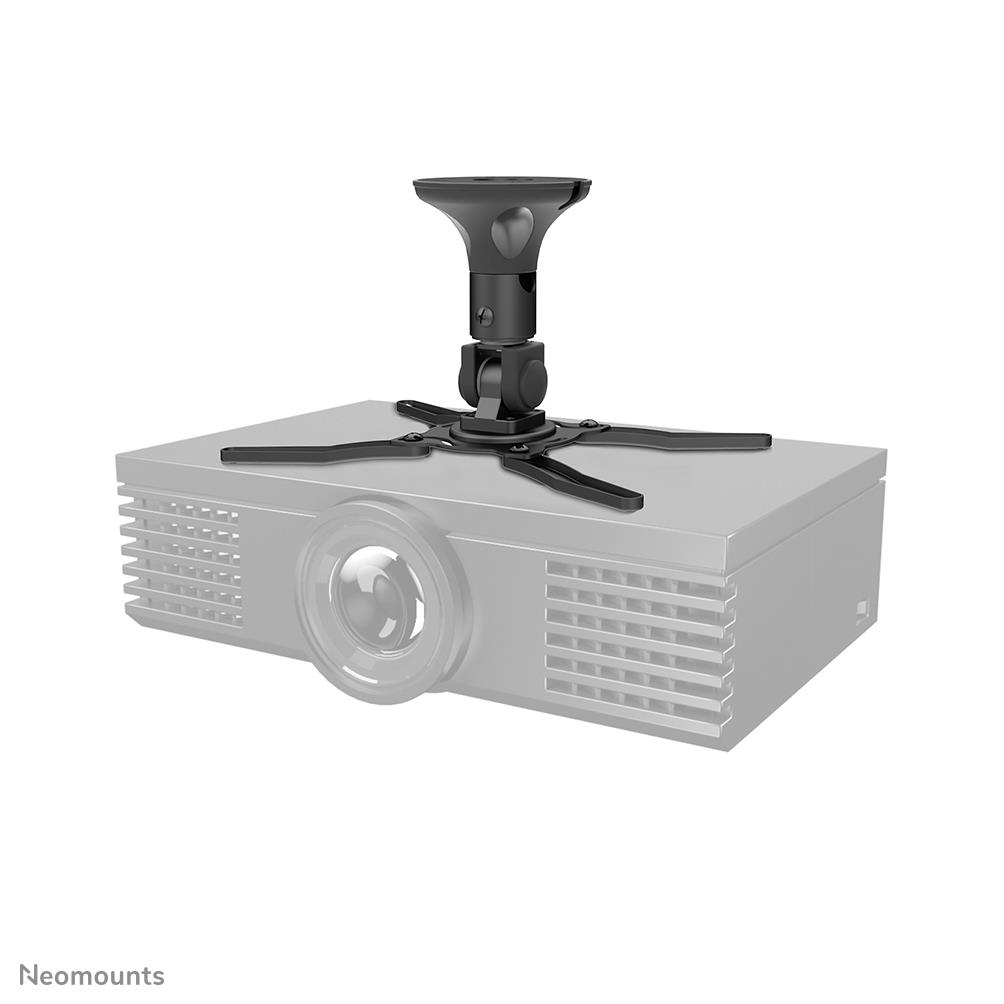

The Neomounts projector ceiling mount, model BEAMER-C50 is a universal tilt-, swivel and/or rotatable ceiling mount for projectors up to 10 kilograms. This mount is a great choice for an optimal viewing experience. This versatile, ready to install mount, offers the convenience of installation to the ceiling without the need of additional accessories.

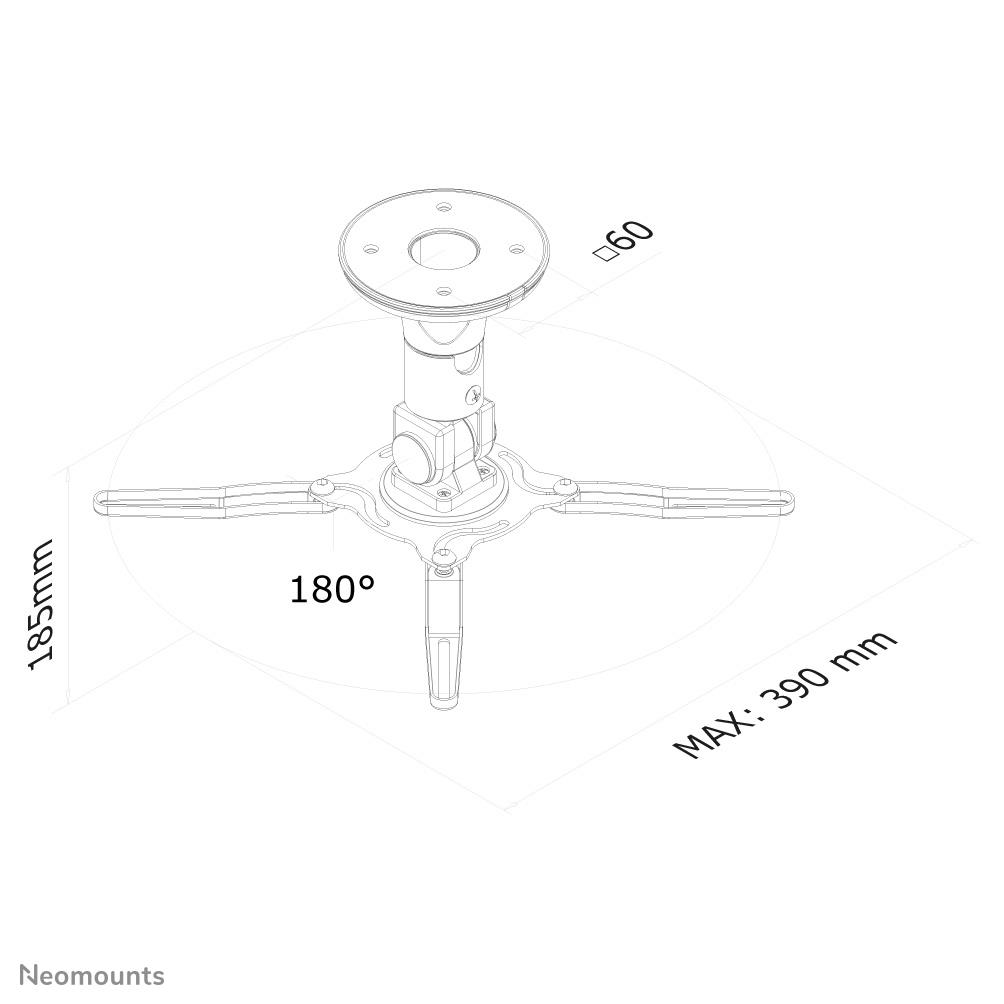

Neomounts versatile tilt (90°), rotate and/or swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the projector. The mount has a fixed height of 18,5 centimetres. An innovative cable management conceals and routes cables from ceiling to projector. Hide your cables to keep the installation nice and tidy.

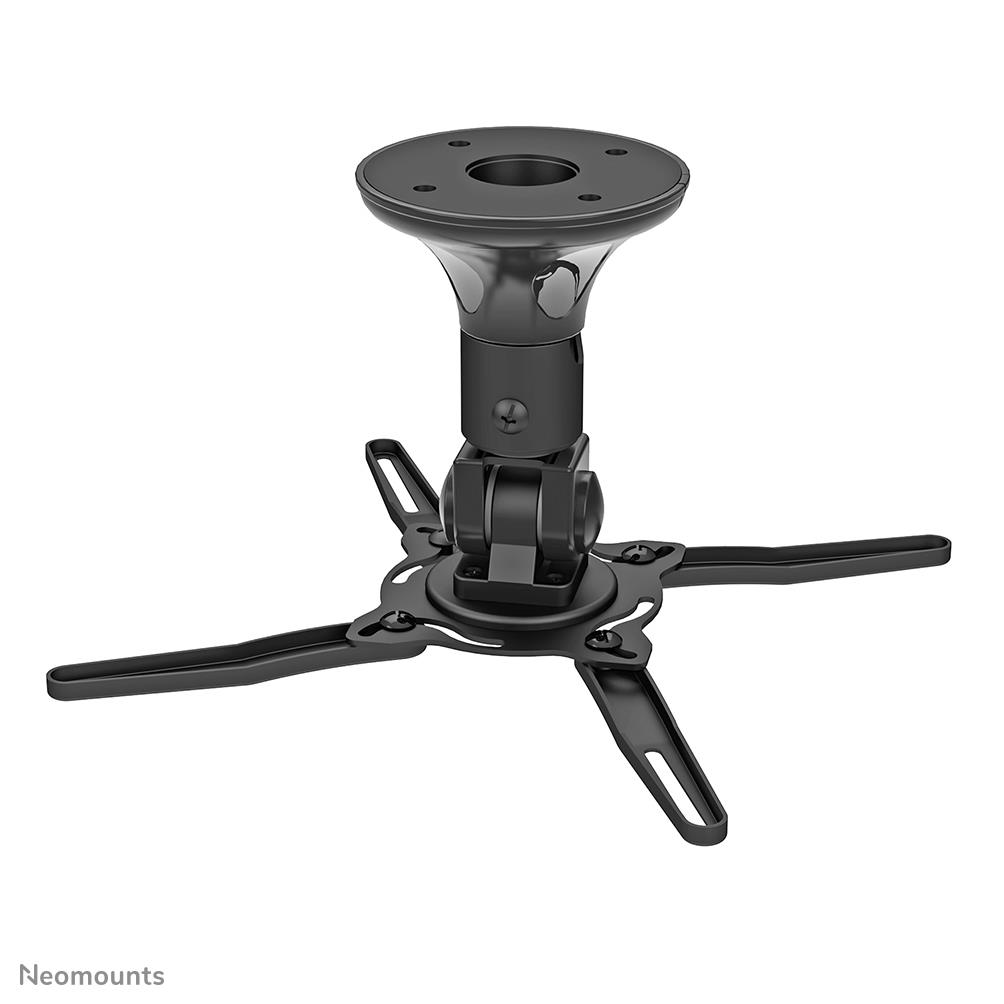

Neomounts BEAMER-C50 has two pivot points and is suitable for most projectors. The weight capacity of this product is 10 kilograms. This universal ceiling mount is easy to install and suitable for projectors using the mounting holes on the bottom side of the projector. The legs included with this mount, cover most projector hole patterns.
Projector mounts are ideal for use in offices, schools, hospitals or at home.
All installation material is included with the product.
General
| Unit Calculated Weight | 1.33 kg |
| Unit Calculated Volume | 0.002925 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts BEAMER-C50 Beamer ceiling mount - h 18,5 cm - full motion. Mounting type: Ceiling, Maximum weight capacity: 10 kg, Product colour: Black. Height: 185 mm, Weight: 1.16 kg, Package width: 180 mm. Country of origin: Taiwan. Products per master (outer) case: 12 pc(s), Master (outer) case net weight: 16 kg, Products per pallet (EU): 432 pc(s) |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.13 |
Performance
| Height adjustment | Yes |
| Height adjustment range | 0 - 185 mm |
| Height adjustment type | Manual |
| Housing material | Steel |
| Maximum weight capacity | 10 kg |
| Mounting type | Ceiling |
| Product colour | Black |
| Rotating | Yes |
| Swivel angle | 360 ° |
| Swivel angle range | 0 - 360 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90 ° |
Weight & dimensions
| Height | 185 mm |
| Package depth | 128 mm |
| Package height | 126 mm |
| Package weight | 1000 g |
| Package width | 180 mm |
| Weight | 1160 g |
Other features
| Country of origin | Taiwan |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 16800 g |
| Master (outer) case height | 300 mm |
| Master (outer) case length | 285 mm |
| Master (outer) case net weight | 16000 g |
| Master (outer) case width | 570 mm |
| Products per master (outer) case | 12 pc(s) |
| Products per pallet (EU) | 432 pc(s) |
