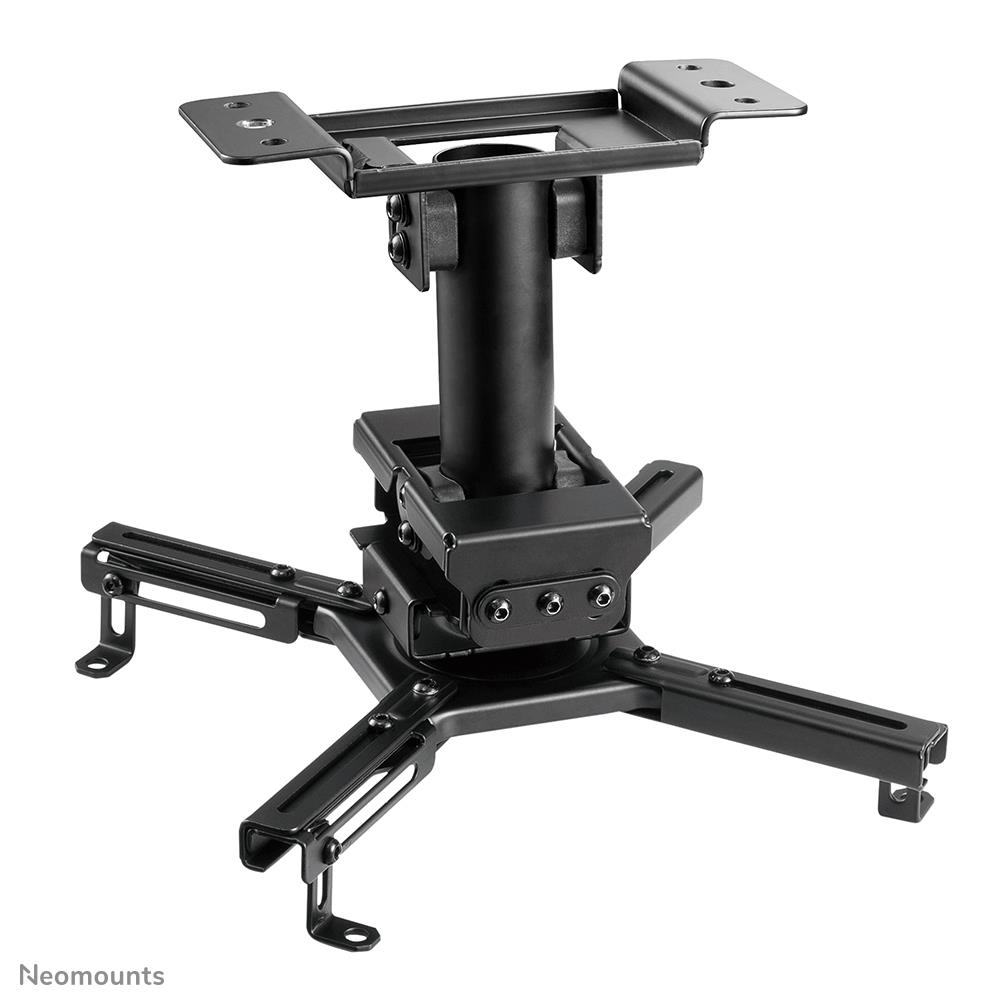

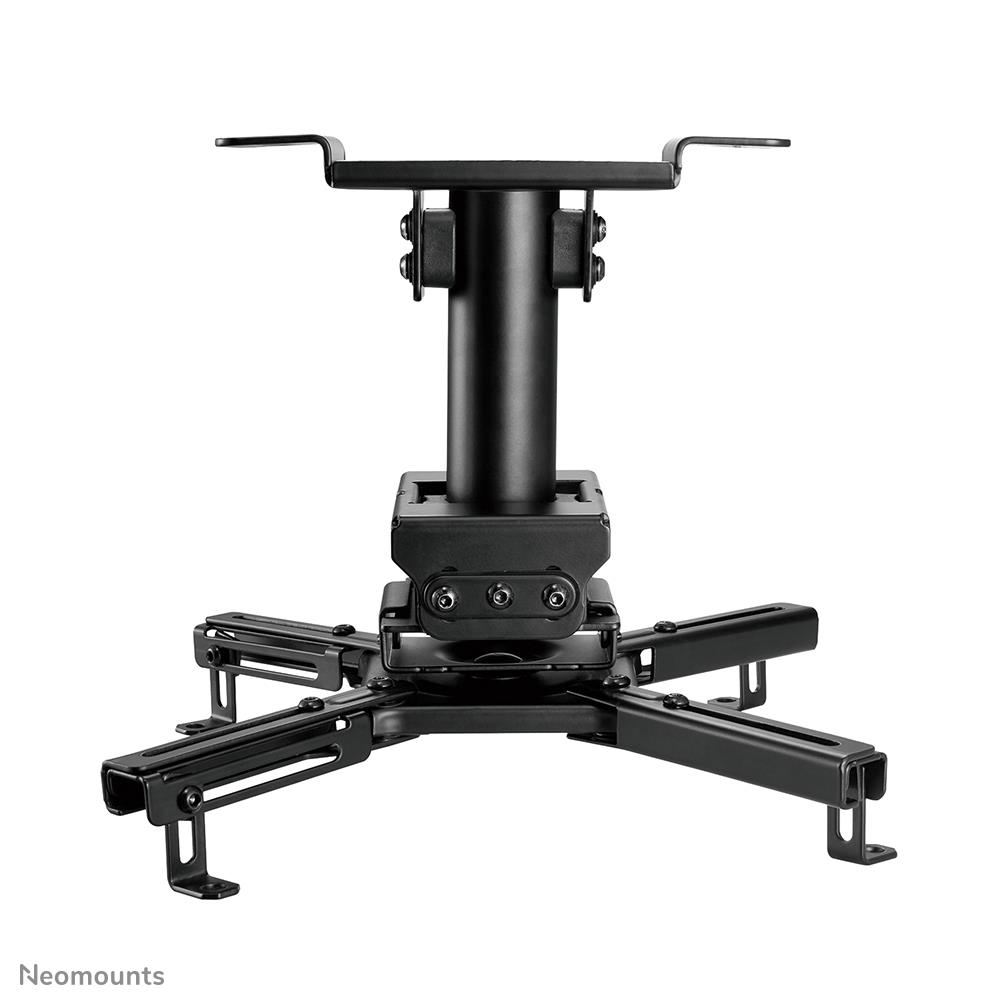

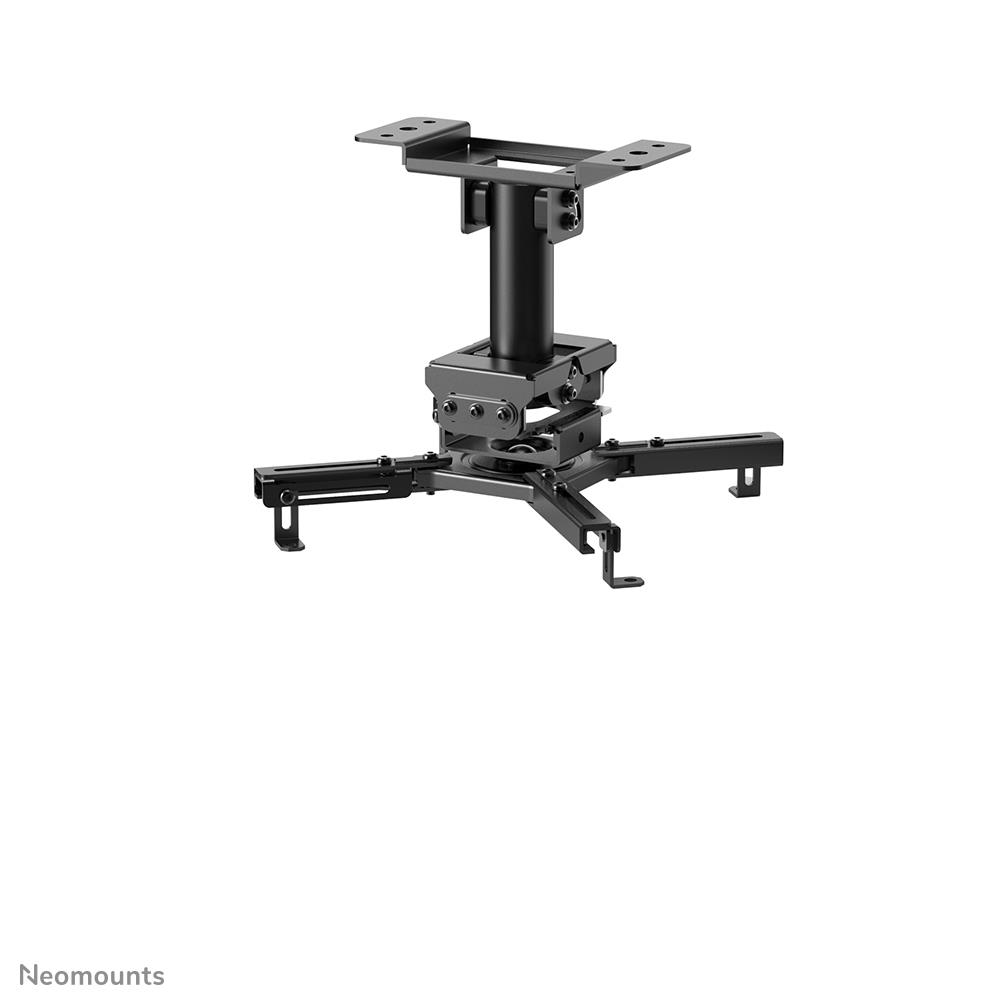

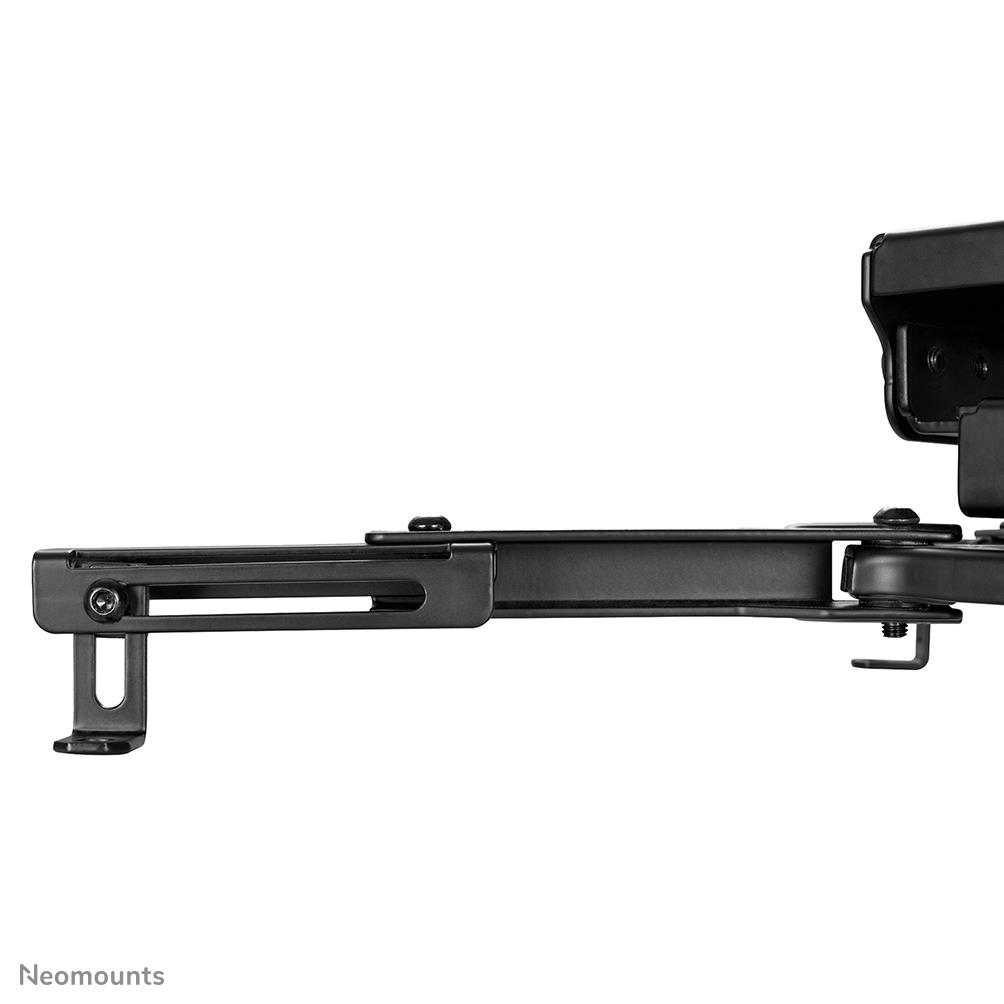

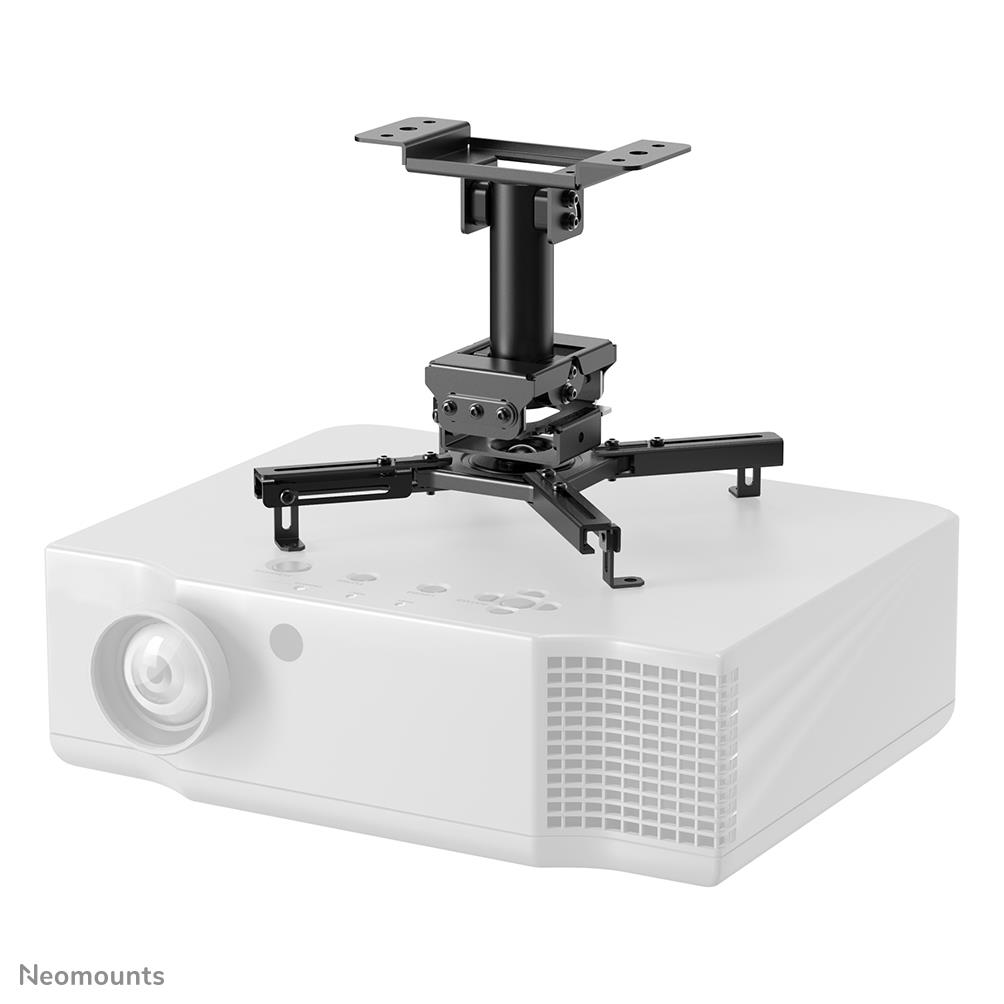

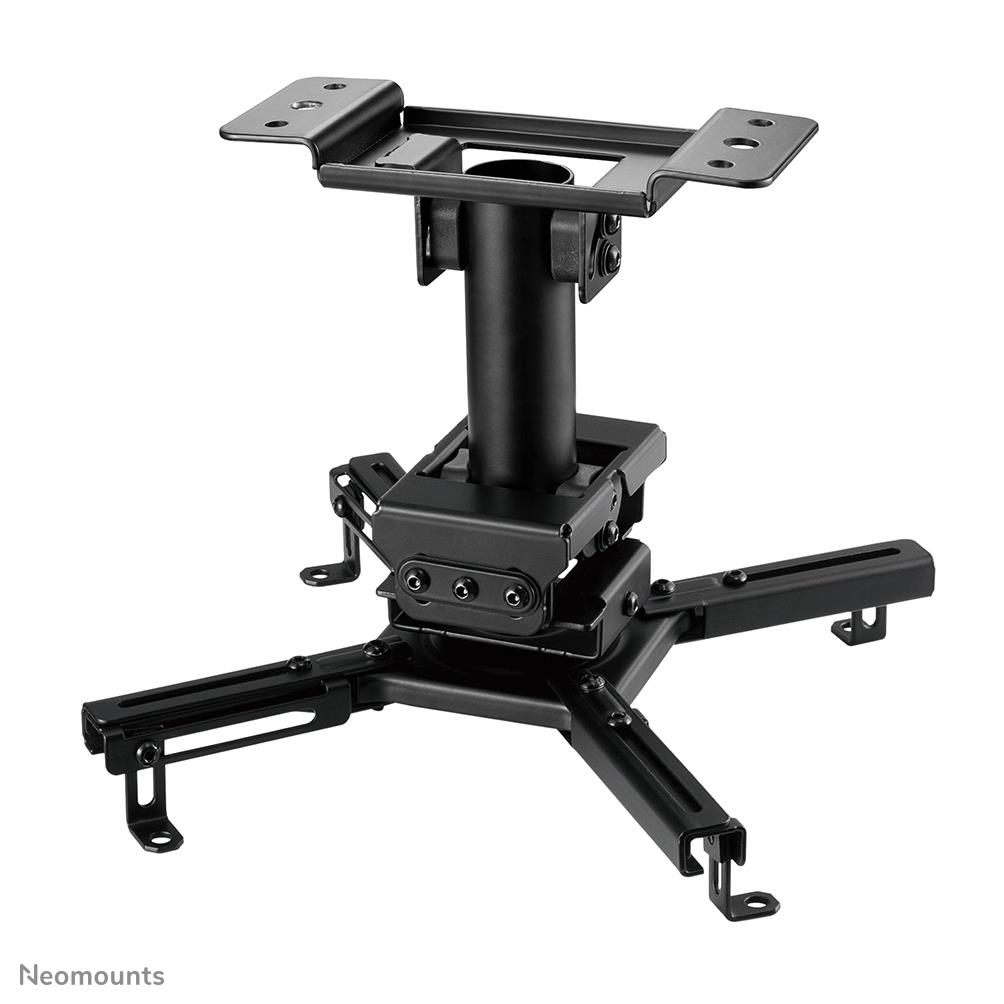

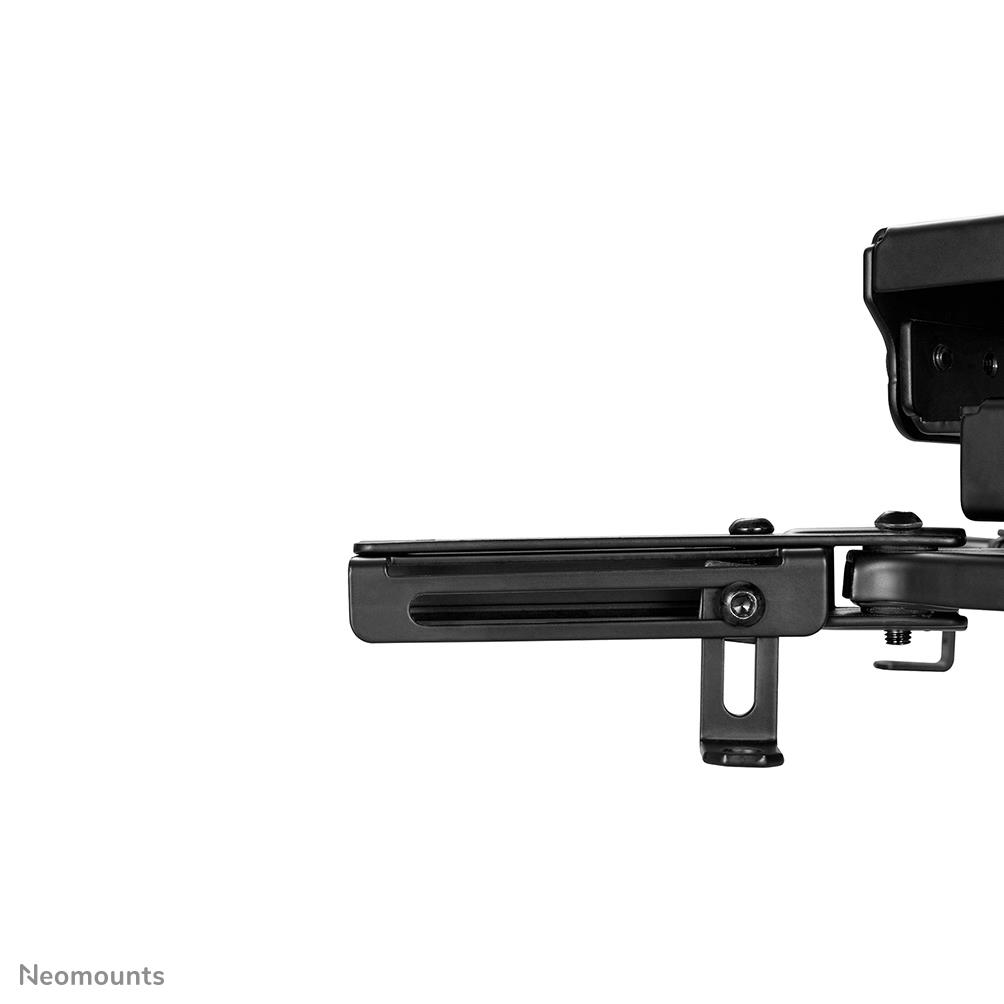

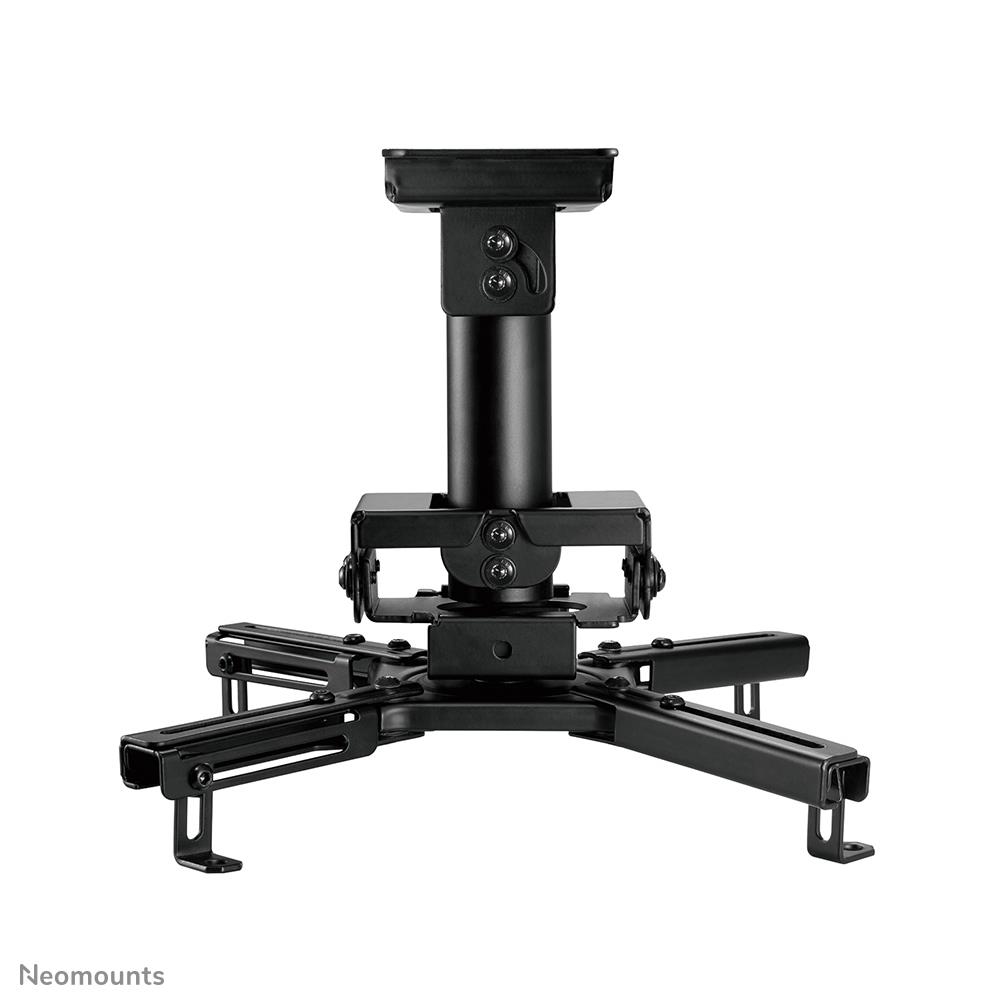

The Neomounts CL25-530BL1 is a universal projector ceiling mount. Because of the high weight capacity up to 45 kg and the various adjustment options, this projector ceiling mount is widely applicable. The CL25-530BL1 has four extendable arms and the versatile tilt (+20°, -20°), rotate (360°) and swivel (+8°, -8°) technology, provides optimal placement of the projection on any canvas, screen or wall.
The Neomounts CL25-530BL1 is equipped with an Easy-release system, which highly eases installation; (de)installation of the projector to the projector mount can be done in an instant and by only one person. In addition, the round pole allows easy installation to a suspended ceiling. Finally, the pole of the Neomounts projector mount can be tilted on the ceiling side, so that installation against a sloped ceiling is effortless. The fixation of the mount itself is sturdy and firm, therefore vibration free.
The cable management system of the CL25-530BL1 ensures the cables are neatly concealed, because they are routed through the pole of the projector ceiling mount.
General
| Unit Calculated Weight | 2.95 kg |
| Unit Calculated Volume | 0.01295 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts CL25-530BL1 Beamer ceiling mount - h 25,5 cm - easy-install - full motion. Mounting type: Ceiling, Maximum weight capacity: 45 kg, Product colour: Black. Width: 470 mm, Height: 255 mm, Depth: 470 mm. Country of origin: China. Quantity per pack: 1 pc(s), Products per master (outer) case: 6 pc(s), Master (outer) case net weight: 15.3 kg. Package net weight: 3.3 kg |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.14 |
Performance
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Housing material | Steel |
| Maximum weight capacity | 45 kg |
| Mounting type | Ceiling |
| Product colour | Black |
| Swivel angle range | -8 - 8 ° |
| Tilt angle range | -20 - 20 ° |
Weight & dimensions
| Depth | 470 mm |
| Height | 255 mm |
| Package depth | 240 mm |
| Package height | 135 mm |
| Package net weight | 3300 g |
| Package weight | 3060 g |
| Package width | 365 mm |
| Weight | 2550 g |
| Width | 470 mm |
Other features
| Country of origin | China |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 19300 g |
| Master (outer) case height | 425 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case net weight | 15300 g |
| Master (outer) case width | 500 mm |
| Products per master (outer) case | 6 pc(s) |
| Products per pallet (EU) | 96 pc(s) |
| Quantity per pack | 1 pc(s) |
