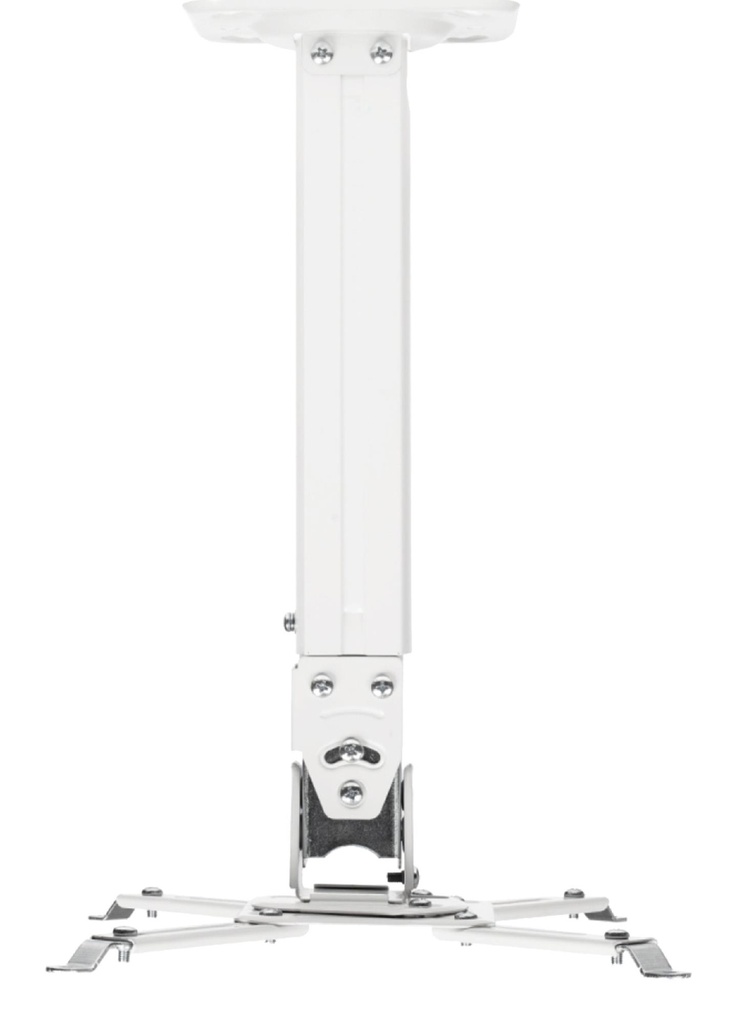

A ceiling mounting solution for projectors by ONKRON – K5A. This is a universal ceiling projector mount suitable most modern projectors with distance between mounting holes 240-340 mm. K3A is made of SPCC steel and can hold projectors weighing up to 10 kg and keep your expensive projector in safety.

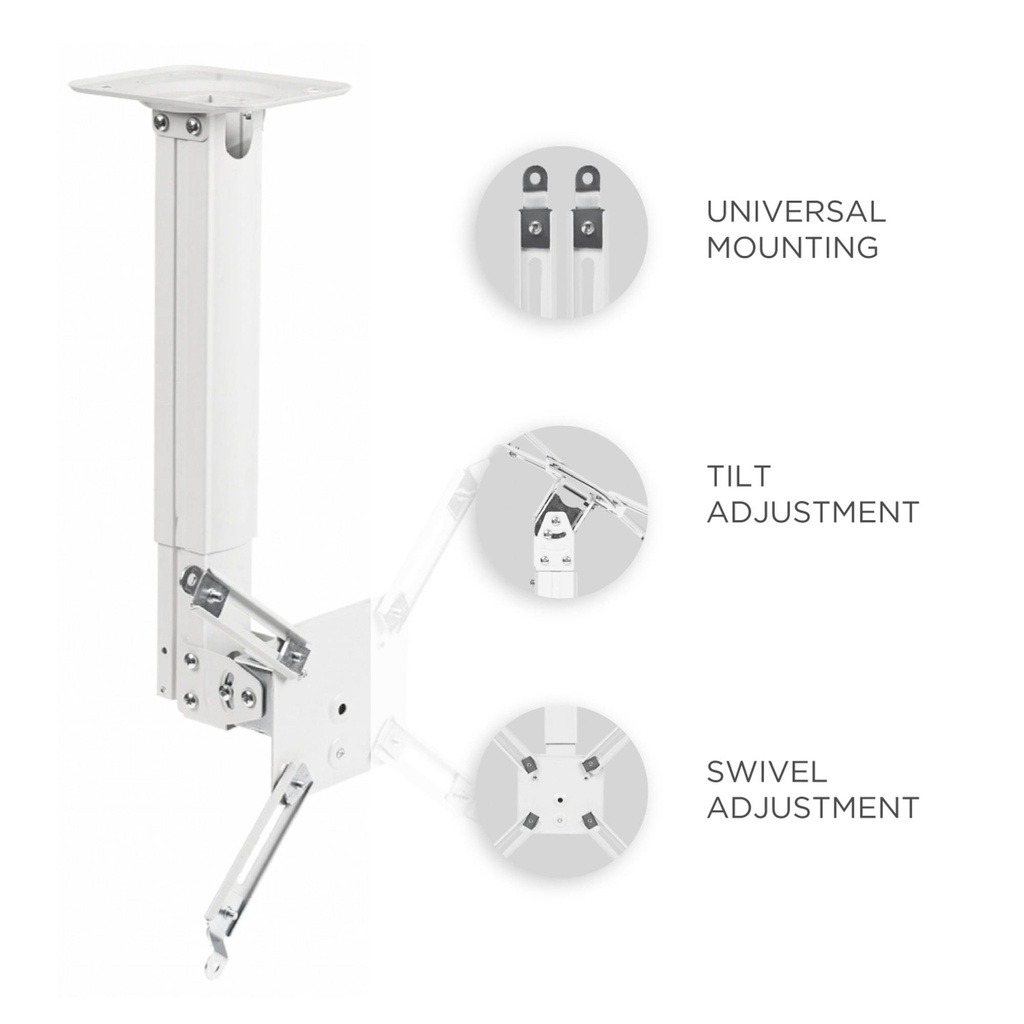

Projector mount is fully adjustable and has -20° ~ +20° tilting along with 20° swiveling. It is height adjustable 14.8” – 22.6” from the ceiling. You are able to set perfect angles for your projector and fully enjoy using it. Snow-white powder-coated design can fit any interior and any projector.
General
| Unit Calculated Weight | 1.19 kg |
| Unit Calculated Volume | 0.002965 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | ONKRON K5A-W. Mounting type: Ceiling/wall, Maximum weight capacity: 10 kg, Product colour: White. Width: 130 mm, Height: 600 mm, Depth: 102 mm |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.11 |
| Model | K5A |
Performance
| Easy to install | Yes |
| Height adjustment | Yes |
| Height adjustment range | 400 - 600 mm |
| Housing material | Steel |
| Maximum VESA mount | 400 x 200 mm |
| Maximum weight capacity | 10 kg |
| Minimum VESA mount | 300 x 400 mm |
| Mounting holes diameter | 215 - 335 mm |

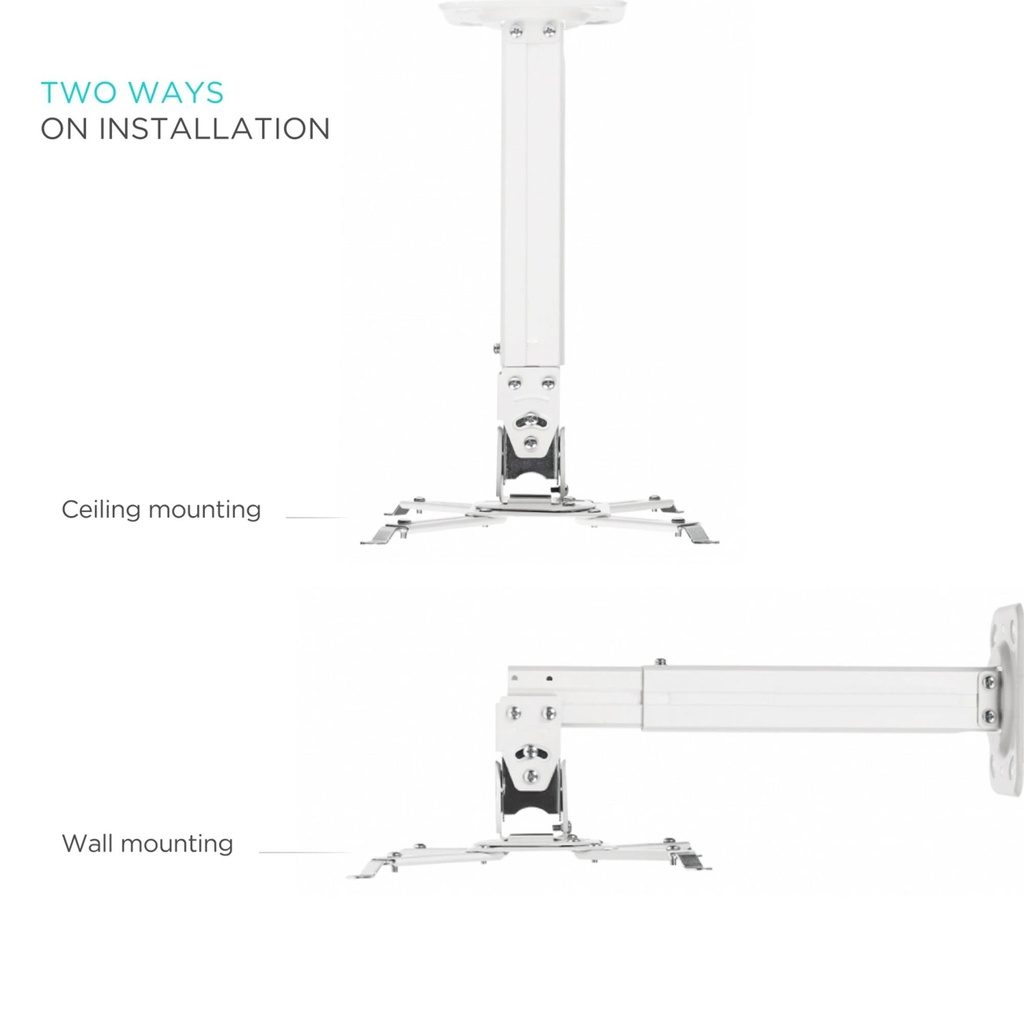

| Mounting type | Ceiling/wall |
| Panel mounting interface | 300 x 400/400 x 200 mm |
| Product colour | White |
| Swivel angle | 180 ° |
| Swivelling | Yes |
| Telescopic | Yes |

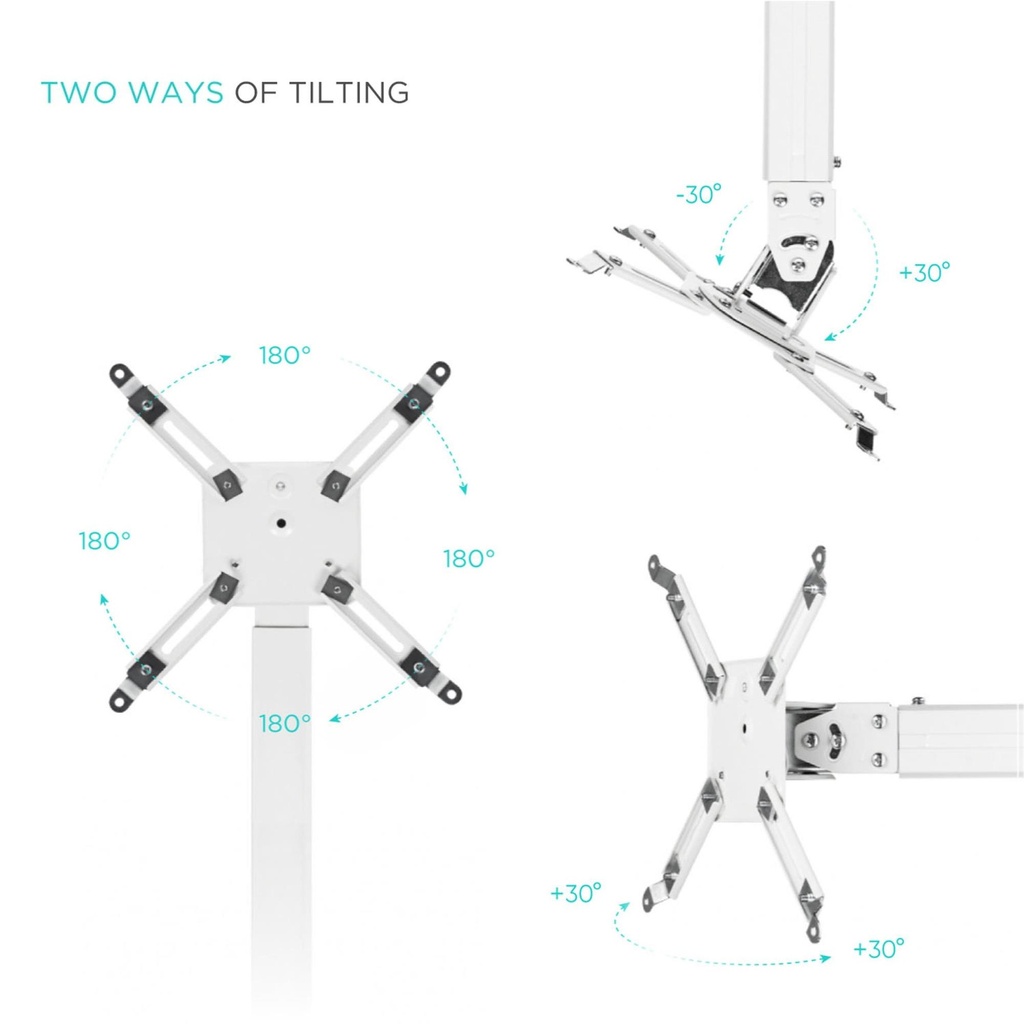

| Tilt adjustment | Yes |
| Tilt angle range | -30 - 30 ° |
Weight & dimensions
| Depth | 102 mm |
| Height | 600 mm |
| Package depth | 115 mm |
| Package height | 73 mm |
| Package weight | 1200 g |
| Package width | 390 mm |
| Width | 130 mm |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
| Screws included | Yes |
Technical details
| Warranty period | 5 year(s) |
