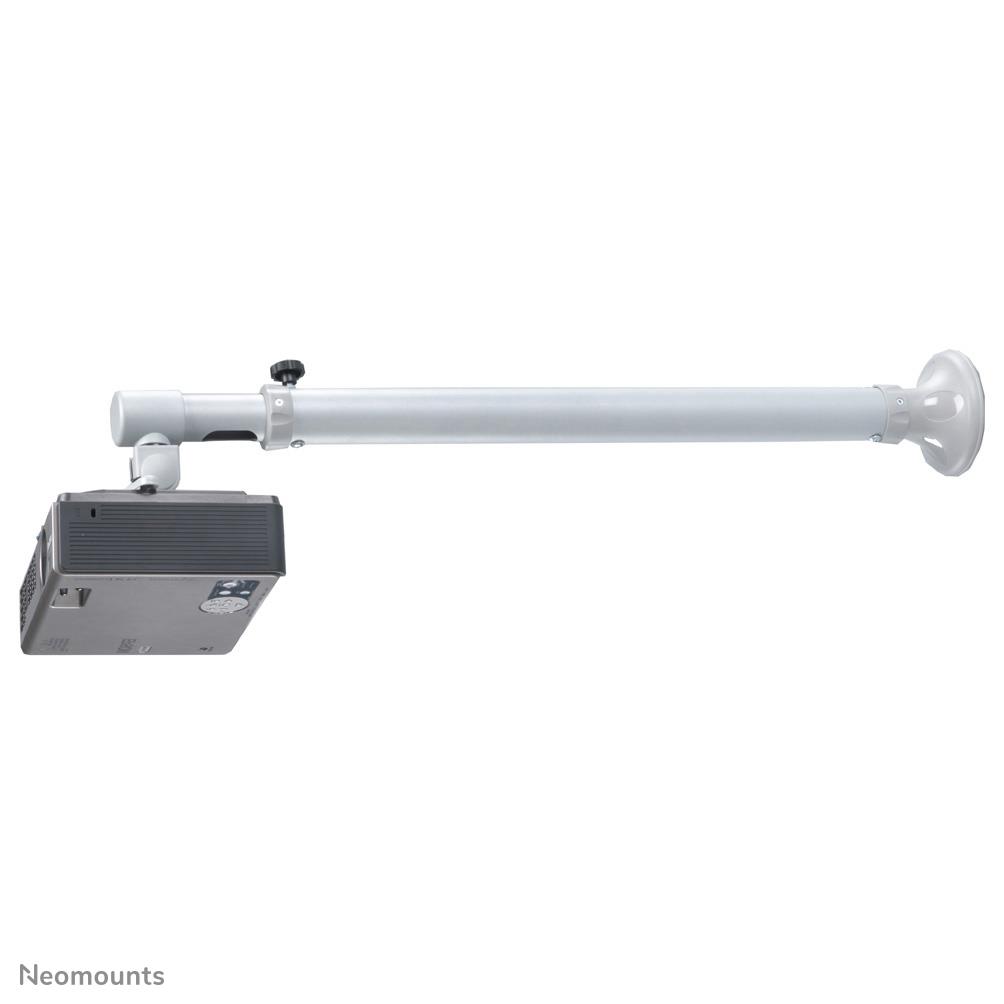

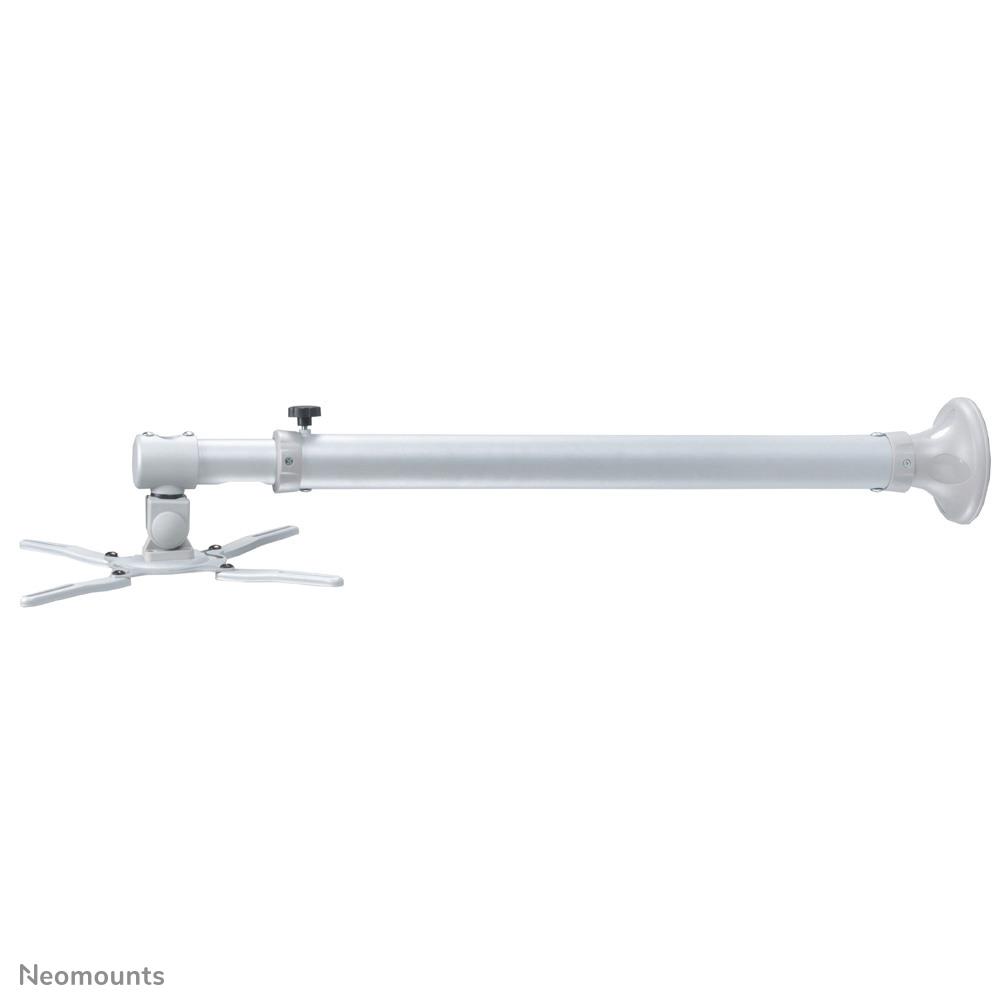

The Neomounts projector wall mount, model BEAMER-W100SILVER is a universal tilt-, swivel and/or rotatable wall mount for projectors up to 12 kilograms. This mount is a great choice for an optimal viewing experience. This versatile, ready to install mount, offers the convenience of installation to the wall without the need of additional accessories.

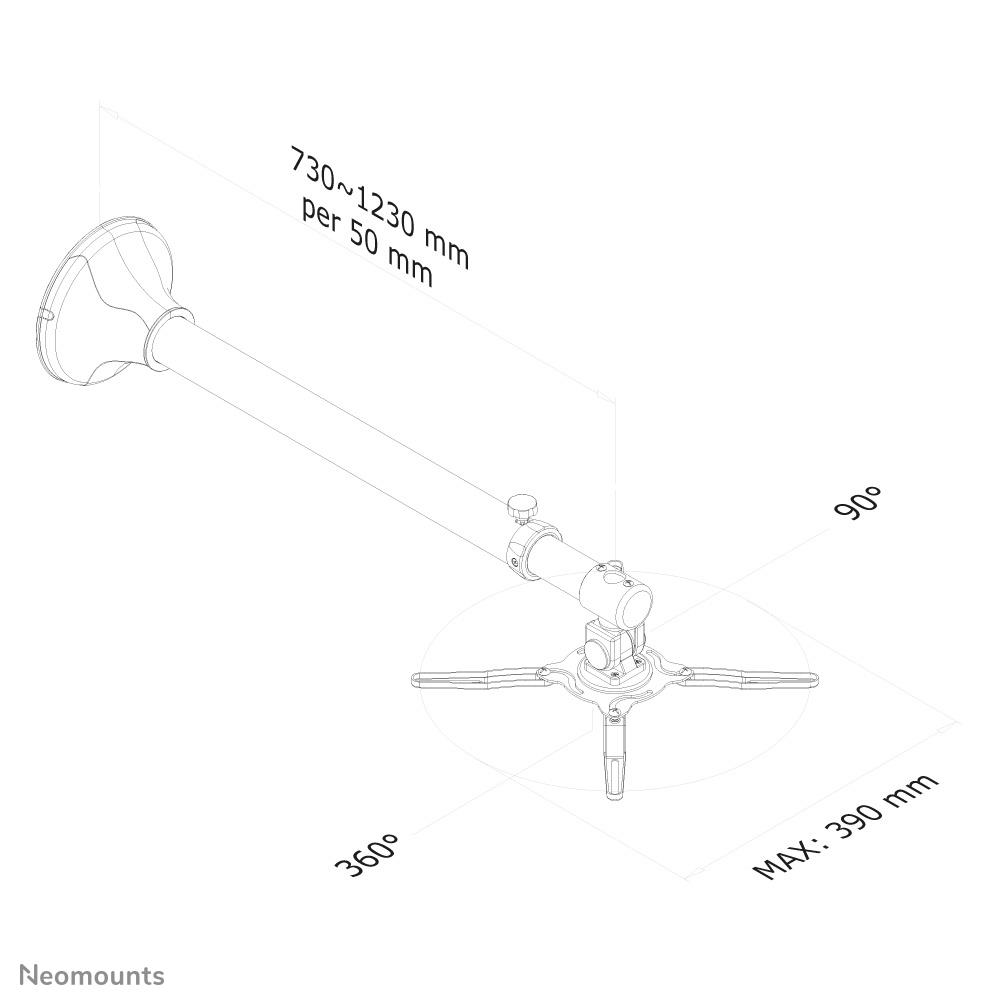

Neomounts versatile tilt (90°), rotate and/or swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the projector. The mount is depth adjustable from 73 to 123 centimetres. An innovative cable management conceals and routes cables from wall to projector. Hide your cables to keep the installation nice and tidy.
Neomounts BEAMER-W100SILVER has two pivot points and is suitable for most projectors. The weight capacity of this product is 12 kilograms. This universal wall mount is easy to install and suitable for projectors using the mounting holes on the bottom side of the projector. The legs included with this mount, cover most projector hole patterns.
Projector mounts are ideal for use in offices, schools, hospitals or at home.
All installation material is included with the product.
General
| Unit Calculated Weight | 5.1 kg |
| Unit Calculated Volume | 0.03038 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts BEAMER-W100SILVER Beamer wall mount - d 73-123 cm - full motion. Mounting type: Wall, Maximum weight capacity: 12 kg, Product colour: Silver. Weight: 4.11 kg, Package width: 812 mm, Package depth: 185 mm. Country of origin: Taiwan. Products per master (outer) case: 2 pc(s), Master (outer) case net weight: 9.3 kg, Products per pallet (EU): 36 pc(s) |
| Unit Box Height | 0.195 |
| Unit Box Length | 0.82 |
| Unit Box Width | 0.19 |
Performance
| Distance to the wall (max) | 1230 mm |
| Distance to the wall (min) | 730 mm |
| Housing material | Steel |
| Maximum weight capacity | 12 kg |
| Mounting type | Wall |
| Product colour | Silver |
| Rotating | Yes |
| Swivel angle | 360 ° |
| Swivel angle range | 0 - 360 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90 ° |
Weight & dimensions
| Package depth | 185 mm |
| Package height | 188 mm |
| Package weight | 4700 g |
| Package width | 812 mm |
| Weight | 4110 g |
Other features
| Country of origin | Taiwan |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 10500 g |
| Master (outer) case height | 220 mm |
| Master (outer) case length | 830 mm |
| Master (outer) case net weight | 9300 g |
| Master (outer) case width | 400 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 36 pc(s) |
