NET ROUTER 1000M 16PORT/CCR2216-1G-12XS-2XQ MIKROTIK

Kainos tik partneriams Prisijungti B2B

MIKROTIK
Garantija: 12 mėn.
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: MIKROTIK

The new MikroTik flagship with the power of a whole fleet. Unleash the power of 100 Gigabit networking with L3 Hardware Offloading! This router can be a handy drop-in upgrade for existing CCR1072 setups.

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

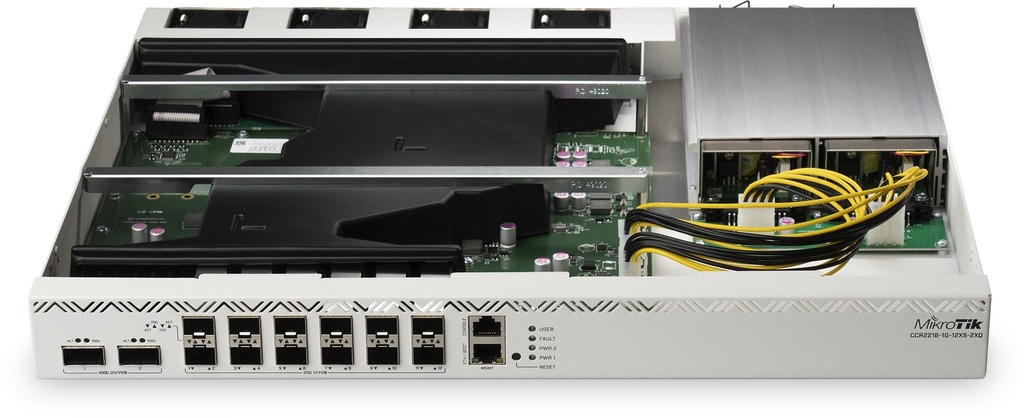

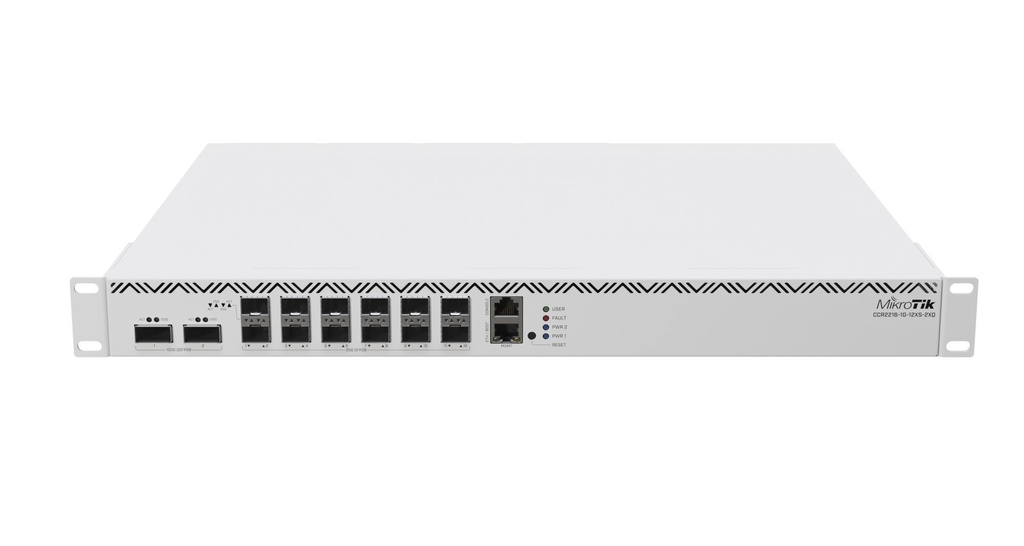

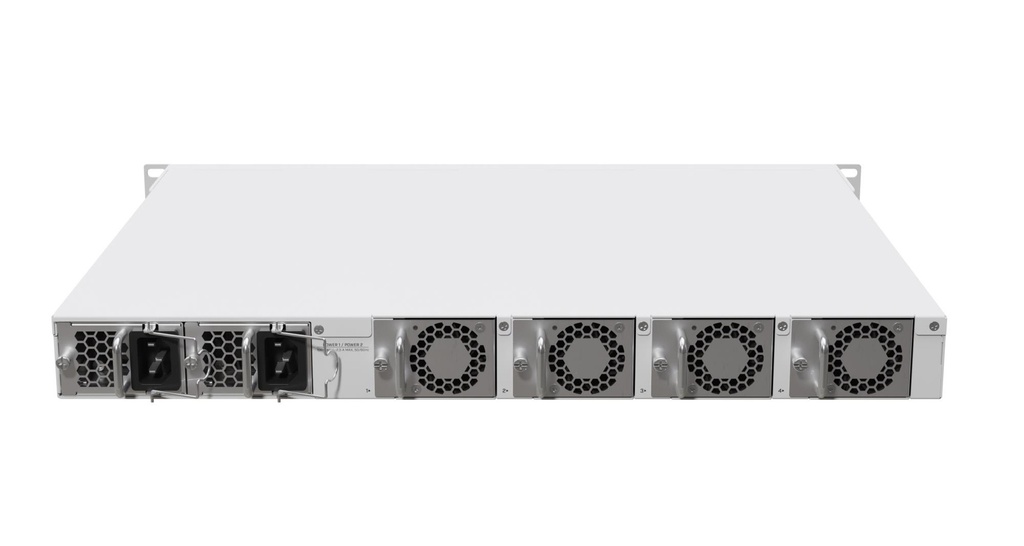

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.

You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

General
Unit Calculated Weight6.65 kg
Unit Calculated Volume0.02953 cubm
Units per Shipping Box1
SummaryMikrotik CCR2216-1G-12XS-2XQ. Ethernet interface type: Gigabit Ethernet. Processor model: Alpine AL73400, Processor frequency: 2000 MHz, Internal storage capacity: 0.128 GB. Product colour: Silver, Rack capacity: 1U. Power source type: AC, AC input voltage: 100 - 240 V. Width: 443 mm, Depth: 367 mm, Height: 44 mm
Unit Box Height0.105
Unit Box Length0.625
Unit Box Width0.45
Product model codeCCR2216-1G-12XS-2XQ
WAN connection
3G/4G USB modem compatibilityNo
SIM card slotNo
Network
Ethernet interface typeGigabit Ethernet
Management features
Web-based managementYes
Ports & interfaces
Ethernet LAN (RJ-45) ports1
SFP28 ports quantity12
Features
Built-in processorYes
CertificationCE, EAC, ROHS
Internal memory16000 MB
Internal storage capacity0.128 GB
Operating system installedRouterOS
Processor frequency2000 MHz
Processor modelAlpine AL73400
Design
Product colourSilver
Rack capacity1U
Rack mountingYes
Power
AC input voltage100 - 240 V
Power source typeAC
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Weight & dimensions
Depth367 mm
Height44 mm
Width443 mm
