Description:

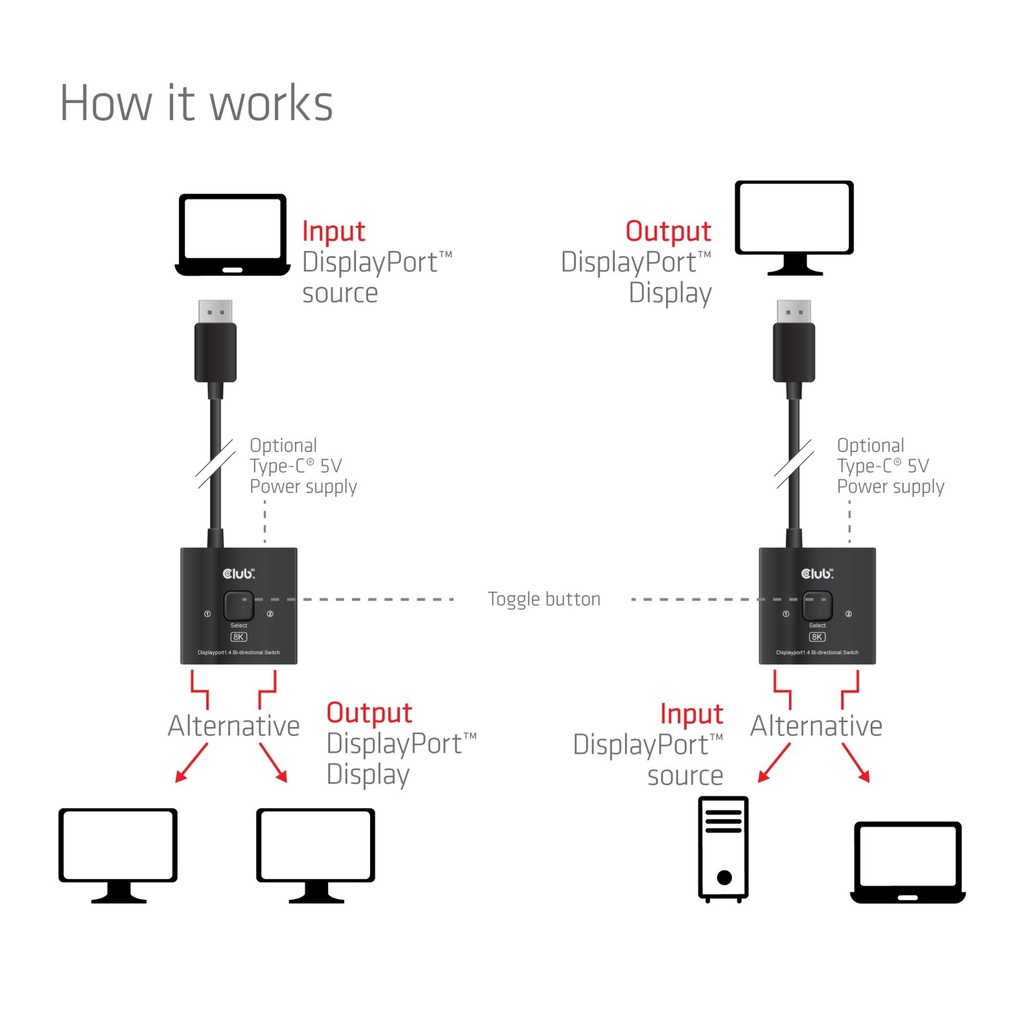

• Double PC Setup Simplified: Instantly switch your monitor between
a work laptop and a home PC using one DisplayPort™ cable - no
unplugging or re-cabling required.
• Effortless Control: One-button switching with plug-and-play
operation ensures fast, reliable transitions between devices with no
drivers or software needed.
- Features:
- Support DP1.4 specification.Video resolution up to 7680x4320P at
- 60Hz
- Support HDR, DSC and HDCP pass-through
- The toggle button can quickly switch between 2 video sources or 2
- monitors,and the blue LED indicators on both sides indicate which
- port is chosen to work
- The longer/thinner the cable, the greater the risk of signal instability
- To ensure maximum performance, use our Club 3D® cables

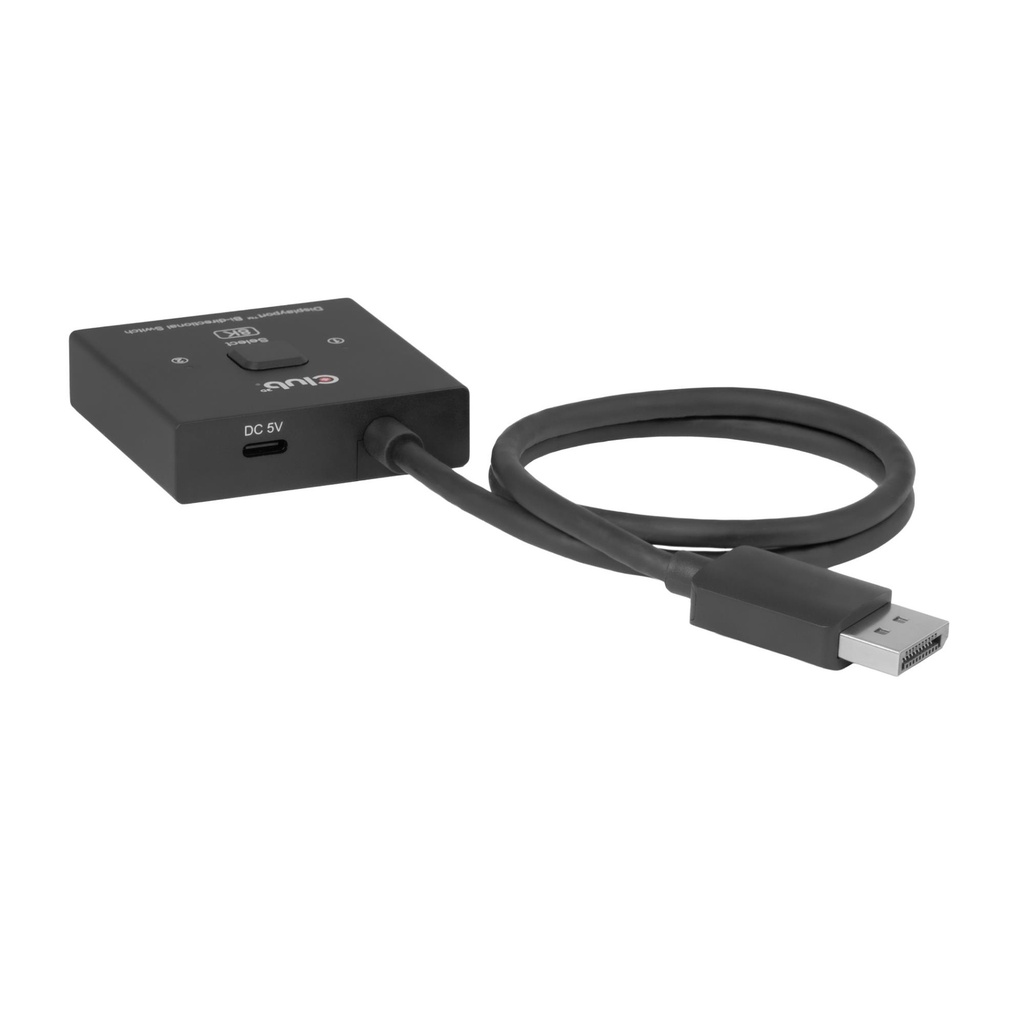

- Power can be drawn from the connected device through the DP
- connector. If some devices are not compatible with the power supplied
- via the DP male port, it is possible to supply power to the switch via
- the Type-C® female port instead
General
| Unit Calculated Weight | 0.11 kg |
| Unit Calculated Volume | 0.001337 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D DisplayPort™ 2-in-1 Bi-directional Switch 8K. Video port type: DisplayPort, Video out: 2x DisplayPort. Product colour: Black, HD type: 8K Ultra HD, Maximum refresh rate: 60 Hz. Width: 55 mm, Depth: 55 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 130 mm, Package depth: 110 mm |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.165 |
| Unit Box Width | 0.135 |
| Model name | DisplayPort™ 2-in-1 Bi-directional Switch 8K |
| Model | CSV-1009 |
Ports & interfaces
| Video out | 2x DisplayPort |
| Video port type | DisplayPort |
| Video ports quantity | 2 |
Features
| HD type | 8K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
Weight & dimensions

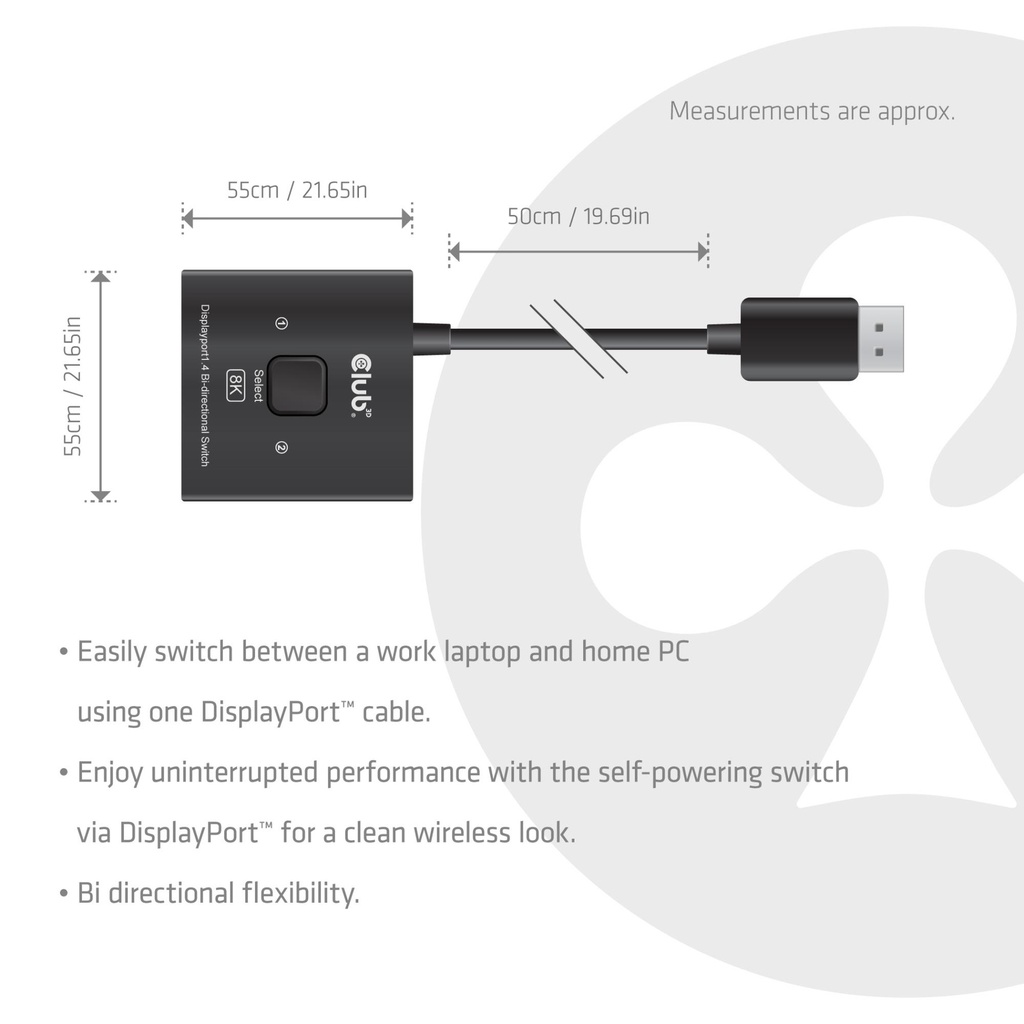

| Depth | 55 mm |
| Height | 15 mm |
| Weight | 63 g |
| Width | 55 mm |
Packaging data
| Package depth | 110 mm |
| Package height | 55 mm |
| Package type | Box |
| Package weight | 107 g |
| Package width | 130 mm |
| Paper/cardboard packaging weight | 40 g |
| Quantity per pack | 1 pc(s) |
