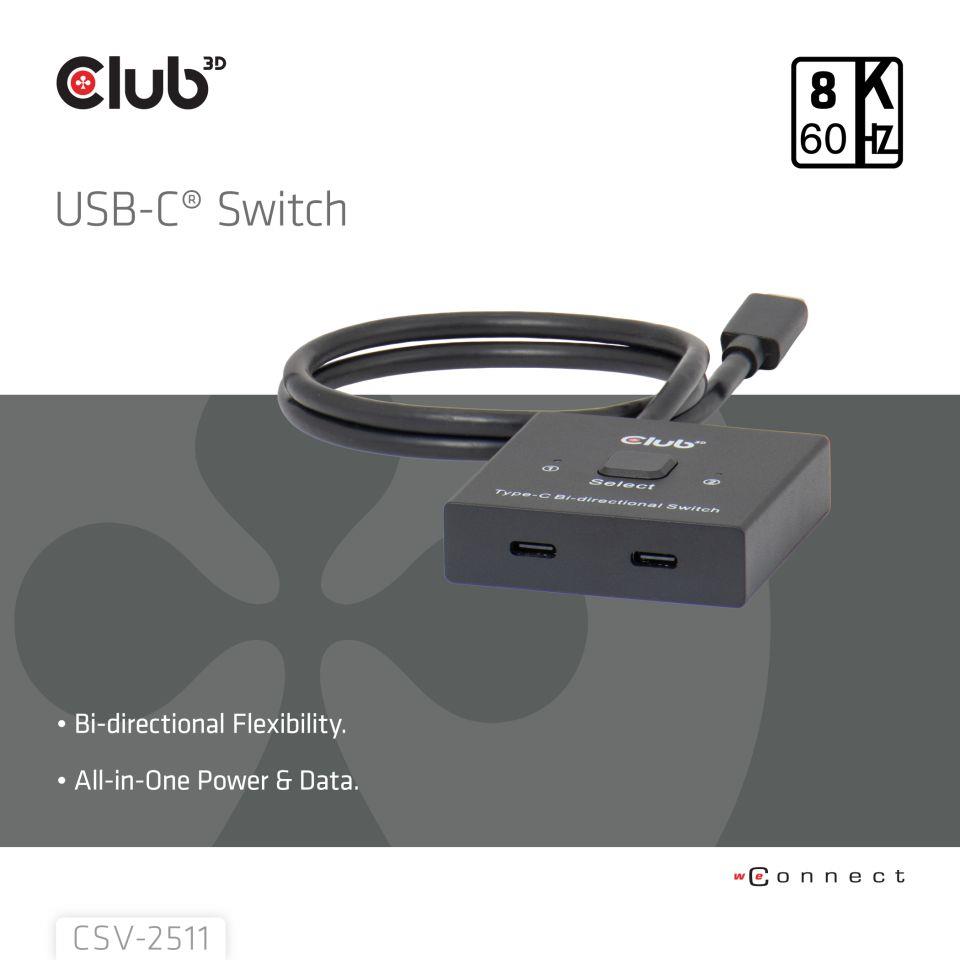

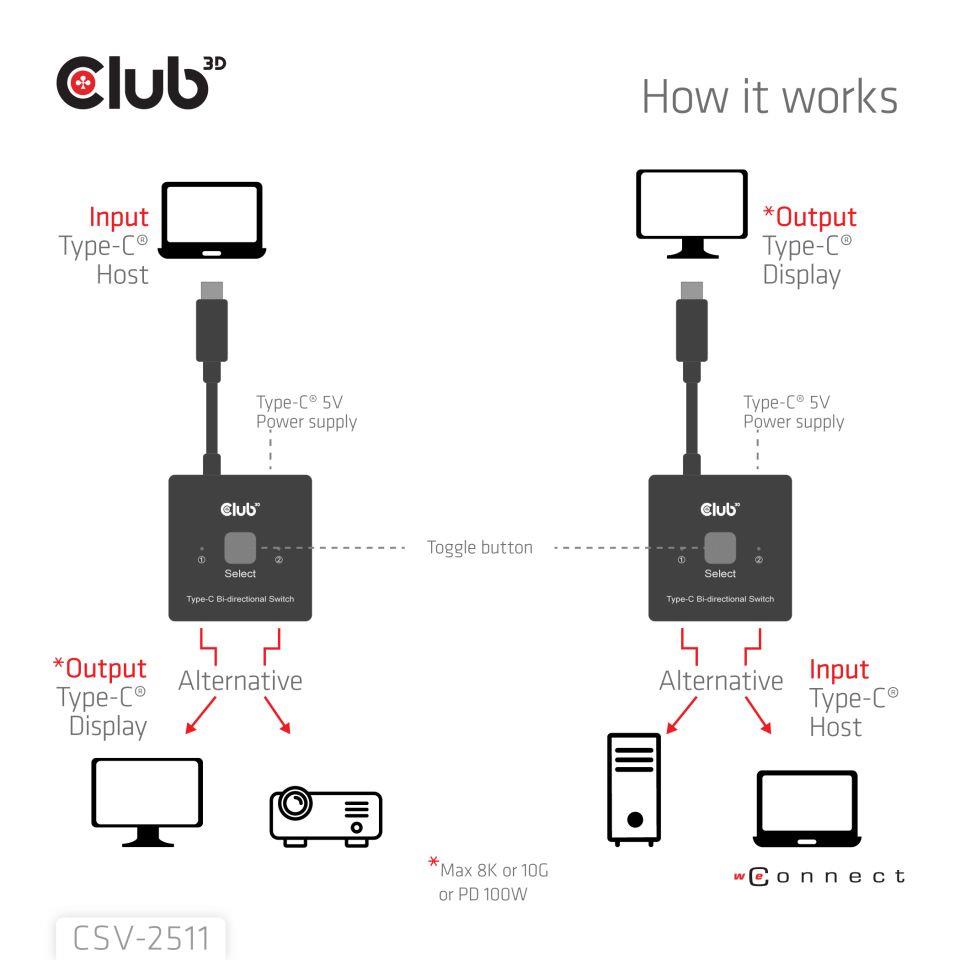

The Club 3D CSV-2511 Full Feature Bi-directional Switch can switch either of two sources to one display or switch one source to either of two displays. This Switch supports multiple resolutions and up to 8K, or max 10Gbps data transmission, or PD3.0 max 100W PD charging. It can work on all USB-C® host, compatible with Thunderbolt devices.
- WORK FROM HOME & OFFICE: Easily switch your monitor between your work laptop and home PC with one button
- DUAL MONITOR SETUP: Use one computer and switch between two screens — perfect for presentations or desk + TV setups

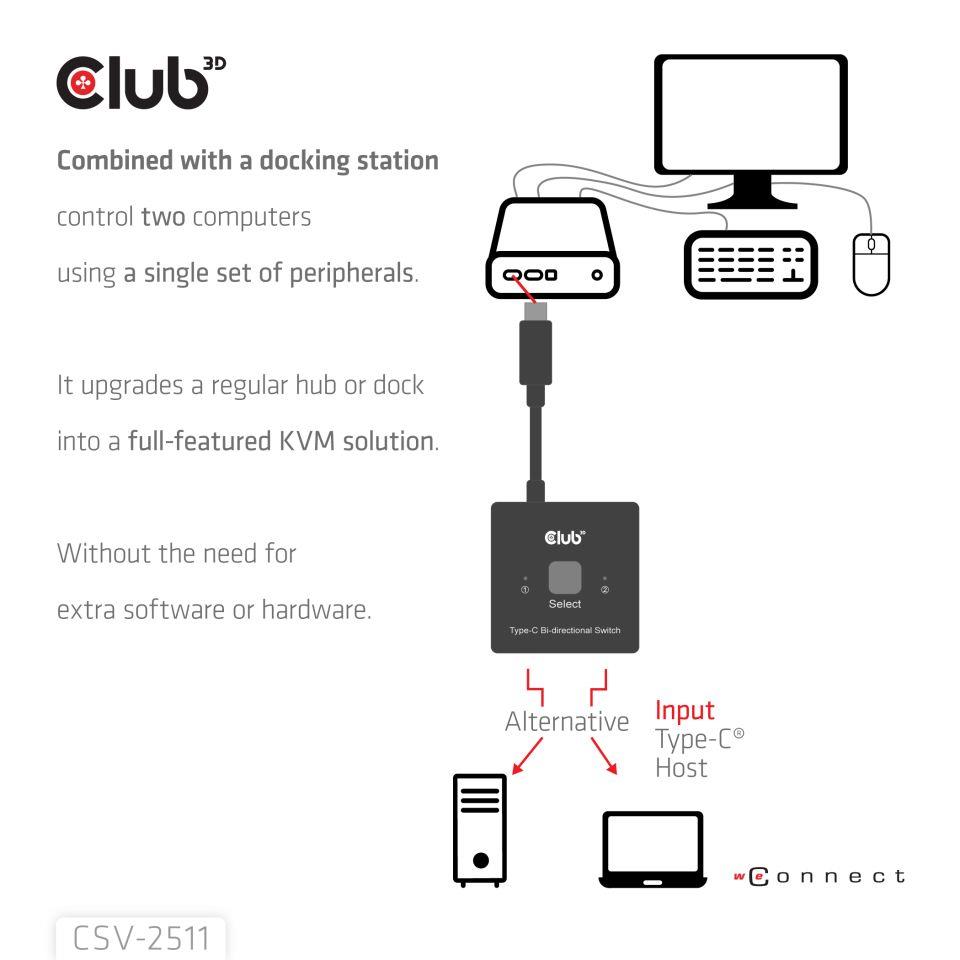

- KVM UPGRADE: Combine the switch with your existing docking station or a hub to upgrade to a full KVM experience—using just one keyboard, mouse, and monitor. For devices with attached cables, a USB-C® female-to-female adapter is required. To ensure compatibility, use our products. Full compatibility with third-party cannot be achieved since the switch device is not included in the USB-C® standard
- WORKS WITH MANY DEVICES: Works with all USB-C® computers and also with Thunderbolt™ devices
- POWER DELIVERY BETWEEN DEVICES: While the switch needs its own 5V USB-C® input, PD passthrough works between host and dock/display
General
| Unit Calculated Weight | 0.14 kg |
| Unit Calculated Volume | 0.001174 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | CLUB3D USB-C® Bi-Directional Video + Data + PD Switch. Video port type: USB Type-C, Video out: 2x DisplayPort. Maximum resolution: 7680 x 4320 pixels, Product colour: Black, HD type: 8K Ultra HD. Power consumption (max): 100 W. Width: 55 mm, Depth: 55 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 145 mm |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |

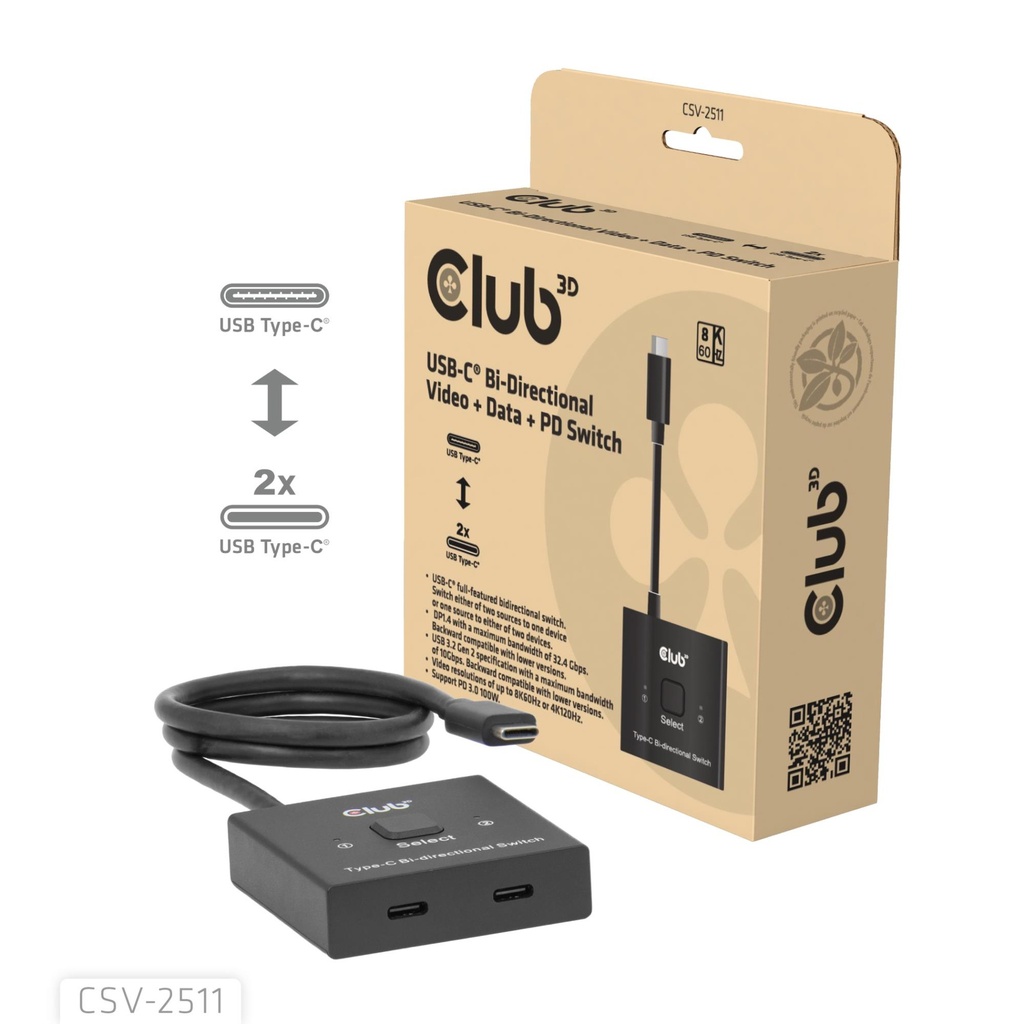

| Model name | USB-C® Bi-Directional Video + Data + PD Switch |
| Model | CSV-2511 |
Ports & interfaces

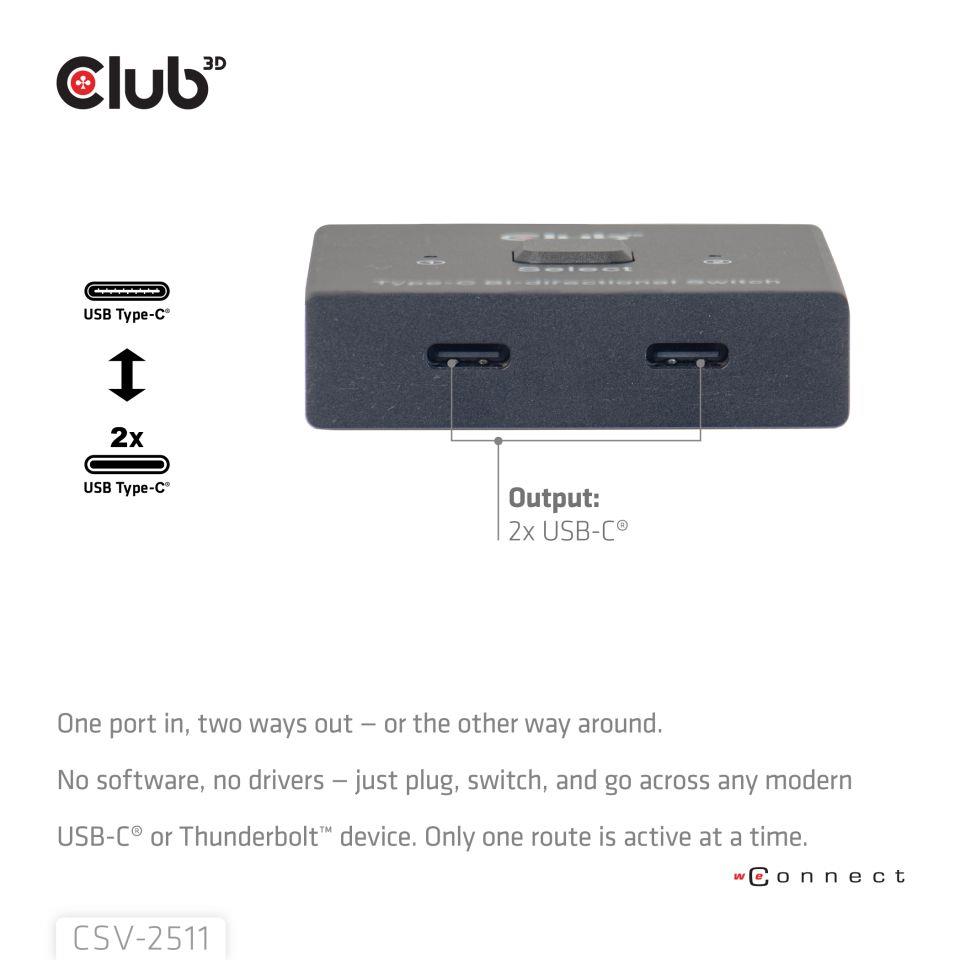

| Video out | 2x DisplayPort |
| Video port type | USB Type-C |
| Video ports quantity | 2 |
Features
| Cable length | 0.5 m |
| Easy to install | Yes |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| Maximum refresh rate | 120 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Product colour | Black |
Power
| Power consumption (max) | 100 W |
| USB powered | Yes |

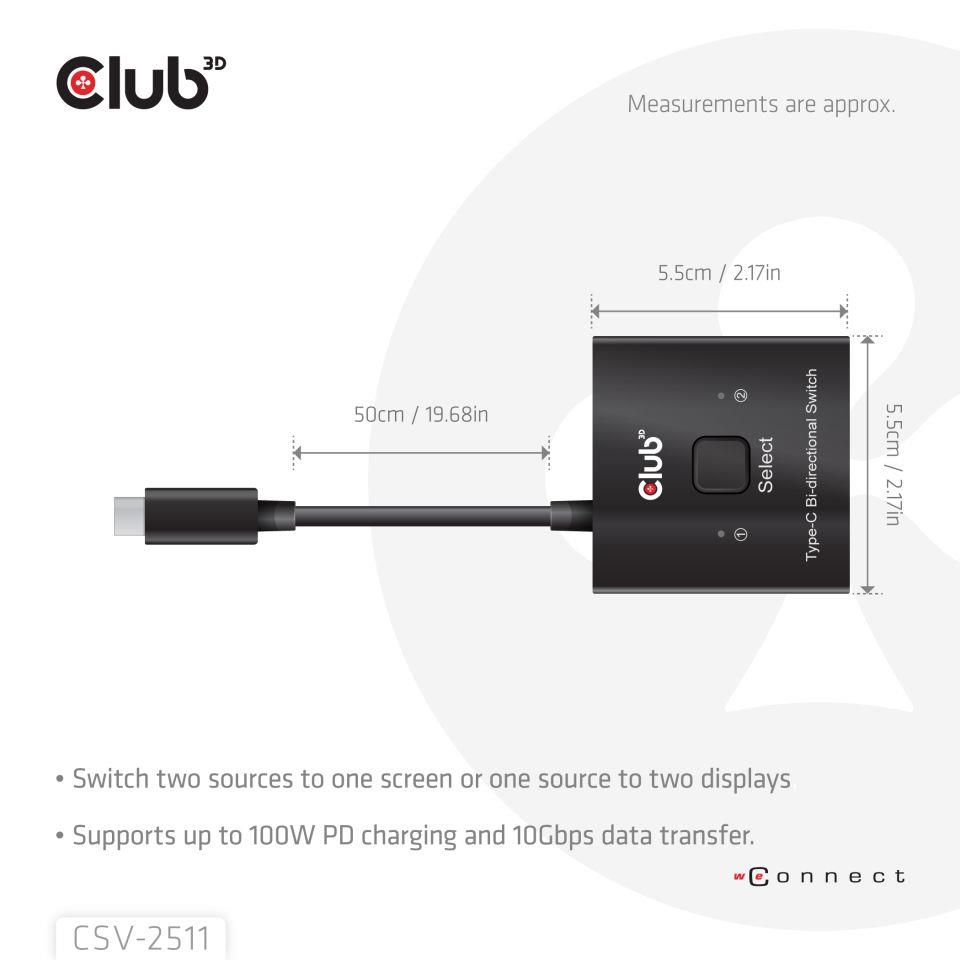

Weight & dimensions
| Depth | 55 mm |
| Height | 15 mm |
| Weight | 61 g |
| Width | 55 mm |
Packaging data
| Package depth | 145 mm |
| Package height | 45 mm |
| Package type | Box |
| Package weight | 110 g |
| Package width | 145 mm |
| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 4 g |
| Quantity per pack | 1 pc(s) |
| Total paper/cardboard packaging weight | 225 g |
| Total plastic packaging weight | 20 g |
Technical details
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Logistics data
| Harmonized System (HS) code | 8473 3020 |
