The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.
- Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming

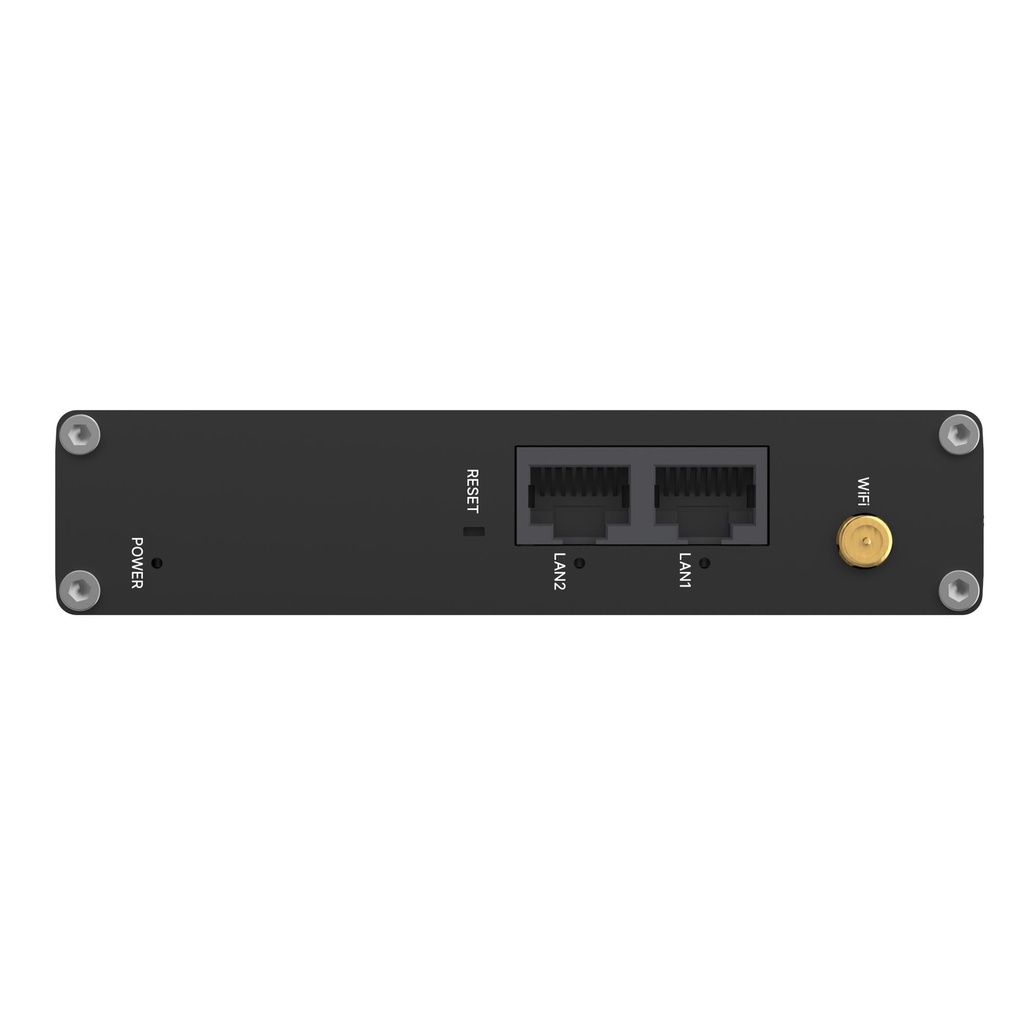

- 2 x 10/100 RJ45

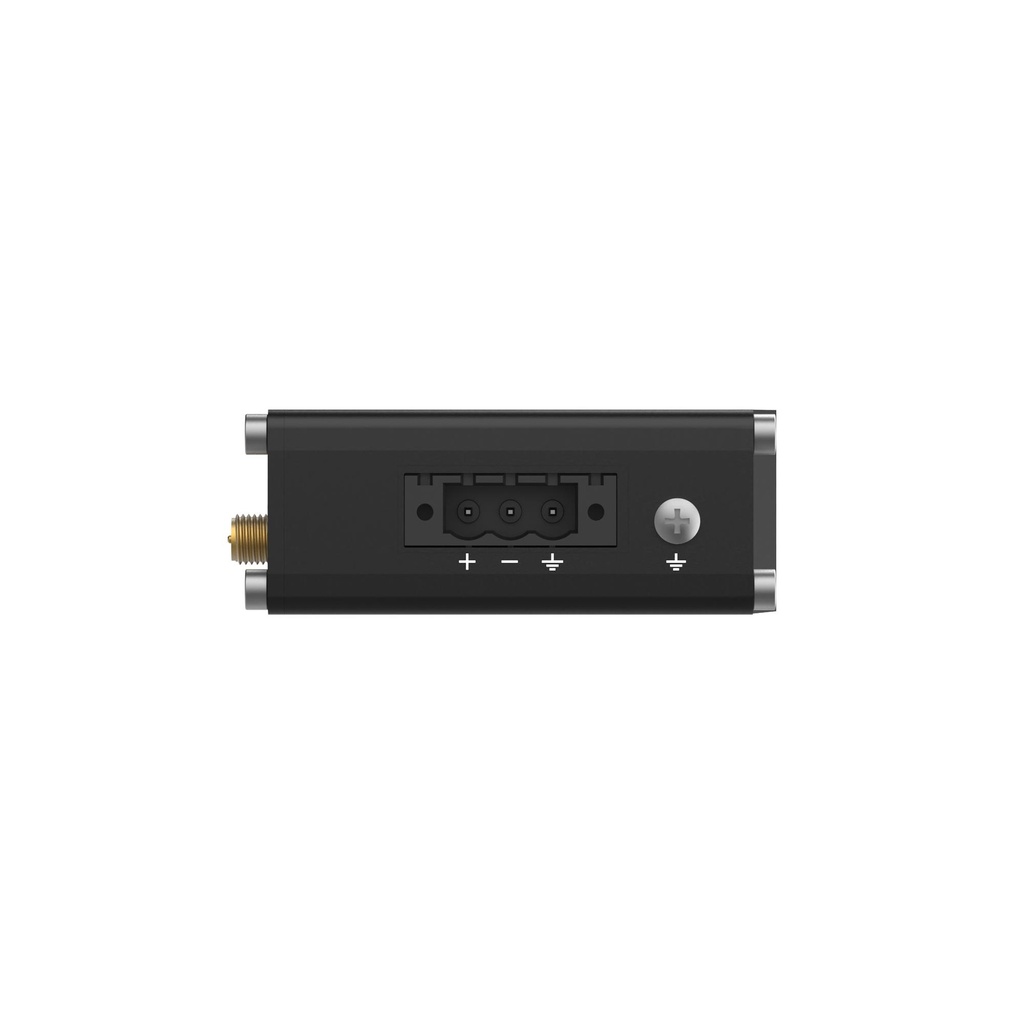

- 1 x 3-pin power connector tailored for industrial use
- Easy mounting for plug-and-play deployment
General
| Unit Calculated Weight | 0.259 kg |
| Unit Calculated Volume | 0.0011794 cubm |
| Units per Shipping Box | 20 |
| Summary | Teltonika DAP140. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Black |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.15 |
| Model name | DAP140000000 |
Features
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Fast roaming | Yes |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Networking standards | IEEE 802.11b/IEEE 802.11e/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11s/IEEE 802.11v/IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Wireless meshing | Yes |
Security
| MAC address filtering | Yes |
| Security algorithms | OWE/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK |
| VPN support | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
Protocols
| DHCP client | Yes |
| DHCP server | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Supported network protocols | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL) |
| Universal Plug and Play (UPnP) | Yes |
Management features
| Command-line interface (CLI) | Yes |
| Web-based management | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 interface | No |
| WAN connection | Ethernet (RJ-45) |
Power
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Design
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Power |
| Placement | Shelf,Wall |
| Product colour | Black |
| Reset button | Yes |
Antenna
| Antenna connector type | RP-SMA |
| Antenna type | External |
Performance
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 16 MB |
| Operating system installed | RutOS |
| Processor frequency | 580 MHz |
Weight & dimensions
| Depth | 68.6 mm |
| Height | 25 mm |
| Weight | 150 g |
| Width | 113.1 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | -50 - 75 % |
| Storage temperature (T-T) | 10 - 90 °C |
