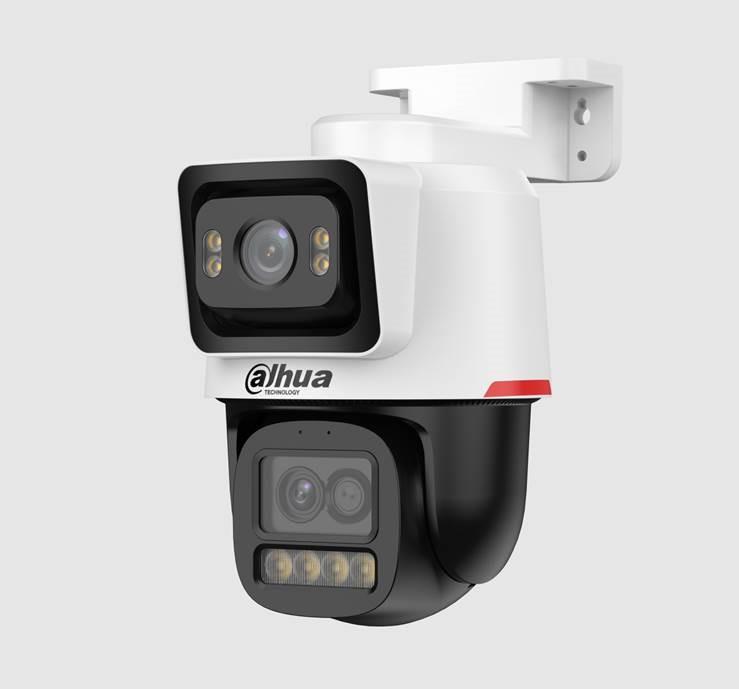

4MP+2MP WizColor Vari-focal Network PT Camera
>Displays videos in two channels at the same time
>1/1.8" 4Megapixel CMOS and 1/2.8" 2Megapixel CMOS
>WizColor Technology
>Max. 25/30 fps@4MP and Max. 25/30 fps@2MP
>6x Hybrid Zoom
>H.265 Encoding
>SMD 3.0
>Perimeter Protection
>Two-way Talk
>Auto Tracking Lite
>Tour
> Fixed Lens: 2.8 mm (112°); PT Lens: 3.6 mm + 8.4 mm (81.5° – 15.1°)
General
| Unit Calculated Weight | 1.57 kg |
| Unit Calculated Volume | 0.01156 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Unit Box Height | 0.255 |
| Unit Box Length | 0.245 |
| Unit Box Width | 0.185 |
Design
| Form factor | Dome |
Performance
| Connectivity technology | Wired |
Camera
| Camera shutter speed | 1 s–1/100,000 s s |
| Camera shutter type | Electronic |
Image sensor
| Effective sensor resolution | 4 pixels |
| Optical sensor size | 1/1.8" " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 2.8 mm |
Audio
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| DC output voltage | 12 |
| Power consumption (max) | 12 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating temperature (T-T) | –30 °C to +55 °C °C |
