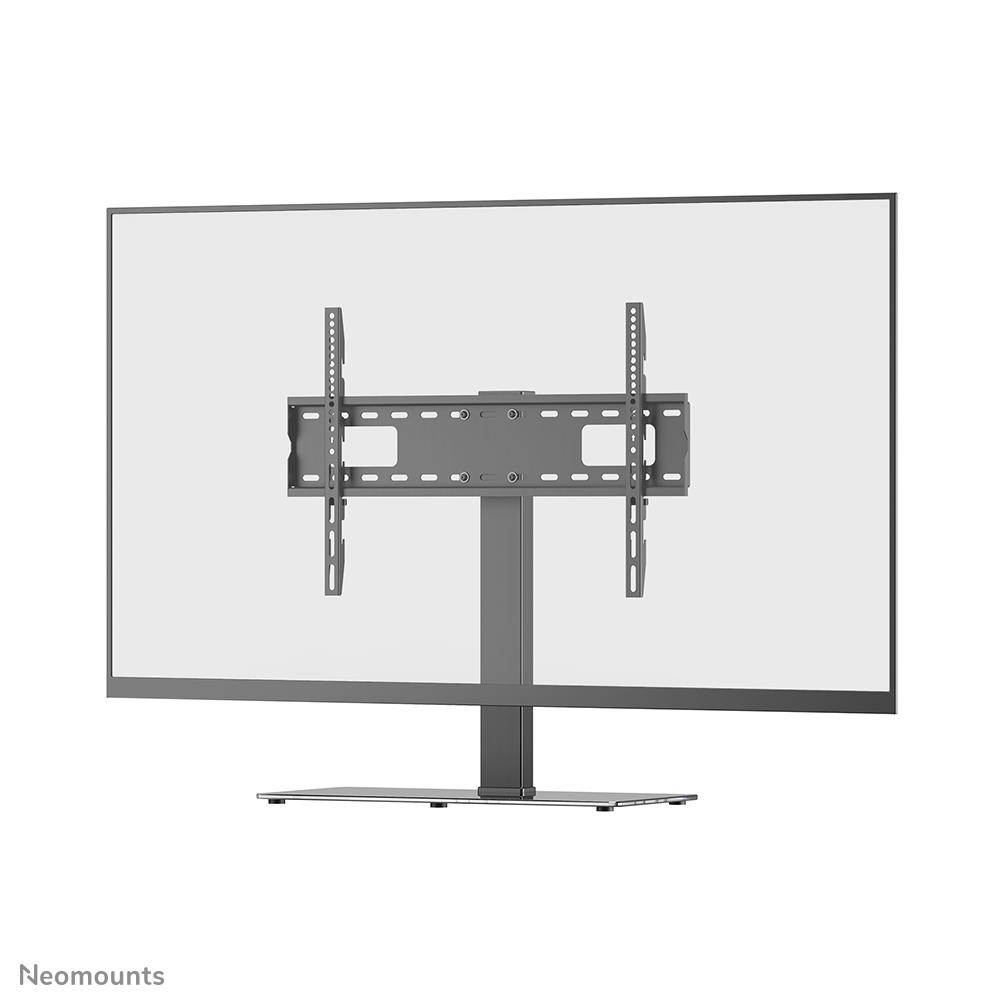

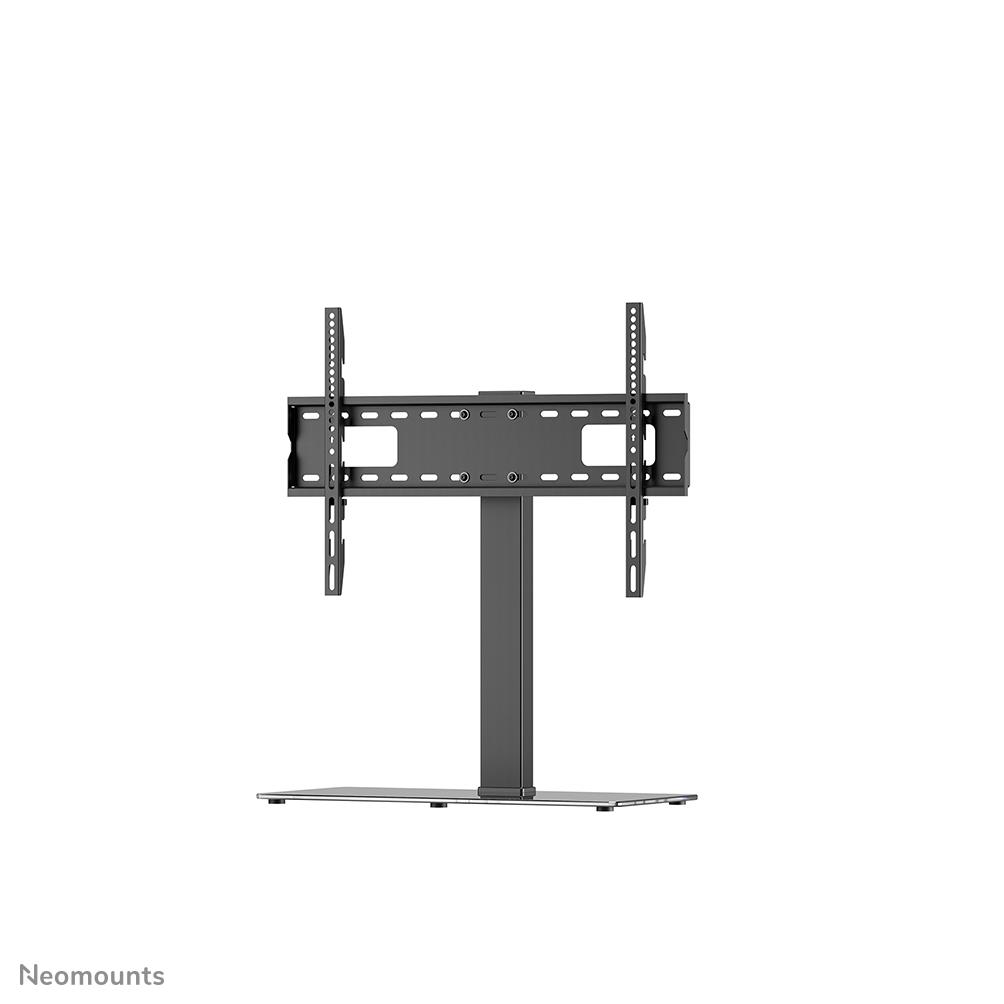

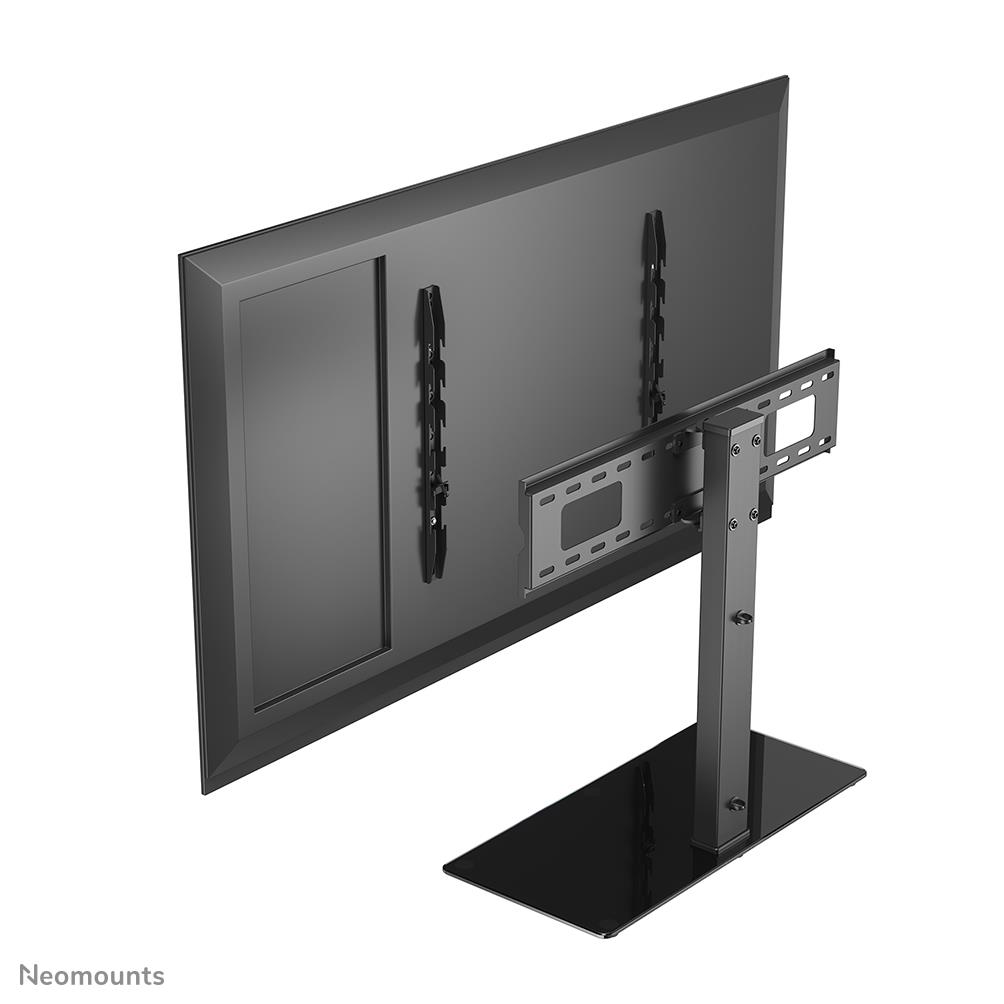

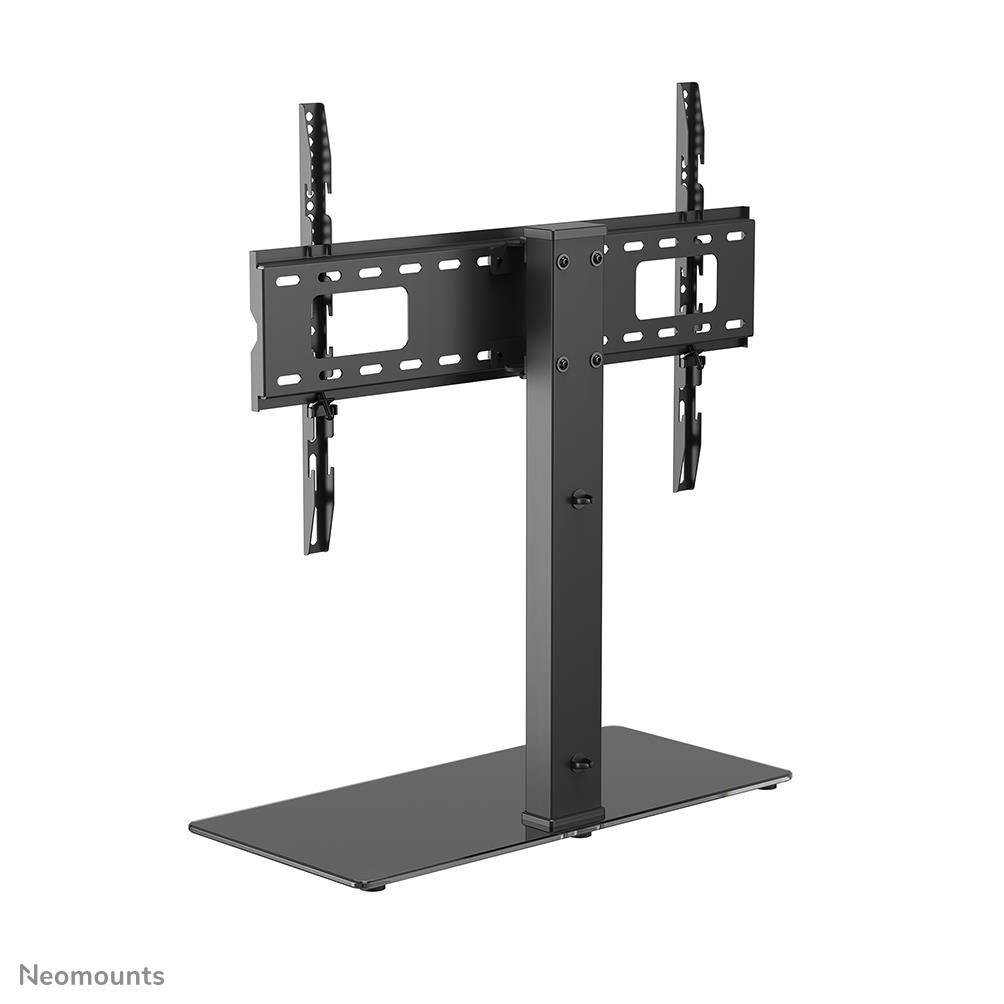

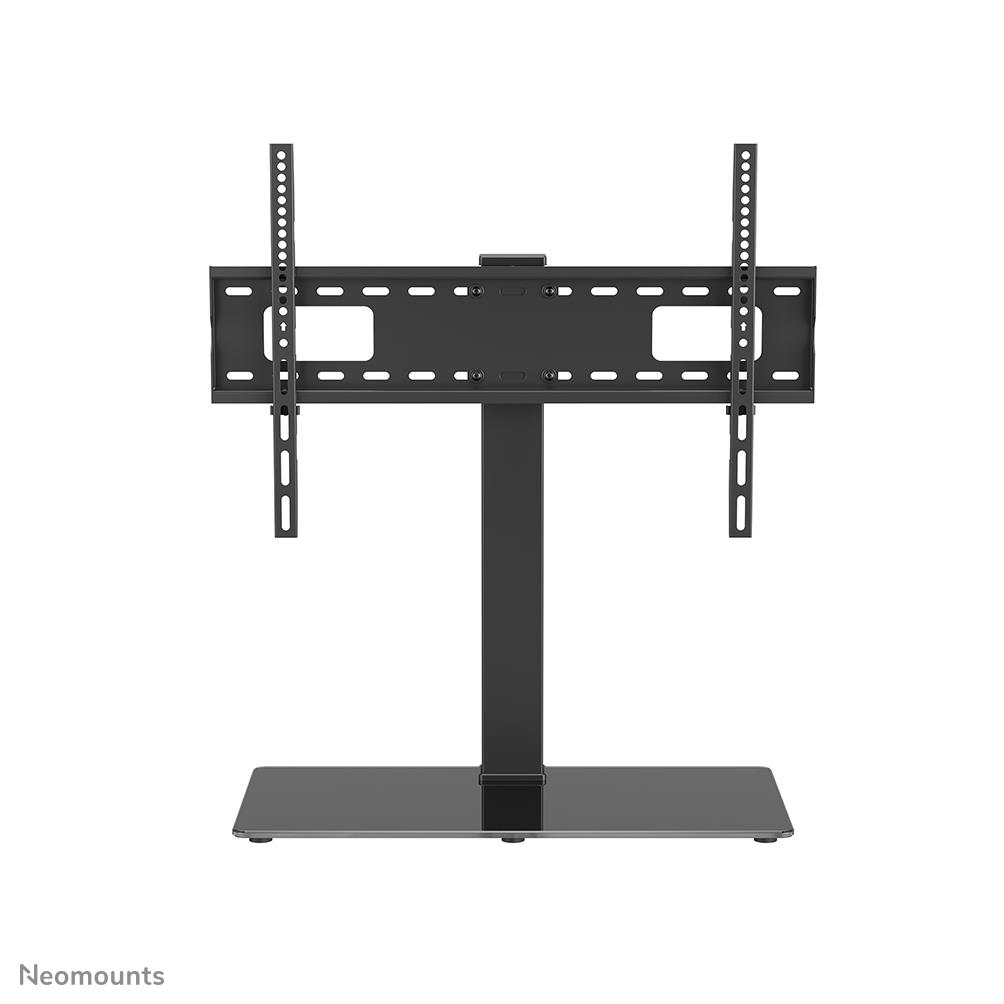

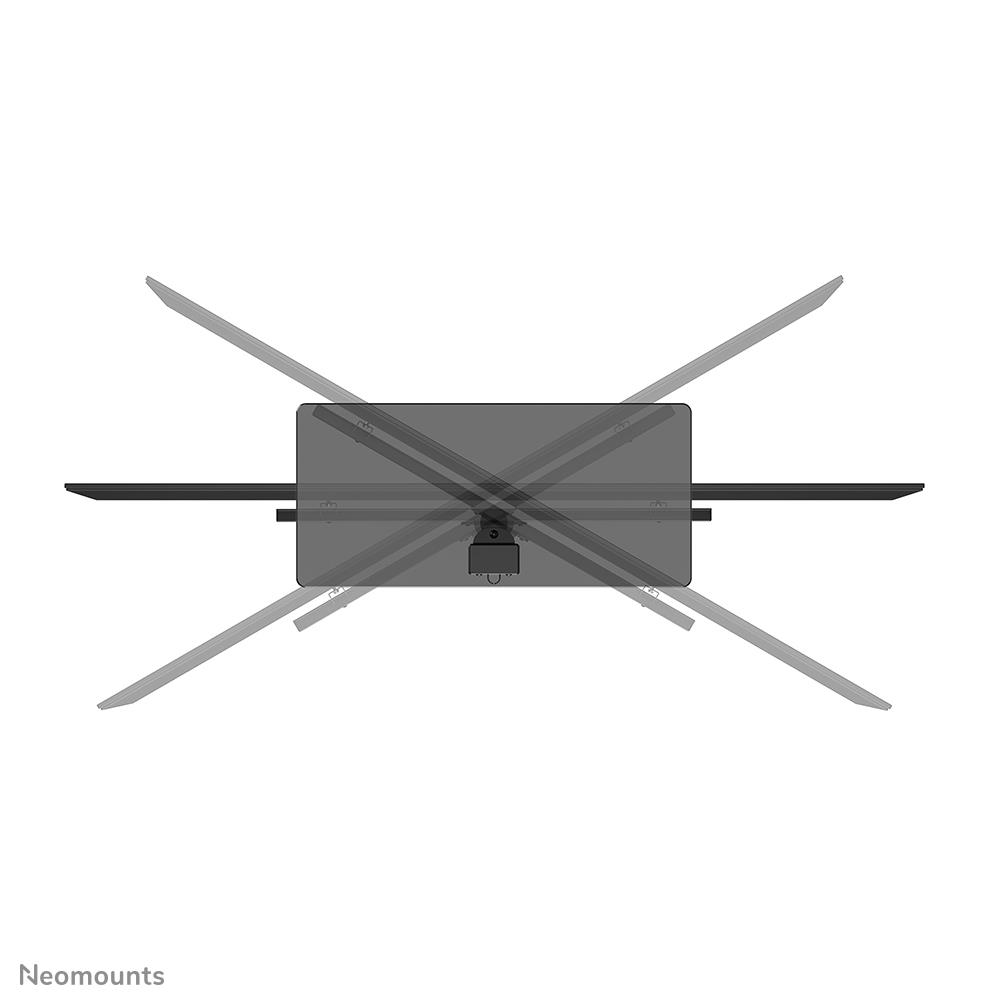

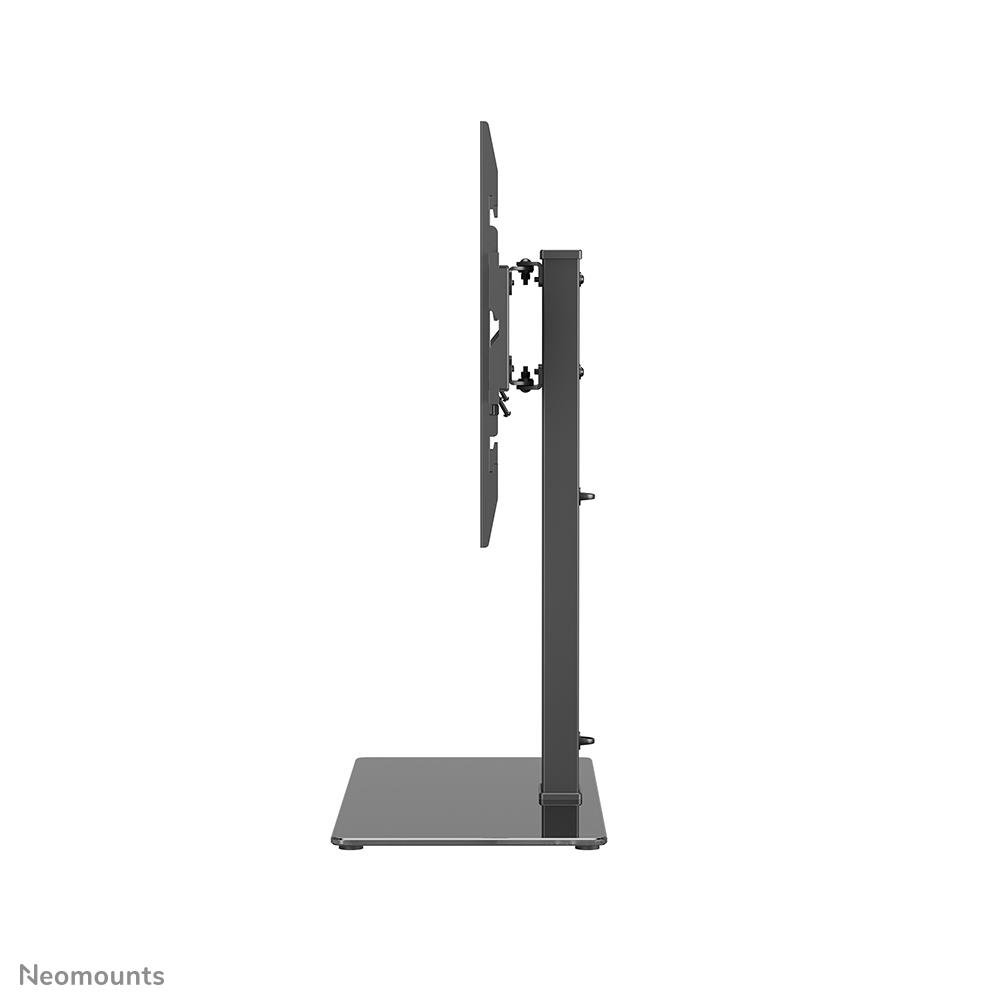

The Neomounts DS45-430BL16 is a TV desk stand for screens up to 70" with a weight capacity of 40 kg. The TV stand features a practical swivel option (70°) to easily position the TV in the optimum viewing angle. Additionally, the TV desk stand can be adjusted in height in one of the three pre-set positions.
The hefty glass base of the DS45-430BL16 provides extra screen stability, even at maximum size and weight. It provides an excellent solution for users who prefer not to drill holes in walls or for those who no longer have the original TV stand. In addition, the DS45-430BL16 also offers flexibility in screen use, as the TV stand can be moved to different places as desired.

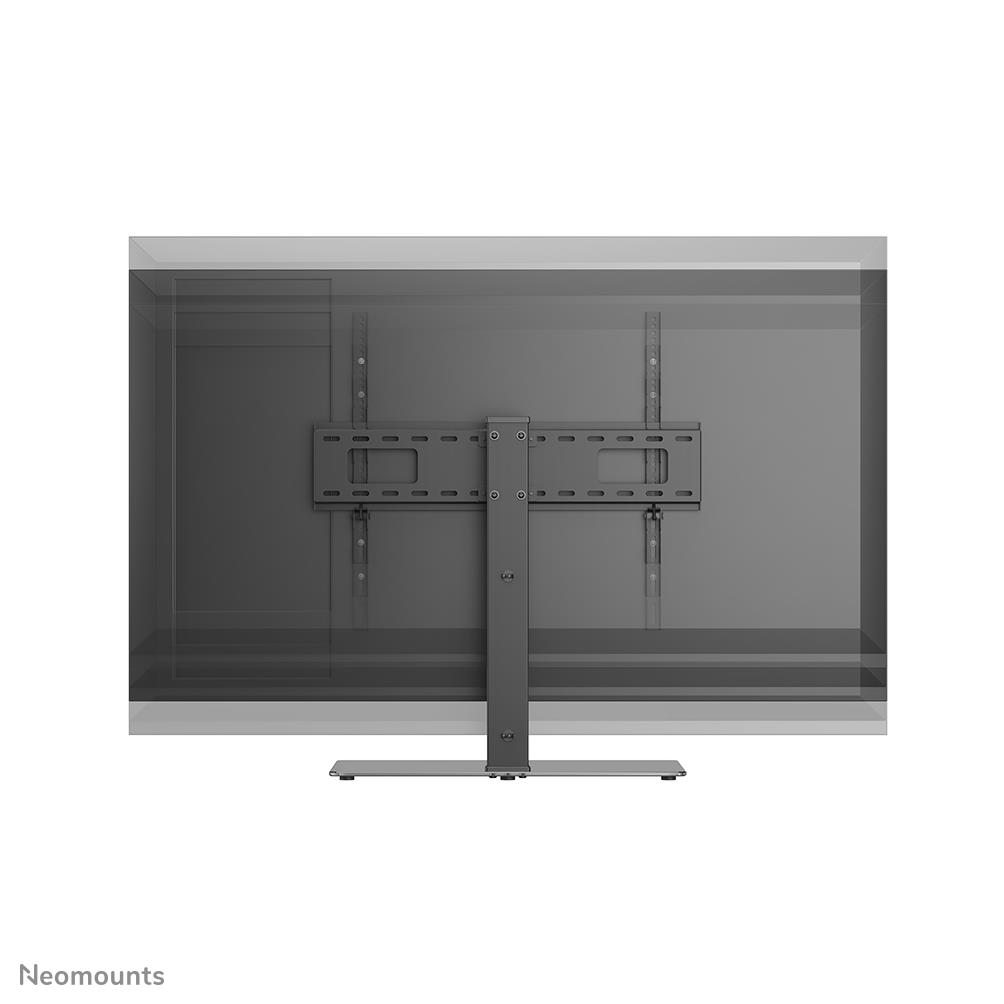

The DS45-430BL16 is suitable for screens that meet pattern 200x200 to 600x400 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. Cables can be routed neatly thanks to the practical cable clips.
General
| Unit Calculated Weight | 8.55 kg |
| Unit Calculated Volume | 0.03416 cubm |
| Units per Shipping Box | 1 |
| Summary | Neomounts DS45-430BL16 TV stand 37-70"- swivel. Maximum weight capacity: 40 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 0 - 116 mm, Swivel angle range: -35 - 35°. Product colour: Black |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.72 |
| Unit Box Width | 0.365 |
| Model | DS45-430BL16 |
Mounting
| Maximum screen size | 70 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 40 kg |
| Maximum weight capacity (per display) | 40 kg |
| Minimum screen size | 37 " |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Desk |
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
Ergonomics
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 0 - 116 mm |
| Swivel angle range | -35 - 35 ° |
| Swivelling | Yes |
Design
| Housing material | Steel |
| Product colour | Black |
Technical details
| Country of origin | China |
| Lockable | Not lockable |
| Mounting option | Stand |
| Warranty period | 5 year(s) |
Weight & dimensions
| Depth | 280 mm |
| Depth (max) | 280 mm |
| Depth (min) | 280 mm |
| Height | 795 mm |
| Weight | 7600 g |
| Width | 660 mm |
Packaging data
| Package depth | 125 mm |
| Package height | 725 mm |
| Package weight | 8400 g |
| Package width | 360 mm |
Logistics data
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 8400 g |
| Master (outer) case height | 725 mm |
| Master (outer) case length | 125 mm |
| Master (outer) case net weight | 8400 g |
| Master (outer) case width | 360 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 36 pc(s) |
Other features
| Mounting | Freestanding |
