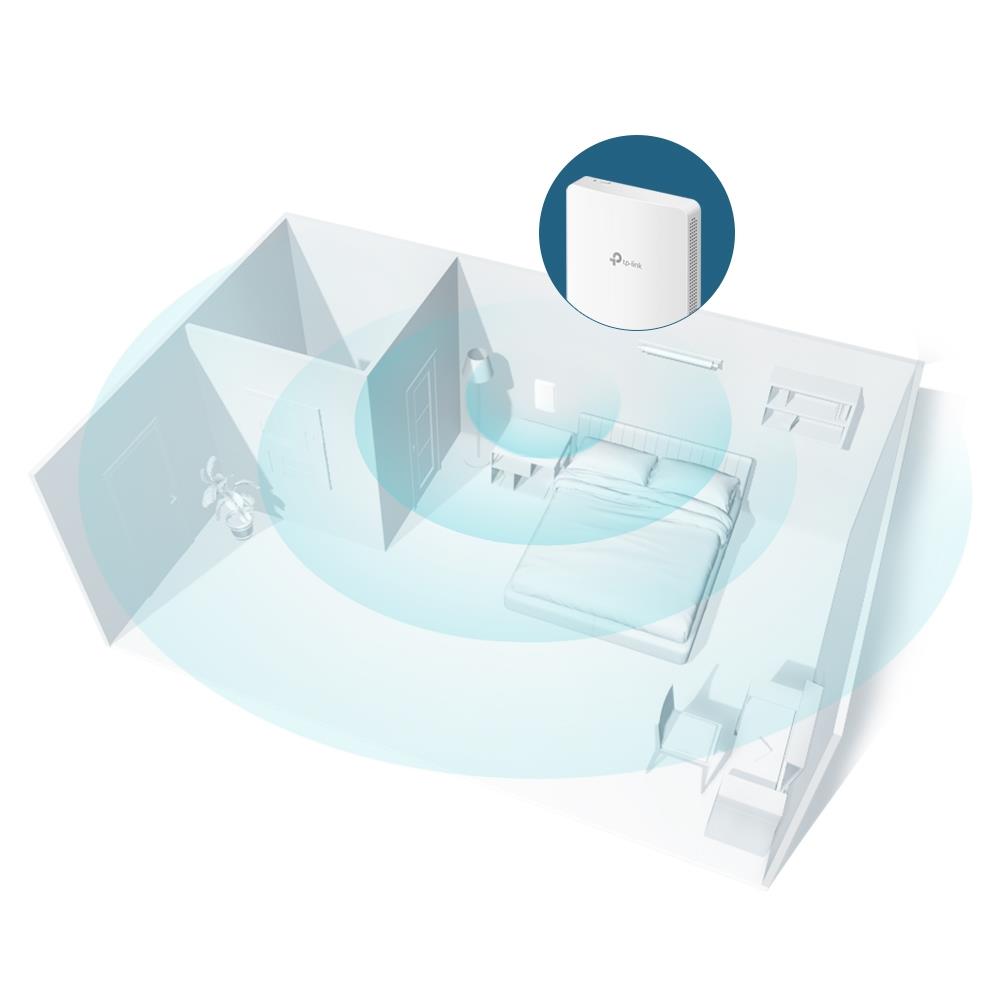

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

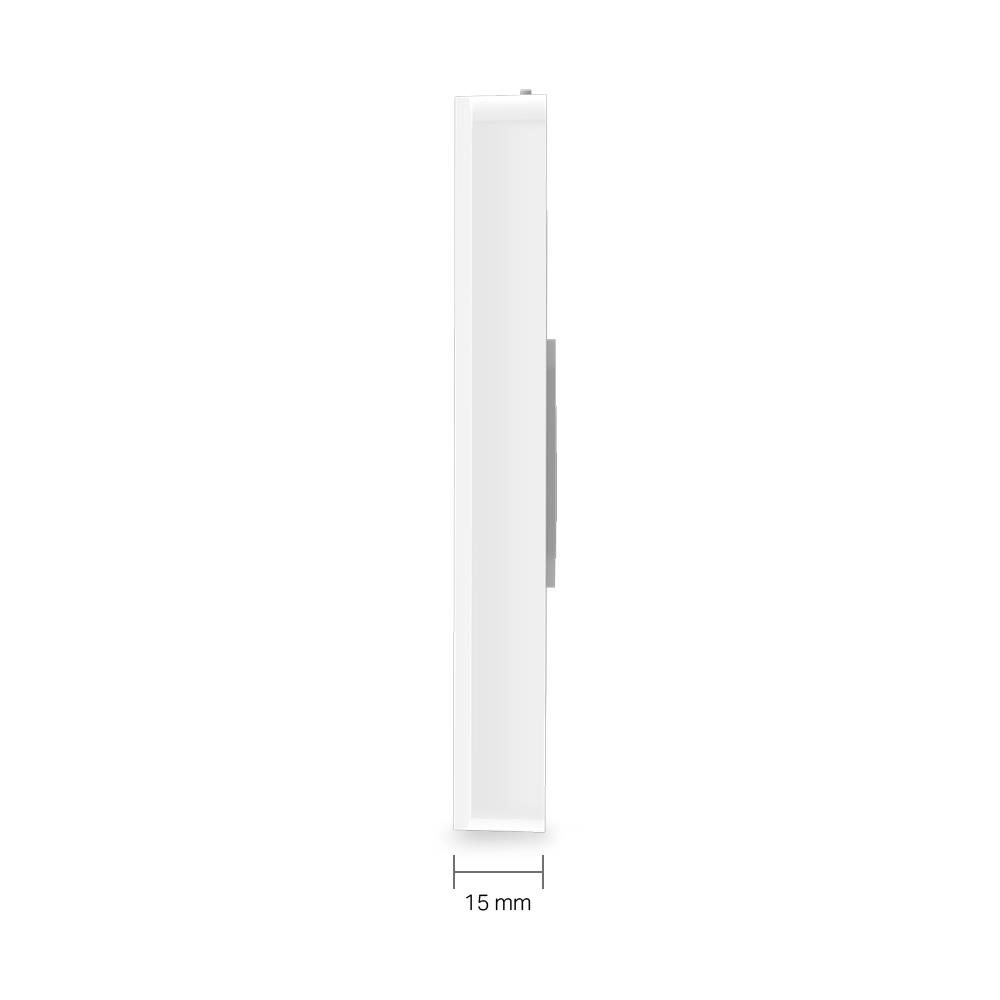

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

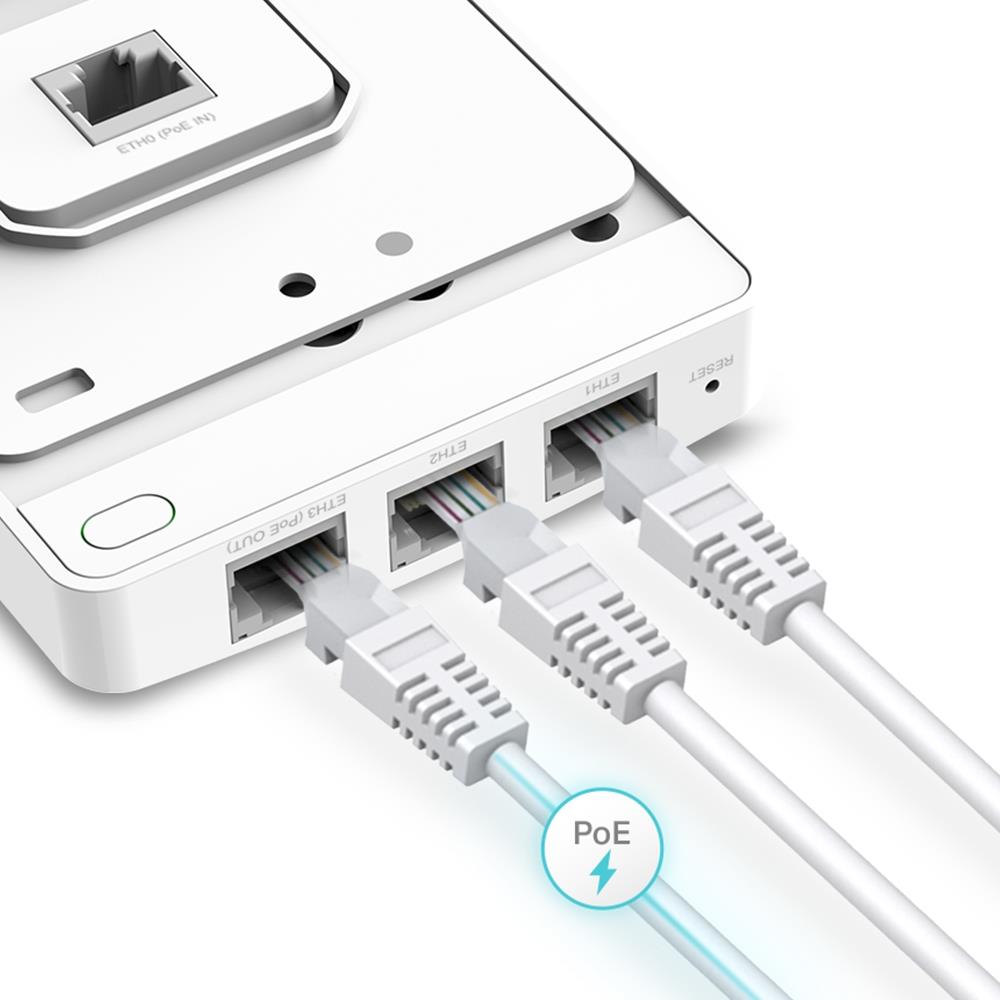

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
- Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
General
| Unit Calculated Weight | 0.35 kg |
| Unit Calculated Volume | 0.0007359 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.034 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.117 |
| Model name | EAP235-Wall |
| Series | Omada |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
| Transmitting power (FCC) | 21 dBm |
| Virtual LAN features | Port-based VLAN/VLAN mapping |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless isolation | Yes |
Security
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | 128-bit WEP/152-bit WEP/64-bit WEP/802.1x RADIUS/HTTPS/SNMP/SNMPv3/SSH/WPA/WPA2/WPA2-Enterprise/WPA2-PSK/WPA-Enterprise/WPA-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
Protocols
| Universal Plug and Play (UPnP) | Yes |
Management features
| Syslog | Yes |
| Web-based management | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
Power
| Power consumption (typical) | 24.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE/Passive PoE |
Design
| Cable lock slot | Yes |
| LED indicators | LAN/Power/Status/WAN/WLAN |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
| Antenna type | Internal |
| Antennas quantity | 2 |
Performance
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Weight & dimensions
| Depth | 86 mm |
| Height | 20 mm |
| Width | 143 mm |
Packaging data
| Package depth | 184 mm |
| Package height | 33 mm |
| Package type | Box |
| Package weight | 300 g |
| Package width | 117 mm |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Sustainability
| Sustainability compliance | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
