High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
General
| Unit Calculated Weight | 0.87 kg |
| Unit Calculated Volume | 0.003494 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| CnCode | 85176200 |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.245 |
| Unit Box Width | 0.062 |
| Model name | EAP620 HD |
| Series | Omada |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| BeamForming | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Fit AP mode features | Mesh networking |
| Flow control support | Yes |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3at |
| Number of users | 1020 user(s) |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Spread spectrum method | OFDMA |
| Transmitting power (CE) | 20/23 dBm |
| Transmitting power (FCC) | 23 dBm |
| VLAN support | Yes |
Security
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3/SSH/WEP/WPA2-Enterprise/WPA2-PSK/WPA3/WPA3-PSK/WPA-Enterprise/WPA-PSK |
Management features
| Firmware upgradeable | Yes |
| Syslog | Yes |
| Web-based management | Yes |

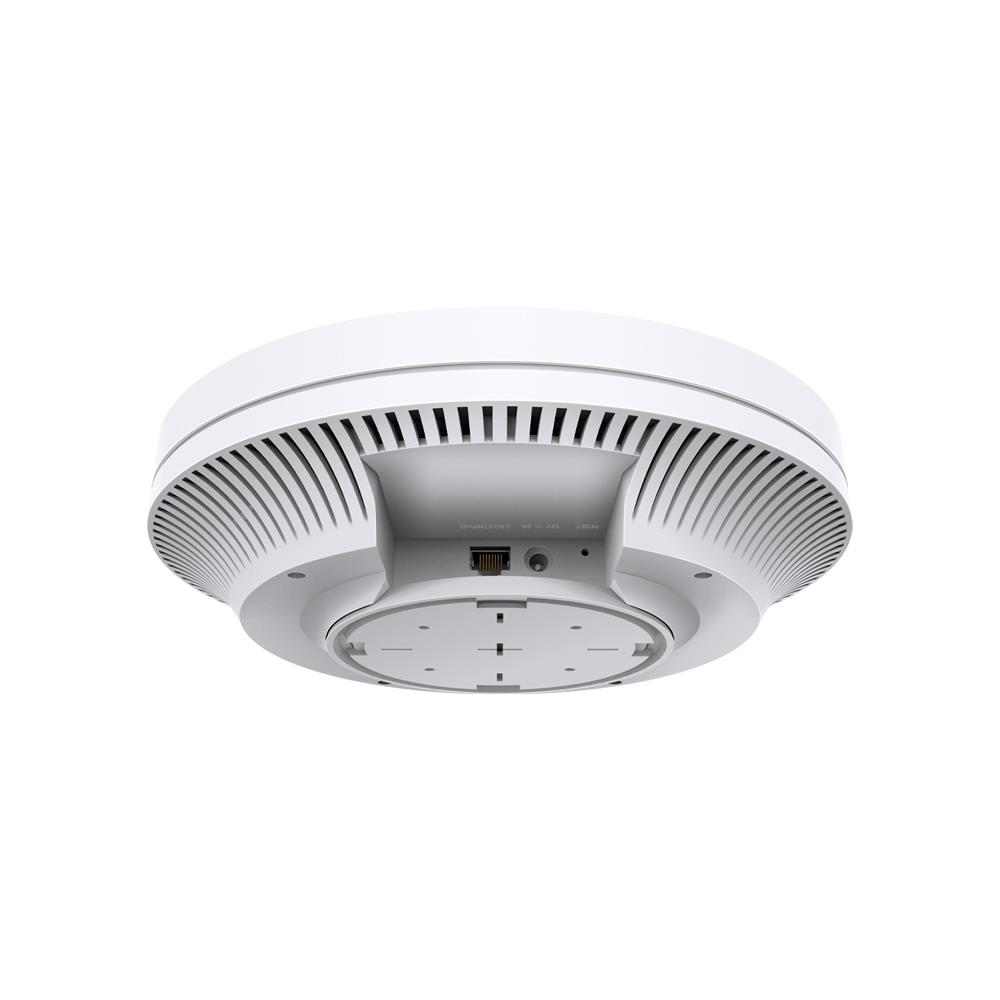

Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE/Passive PoE |
Design
| LED indicators | Yes |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
Certificates
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Depth | 160 mm |
| Height | 33 mm |
| Width | 160 mm |
Packaging data
| Package type | Box |
Packaging content
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
