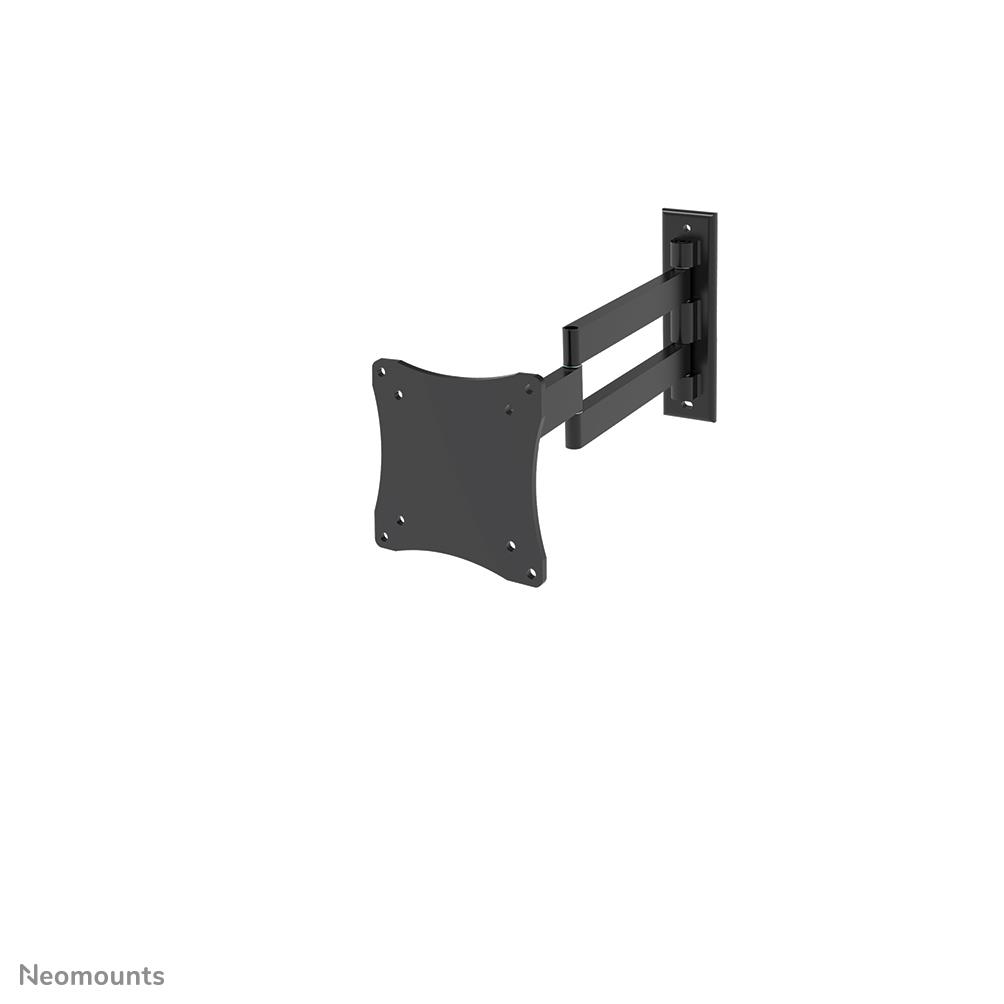

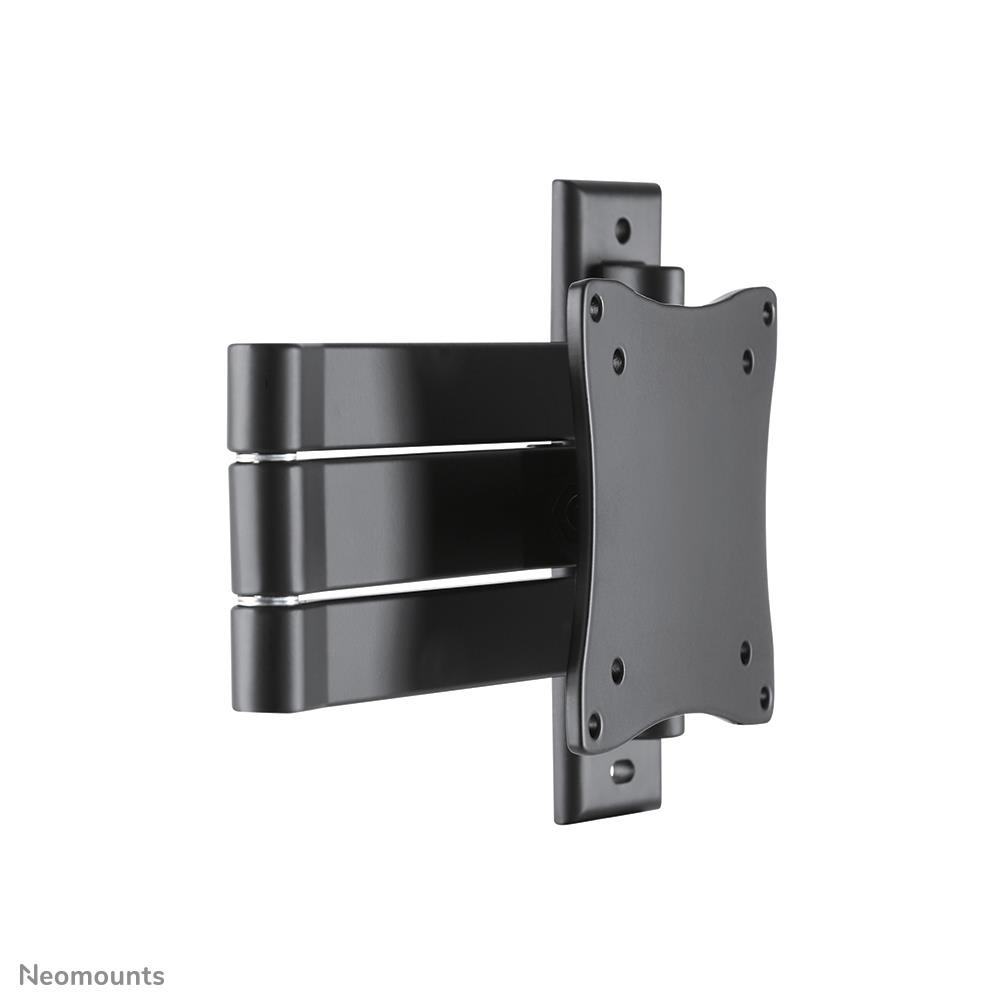

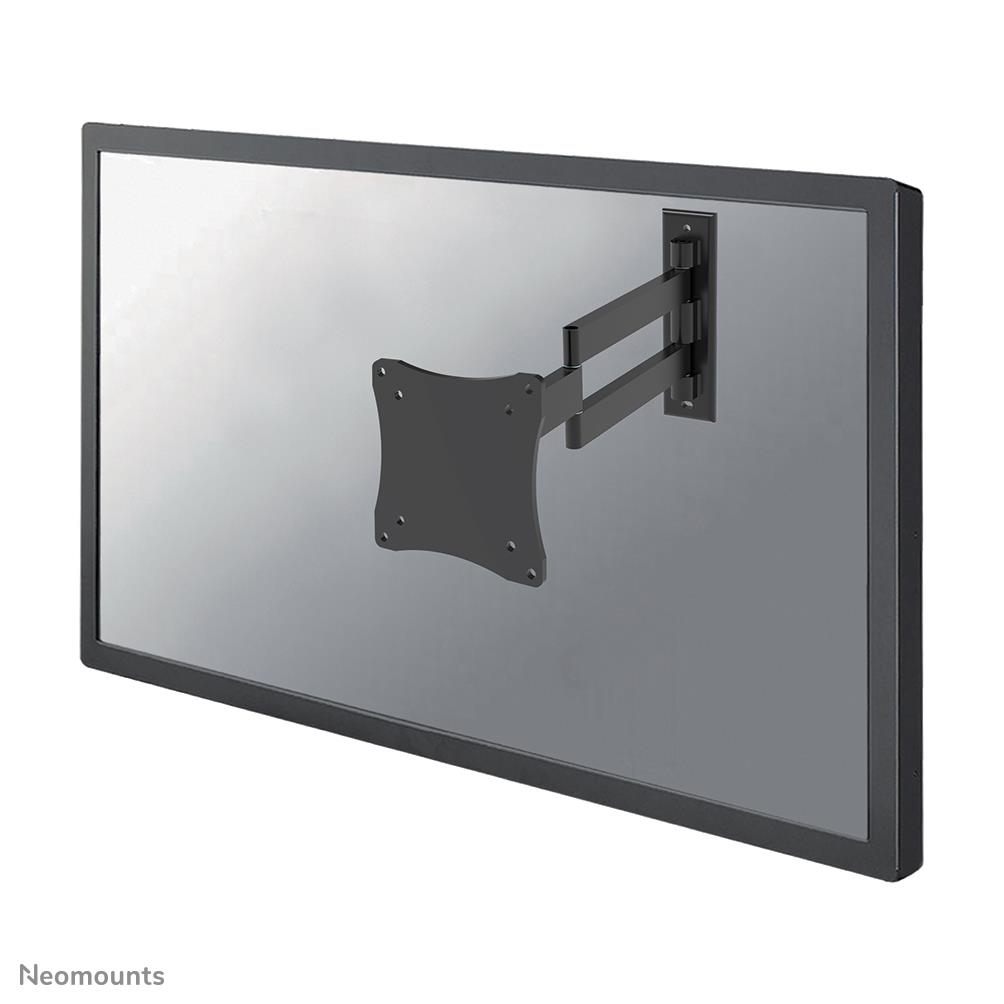

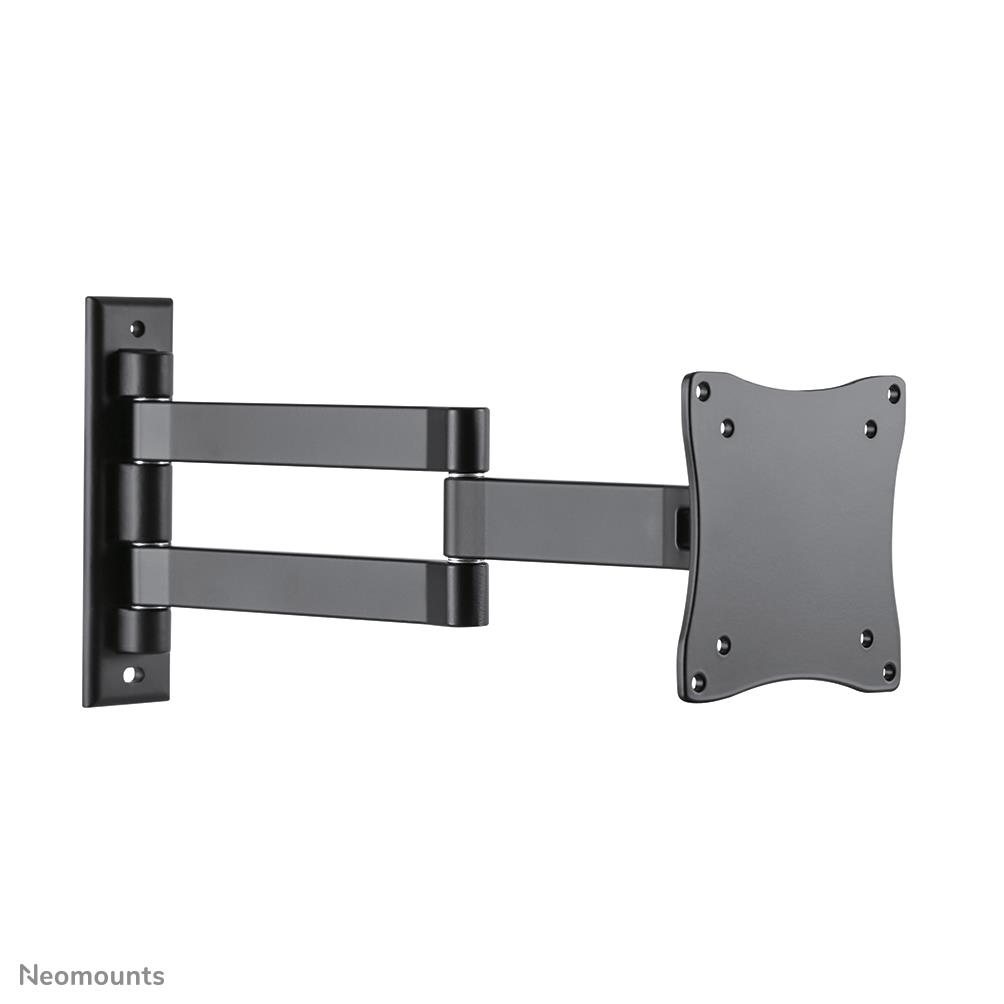

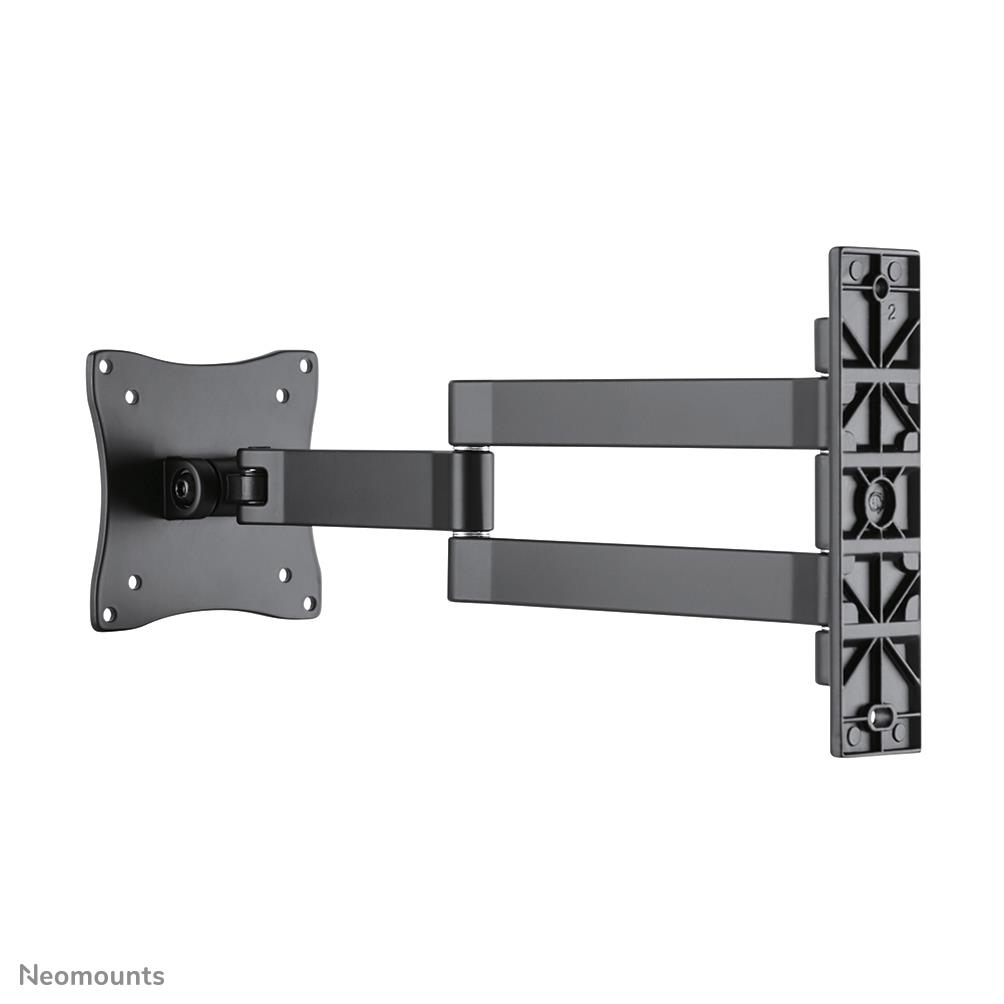

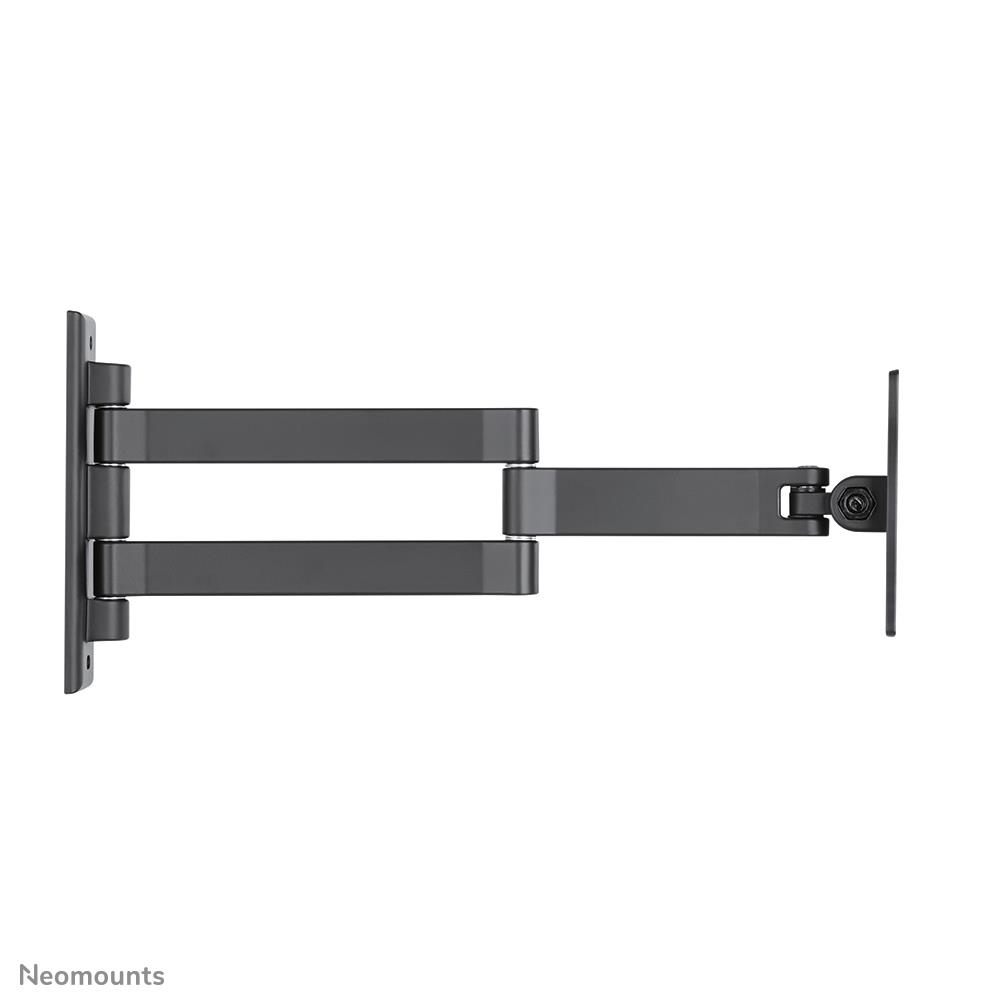

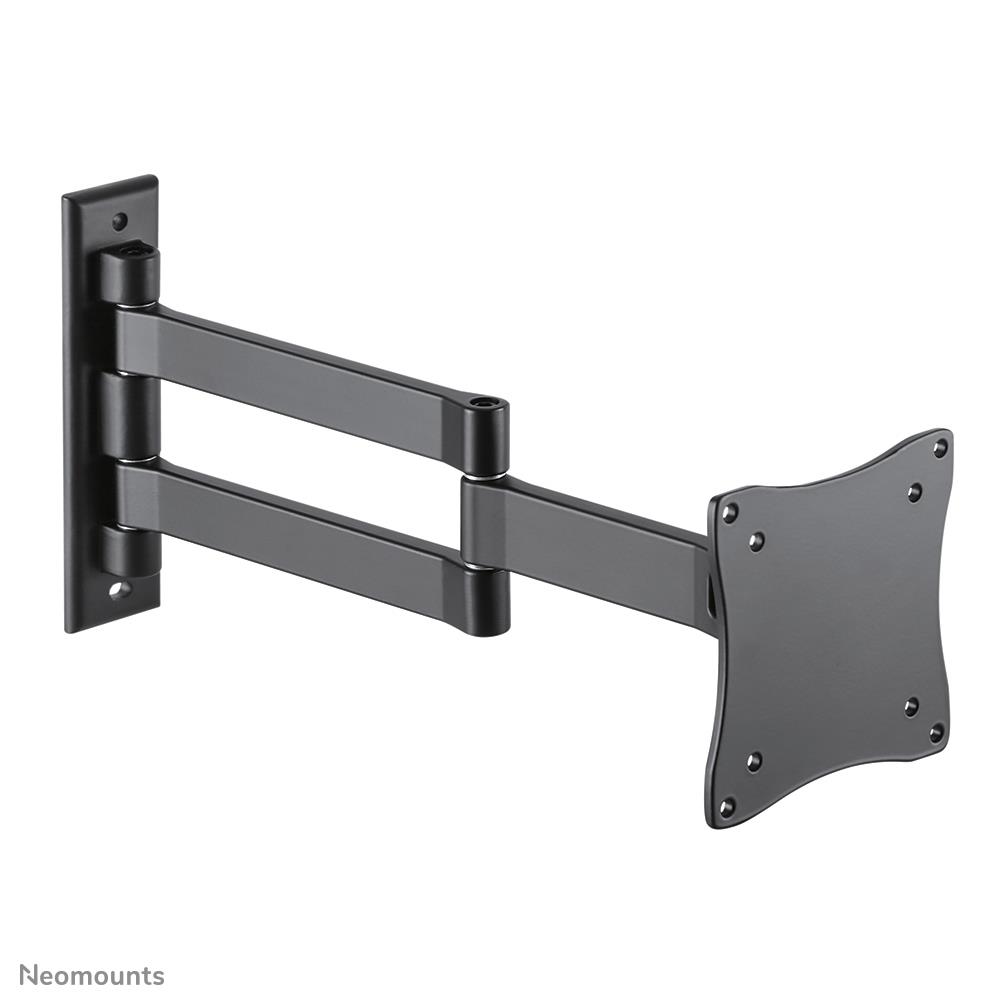

The Neomounts wall mount, model FPMA-W830BLACK is a tilt- and swivel wall mount for flat screens up to 27" (69 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.

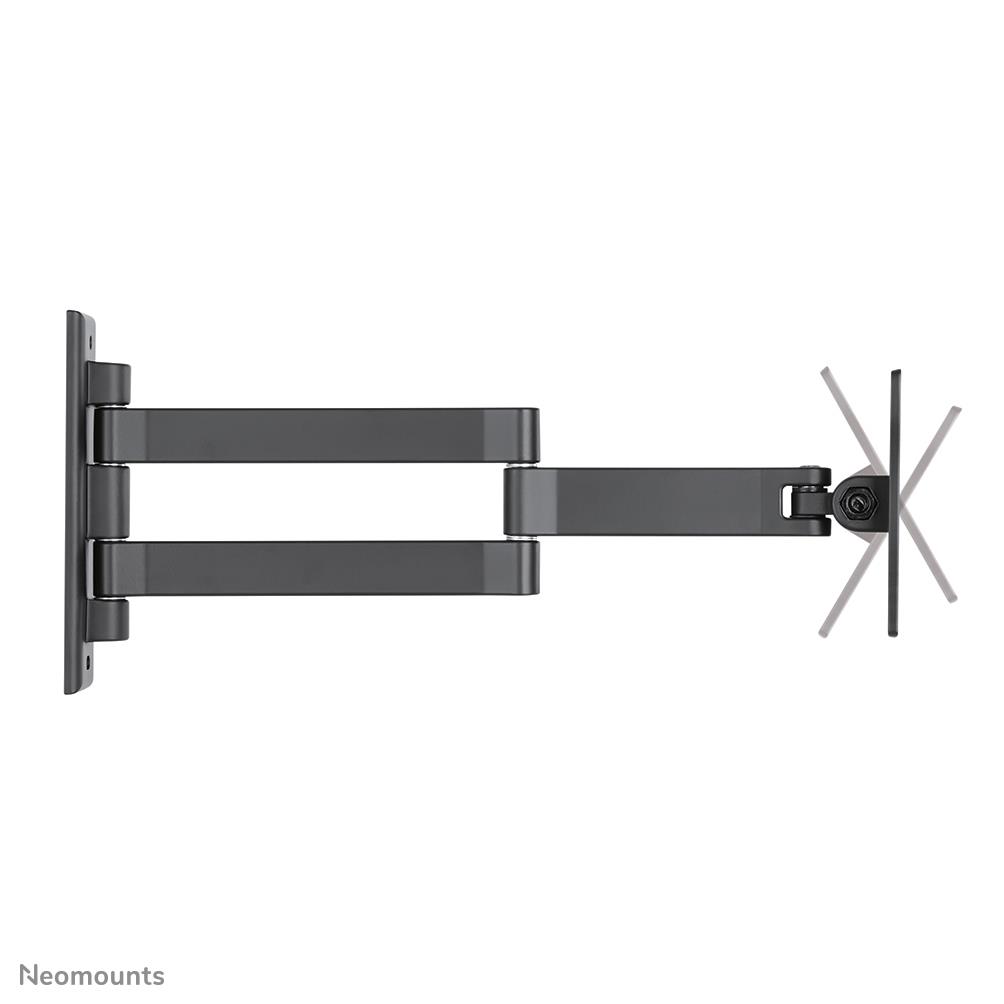

Neomounts' tilt (20°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 4 to 36 centimetres.
Neomounts FPMA-W830BLACK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 12 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 and 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
General
| Unit Calculated Weight | 1.04 kg |
| Unit Calculated Volume | 0.002422 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | Neomounts FPMA-W830BLACK Monitor/TV mount wall 10-27" - full motion. Maximum weight capacity: 12 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: 0 - 140°, Swivel angle range: 0 - 180°, Distance to the wall (min): 5 cm, Distance to the wall (max): 37 cm. Product colour: Black |
| Unit Box Height | 0.045 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.18 |
Mounting
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 12 kg |
| Maximum weight capacity (per display) | 12 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
Ergonomics
| Distance to the wall (max) | 370 mm |
| Distance to the wall (min) | 50 mm |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 140 ° |
| Type | Full motion |
Design
| Housing material | Aluminium |
| Product colour | Black |
Technical details
| Country of origin | China |
| Package net weight | 960 g |
Weight & dimensions
| Weight | 880 g |
Packaging data
| Package depth | 45 mm |
| Package height | 233 mm |
| Package weight | 1000 g |
| Package width | 178 mm |
Logistics data
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 12900 g |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case net weight | 11500 g |
| Master (outer) case width | 375 mm |
| Products per master (outer) case | 12 pc(s) |
| Products per pallet (EU) | 360 pc(s) |
