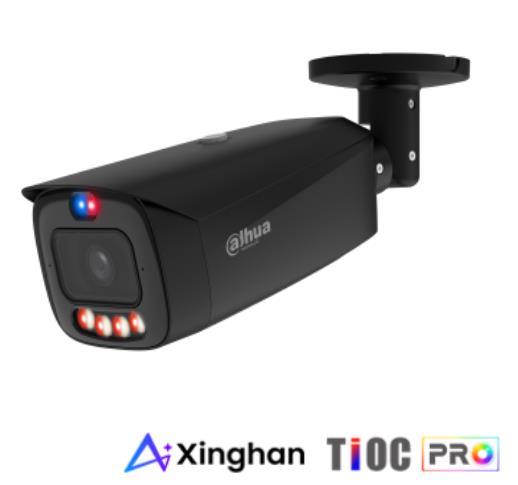

IPC-HFW3849T1-AS-PV-PRO
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 ×2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m · ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human), stay detection, loitering detection, face detection (full image).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length: 3.6 mm
> Field of View: 93°
General
| Unit Calculated Weight | 1.59 kg |
| Unit Calculated Volume | 0.00844 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.337 |
| Unit Box Width | 0.15 |
| Model | HFW3849T1-ASPV0360B-PRO-B |
Design
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Product colour | Black |
Performance
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Field of view (FOV) angle | 93 ° |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Sensor type | CMOS |
Lens system
| Fixed focal length | 3.6 mm |
Night vision
| B/W night vision distance | 50 m |
| LED type | IR |
| Night vision | Yes |
Video
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 ×2160 pixels |
| Total megapixels | 8 MP |
Audio
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Storage
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| RAM capacity | 1000 MB |
| ROM capacity | 256 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
Power
| DC output voltage | 12 |
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Storage temperature (T-T) | –40 °C to +60 °C °C |
Weight & dimensions
| Depth | 288.4 mm |
| Height | 84.7 mm |
| Weight | 1000 g |
| Width | 94.4 mm |
Technical details
| Audio input | 1 |
Other features
| Audio output | 1 |
