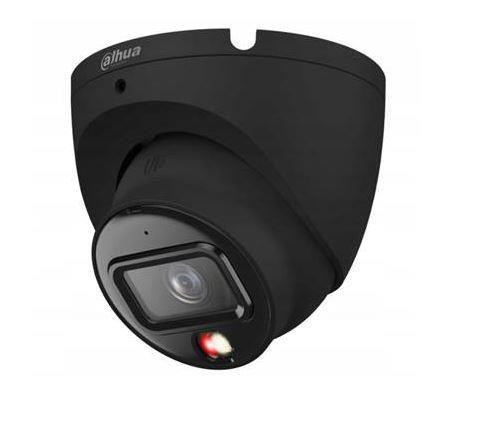

IPC-HDW1639T-AIL0280BS6-B
> 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3200 × 1800) @20 fps, and supports 2688 × 1520@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in Multi-core Light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Supports human detection.
> Focal Length 2.8 mm, Field of View 110°
General
| Unit Calculated Weight | 0.479 kg |
| Unit Calculated Volume | 0.001656 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.11 |
| Model | IPC-HDW1639T-AIL0280BS6-B |
Design
| Form factor | Eyeball |
| International Protection (IP) code | IP67 |
| Product colour | Black |
Performance
| Connectivity technology | Wired |
| Type | IP security camera |
Camera
| Field of view (FOV) angle | 110 ° |
| Minimum illumination | 0.0007 lx |
Lens system
| Fixed focal length | 2.8 mm |
Night vision
| B/W night vision distance | 30 m |
| LED type | IR |
| Night vision | Yes |
Video
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3200 × 1800 pixels |
| Total megapixels | 6 MP |
Audio
| Built-in microphone | Yes |
Storage
| RAM capacity | 256 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| DC output voltage | 12 |
| Power consumption (typical) | 5.3 W |
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Storage temperature (T-T) | –40 °C to +60 °C °C |
Weight & dimensions
| Diameter | 94 mm |
| Height | 85.6 mm |
| Weight | 340 g |
Technical details
| Lens mount interface | M12 |
