- 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in Mic
- 12 VDC/PoE power supply, easy for installation
General
| Unit Calculated Weight | 0.725 kg |
| Unit Calculated Volume | 0.002769 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |

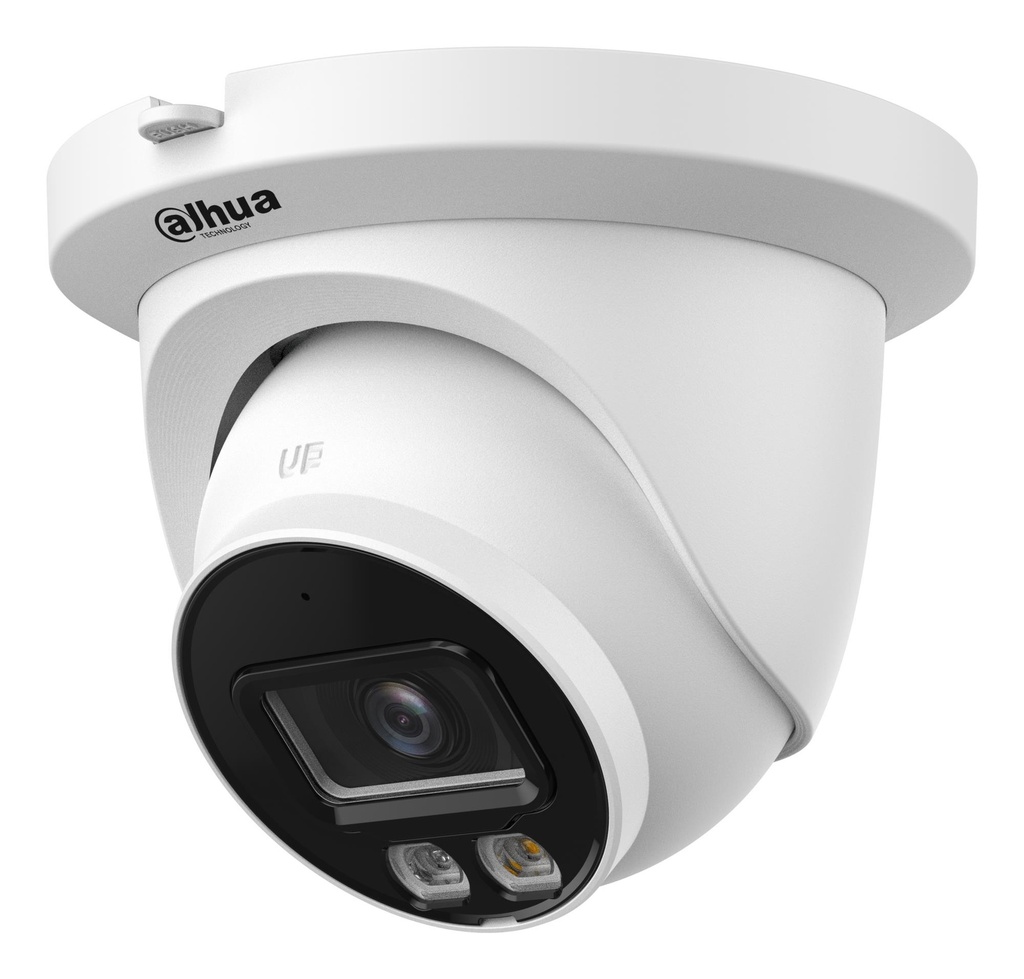

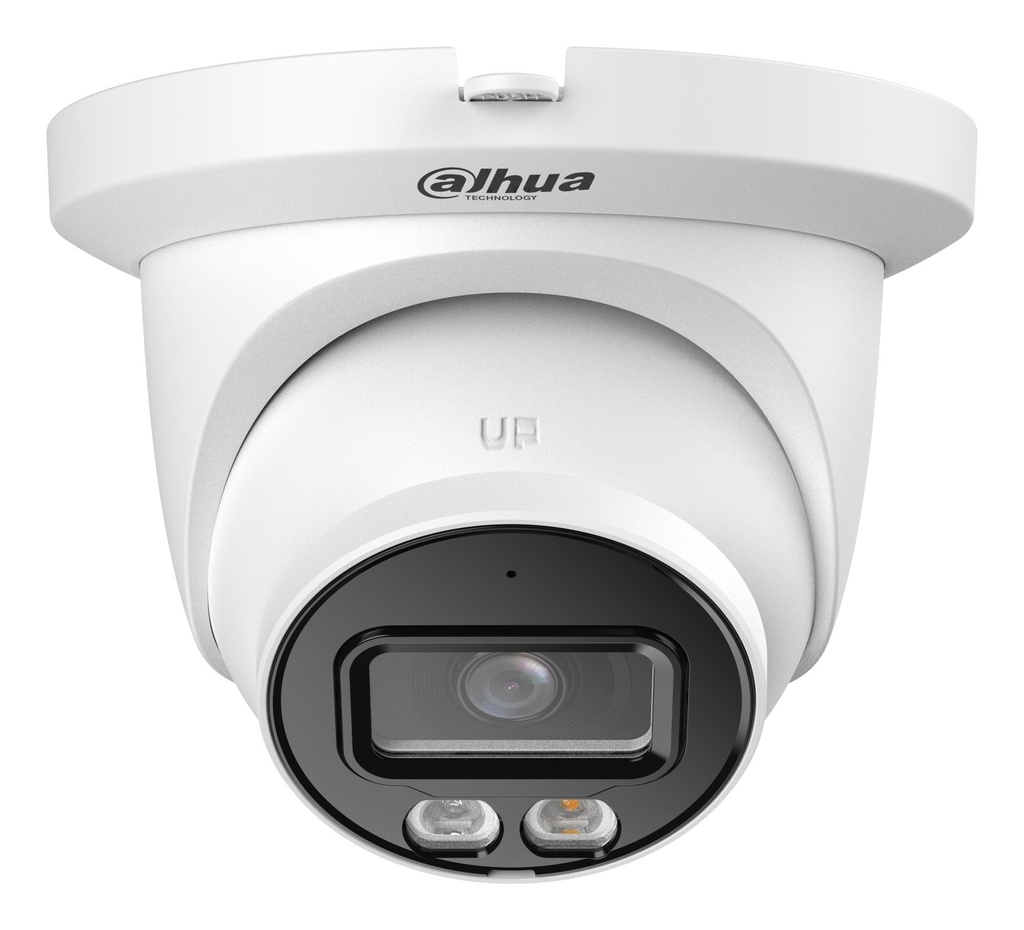

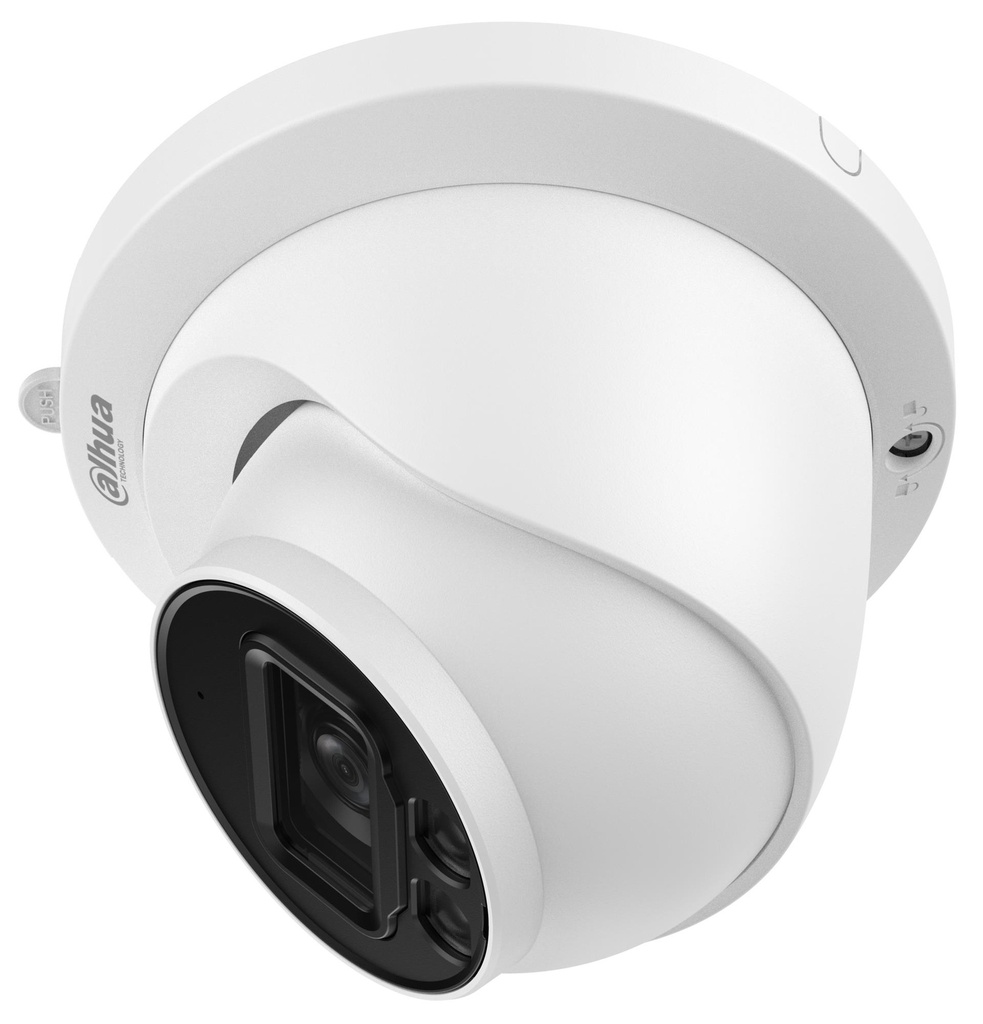

| Summary | Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.14 |
| Model | IPC-HDW2649TM-S-IL-0280B |
Design
| Form factor | Turret |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |

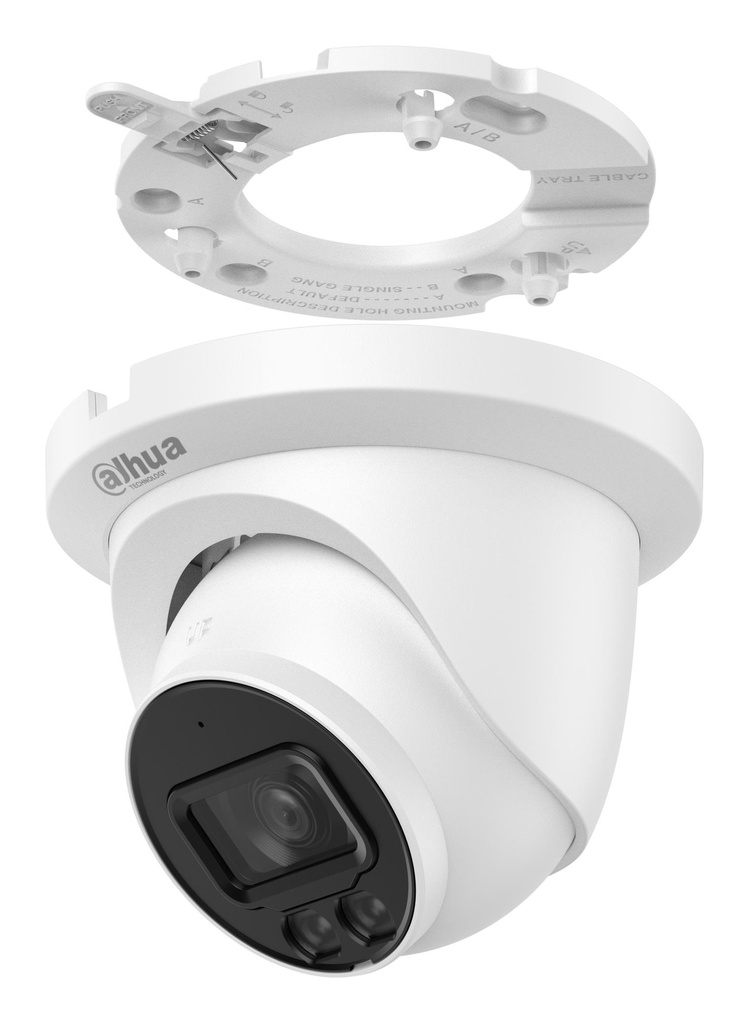

| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
Performance
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 132 ° |
| Lens viewing angle, horizontal | 112 ° |
| Lens viewing angle, vertical | 61 ° |
| Minimum illumination | 0.0007 lx |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 78 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 1 m |
| Detect distance | 61.2 m |
| Fixed focal length | 2.8 mm |
| Fixed focus | Yes |
| Identify distance | 6.1 m |
| Maximum aperture number | 1.6 |
| Observe distance | 24.5 m |
| Recognize distance | 12.2 m |
Night vision
| Colour night vision distance | 30 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3288 x 1850 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 6 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
Audio
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Built-in microphone | Yes |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| RAM capacity | 256 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 4.6 W |
| Power consumption (typical) | 2.5 W |
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Diameter | 121.9 mm |
| Height | 99.1 mm |
| Weight | 530 g |
Sustainability
| Compliance certificates | CE |
Packaging data
| Package weight | 670 g |
Packaging content
| Manual | Yes |
| Number of cameras | 1 |
