Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

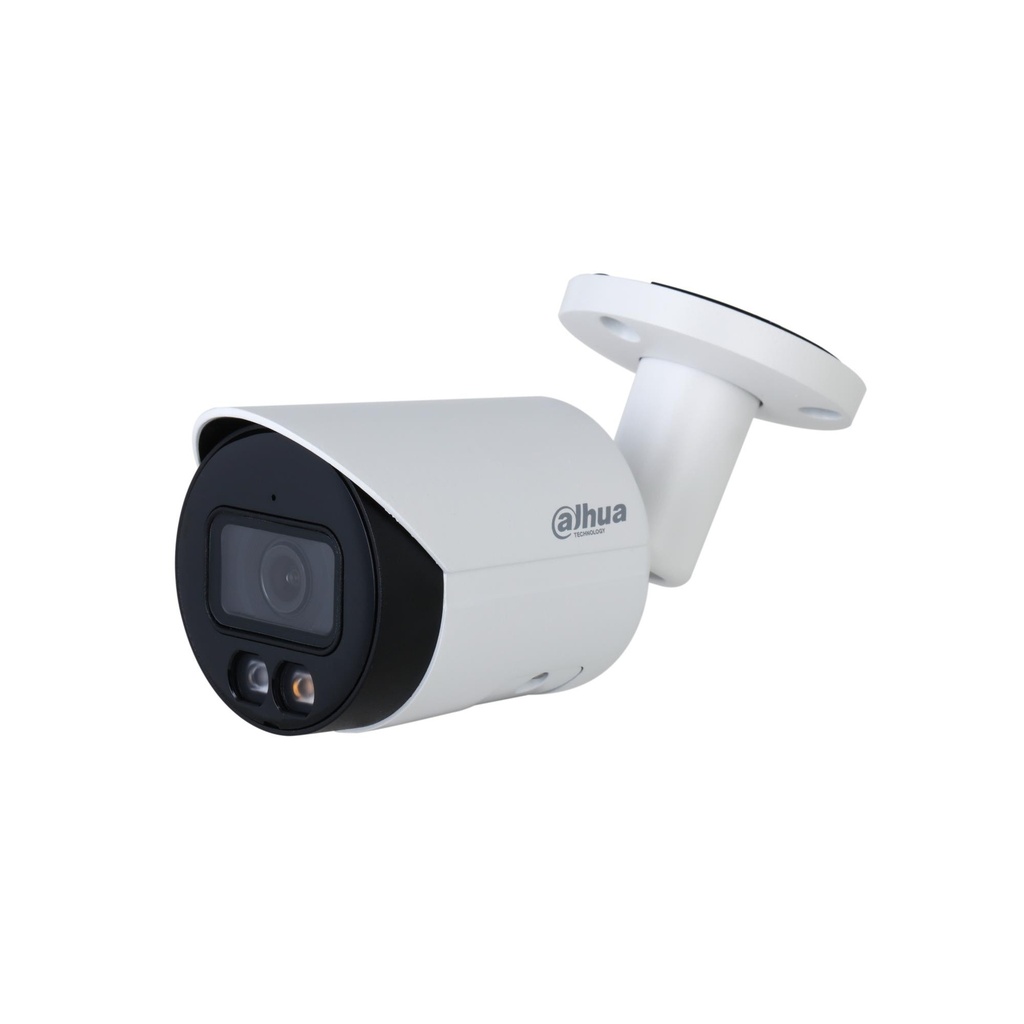

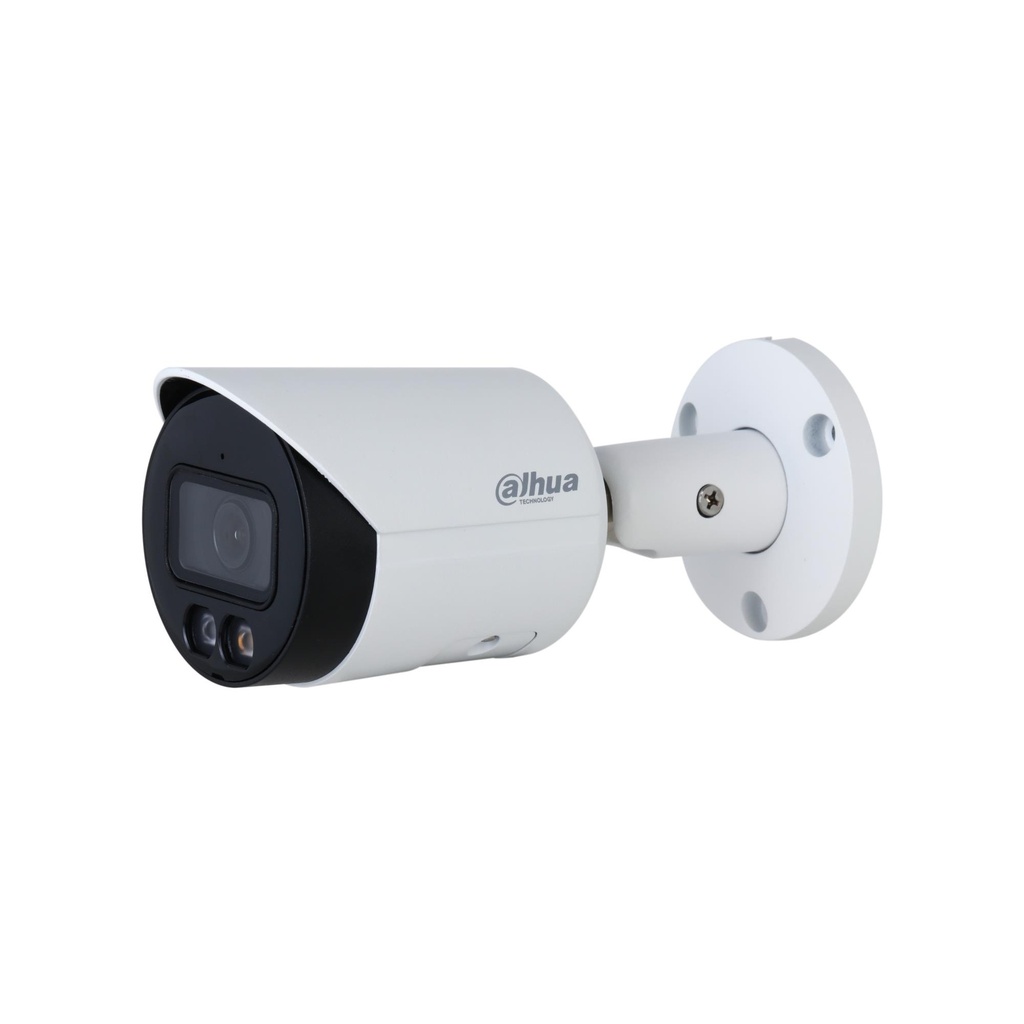

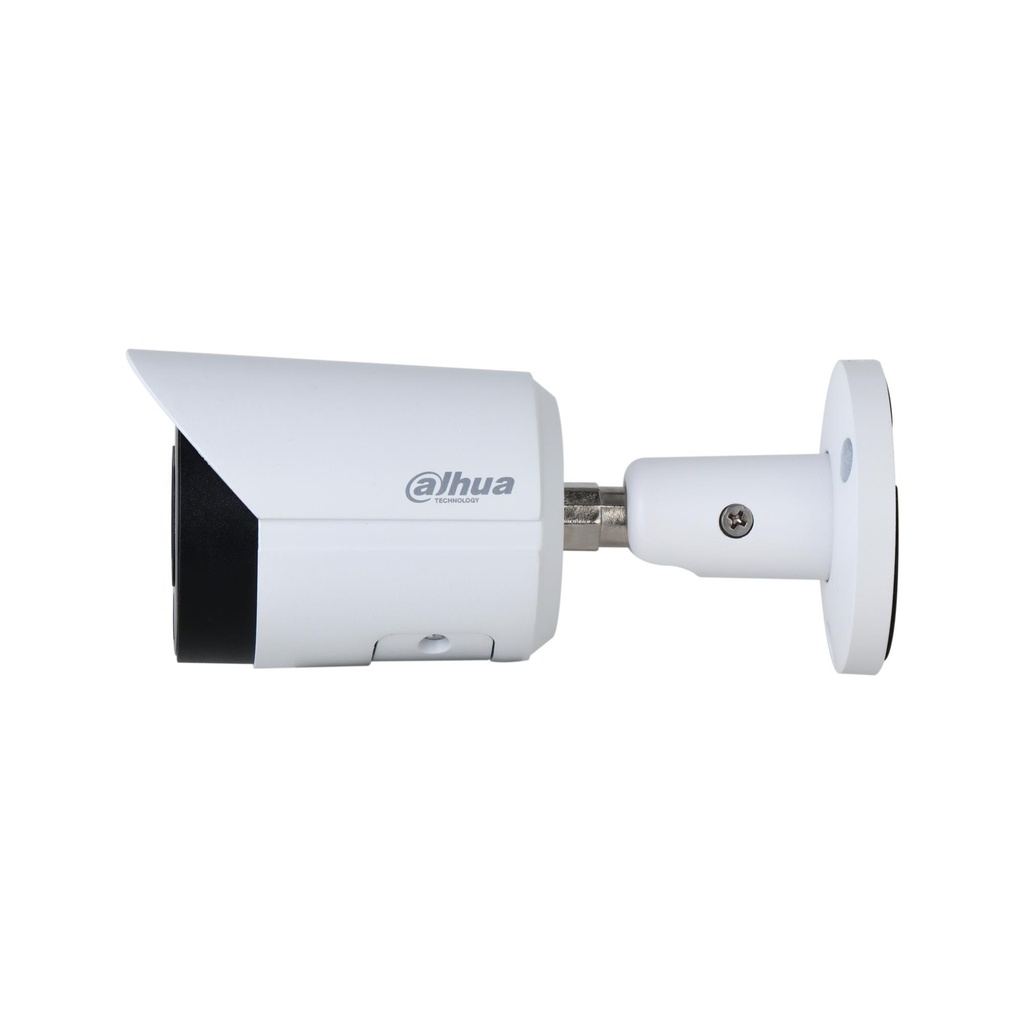

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply, easy for installation
- IP67 protection
- SMD Plus
General
| Unit Calculated Weight | 0.643 kg |
| Unit Calculated Volume | 0.002862 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | Dahua Technology WizSense IPC-HFW2449S-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0008 lx, Angle of rotation: 360°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Closest focusing distance: 0.9 m |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.11 |
| Unit Box Width | 0.21 |
| Model | IPC-HFW2449S-S-IL-0280B |
Design
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Performance
| Certification | CE-LVD: EN 62368-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Minimum illumination | 0.0008 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
Image sensor
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 0.9 m |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Number of lenses | 2 |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 1 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/342 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
Audio
| Audio formats supported | G.711 µ-law/G.711 A-law/G.726/PCM |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 6 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 128 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
Management features
| Management software | DSS; DMSS |
| Web browser | Yes |
| Web-based management | Yes |
Power
| Power consumption (max) | 4.4 W |
| Power consumption (Power over Ethernet (PoE)) | 2.5 W |
| Power consumption (typical) | 2.1 W |
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Depth | 166.2 mm |
| Height | 70 mm |
| Weight | 480 g |
| Width | 70 mm |
Packaging data
| Package weight | 590 g |
Packaging content
| Number of cameras | 1 |
