- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply, easy for installation
- IP67 protection
- SMD Plus
General
| Unit Calculated Weight | 0.645 kg |
| Unit Calculated Volume | 0.002632 cubm |
| Units per Shipping Box | 20 |

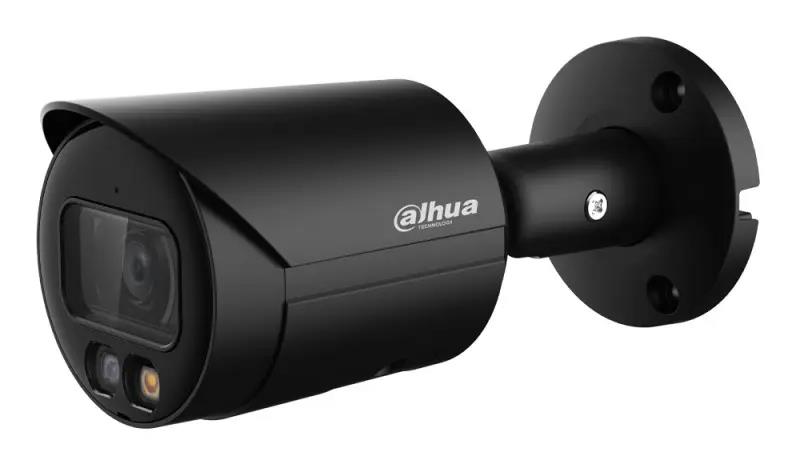

| Summary | Dahua Technology IPC-HFW2849S-S-IL-0280B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Sensor type: CMOS. Maximum resolution: 3840 x 2160 pixels, Total megapixels: 8 MP. Power source type: DC, PoE |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.205 |
| Unit Box Width | 0.105 |
| Model | IPC-HFW2849S-S-IL-0280B-B |
Design
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black |
Performance
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
Image sensor
| Sensor type | CMOS |
Lens system
| Number of lenses | 1 |
Night vision
| Night vision | Yes |
Video
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Power
| Power source type | DC,PoE |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Depth | 70 mm |
| Height | 166.2 mm |
| Weight | 470 g |
| Width | 70 mm |
Packaging data
| Package weight | 590 g |
Packaging content
| Number of cameras | 1 |
