- 1/1.8" CMOS image sensor, low luminance, and high definition image
- Outputs max. 6 MP (3072 × 2048) @25/30 fps
- Built-in multi-core light, the max. IR distance is 80 m and the max. warm light distance is 60 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models
- With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk
- 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation
- IP67 and IK10 protection
General
| Unit Calculated Weight | 1.51 kg |
| Unit Calculated Volume | 0.00714 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

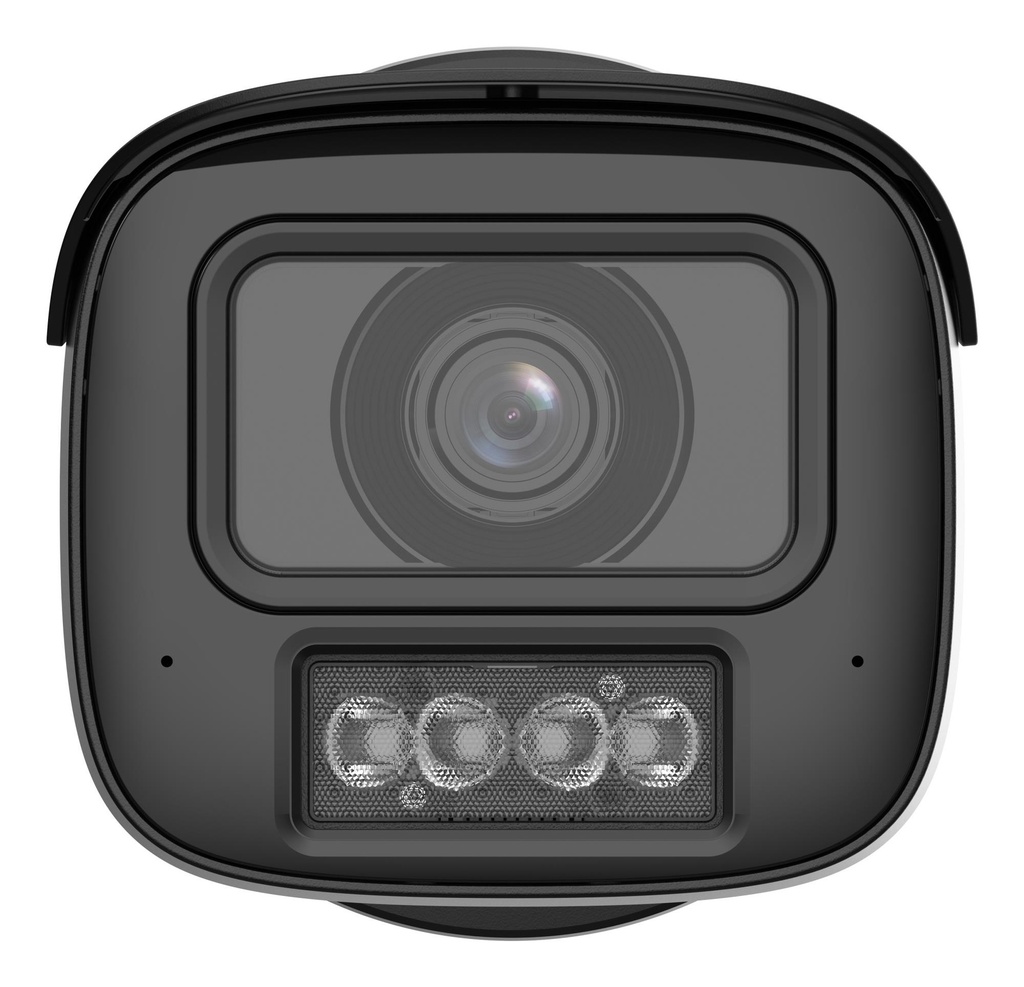

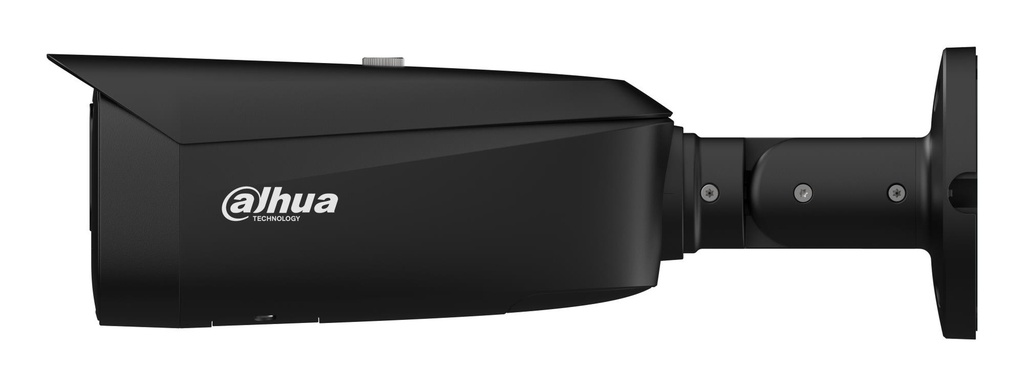

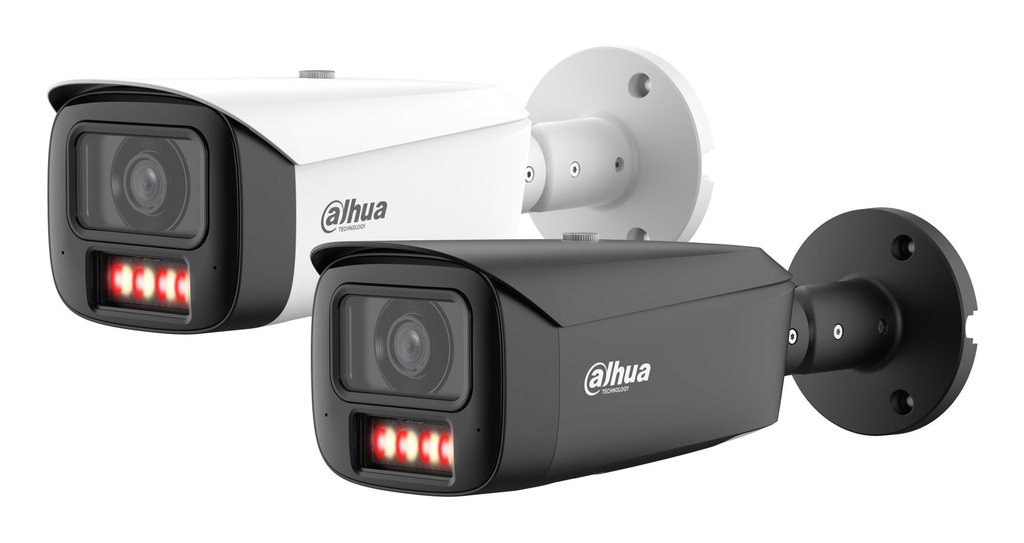

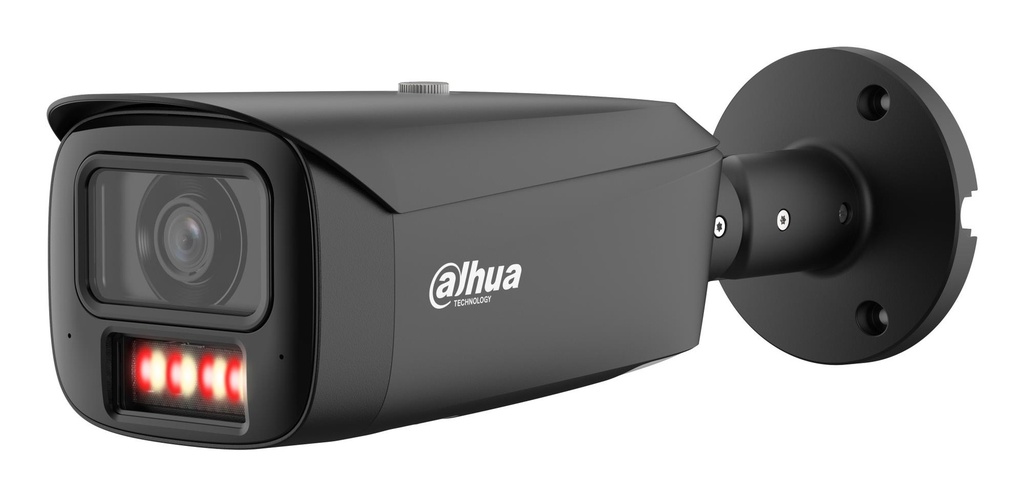

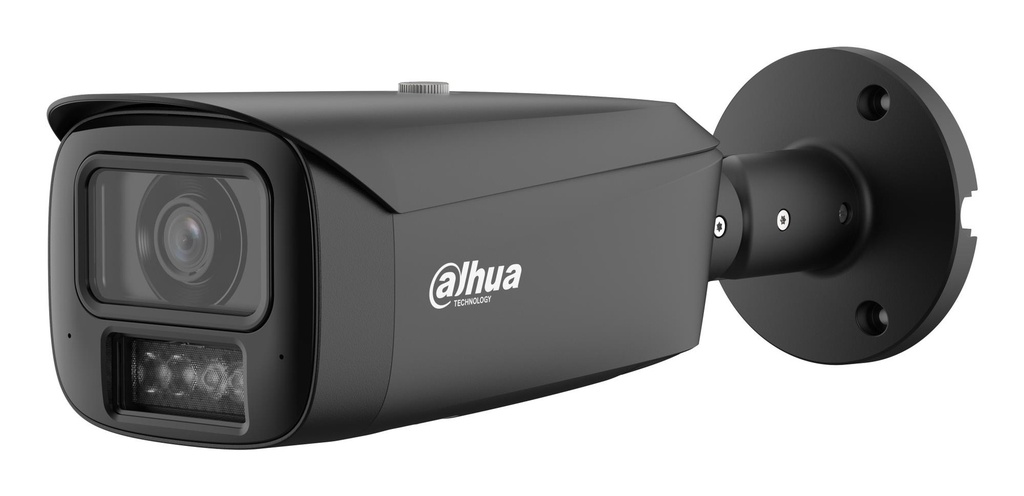

| Summary | Dahua Technology WizMind IPC-HFW5659T1-ASE-PV-PRO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0001 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 109°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 70.2 m, Observe distance: 28.1 m, Recognize distance: 14 m |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.34 |
Design
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black |
Performance
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 130 dB |
| People counting function | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 131 ° |
| Lens viewing angle, horizontal | 109 ° |
| Lens viewing angle, vertical | 59 ° |
| Minimum illumination | 0.0001 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
Image sensor
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
Lens system
| Closest focusing distance | 3.2 m |
| Detect distance | 70.2 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 7 m |
| Maximum aperture number | 1 |
| Observe distance | 28.1 m |
| Recognize distance | 14 m |
Night vision
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 80 m |
| Number of illumination LEDs | 4 |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3072 x 2048 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Total megapixels | 6 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
Audio
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of microphones | 2 |
| Signal-to-Noise Ratio (SNR) | 56 dB |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| RAM capacity | 2000 MB |
| ROM capacity | 4000 MB |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Heat map/Intrusion/People counting/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
Management features
| Web browser | Yes |
Power
| DC output voltage | 12 |
| Power consumption (max) | 21.6 W |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power consumption (typical) | 4.1 W |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Mobile operating systems supported | Android/iOS |
Weight & dimensions
| Depth | 288.4 mm |
| Height | 84.7 mm |
| Length | 288.4 mm |
| Weight | 1090 g |
| Width | 94.4 mm |
Sustainability
| Compliance certificates | CE/Electromagnetic Compatibility (EMC) |
Packaging data
| Package type | Box |
| Package weight | 1390 g |
Packaging content
| Manual | Yes |
| Number of cameras | 1 |
Technical details
| Audio input | RCA |
| Lens mount interface | M16 |
Other features
| Audio output | RCA |
| Browser supported | IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88 |
