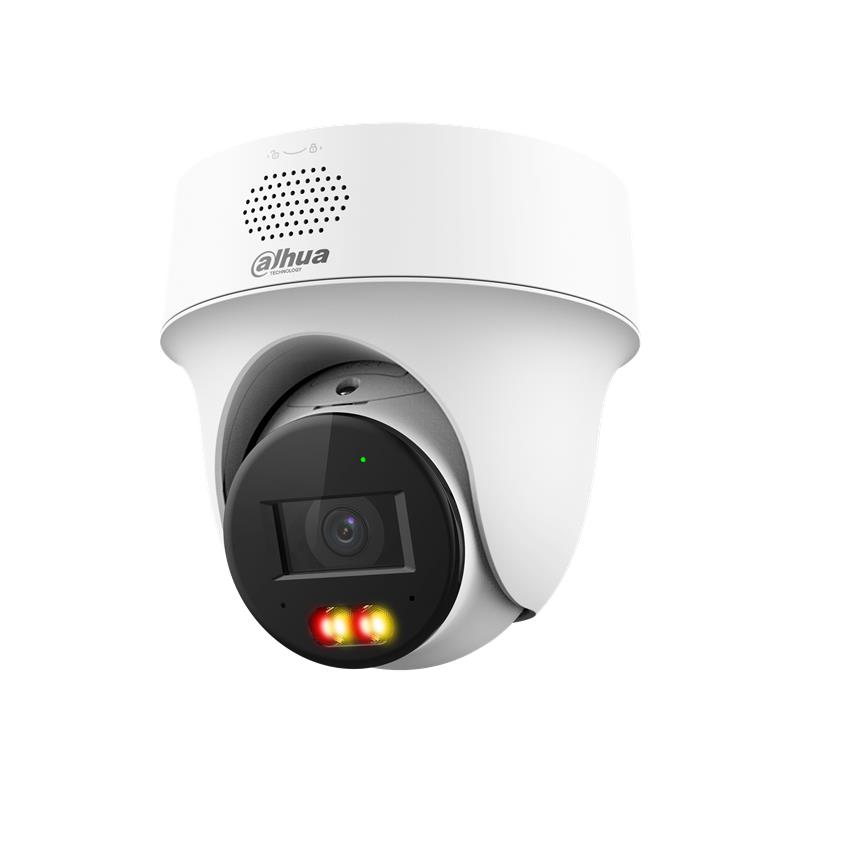

2MP Smart Dual Light Active Deterrence Network PT Camera
> 1/2.8" 4Megapixel CMOS.
> Max. 25/30 fps@4MP.
> H.265 Encoding.
> Human/Vehicle Detection.
> Perimeter Protection.
> Active Deterrence.
> Smart Dual Light.
> Two-way Talk.
> Easy App Controls.
> Focal Length 2.8 mm
> Field of View 103°
General
| Unit Calculated Weight | 0.65 kg |
| Unit Calculated Volume | 0.004913 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.17 |
| Model | IPC-PT1239H-PV-0280B |
Design
| Form factor | Eyeball |
| Product colour | White |
Performance
| Connectivity technology | Wired |
Camera
| Camera shutter speed | 1 s–1/30,000 s s |
Image sensor
| Number of effective pixels (H x V) | 1920 (H) × 1080 (V) pixels |
| Optical sensor size | 1/2.8" " |
| Sensor type | CMOS |
Lens system
| Focal length range | 2.8 mm; 3.6 mm mm |
Night vision
| LED type | IR/White |
Video
| Total megapixels | 2 MP |
Audio
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
Operational conditions
| Operating temperature (T-T) | –30 °C to +55 °C °C |
Weight & dimensions
| Diameter | 127.3 mm |
| Weight | 410 g |
| Width | 128.4 mm |
Technical details
| Power source | 12 VDC, 1.0 A ± 10% PoE (802.3af) |
| Suitable for outdoor use | Yes |
